XL6009E1

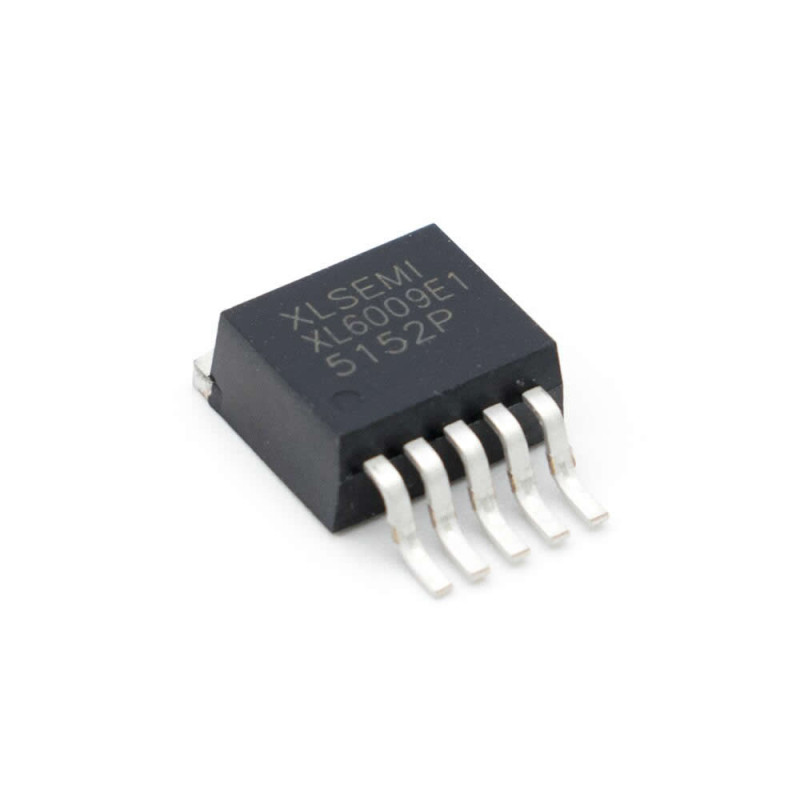

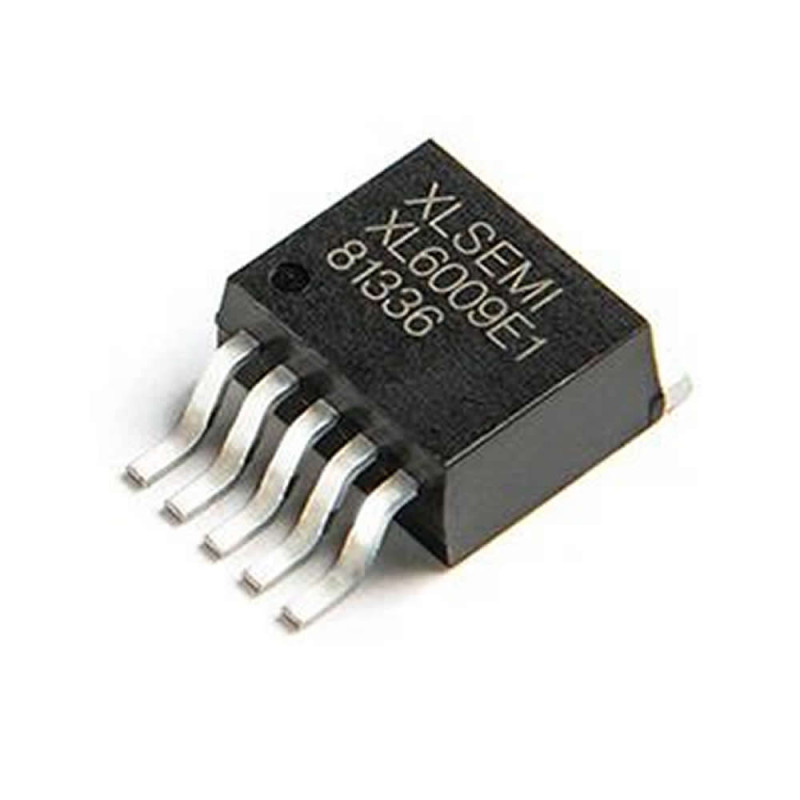

XLSEMI XL6009E1 TO263 400KHz 35V 4A Regulator IC

Boost Step-up Dc Dc Converter Regulator Switching Power Supply Adapter Car Automotive Inverting Converter

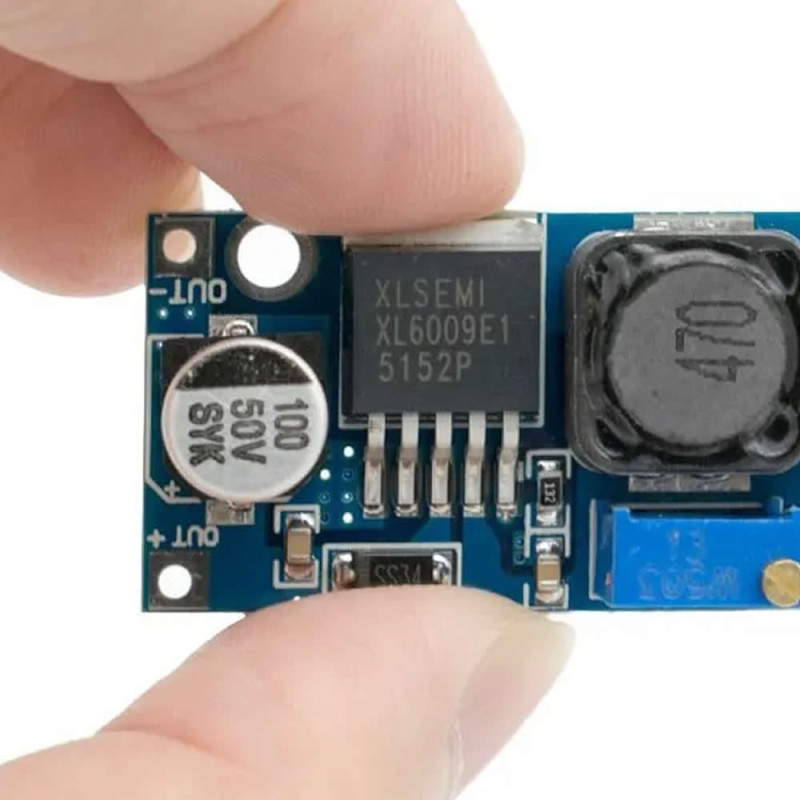

     It is a dc dc voltage step-up regulator IC. Current can be supplied up to 4A. The input voltage is between 3V / 32V. The input voltage applied in this range can be stepped up to an output voltage between 5V / 35V. You can use this IC, which has very easy use and high performance, in many of your hobby and robotics projects to solve the high voltage need problem.

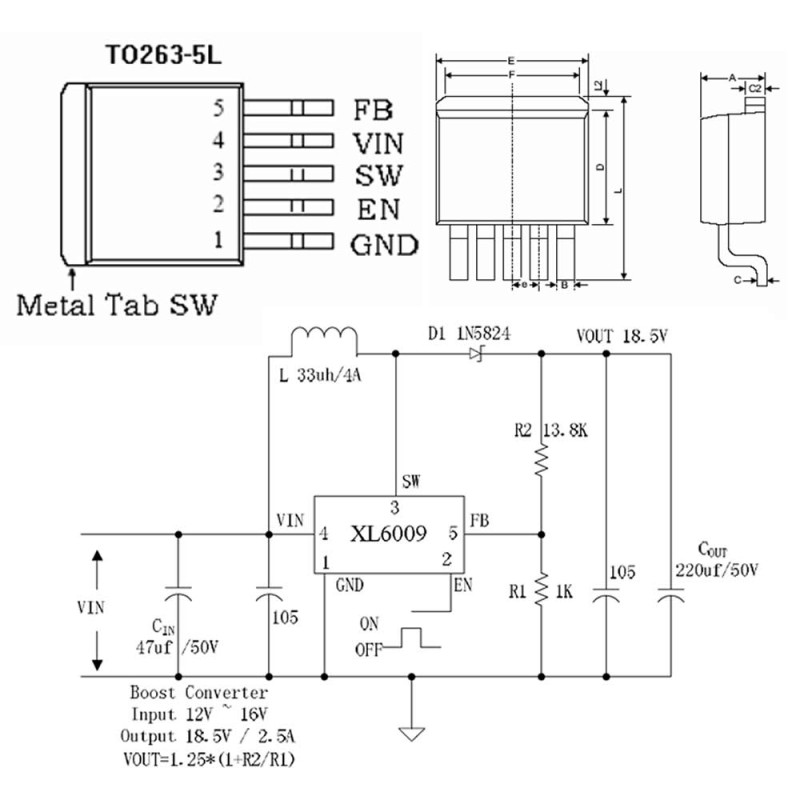

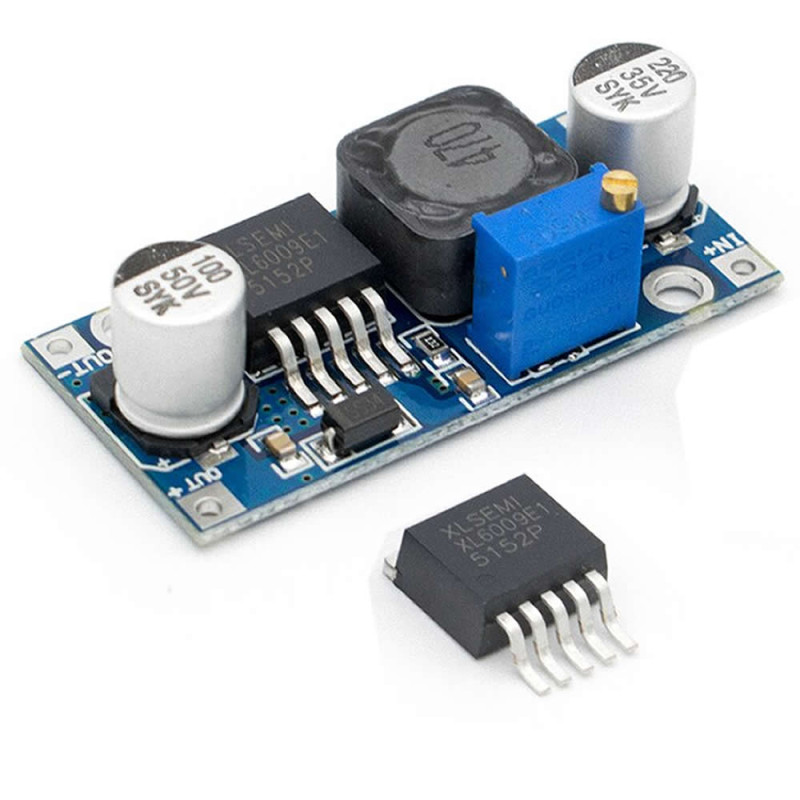

     The XL6009E1 regulator is a wide input range, current mode, DC/DC converter which is capable of generating either positive or negative output voltages. It can be configured as either a boost, flyback, SEPIC or inverting converter. The XL6009 built in N-channel power MOSFET and fixed frequency oscillator, current-mode architecture results in stable operation over a wide range of supply and output voltages. The XL6009 regulator is special design for portable electronic equipment applications.

Features:

•     IC: XL6009E1
•     Input voltage: DC 3V / 32V
•     Output voltage: DC  5V / 35V
•     Output current: 4A Maximum ( At high currents the IC needs to be cooled )
•     Optimized internal power mosfet
•     Efficiency: <94%
•     Switching frequency: 400KHz.
•     Internal frequency adjustment function
•     Soft start function
•     Short circuit protection
•     Temperature protection function
•     Current limit function
•     Operating temperature: -40C  /  +85C

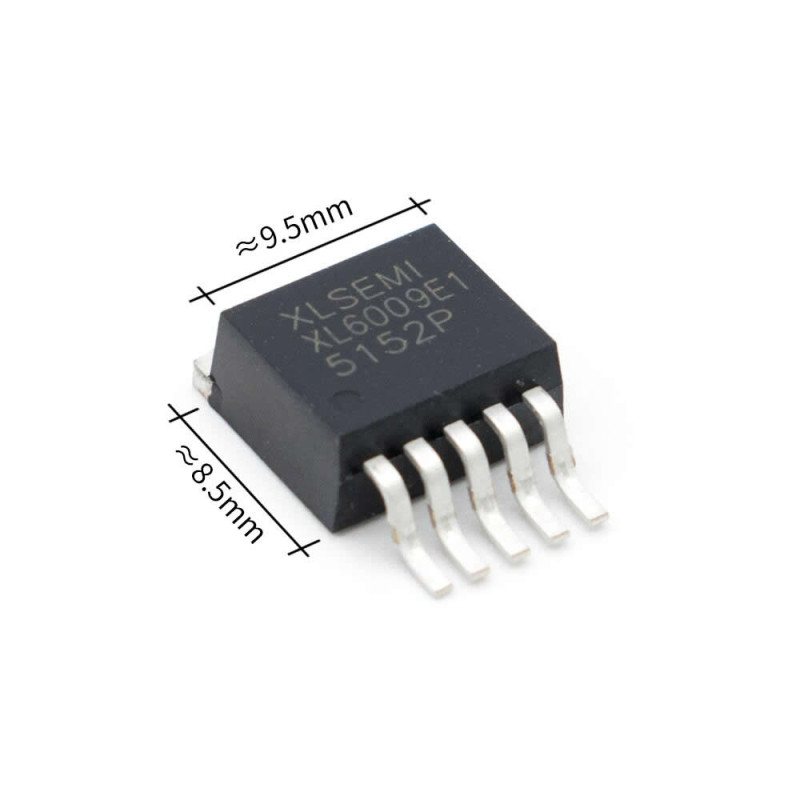

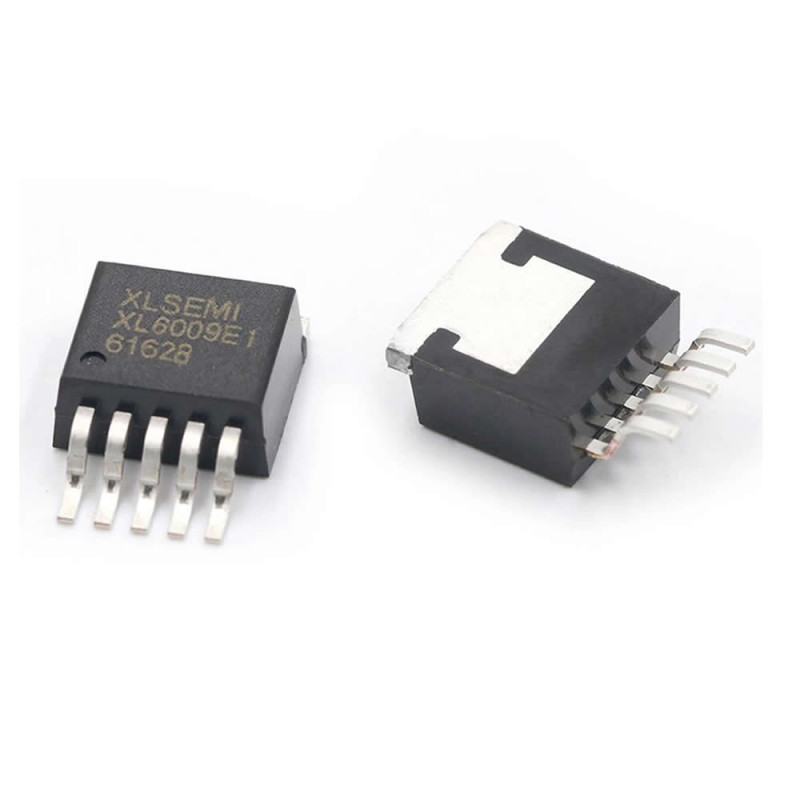

•     Dimensions: 8.5mm x 9.5mm
•     Weight: 1.5gr

Package Contents :

•     1 Piece XL6009E1 IC

.
