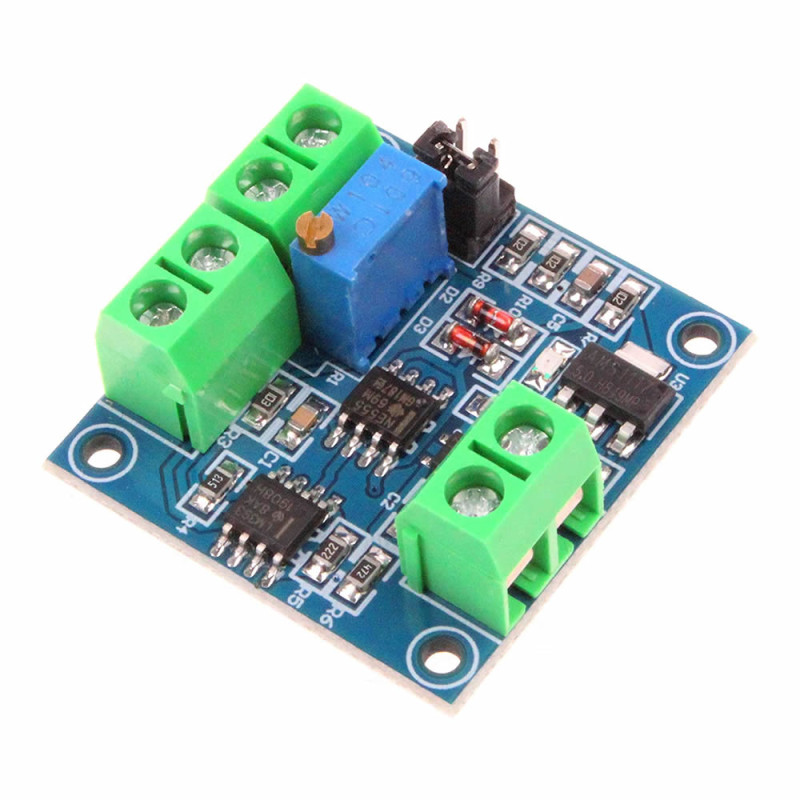

0-5V/0-10V to 0-100% Voltage Analog Digital Signal Converter Power Module Plc Sensor Automation Industrial

There is no reverse connection protection for the supply. The supply must be given correctly.

     It is a circuit that converts 0-5V and 0-10V voltage signals into pwm signal. It generates pwm signals between 0% and 100% according to the voltage level. The pwm frequency is 50khz. It is used in areas such as plcs, industrial automation applications.

     It is very small in size. And it is easy to use.  It is easily calibrated with the potentiometer on it. The input voltage range selection is made with the 2 jumpers on the left side.

Features:

• Module operating voltage: DC 7V / 12V
• Pwml voltage level:   0-5V / 0-10V
• Output pwm frequency: 50Khz
• Pwm duty:  0/100%
• Pwm voltage level: DC 5V
• Tolerance: 1 / 3 %
• Voltage selection jumper
• Supply indicator led
• Color: Blue / Green
• Operating temperature: -10C  / 85C
• 4 Mounting holes

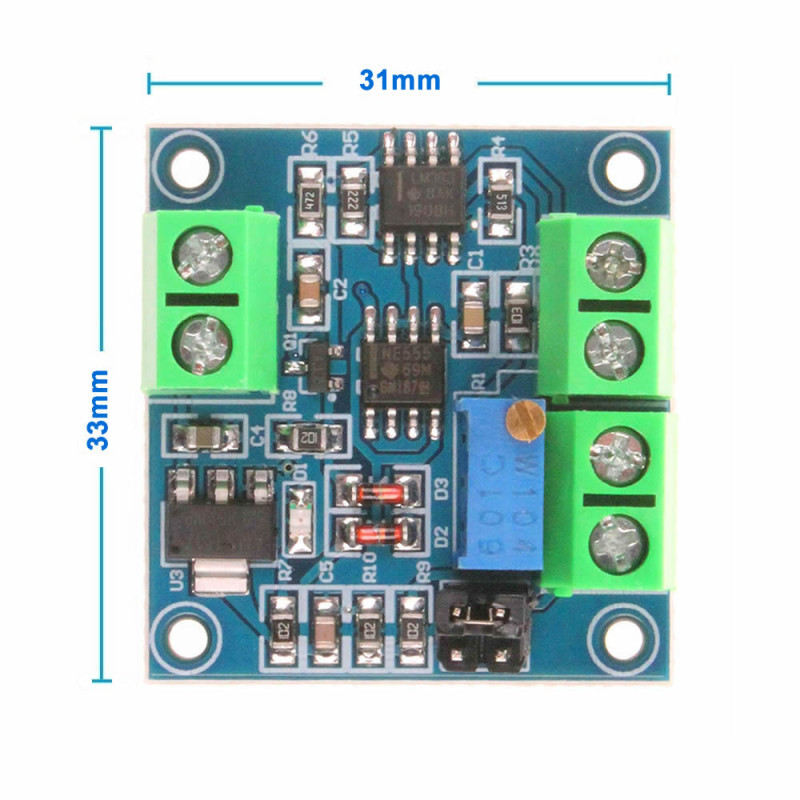

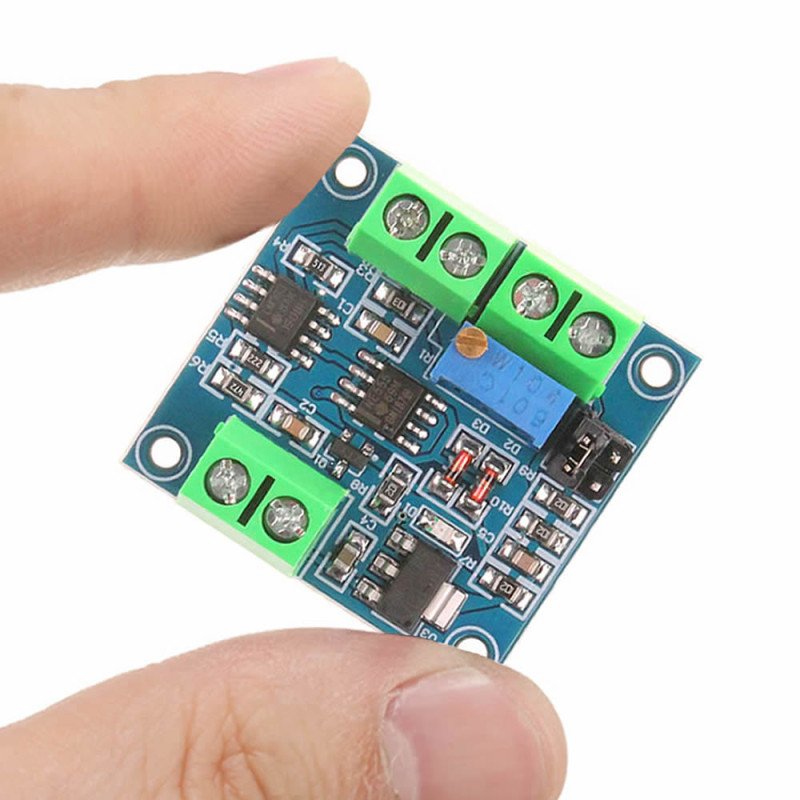

• Board dimensions: 31mm x 33mm
• Weight: 9gr

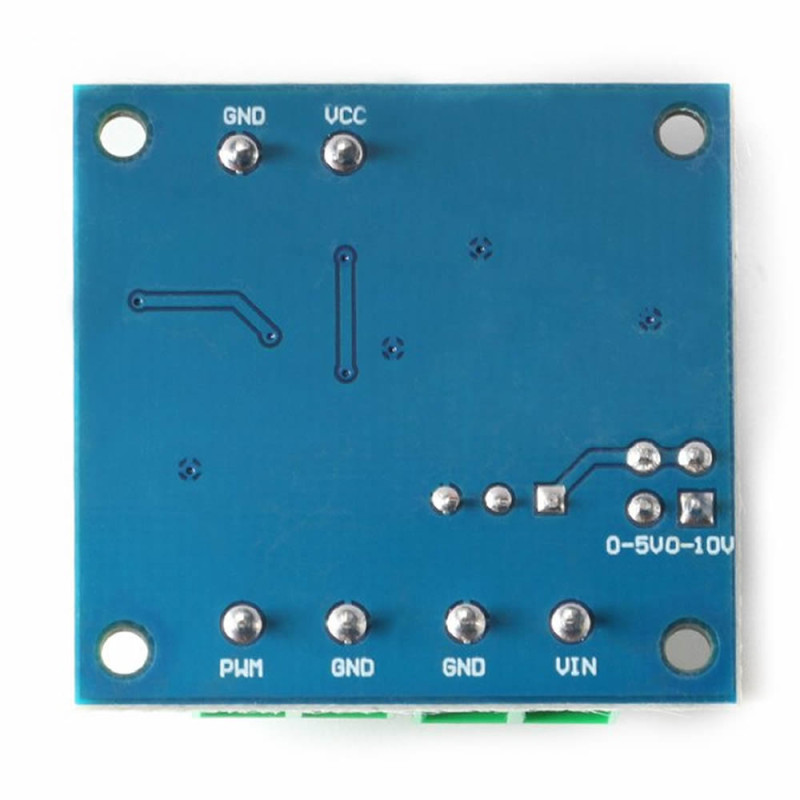

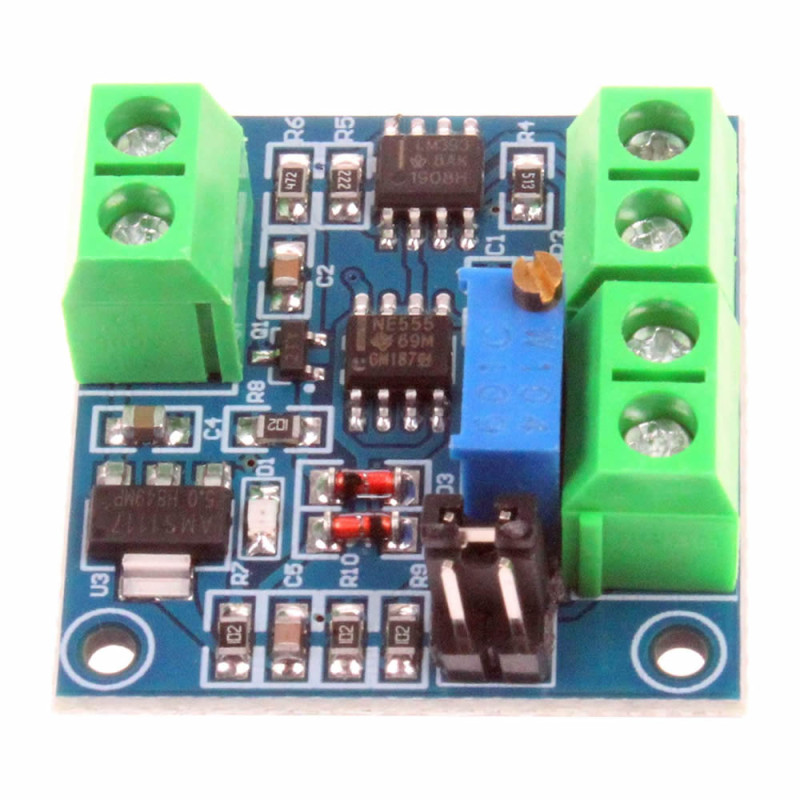

Pin Connections:

• VCC: Module supply positive pin DC 7V/12V
• GND: Module supply negative pin
• VIN: Voltage input positive pin
• GND: Input voltage ground pin
• GND: Pwm output ground pin
• PWM: Pwm output pin

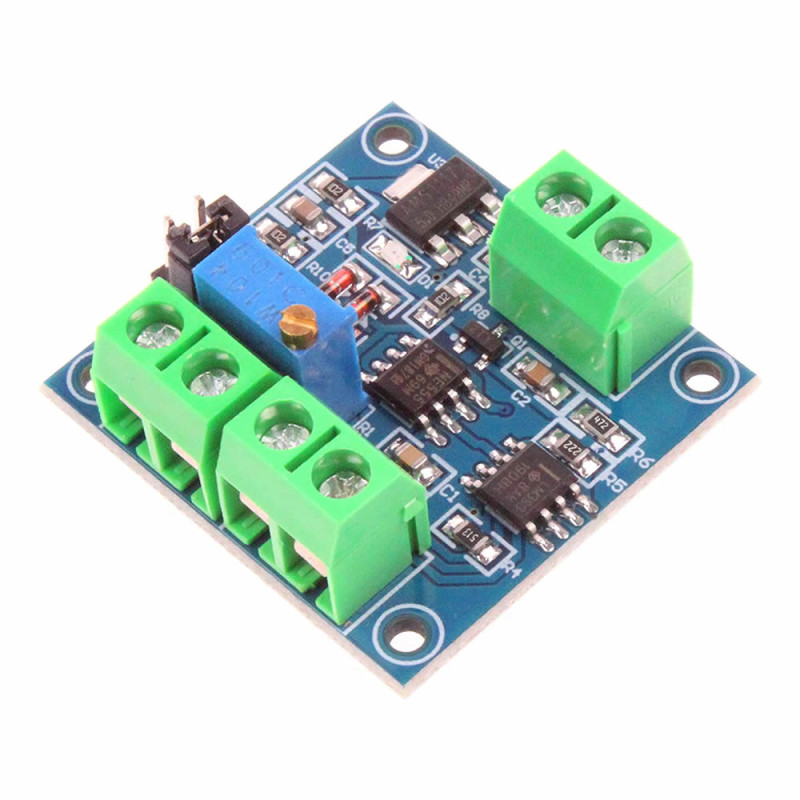

Terminal Block Connection:

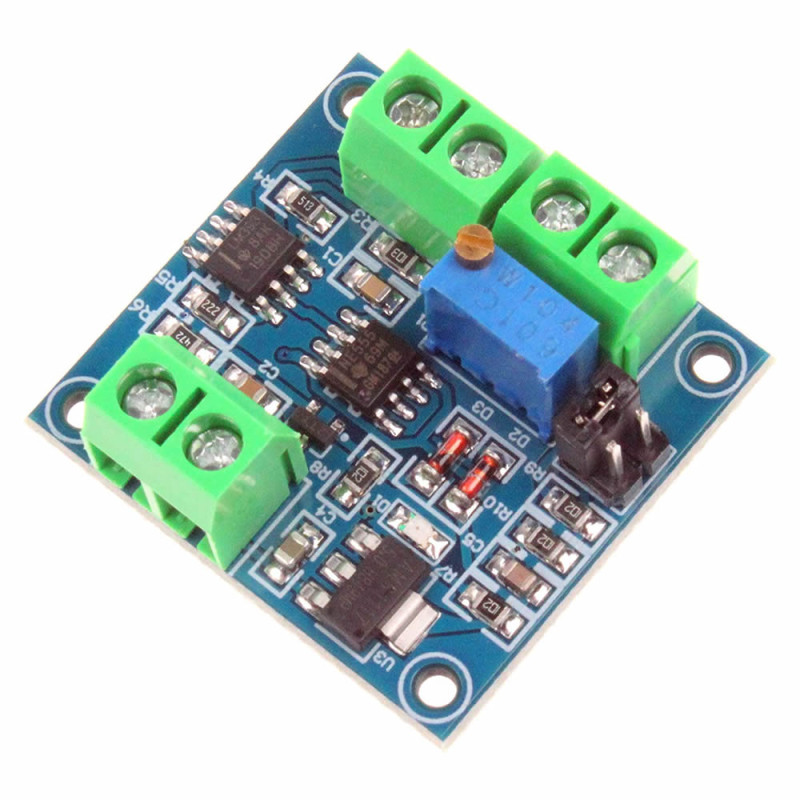

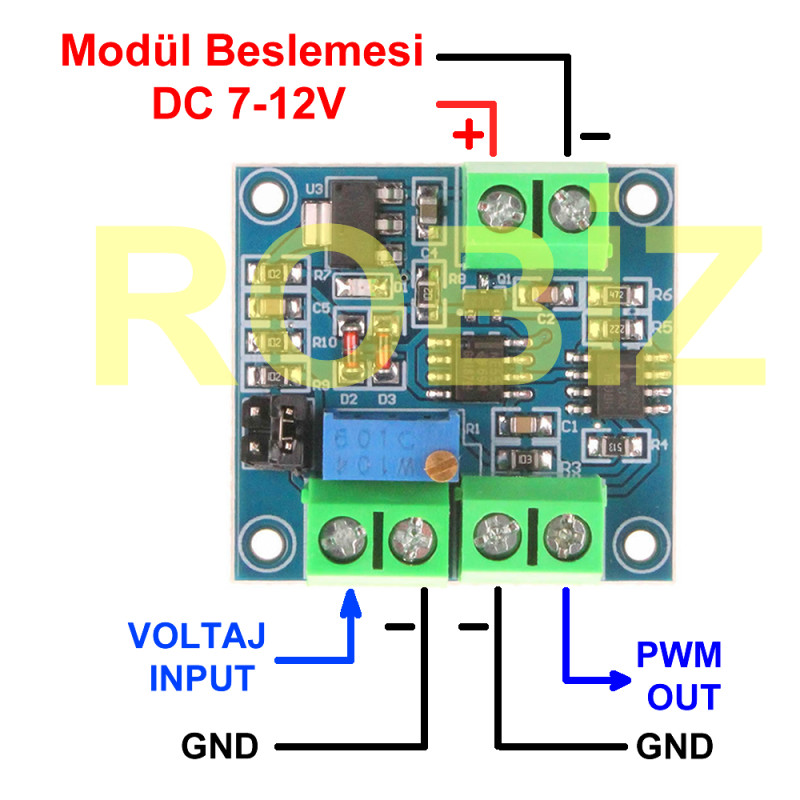

     The connections are shown in the picture below ( or number 3 ). The 2 way terminal block is for the module supply connection. The 2 on the left of the 4 way terminal block are for the voltage signal input. The 2 on the right are for the pwm output connection.

Usage:

     The module supply voltage is given. There is no supply reverse connection protection. There are 2 jumpers for the voltage range selection. The appropriate selection is made for 0-5V and 0-10V supply input. The pwm signal will change according to the voltage input. The duty sensitivity adjustment is made with the potentiometer. The potentiometer is multi turn. It can turn 40-50 full turns. For this reason, you may need to turn it many times in one direction to make the adjustment.

Package Contents :

• 1 Piece PWM to Voltage Converter Module
