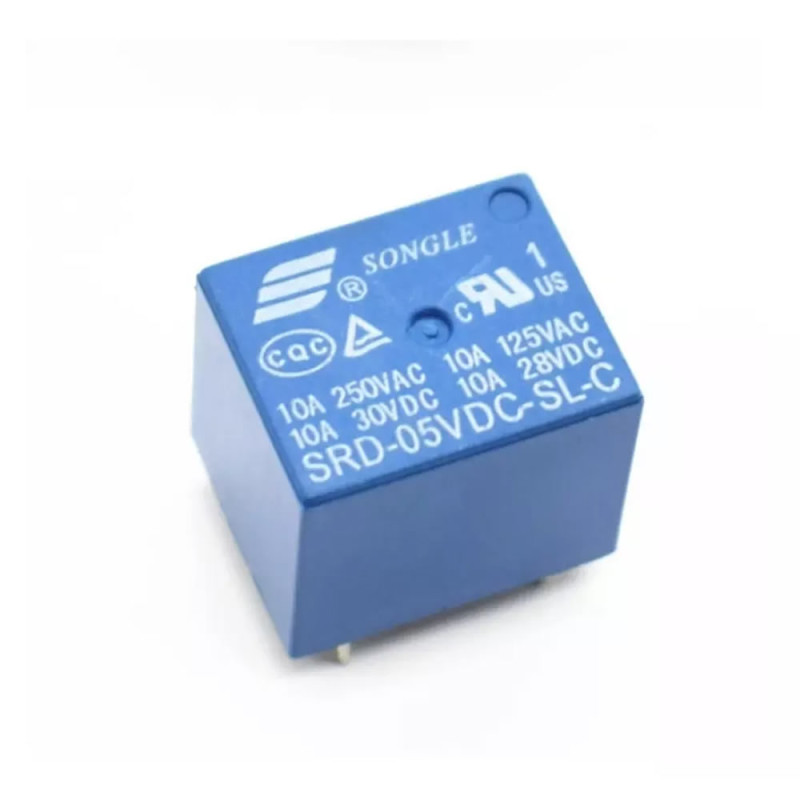

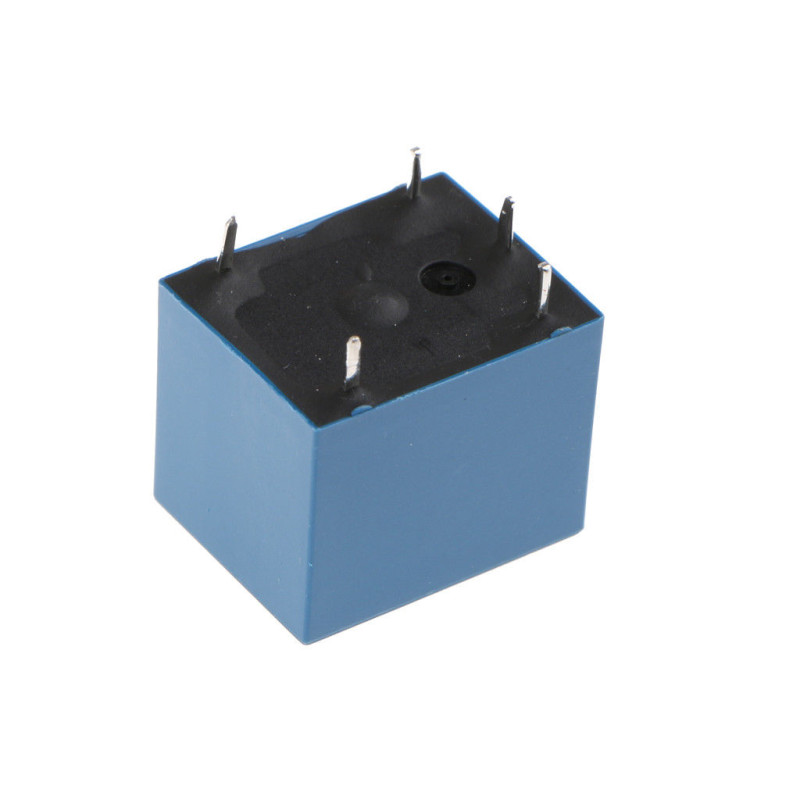

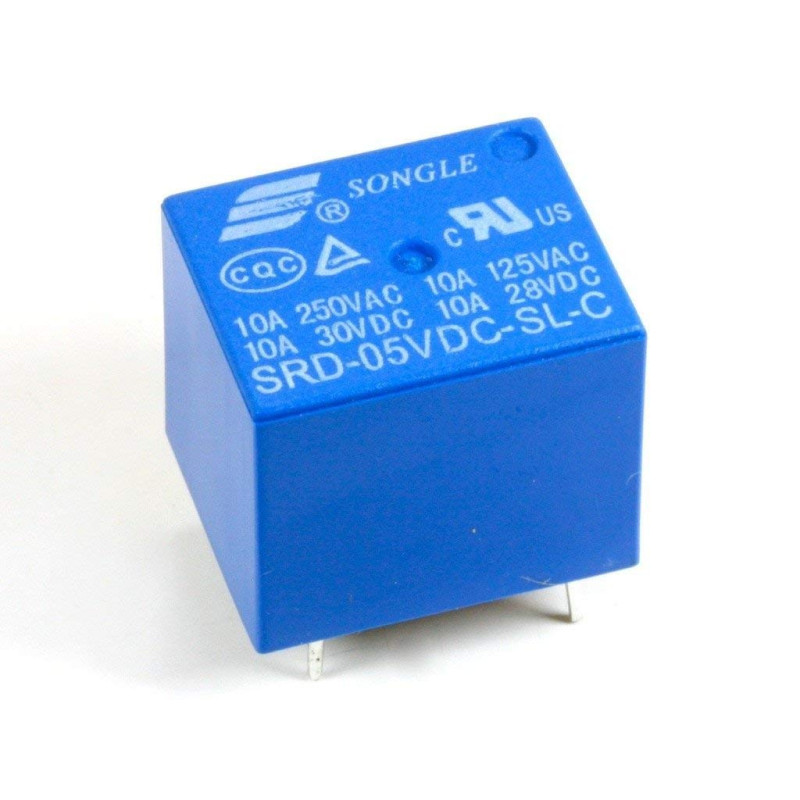

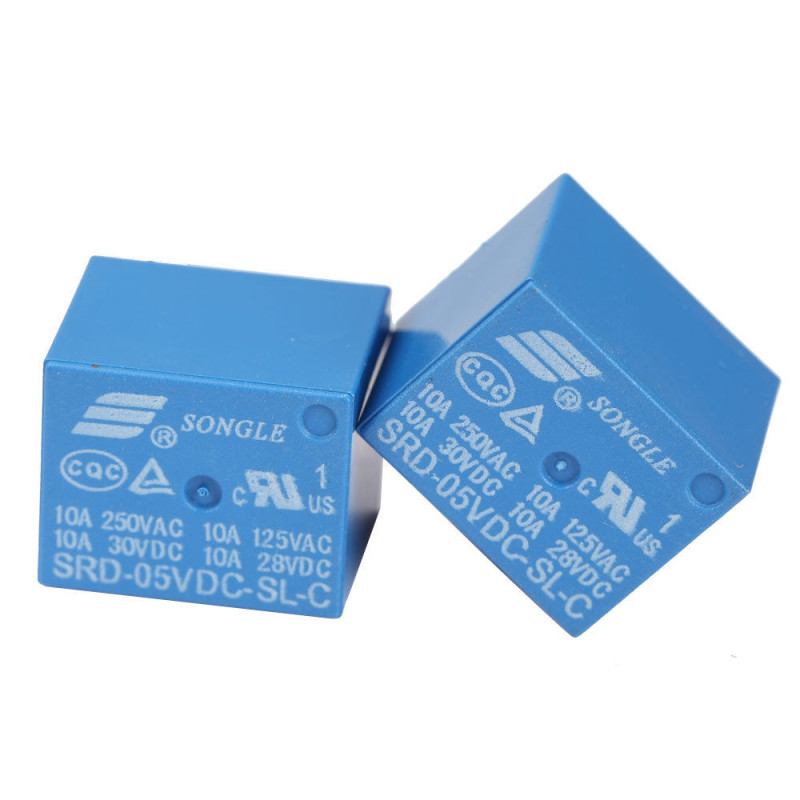

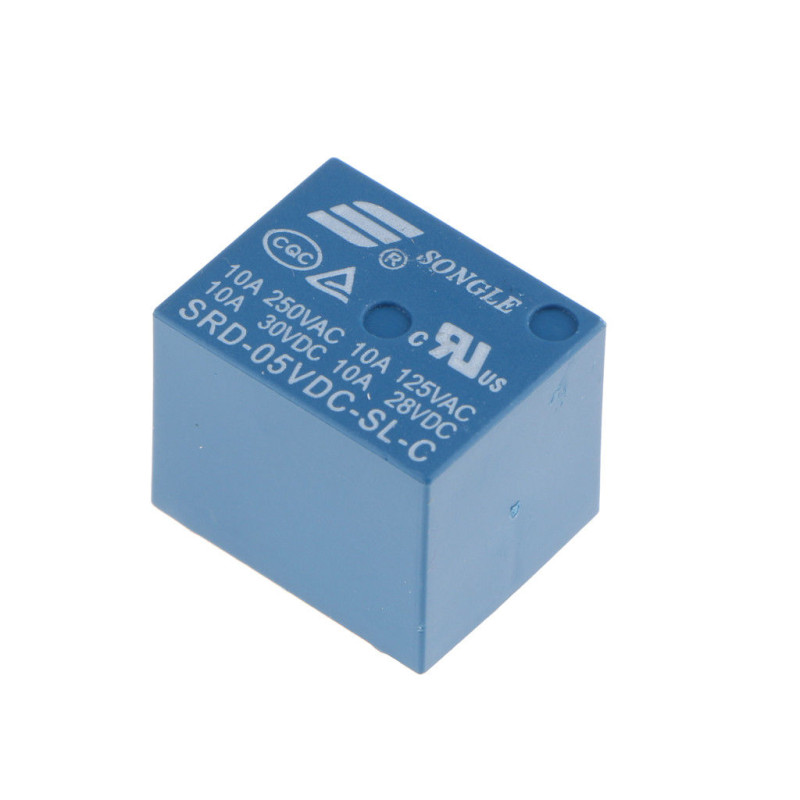

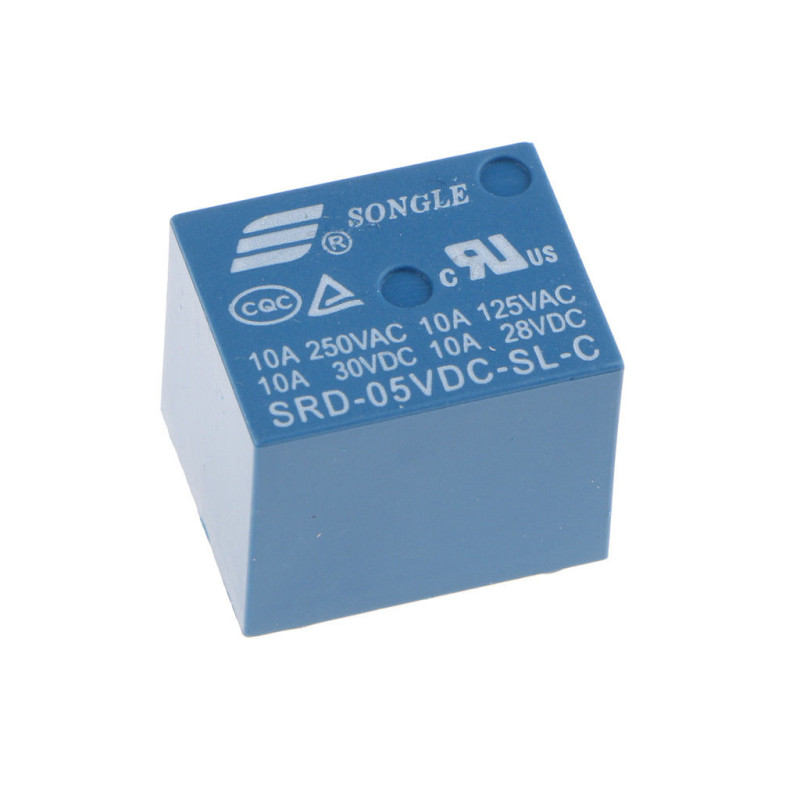

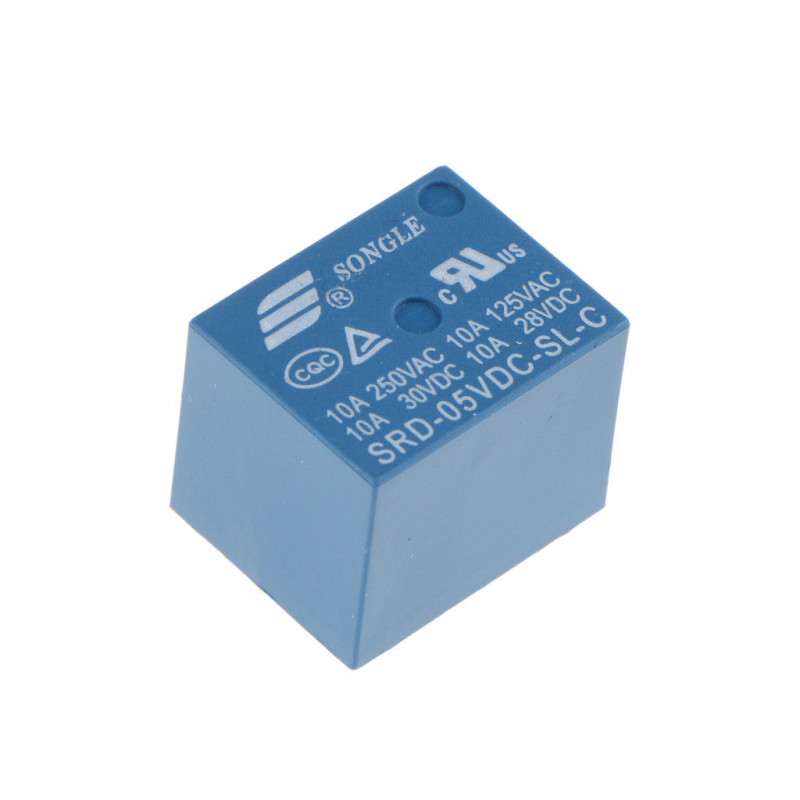

SRD-05VDC-SL-C SONGLE 5V Relay

SRD-05VDC-SL-C SONGLE 5V Relay
SRD-05VDC-SL-C SONGLE 5V Relay
SRD-05VDC-SL-C SONGLE 5V Relay
SRD-05VDC-SL-C SONGLE 5V Relay
SRD-05VDC-SL-C SONGLE 5V Relay
SRD-05VDC-SL-C SONGLE 5V Relay
SRD-05VDC-SL-C SONGLE 5V Relay
SRD-05VDC-SL-C SONGLE 5V Relay
SRD-05VDC-SL-C SONGLE 5V Relay
SRD-05VDC-SL-C SONGLE 5V Relay
SRD-05VDC-SL-C SONGLE 5V Relay
SRD-05VDC-SL-C SONGLE 5V Relay
SRD-05VDC-SL-C SONGLE 5V Relay
SRD-05VDC-SL-C SONGLE 5V Relay
SRD-05VDC-SL-C SONGLE 5V Relay
SRD-05VDC-SL-C SONGLE 5V Relay
SRD-05VDC-SL-C SONGLE 5V Relay
23.76TL
19.80TL + KDV
10 or more 20.20TL
Buy 10 or more of this item and the unit price drops by 15%; pay by bank transfer for a total 20% discount.
  • Stok Durumu: Stok Var
  • Marka: OEM
  • SKU: RBZ.100.477



Songle 250V 10A SRD-05VDC-SL-C 5V DC Relay

5 Pin Pcb Mount Type 220V NO NC Power Relay SPDT Lamp Motor Valve

( Long term use above 7A is not suitable. The contacts may stick. )



     220V 10A NO NC power relay. It is used for switching high powers in various applications. The coil voltage is DC 5V. It has 5 pins. There are 2 coil pins, 1 com and No Nc output pins.  It is not affected by factors such as corrosion, moisture and dust. In long term use you can use it at 7A currents. It is used as a control component in many electrical applications such as small motors, lamps, valves etc.



Features:

  • Model: SRD-05VDC-SL-C
  • Coil voltage: DC 5V
  • Operating current: 10A 250VAC  /  10A 125VAC  /  10A 30VDC  /  10A 28VDC
  • Relay pick-up voltage:<= 75%
  • Relay release voltage:>= 10%
  • Contact resistance: <=100mohm
  • Electrical life: 100,000 switchings
  • Mechanical life: 10,000,000
  • Coil power: 0.36W, 0.45W
  • Insulation resistance: >=100M ohm
  • Mount type: Pcb
  • Operating temperature:  -25C  /  70C

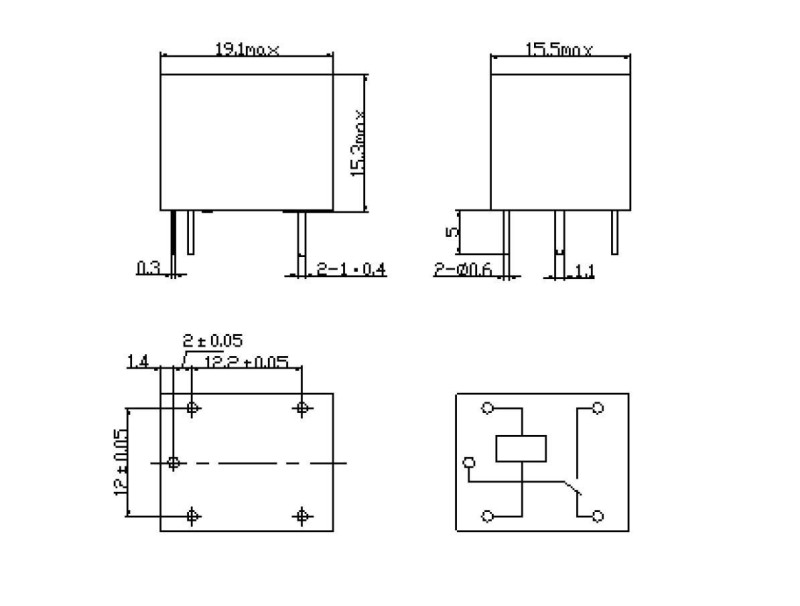

  • Dimensions:: 15mm x 15mm x 15mm
  • Pin thickness:  4.5mm
  • Weight:  7.5gr



Package Contents:

  • 1 Piece SRD-05VDC-SL-C SONGLE 5V Relay
