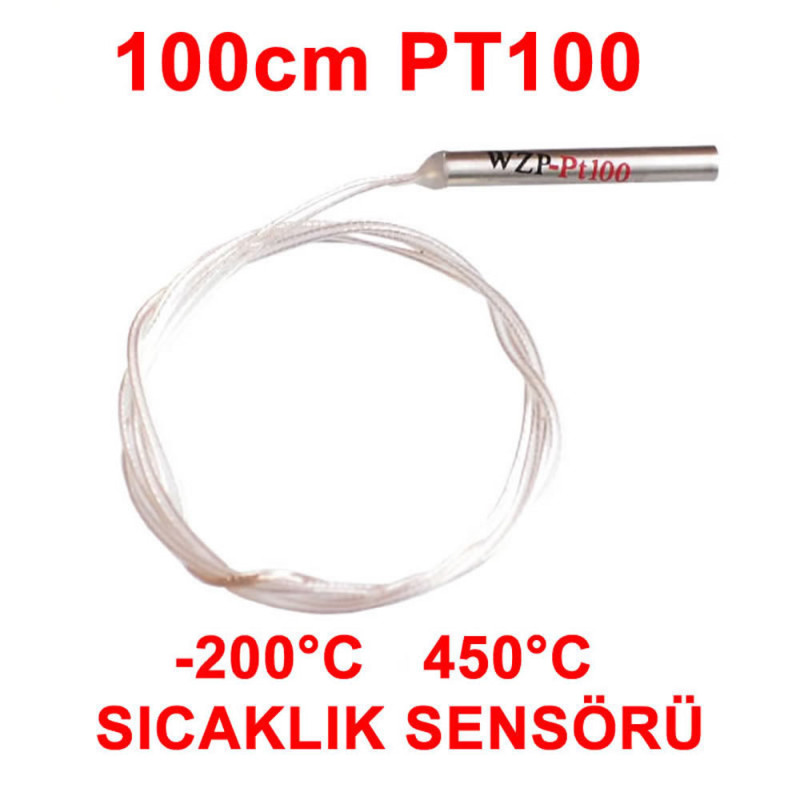

PT100 Temperature Sensor 1 Meter

PT100 Platinum Heat Temperature Sensor

100cm Waterproof -200C to 450C Metal Protective Immersion Probe Thermal Resistance Air Liquid Thermometer Air Conditioner Thermostat Thermometer Refrigerator Heater Oven

     PT100 is preferred at high temperature values and in cases where precise measurement values are desired. It has a 2-wire platinum thermal resistance structure. At 0 degrees temperature its resistance is 100ohm. As the temperature increases, the resistance value increases. It is not fully linear, but the exact value can be determined from a table.

     It is very widely used in industrial applications. Measurement is made by the change of the resistance value depending on the temperature. Pt100 is generally called a temperature sensor. It can measure in environments such as air and liquid. It has a ceramic inner protector and a steel outer protector.

Features:

•     Model: WZP-PT100
•     Measurement range:   -200C  /  450C
•     Accuracy:  +-0,3C
•     Resistance value:  100ohm ( at 0 degrees )
•     Waterproof, immersion type
•     Inner protector: Ceramic
•     Outer protector: Steel sheath
•     High accuracy, stable, precise
•     Long service life
•     2-Wire cable connection
•     Cable type: Fiberglass
•     Sensor diameter: 4mm
•     Sensor length: 30mm
•     Cable length: 100cm
•     Weight:  5gr

Package Contents:

•        1 Piece PT100 Temperature Sensor 100cm

.
