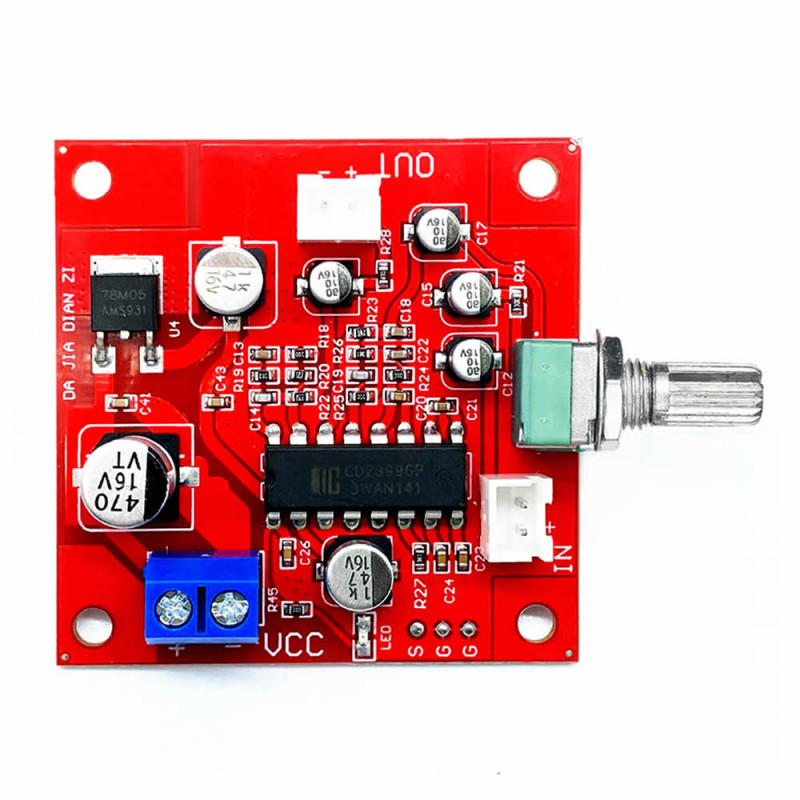

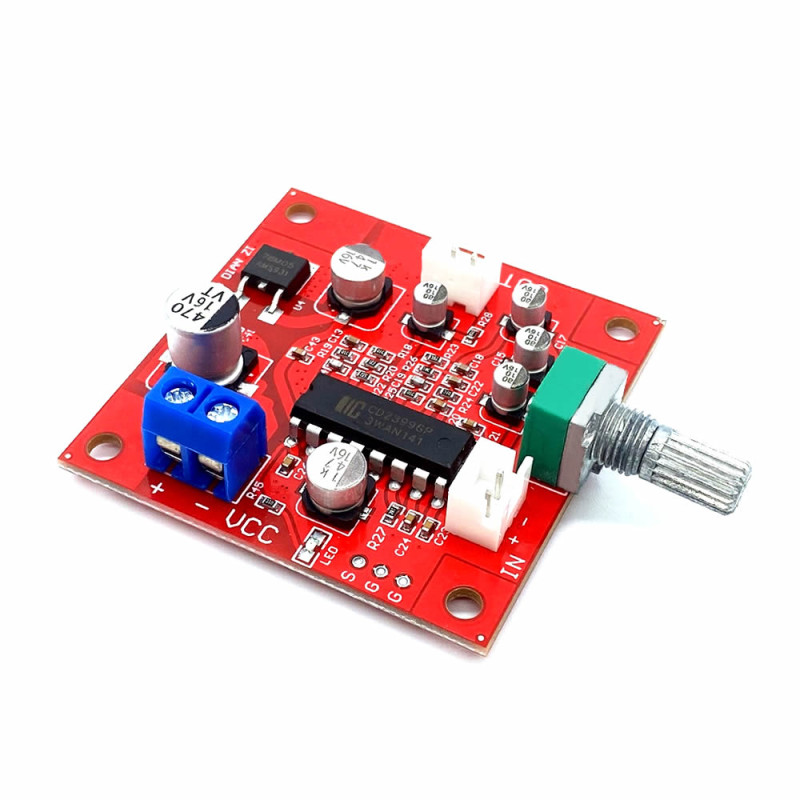

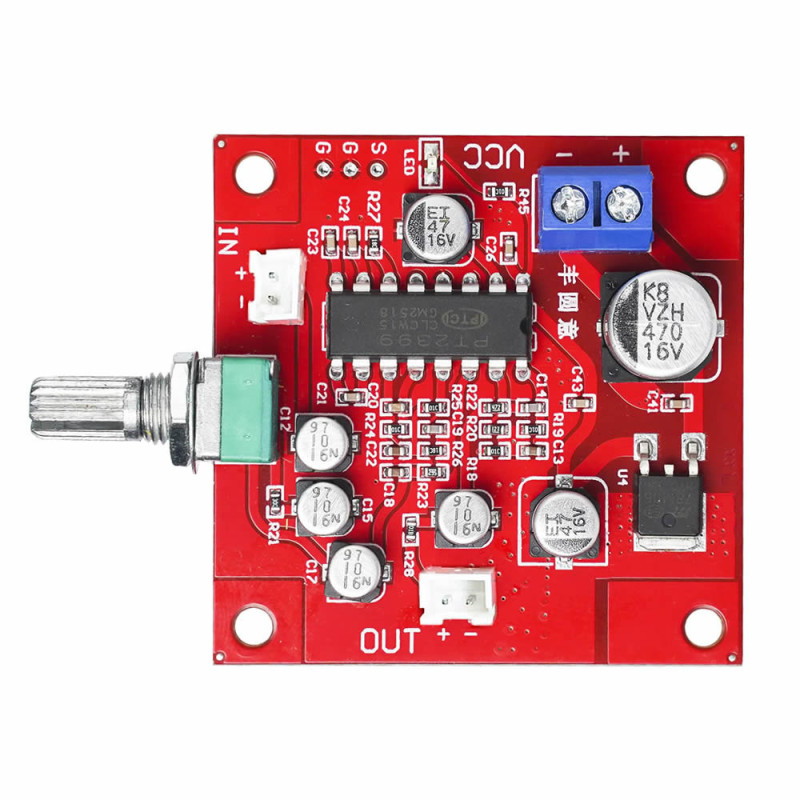

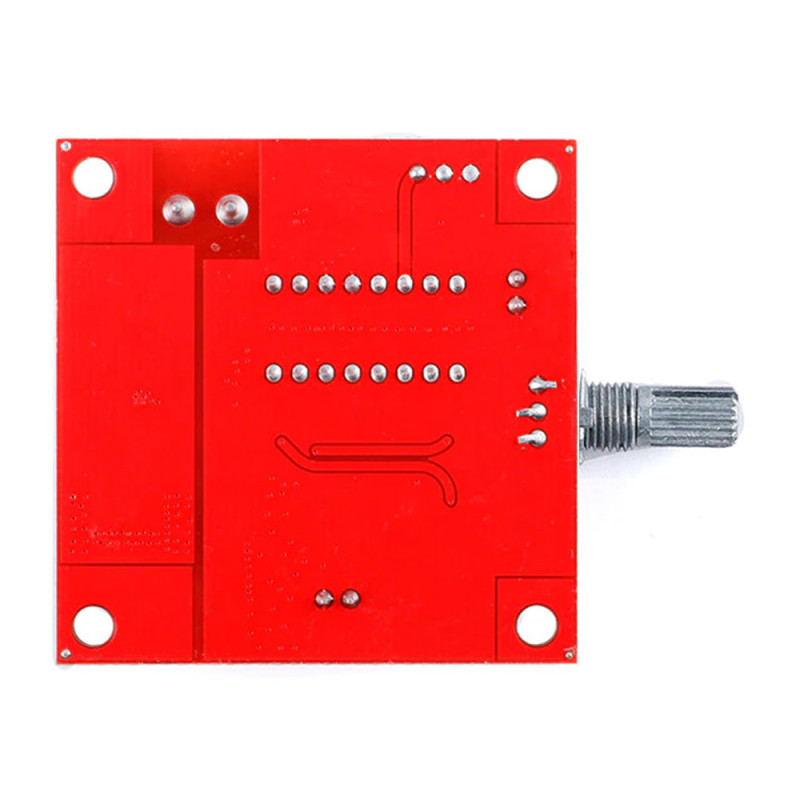

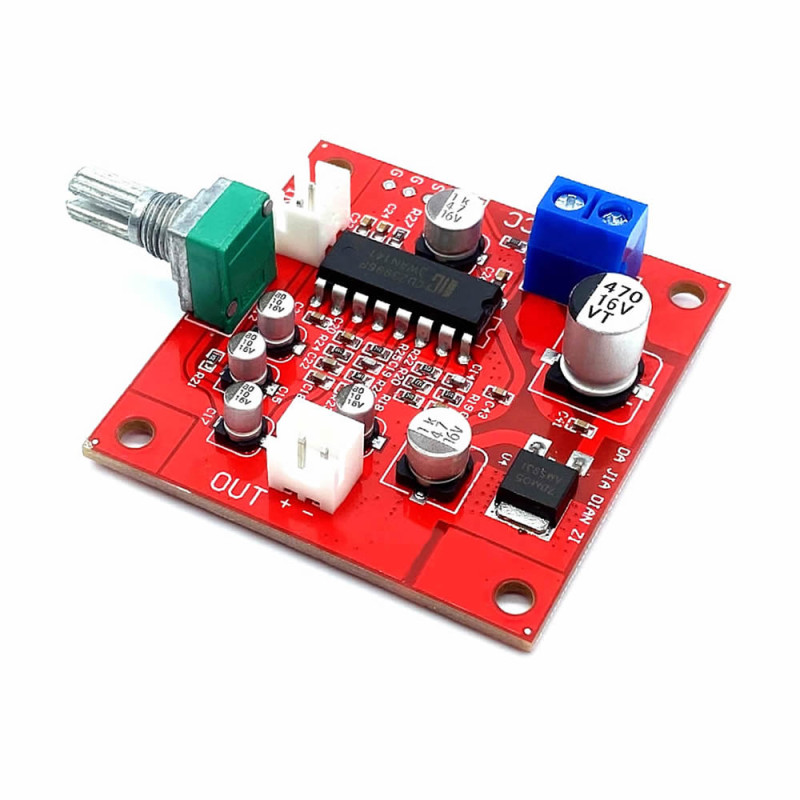

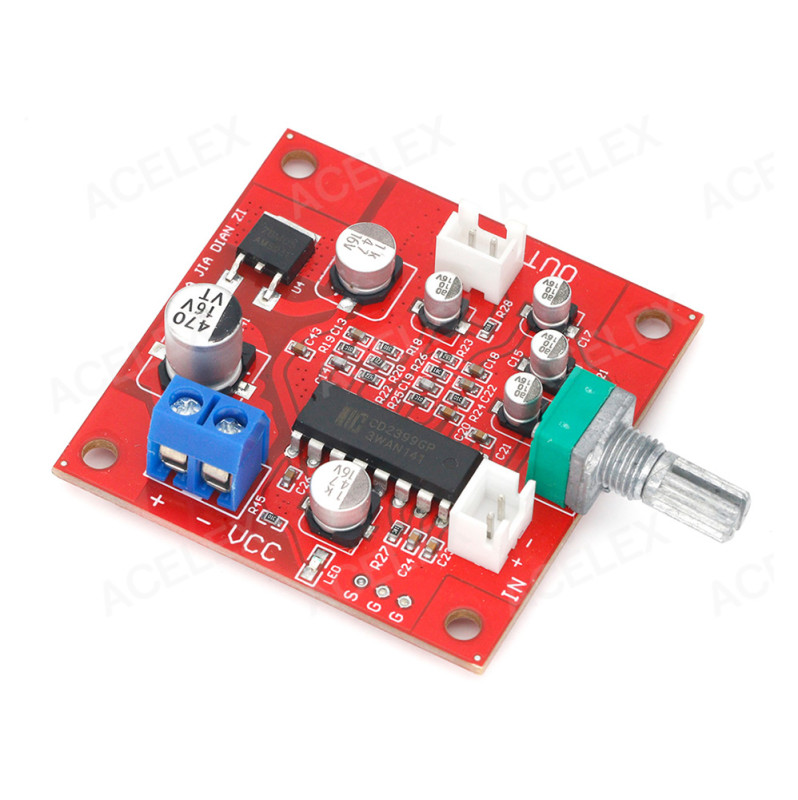

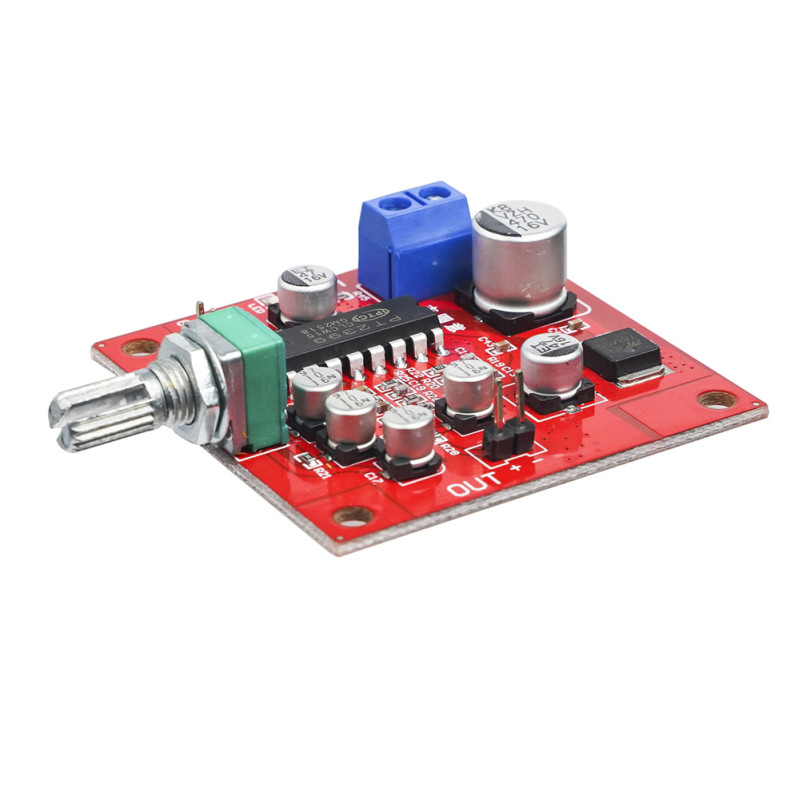

PT2399 Module

PT2399 Microphone Audio Echo Reverb Repeat Effect Module

Reflection Control Delay Adjustment Karaoke DC 6-15V Guitar Instrument Audio Video Signal Tape Cd Player

It has no amplification function.

     It is an echo generating circuit used with microphones. The pt2399 IC developed for audio processing is used. The echo is formed by adding the original sound to the main sound after a certain time. It has quality Adc and Dac analog circuits. It creates a delay, repeat and echo generating effect on the sound.

     The echo level is formed by adding the same sound at lower intensities after the originally heard sounds. The C12 pot is used to adjust the echo volume level. The delay time is set with the r27 resistor. It is present on the board as a fixed resistor. If this resistor is removed and an external potentiometer is connected from the SGG pads, the delay time becomes changeable.

      It can operate between DC6/15V. Power is supplied through the 2 pin terminal block. Audio inputs and outputs are made through 2 pin male headers. The microphone connection is made through the In header. A speaker or amplifier connection is made through the Out header.

Features:

• IC: PT2399
• Microphone echo reverb effect
• Operating voltage: DC 6V / 15V
• C12 echo volume level adjustment pot
• R27 fixed delay time resistor.
• SGG 20k-50kohm echo delay change pot connection ( the pot is connected by removing R27 )
• Quality material
• 2 layer Fr4 pcb
• Color: Red
• 2 pin power connection terminal block
• Operating temperature:  -10C  /  +85C
• 2 pin male audio input header sockets.
• 4 mounting holes

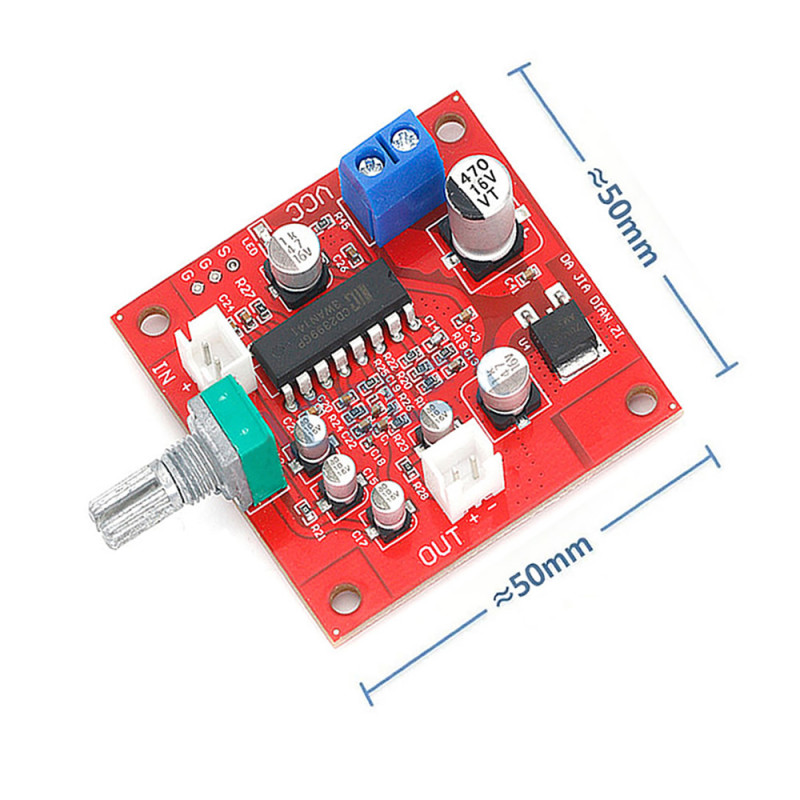

• Dimensions:  50mm x 50mm
• Weight:   20gr

Socket descriptions:

• VCC terminal block: Power +
• IN Header: Audio input socket
• OUT Header: Audio output socket

Package contents :

•    1  pcs PT2399 Module
