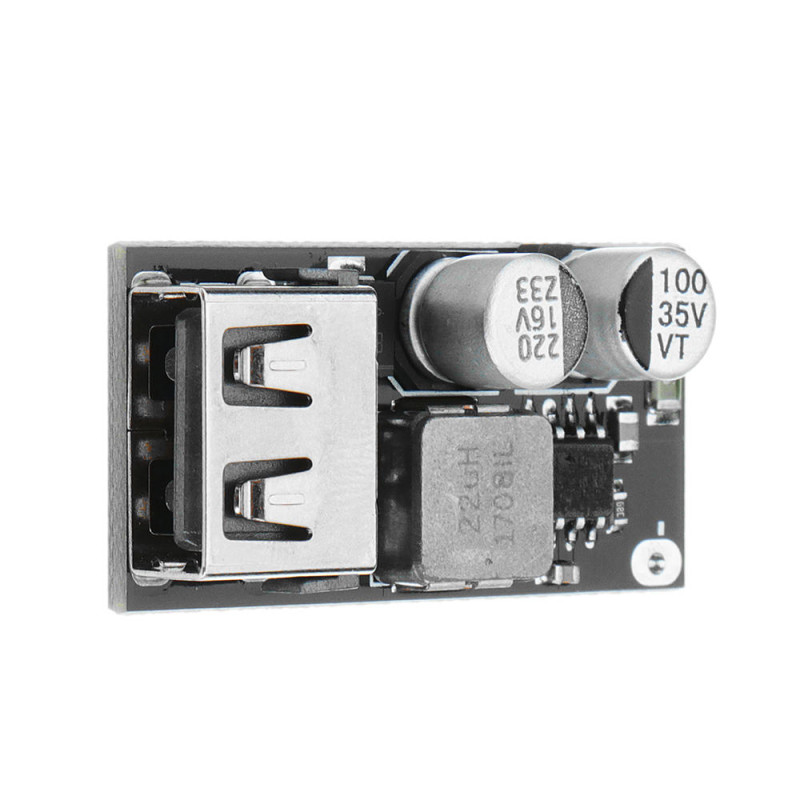

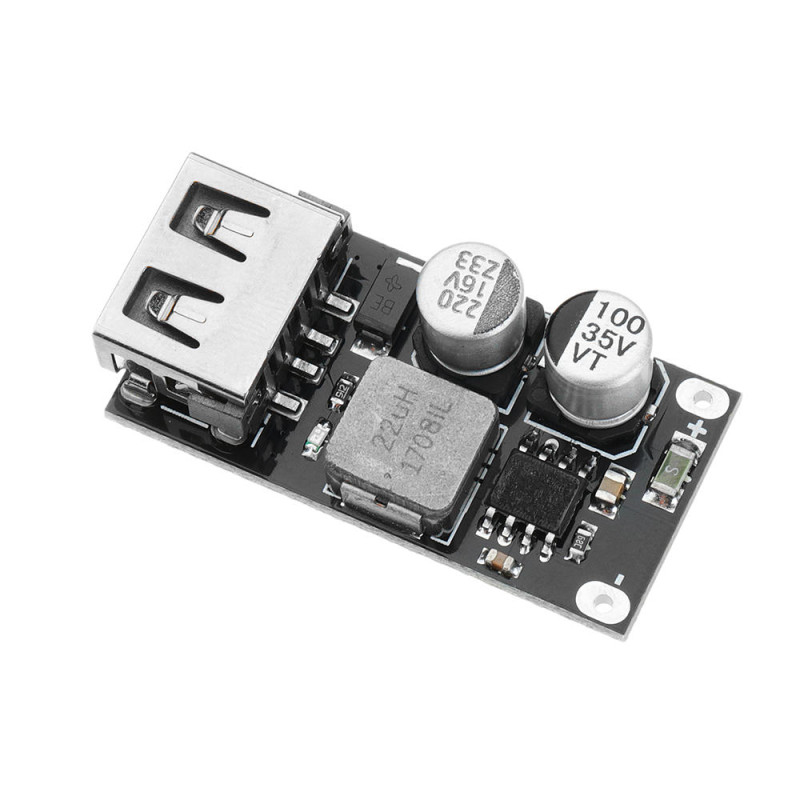

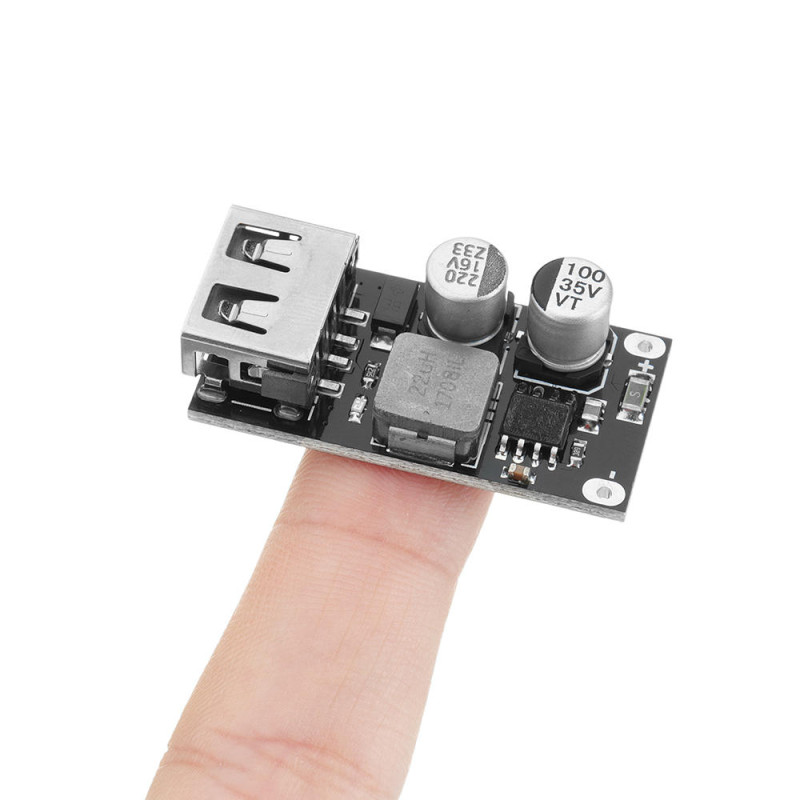

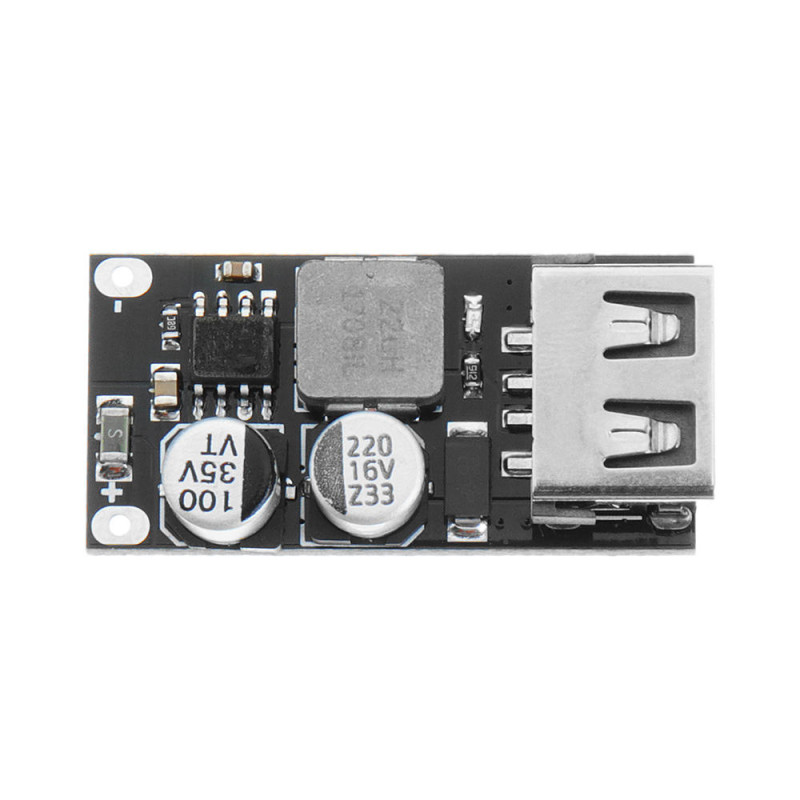

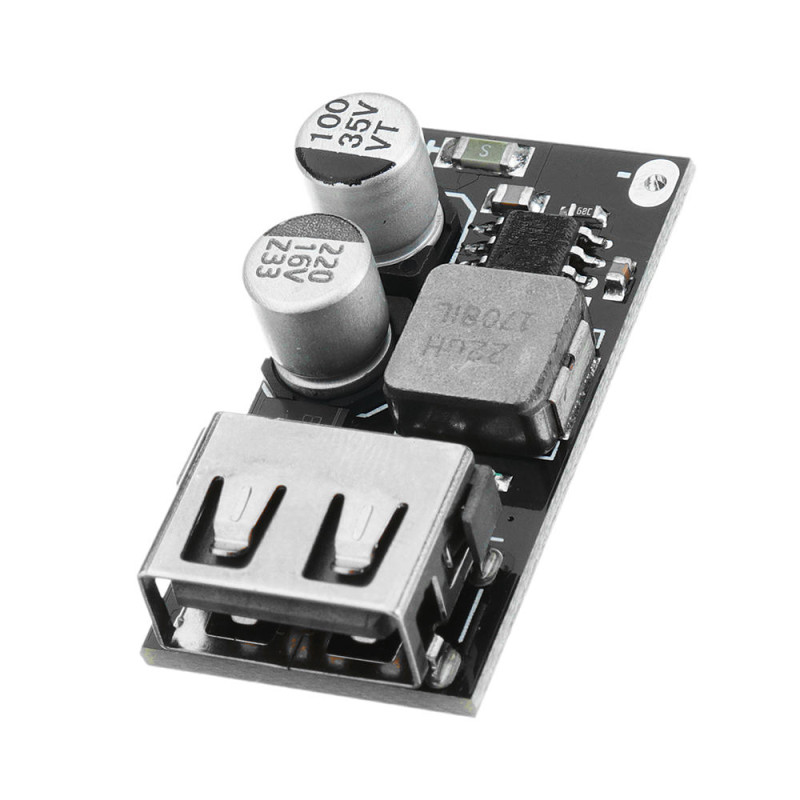

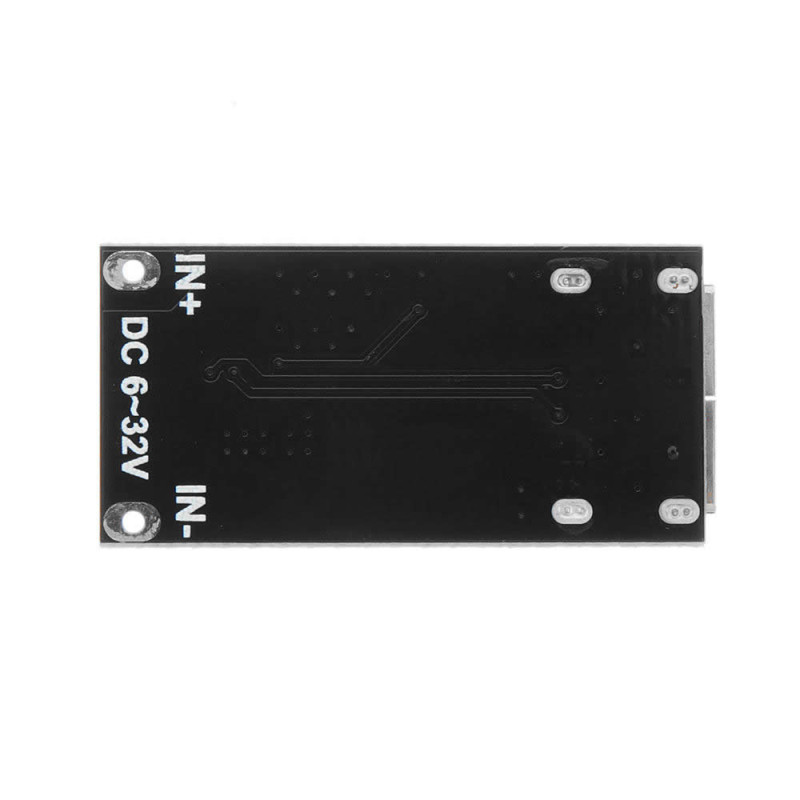

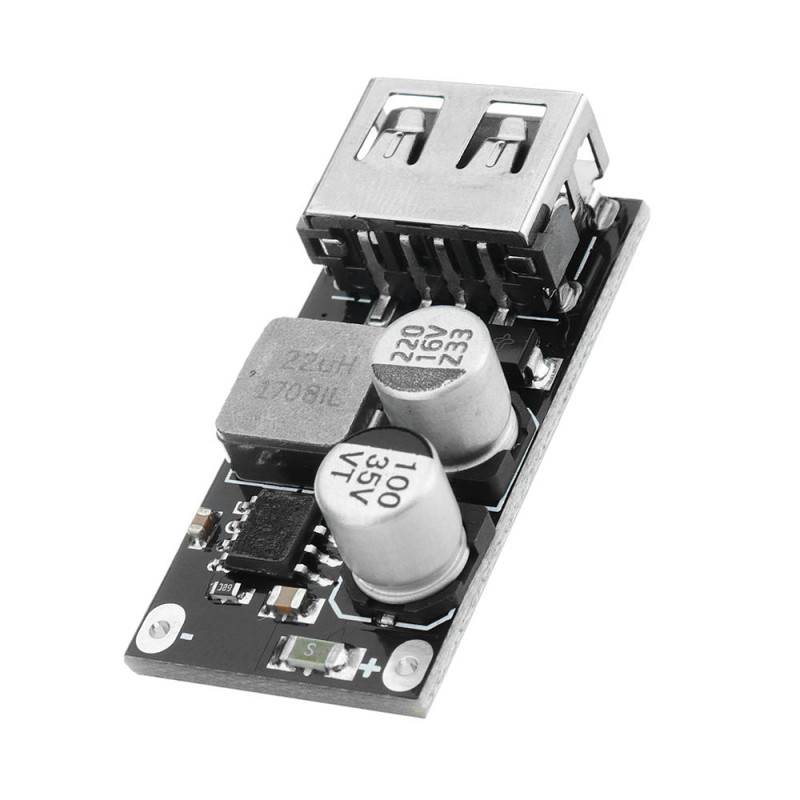

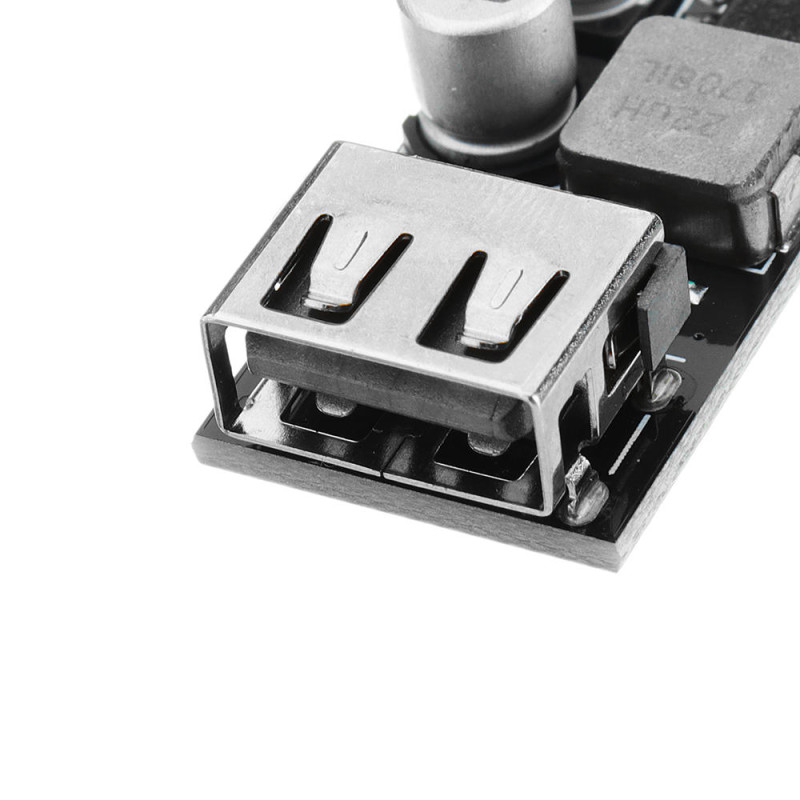

QC2 QC3 Fast Charge Module

QC2 QC3 Fast Charge Module

DC 10V-32V 24W to 5V Usb Mobile Phone Apple Android Huawei MTK Samsung Voltage Step-Down

     It is a charging module that supports many fast charging standards. It supports common charging standards such as Apple, BC1.2, QC3.0, AFC, SCP, FCP, MTK PE. It has a DC 10V-32V voltage input range. It steps the input voltage down to the 5V level and makes it available to various devices through the usb output socket on it. It is suitable for use in usb output applications with 15W (5V 3A) power. The power of the source to be used at the product input must be higher than the output power. We recommend that you supply it with sources of 20W and above.

     It allows you to create a fast charging usb port by using power sources found in various applications. Many applications can be made, such as creating usb charging points in solar cells, cars and homes.

Features:

• Input voltage: DC 10V-32V
• Voltage output: DC 5V ( DC 3-12V The voltage changes automatically during the fast charging process.)
• Output power: Maximum 24W (5V@3.4A, 9V@2.5A, 12V@2A, etc.)
• Efficiency:  above 90%.
• Supported protocols: Apple, BC1.2, QC3.0, AFC, SCP, FCP, MTK PE
• High voltage and low voltage protection at the input.
• Input high current protection.
• Output high current and short circuit protection.
• High temperature protection
• Dimensions: 34mm x 17mm x 9.5mm
• Weight: 7gr

Package contents

•      1 Piece QC2 QC3 Fast Charge Module
