ESP32-C6 Module

ESP32-C6 DevKit Wifi 6 and Bluetooth 5 Module Development Board

ESP32-C6-WROOM-1 32 Bit 160Mhz 8 MByte Flash CH341 Rgb Led Usb Uart IO Sensor Home Automation Industrial Machine Control Iot ESP-32 nanoESP32-C6 IEEE 802.15.4 Thread Zigbee

The product currently in stock has the MAN16 code on the module.  It has 16Mb flash memory. Different lower products may be in stock in different batches. If it is important, please ask for confirmation.

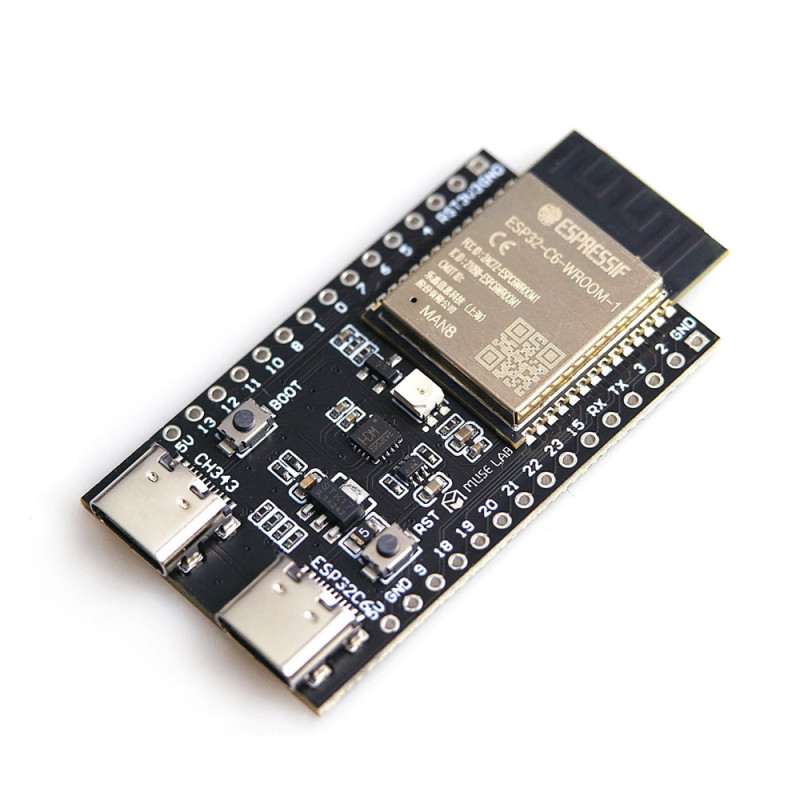

     ESP32 is a combined Wi-Fi and Bluetooth chip and is designed with 40 nm technology requiring ultra low power. There is an ESP32-C6-WROOM-1 module on the board. It is a 32 bit RISC-V single core processor with wifi bluetooth support. Its speed can reach 160MHz and it has 512KB SRAM, 320KB ROM. The flash size is 8MB. It can be used for control, sensing, monitoring, logging etc. operations over wifi and bluetooth. It has support for connecting to Thread and Zigbee communication networks.

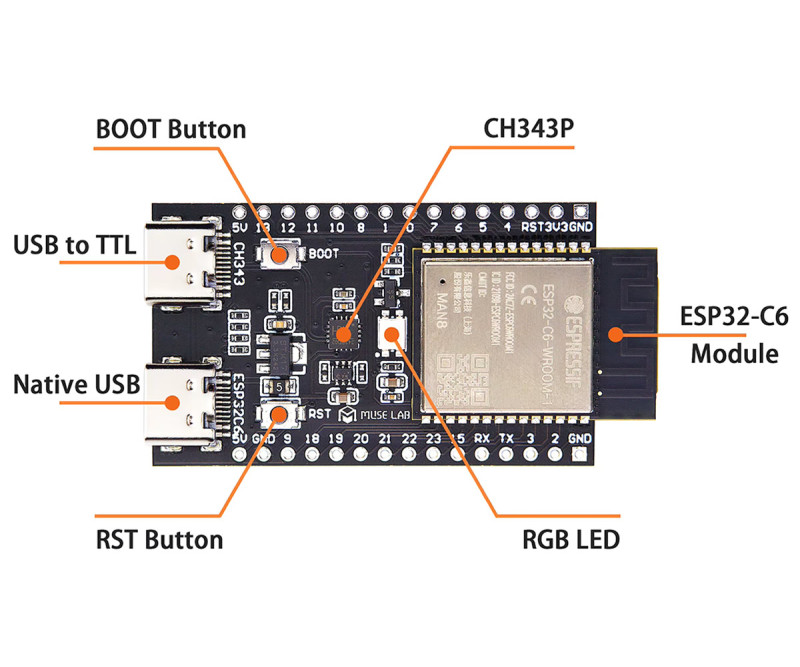

    This module can be programmed with Arduino IDE, ESP IDE, Micropython, Scratch and Mixly software. ESP32 can be used for mobile, wearable electronic devices and Internet of Things (IoT) applications. There is a CH341 usb ttl converter integrated on the board. It has an Rgb led indicator. It has reset and boot buttons. It can connect to a computer with the Type C socket. When connected to the PC, a com port is created. You can perform your programming operations by setting this com port in the IDE you use.

Features:

•     Integrated: ESP32-C6-WROOM-1  32 bit RISC-V single core
•     Operating voltage Type C Usb Dc 5V
•     Native usb port
•     CH341 usb ttl converter integrated
•     Sram: 512 kb
•     Rom:  320kb
•     Flash:  8 MByte
•     Wi-Fi Protocol:  802.11b/g/n/ax    2,4Ghz
•     Bluetooth Protocol： BLE 5.3   Max. 2 Mbps  20dBm
•     IEEE 802.15.4   2.4 GHz  250kbps  100 meters  Zigbee 3.0 Thread 1.3
•     Pcb type antenna

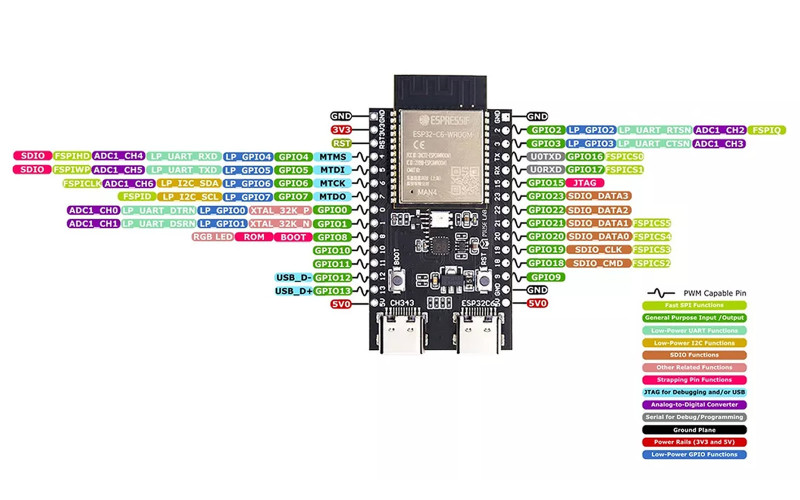

•     Peripheral: Usb, uart, spi, adc, i2c, sdio
•     23 pieces of gpio
•     Esp Ide, Micropython, Arduino, Scratch and mixly programming support
•     One rgb led
•     Reset and Boot  button

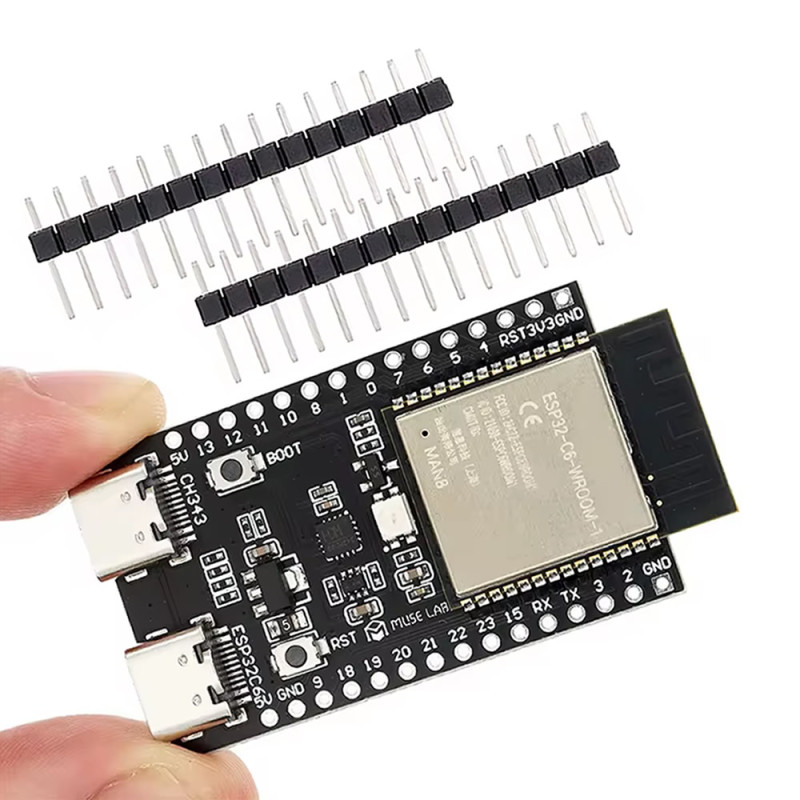

•     2 pieces of 15 pin empty header.
•     Header pin pitch: 2.54mm / 100mil
•     Operating temperature:  -40C  / 85C

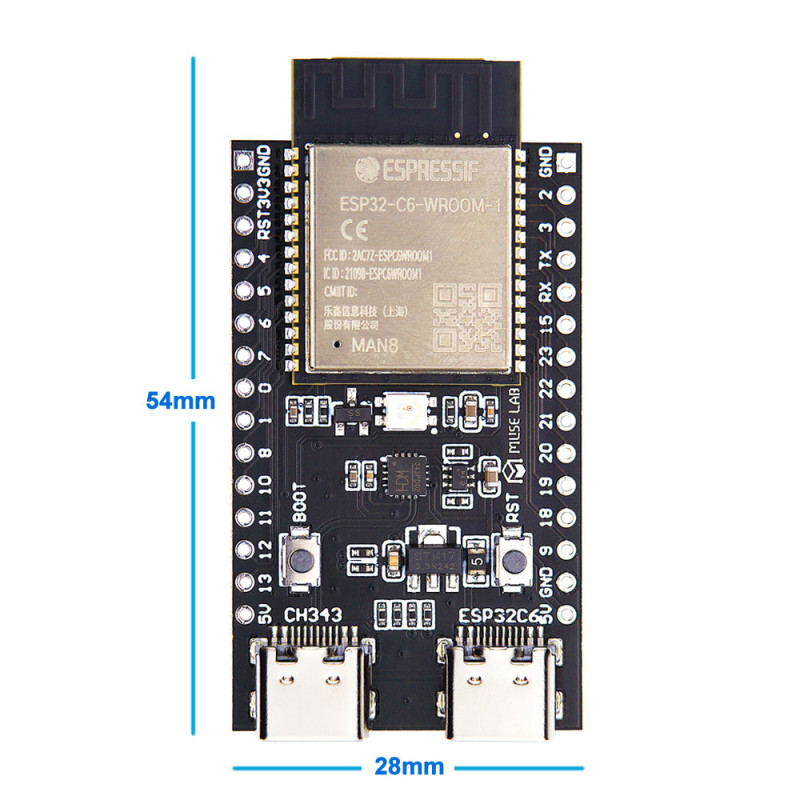

•     Size:   28mm x 54mm
•     Weight: 9gr

Usb driver: The CH341SER.EXE file must be downloaded via Google and installed.

wch-ic.com/products/CH340.html

Software support:

•      espressif.com/en/products/socs/esp32-c6
•      docs.espressif.com/projects/esp-idf/en/latest/esp32c6/get-started/
•      github.com/wuxx/nanoESP32-C6
•      github.com/SoCXin/ESP32C6
•      github.com/mcuw/esp32-c6-example

Package contents:

• 1 Piece ESP32-C6 Module

.
