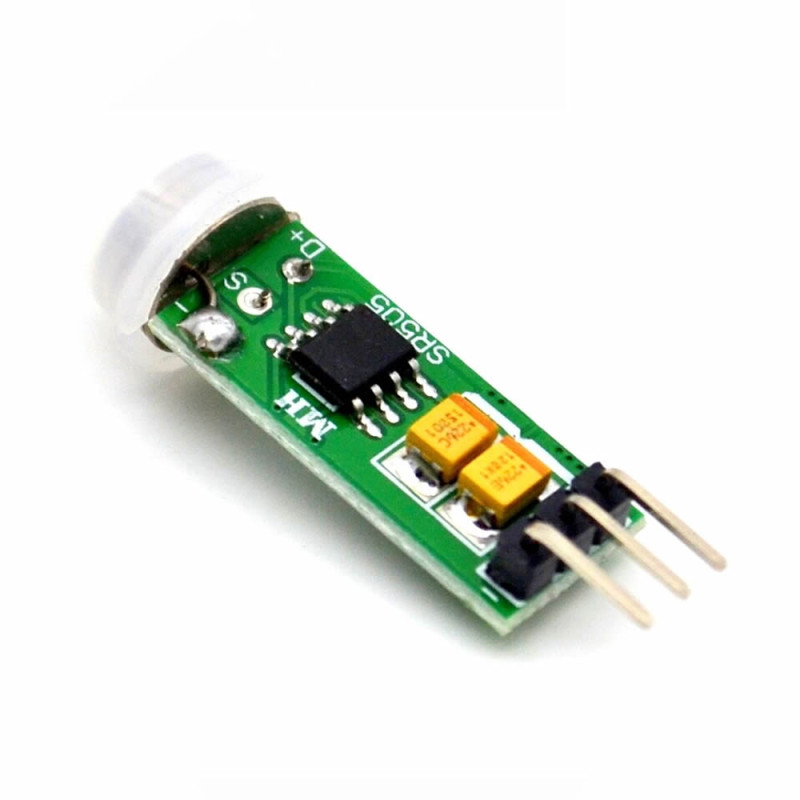

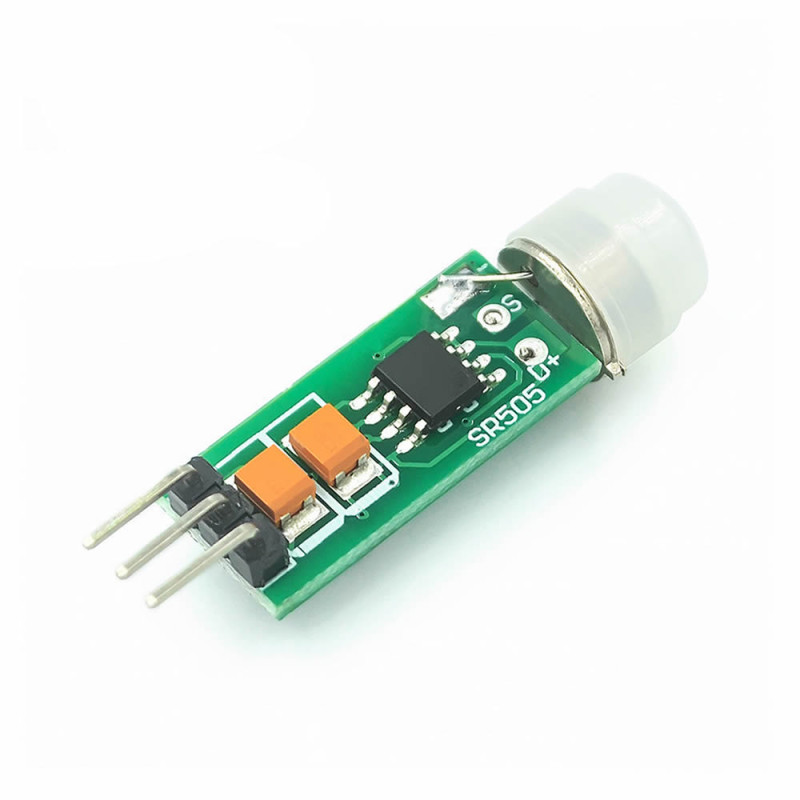

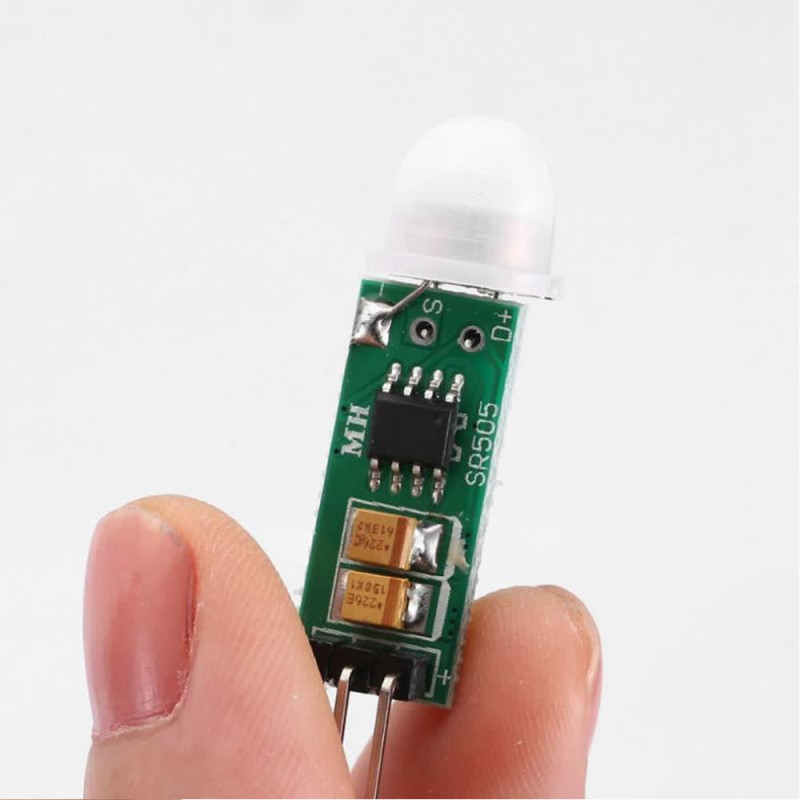

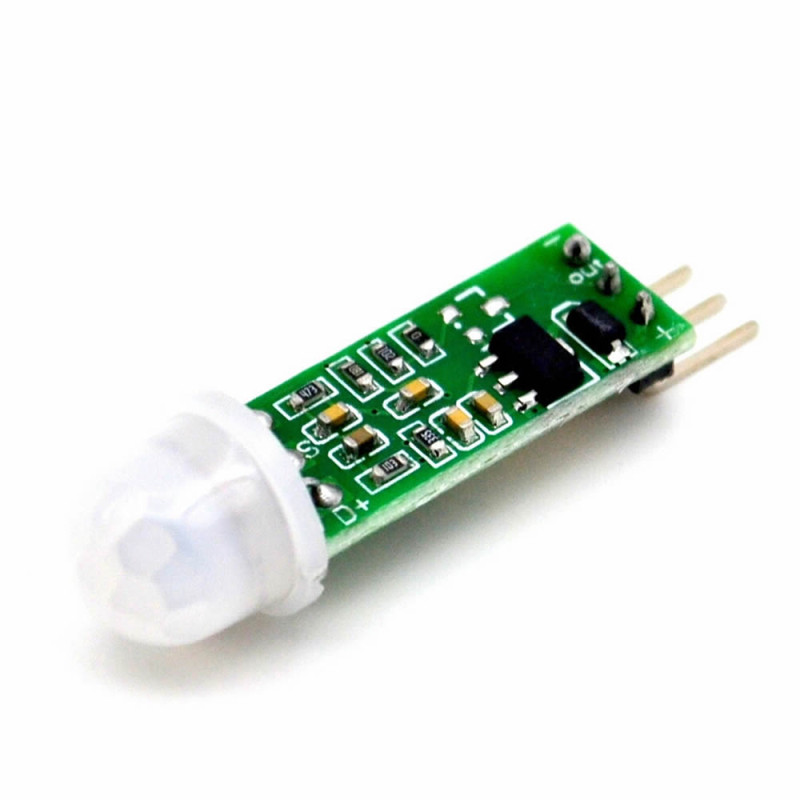

HC-SR505 PIR Sensor Module

HC-SR505  PIR Sensor Module

Human Body Motion Detection Lamp Automat Security Alarm Toy Automation Industrial Control

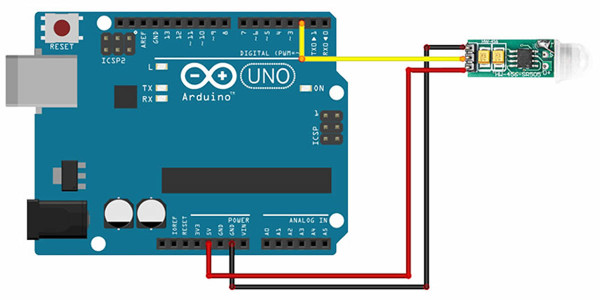

      PIR sensors are sensors used to detect the movement of a living being in an environment. This tiny sized sensor is a module that you can comfortably use in various electronics, robotics and hobby applications, and that can be used together with many microcontroller platforms, primarily Arduino.

      The HC-SR505 tiny body detection module is based on infrared technology. It can control products automatically. It stands out with features such as high sensitivity, high reliability, very tiny dimensions and very low operating voltage requirement.  It is used for automatic detection in electrical devices in wide and various areas.

     When a living being enters the sensor detection distance, the output becomes active at 3.3V level. When people leave this area, after the waiting time ( it drops to 0V ) . As long as the movement continues, the waiting time does not run. The time starts after the last movement. It has low current consumption. It is suitable for use in battery-powered applications.

Features:

• Operating voltage: Dc 4.5V / 20V
• Current: <60uA
• Signal voltage: Dc 3.3V /  0V
• Waiting time: 8S + -30%
• Detection angle: <100
• Detection distance: 3 meters

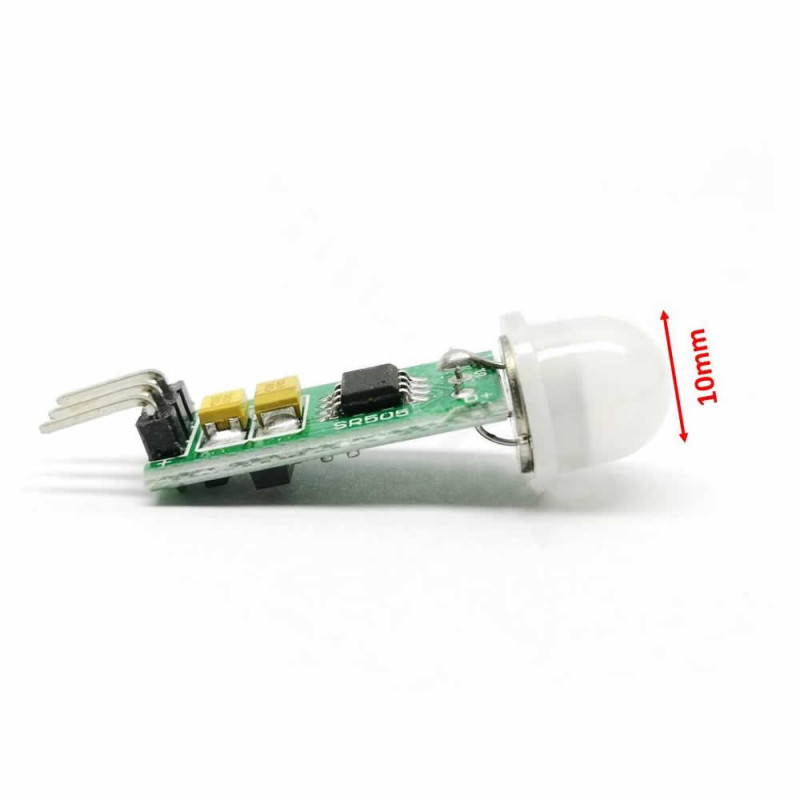

• Lens diameter: 10mm
• Color: Green / White
• Material: Electronic parts / Plastic
• Operating temperature: -10C  /  80C

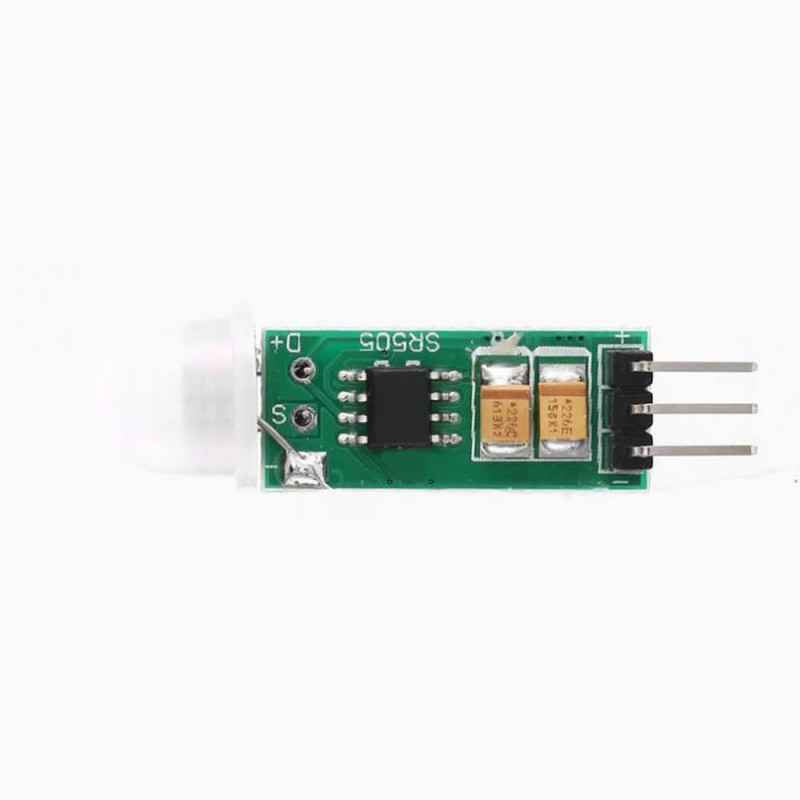

• 3 Pin male connection socket

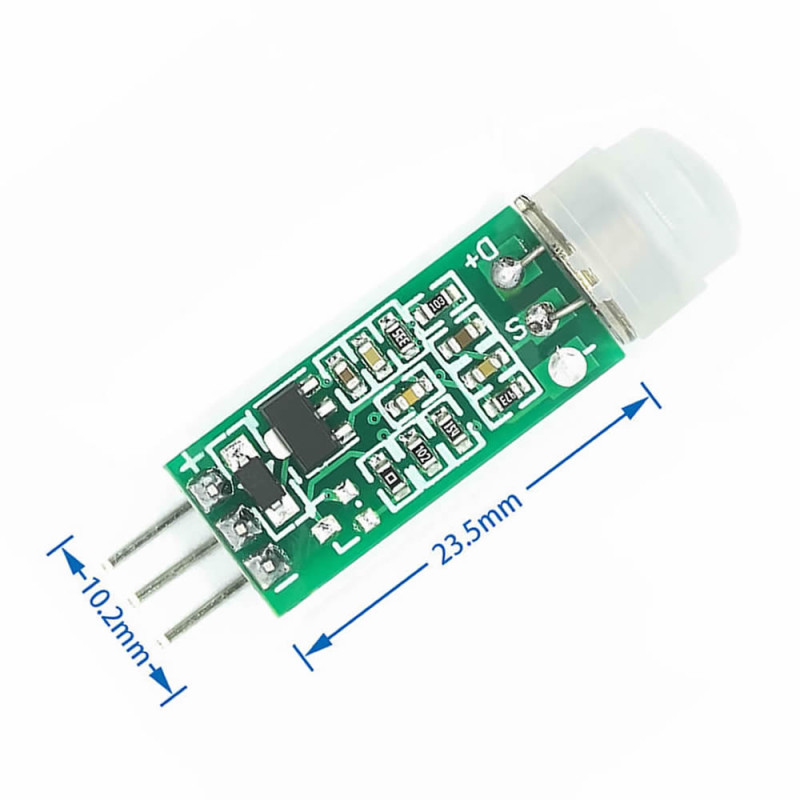

• Dimensions: 10mm x 23mm
• Weight:3gr

Package contents :

•     1 Piece HC-SR505 Module
