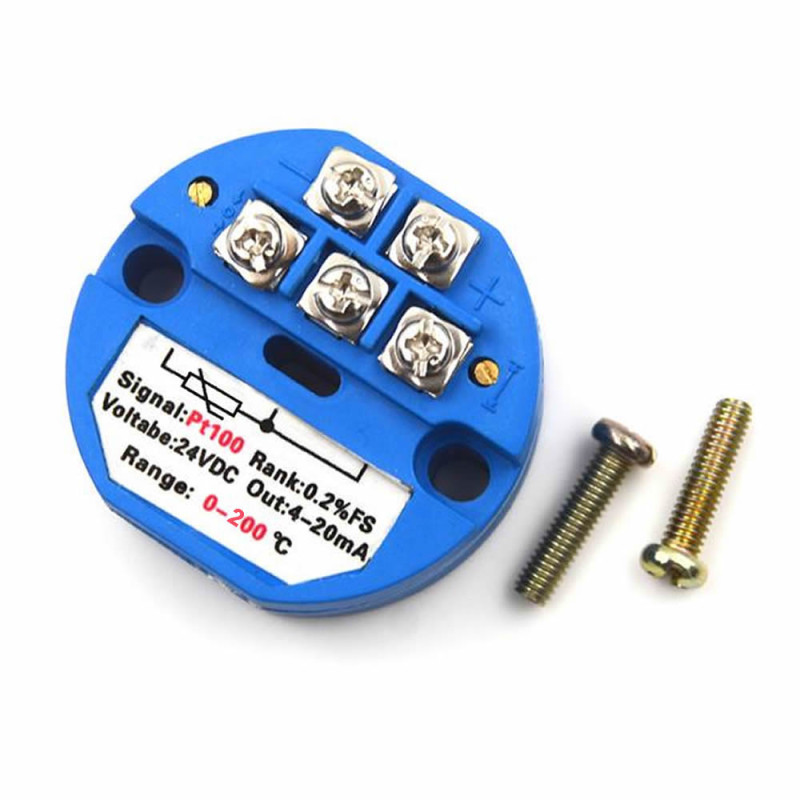

PT100 Signal to 4-20mA Converter Module 200C

4-20mA Converter Transmitter Module For PT100 Temperature Sensor Signal

0C / 200C DC 24V Rtd Thermometer Air Conditioner Oven Boiler Thermostat Heater Oven Industry Automation

     It reads Pt100 sensors. It converts the temperature values it reads to the 4-20ma system and transmits them. It can be used with sensors operating in the 0C / 200C range. Pt100s are preferred for high and precise temperature measurement operations. They are very widely used in industrial applications such as ovens, boilers, air conditioners etc.

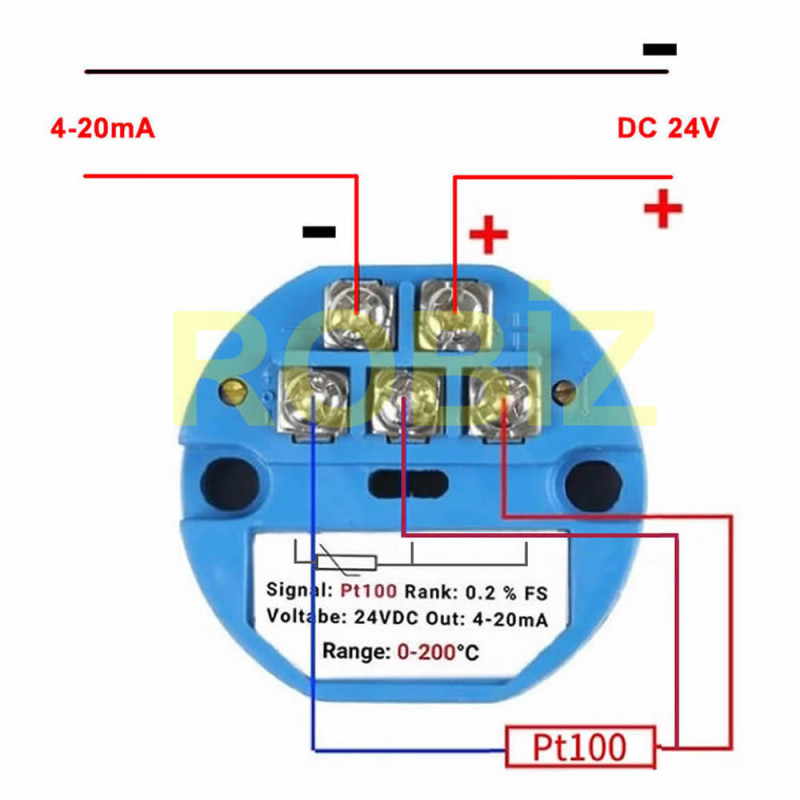

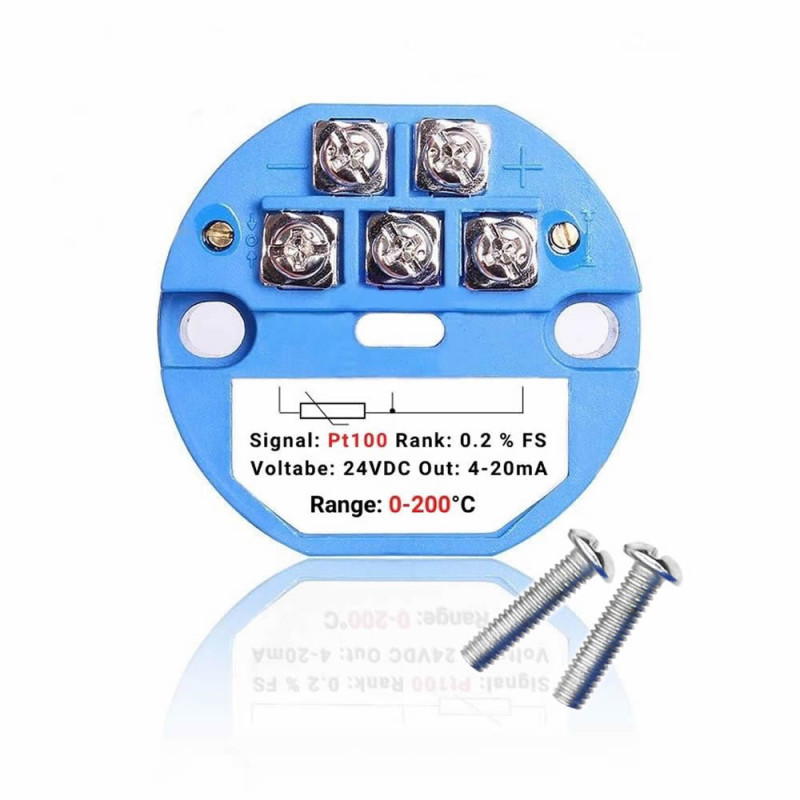

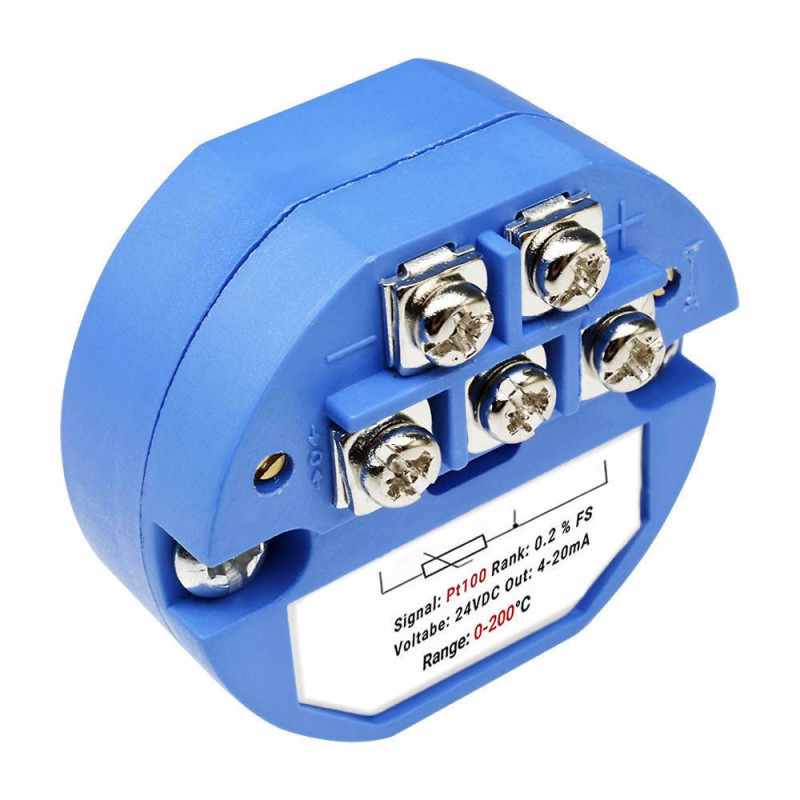

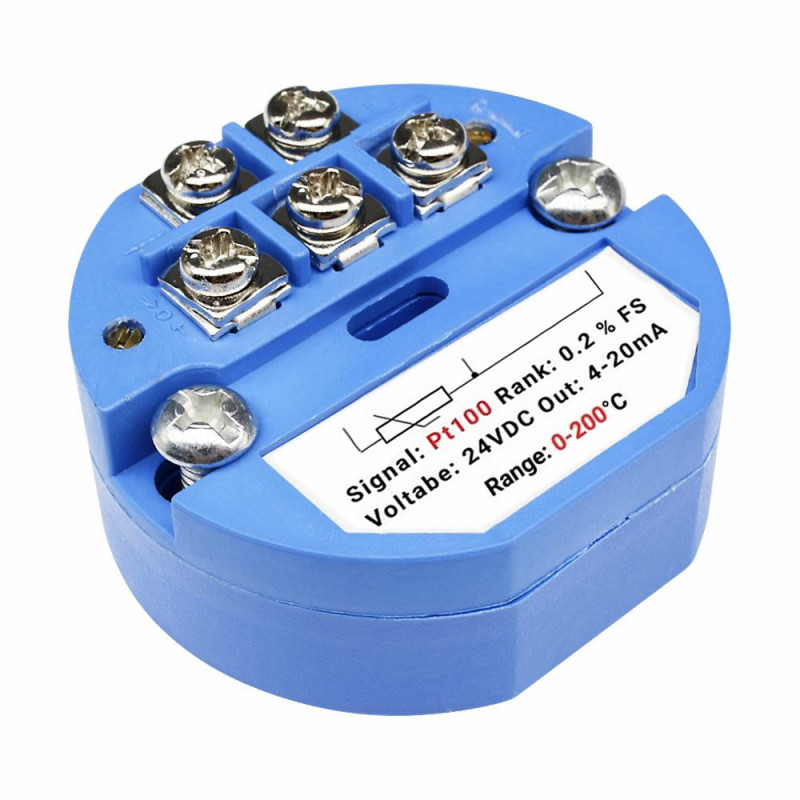

     As shown below ( or in image number 8 ), the pt100 connection is made via the 3 way terminal block. Dc  24V supply is connected to the 2 way terminal block. Through this supply connection, the connection to the 4-20mA system is made with 2 cables. There are 2 adjustment potentiometers on the module. Span and zero adjustments are made with these potentiometers.

Features:

•     4-20mA system converter for Pt100 temperature sensor
•     Operating voltage: DC 24V
•     Temperature measurement range: 0C  /  200C
•     Output: 4-20mA
•     Current limit: 26mA
•     Span and Zero adjustment potentiometers
•     Accuracy: -+0.2 % FS
•     Supply reverse connection protection
•     Module operating temperature:  -20C / 80C
•     Color: Blue
•     2 Pieces mounting hole
•     Cable mounting hole

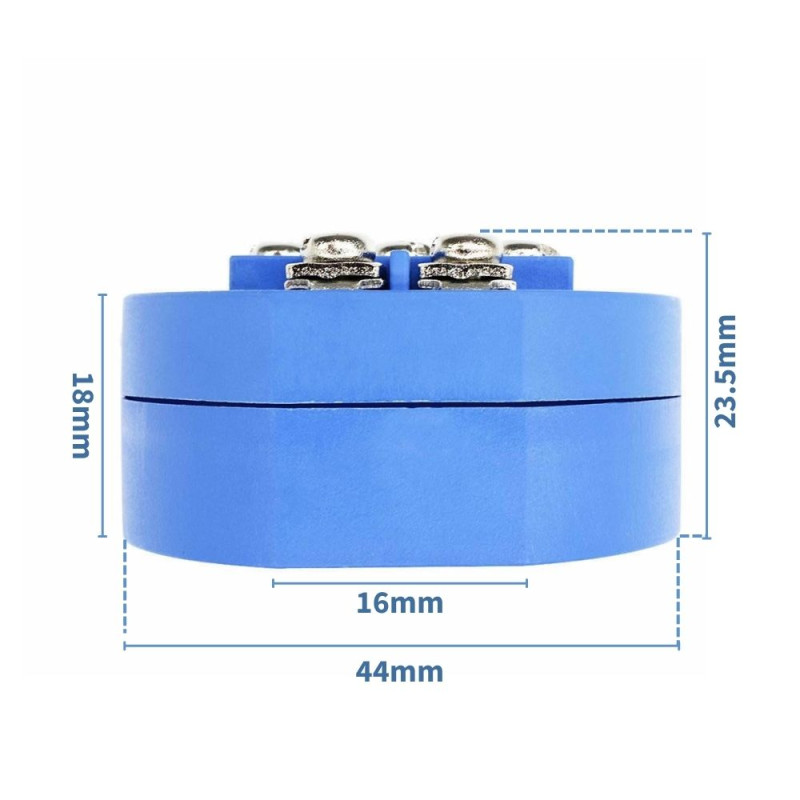

•     Dimensions: 23mm x 44mm
•     Weight: 25gr

Package contents:

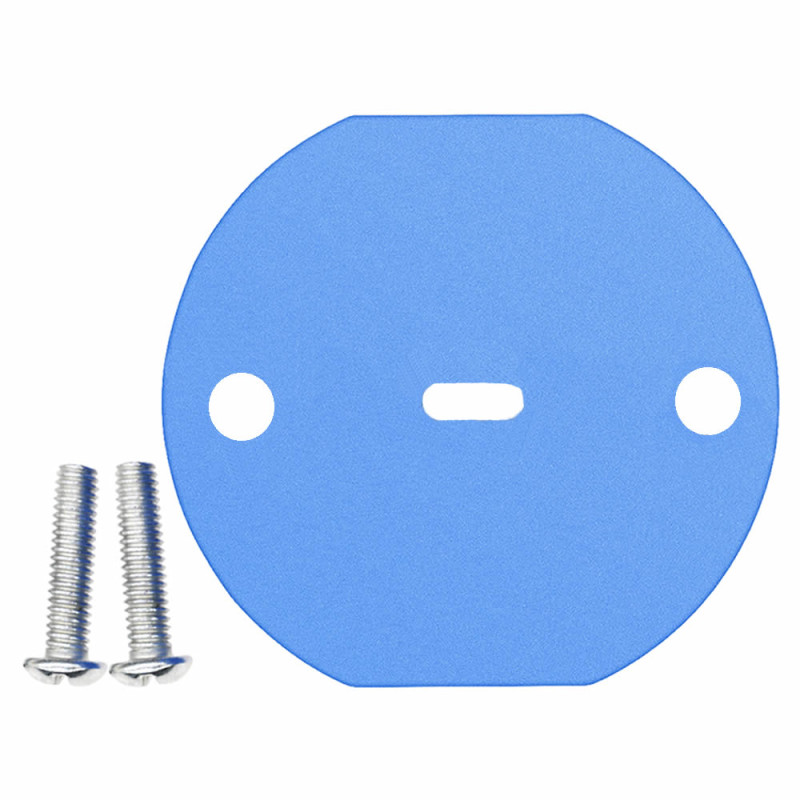

•    1 Piece  PT100 Signal to 4-20mA Converter Module 200C
•    2 Pieces connection screw
