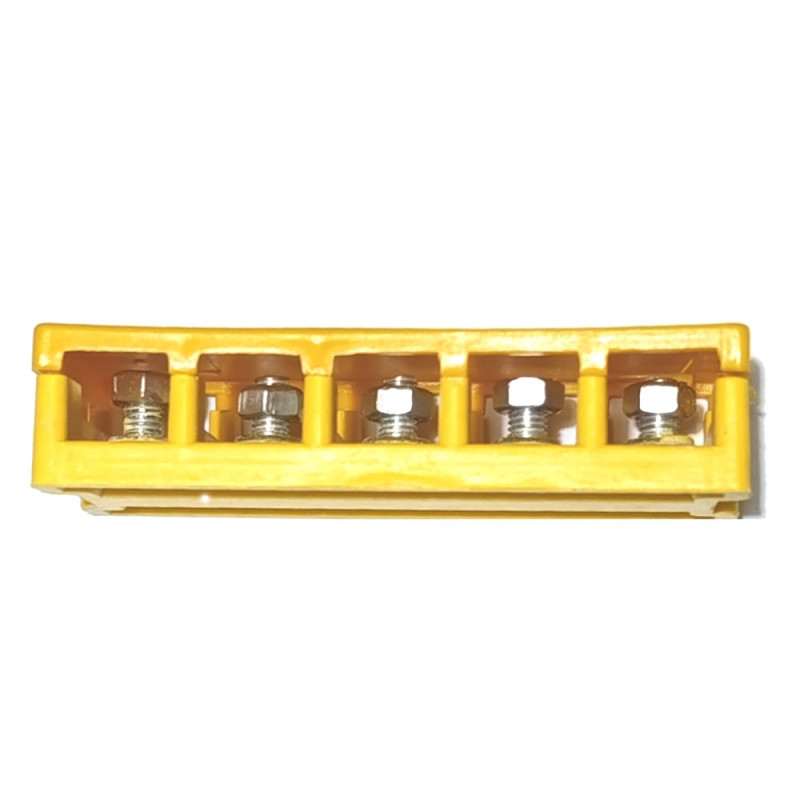

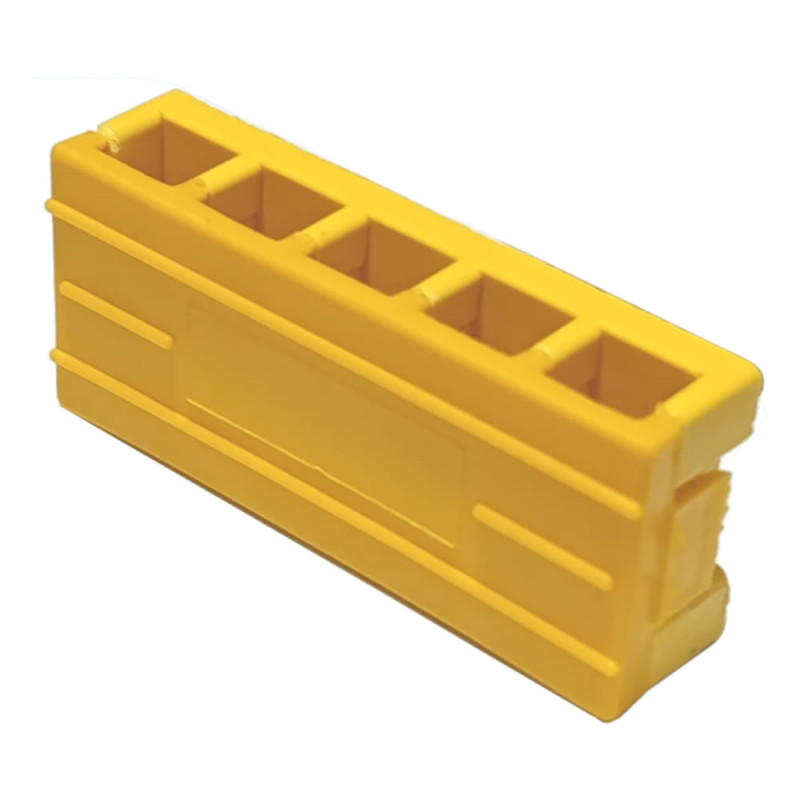

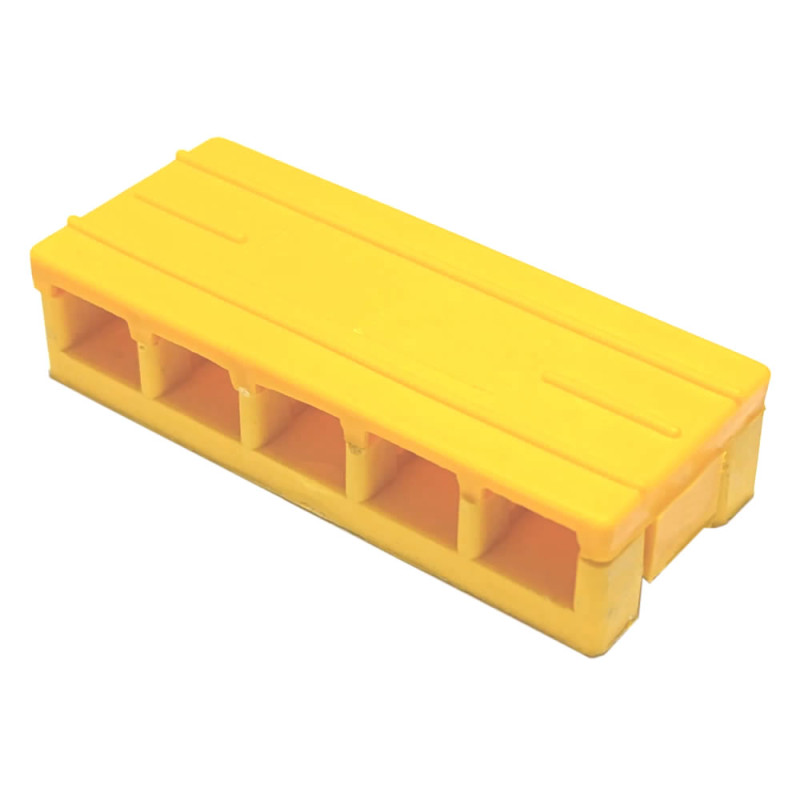

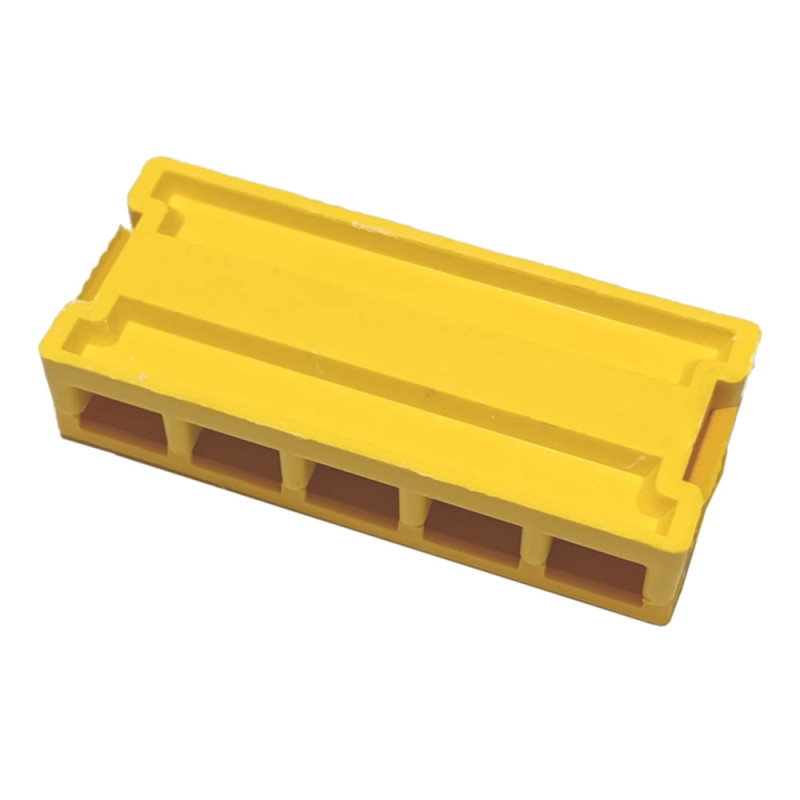

Wire Connection Box 5 Pin

Wire Connection Box 5 Pin
M6 Screw High Current Terminal Block Power Distribution Protection Terminal Electric Bicycle Motor Battery Solar Energy Motor Marine

     It is a durable and practical wire connection box. It is an ideal solution for high current applications such as electric bicycles, battery systems, inverters, motor control systems and general power distribution. Thanks to its five M6 screw terminals, it allows you to connect five different cables in a fixed and secure way. While your safety is increased with the yellow plastic cover, the connections inside the box are protected against external factors.

Features:

•    Wire Connection Box 5 Pin
•    Can be used with cables that have an M6 type cable socket.
•    Cable connection count: 5
•    Operating voltage:   DC 12V / 120V
•    Operating current:   50A Maximum  ( Current drops as voltage rises )
•    Socket type: M6 Type Screw

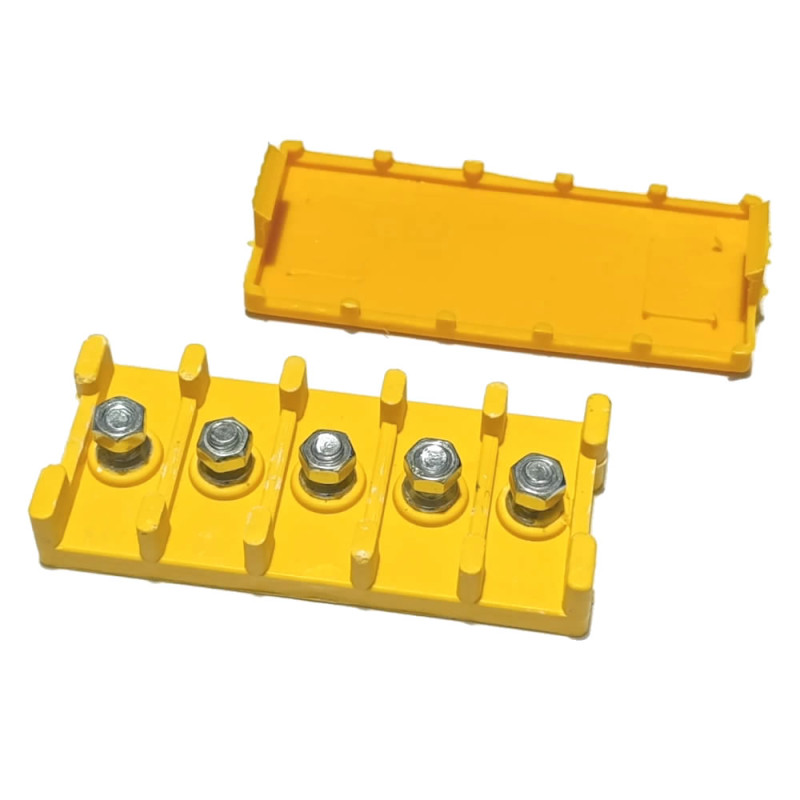

•    Openable plastic cover with latch
•    Material: Plastic / Metal
•    Color: Yellow
•    Operating temperature:  -20C / +100C

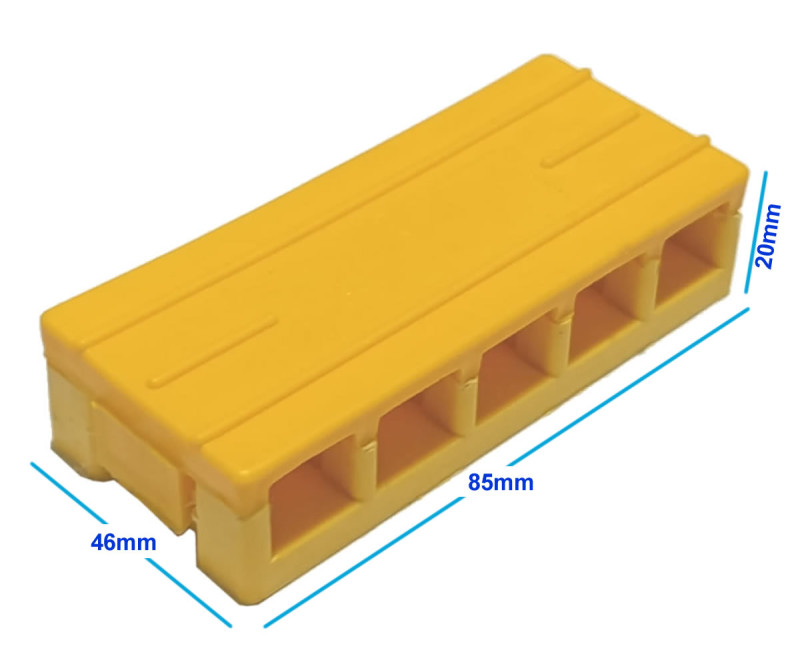

•    Dimensions: 46mm x 85mm x 20mm
•    Weight: 56gr

Areas of use:

•    Electric bicycle battery connection
•    Solar energy systems
•    DC motor power outputs
•    Inverter output connections
•    On-board ship DC system connections

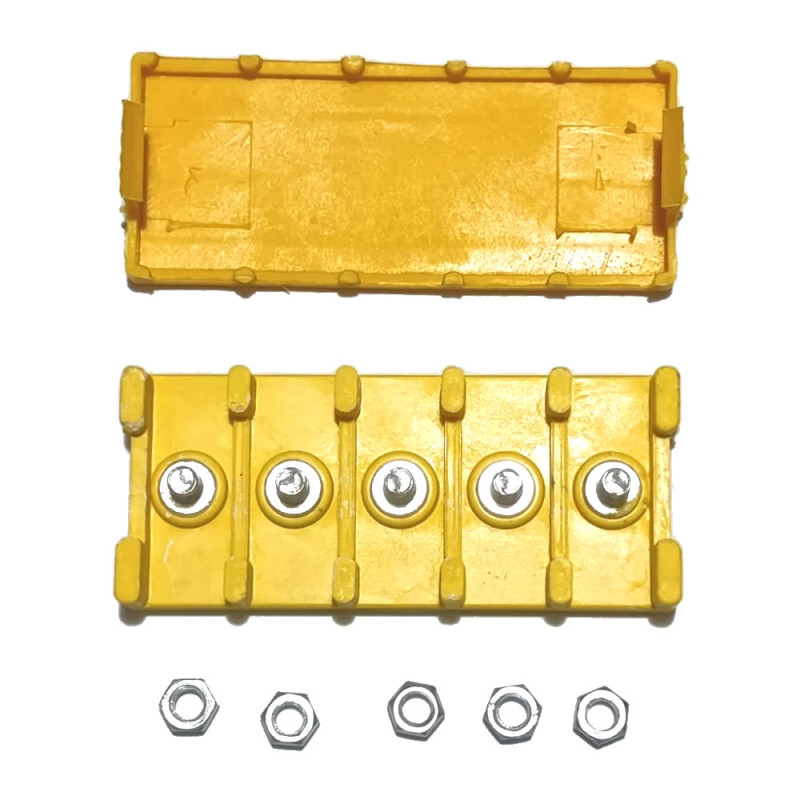

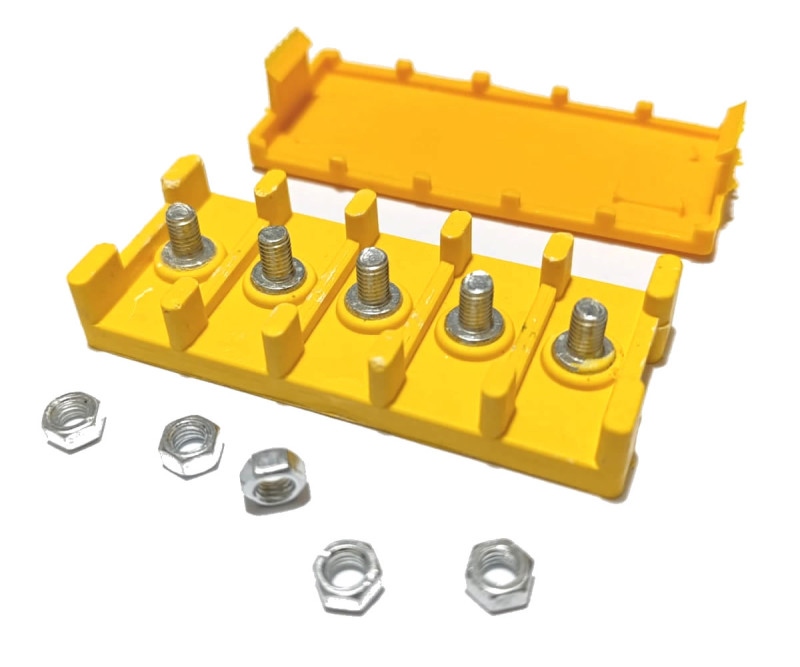

Package contents:

•    1 Piece Wire Connection Box 5 Pin
•    5 Pieces nut
