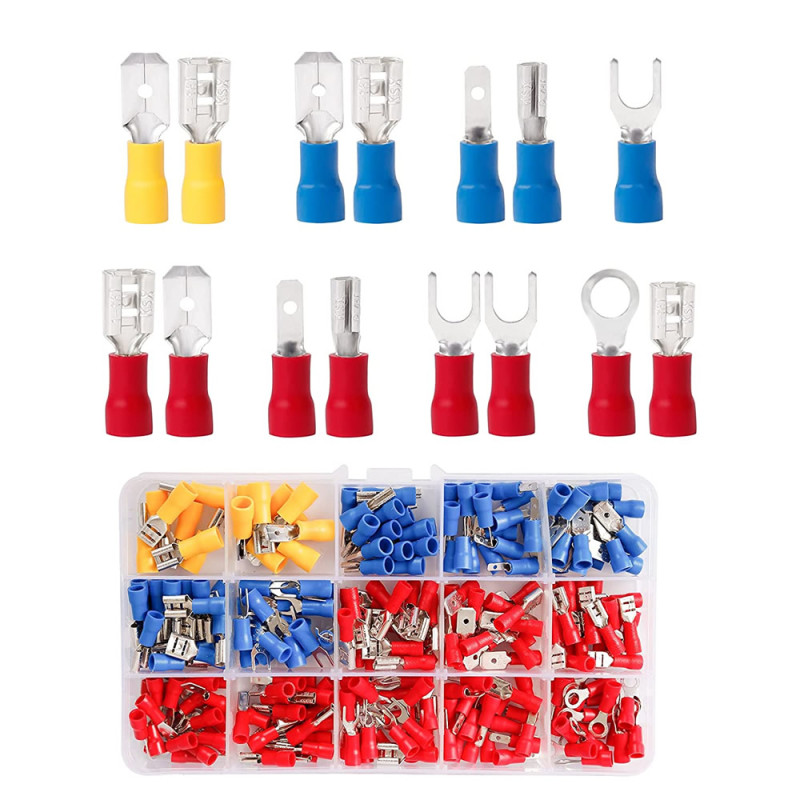

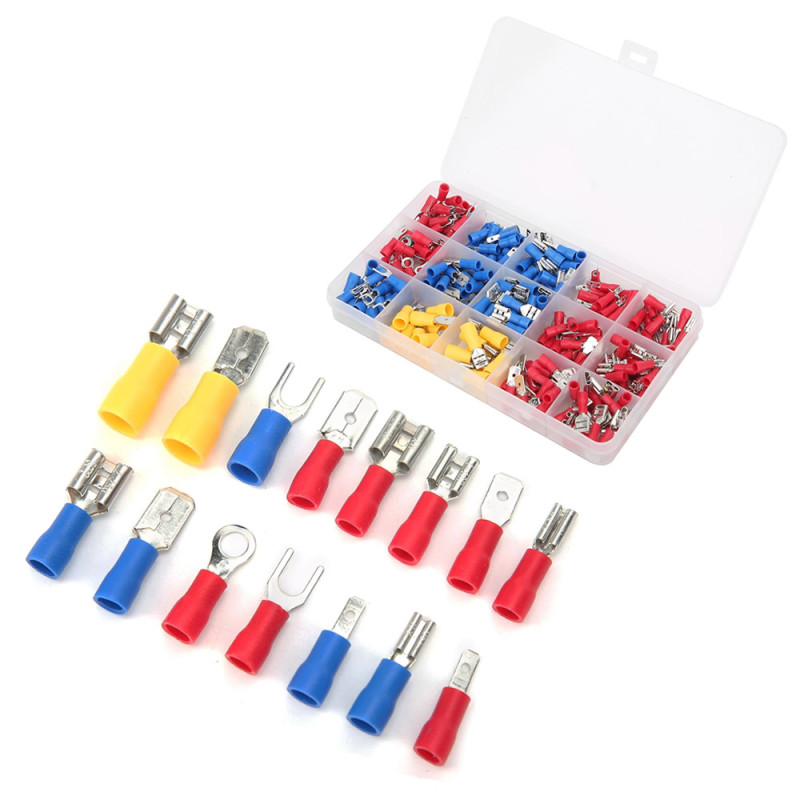

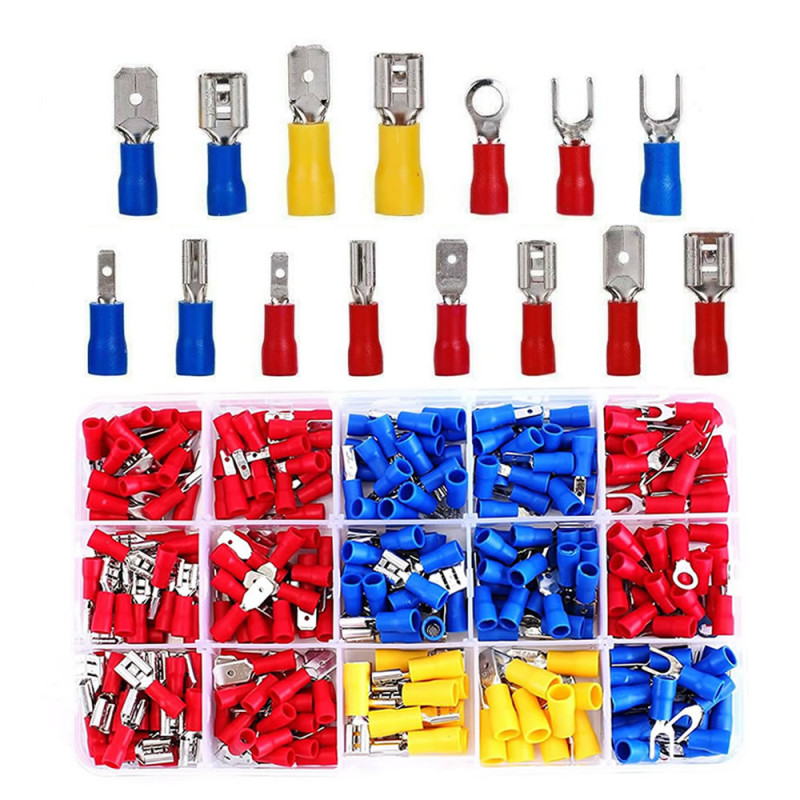

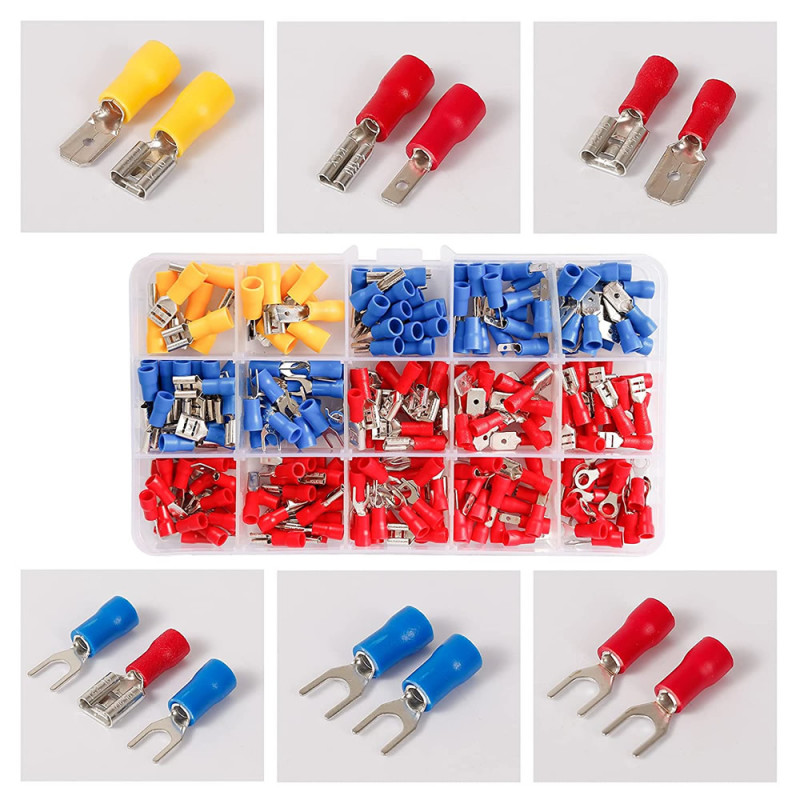

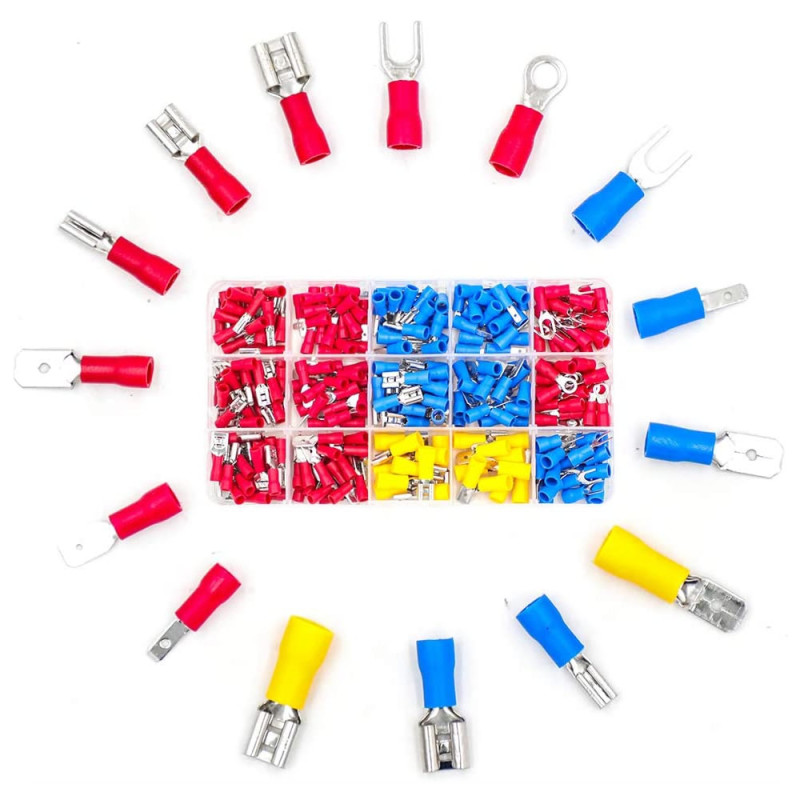

280pcs Insulated Wire Terminal Set

280pcs Insulated Wire Terminal Set Boxed Spade Ring Fork

Insulated Electrical Wire Connector Terminal Socket Crimp Pin 10/22 AWG Car Amplifier Audio Automation Systems

     280pcs wire terminal socket set. It consists of sockets in different sizes and types for wires of 15 different thicknesses. It is used to easily attach your wires to various sockets. They are used for insulation, sturdiness and convenience. A wire of suitable thickness is inserted into the socket. The metal housing is crimped with crimping pliers and takes a form that cannot be separated from each other.

     There are physical shape and color options that prevent incorrect connection. They have a reusable connection structure.

     The plastic part at the back of the socket provides insulation that prevents short circuits. It is heated to shrink and grip the wire.  It is used together with wires in all kinds of electrical applications at home, at work, in the car and in the laboratory. It is effective against impact and wear. It provides good insulation. It takes up very little space in the transparent box. The box can also be used for storing different materials.

Features:

• 280pcs 3 Color wire terminals
• 15 Different thicknesses and types of connection sockets
• Female Male compatible sockets.
• Color: Yellow, Red, Blue
• Wire thickness: 0.5-4mm /  22-10 AWG
• Red: 22-16 AWG
• Blue:   16-14 AWG
• Yellow:  16-14 AWG
• Material: Plastic / Metal
• Easy to attach easy to use
• Long lasting and widely used
• Not affected by substances such as dust, water and oil
• Resistant to impact and wear.
• Operating temperature:  -10C  /  80C

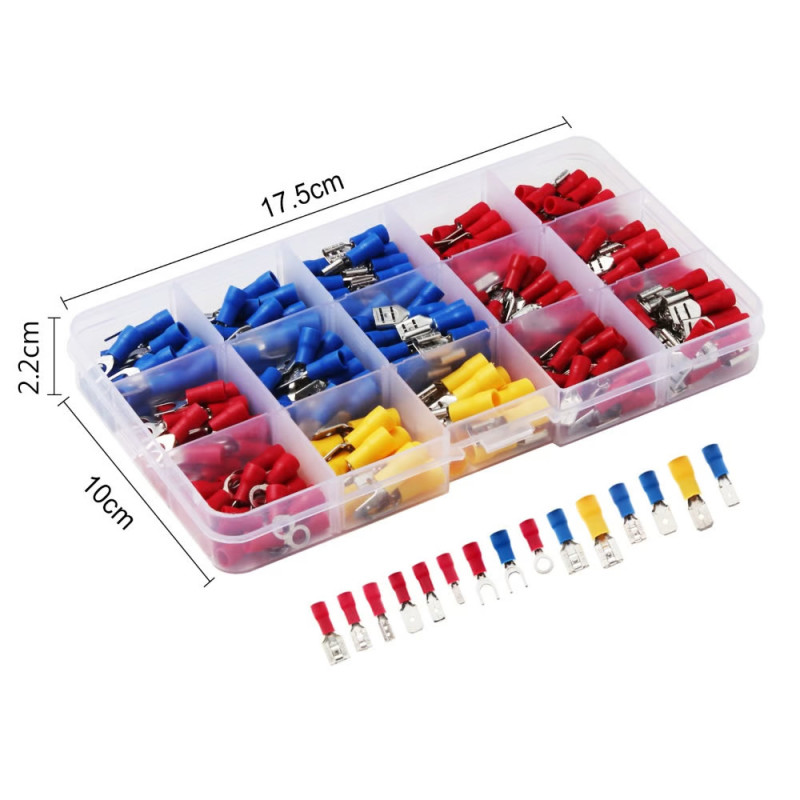

• Set dimensions: 17.5mm x 10cmm x 2.2cm
• Weight:  185gr

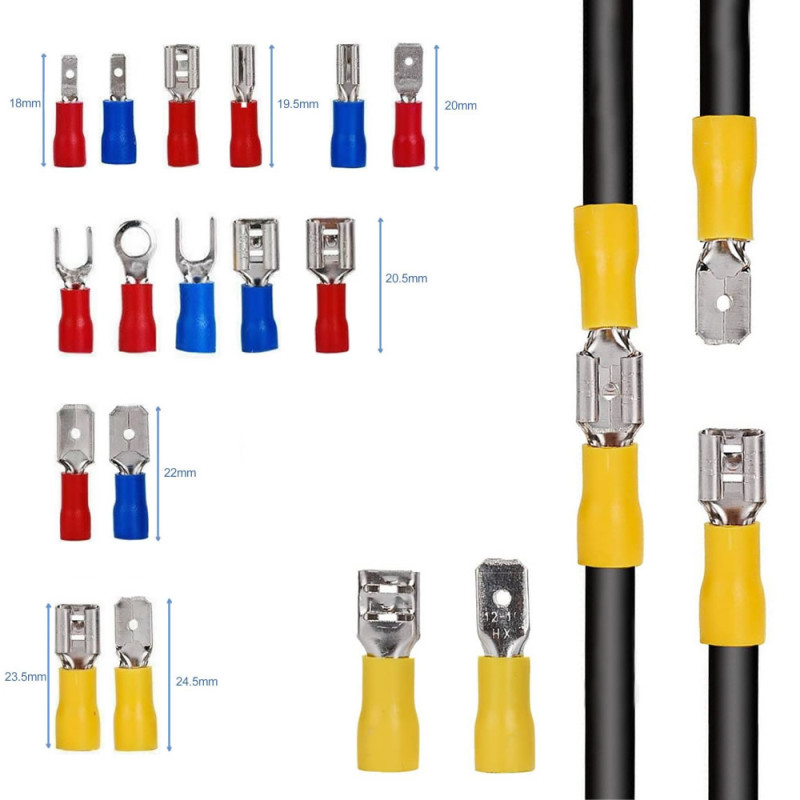

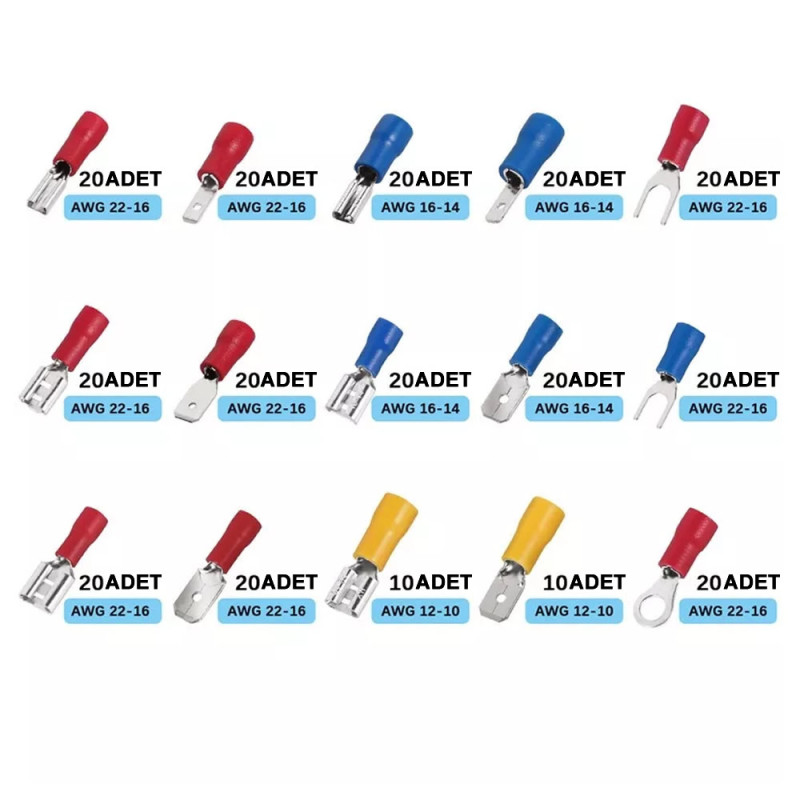

Socket Types Quantities

• 20pcs 2.8mm Female Insulated Terminal Red 22-16 Gauge AWG
• 20pcs 2.8mm Male Insulated Terminal Red 22-16 Gauge AWG
• 20pcs 4.8mm Female Insulated Terminal Red 22-16 Gauge AWG
• 20pcs 4.8mm Male Insulated Terminal Red 22-16 Gauge AWG
• 20pcs 4.8mm Female Insulated Terminal Blue 16-14 Gauge AWG
• 20pcs 4.8mm Male Insulated Terminal Blue 16-14 Gauge AWG
• 20pcs 6.3mm Female Insulated Terminal Red 22-16 Gauge AWG
• 20pcs 6.3mm Male Insulated Terminal Red 22-16 Gauge AWG
• 20pcs 6.3mm Female Insulated Terminal Blue 16-14 Gauge AWG
• 20pcs 6.3mm Male Insulated Terminal Blue 16-14 Gauge AWG
• 20pcs 6.3mm Female Insulated Terminal Yellow 12-10 Gauge AWG
• 20pcs 6.3mm Male Insulated Terminal Yellow 12-10 Gauge AWG
• 20pcs Spade Wire Connector 22-16AWG #4 19AMP Blue Fork Terminal
• 20pcs Spade Wire Connector 22-16AWG #8 19AMP Red Fork Terminal
• 20pcs Spade Wire Connector 22-16AWG #8 19AMP Red Ring Terminal

Package Contents:

• 280pcs Insulated Wire Terminal Set
• 1pc Transparent Material Box
