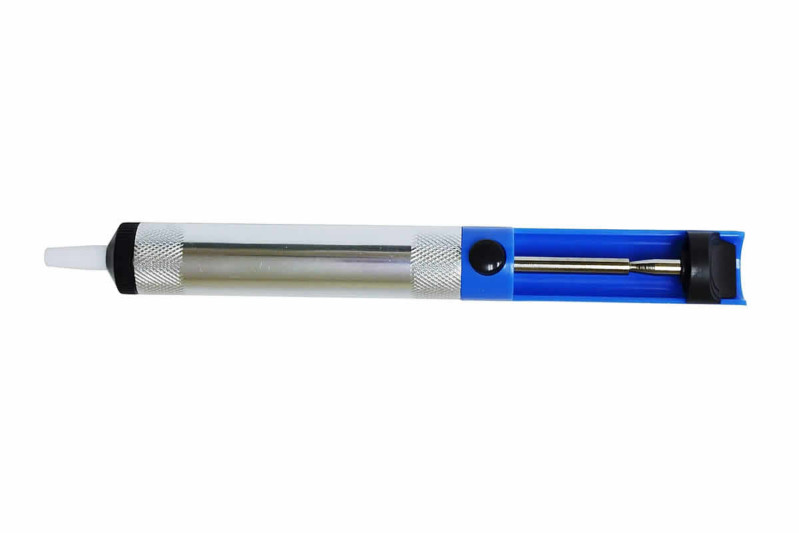

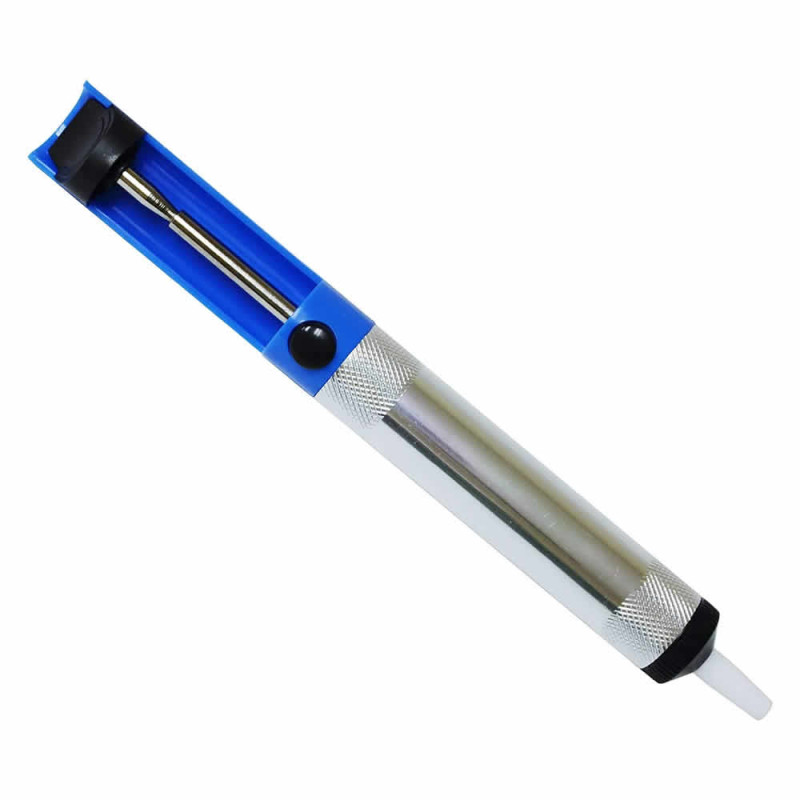

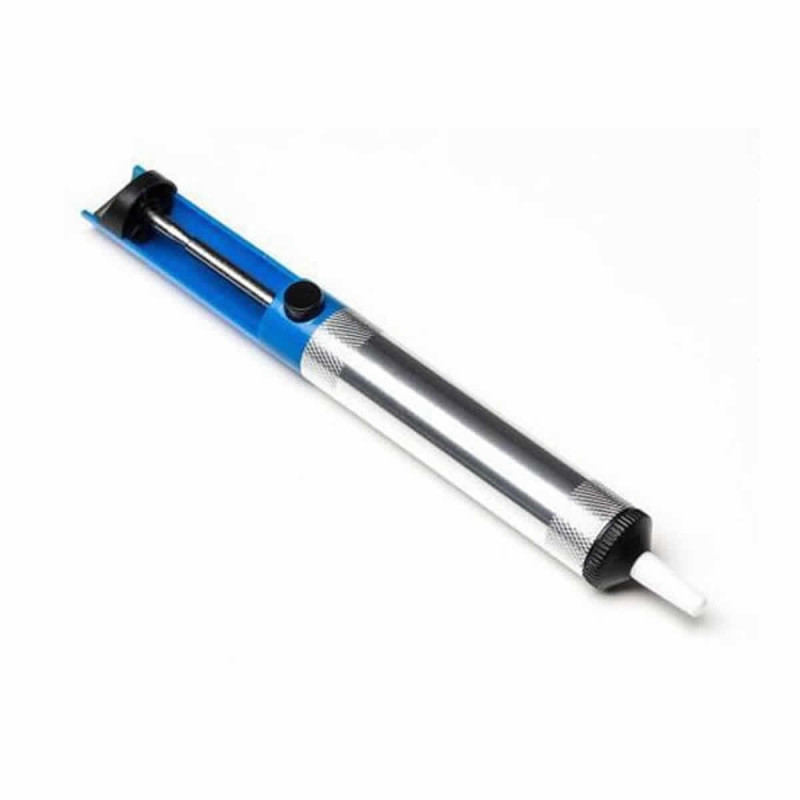

Solder Pump ZD-192

Solder Pump ZD-192

Suction Vacuum Hand Tool Metal Body Phone Laptop Watch Repair Fix Antistatic Heat Resistant Non-flammable

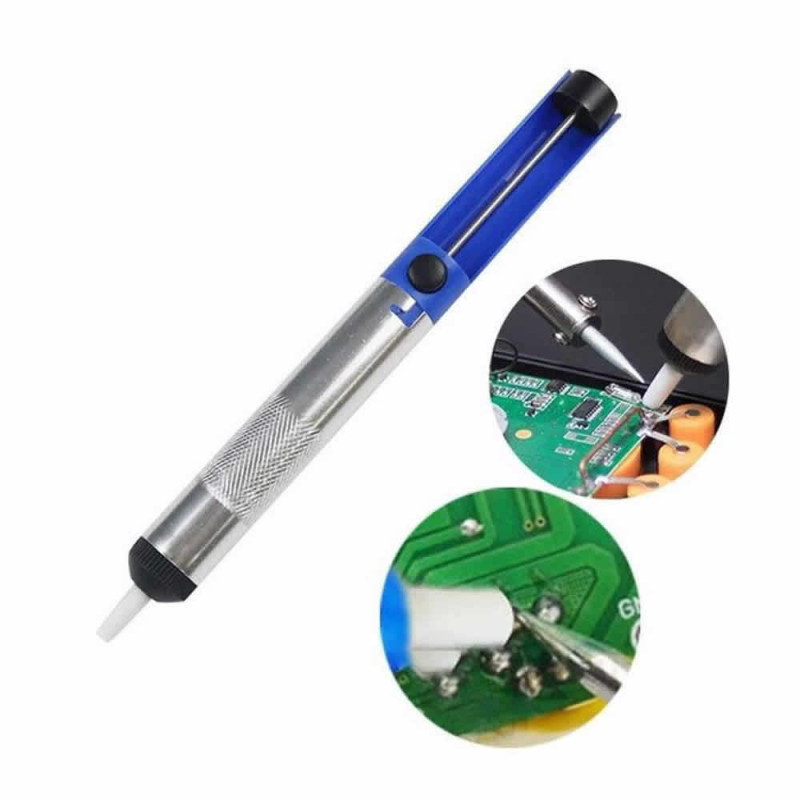

     Desoldering pumps are used to remove faulty solder joints or through hole mounted (dip) components from the circuit board. Since dip components completely fill the hole during soldering, removing them with a soldering iron only is difficult and may damage the PCB. This pump vacuums the solder melted by the soldering iron and cleans the solder inside the hole. Thus the part is separated from the board without damage.

     The ZD-192 metal solder pump is an affordable and durable solution for these operations. Its aluminum alloy body provides long lasting use. Its heat resistant replaceable teflon tip allows working at high temperatures without deformation.

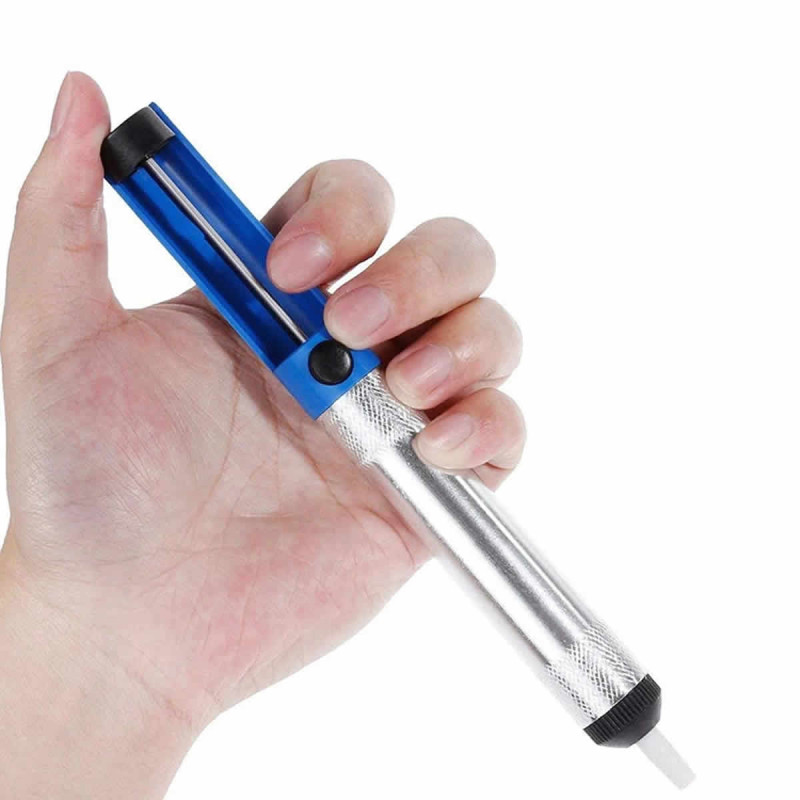

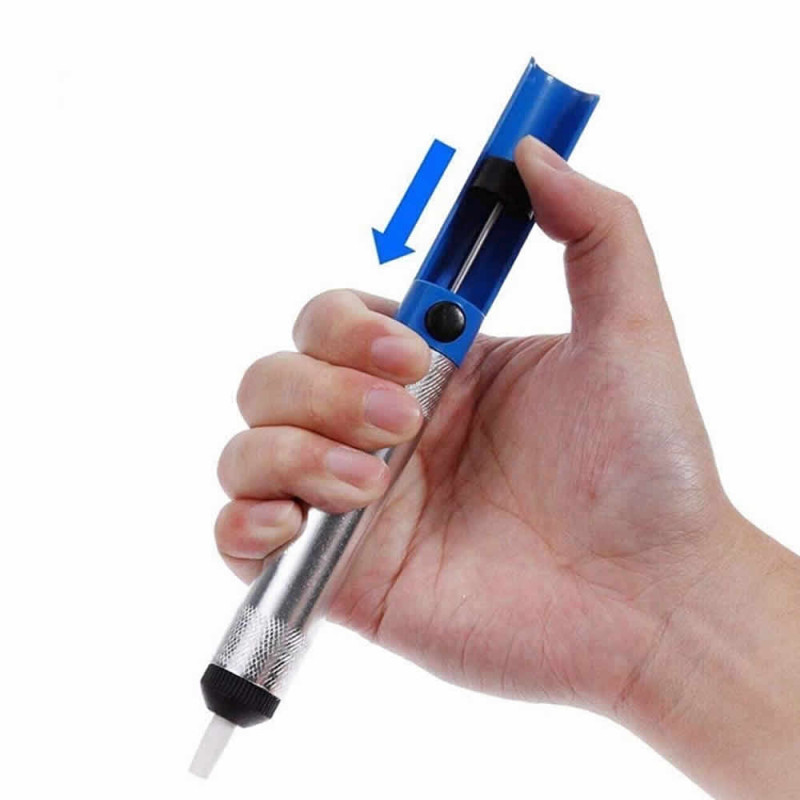

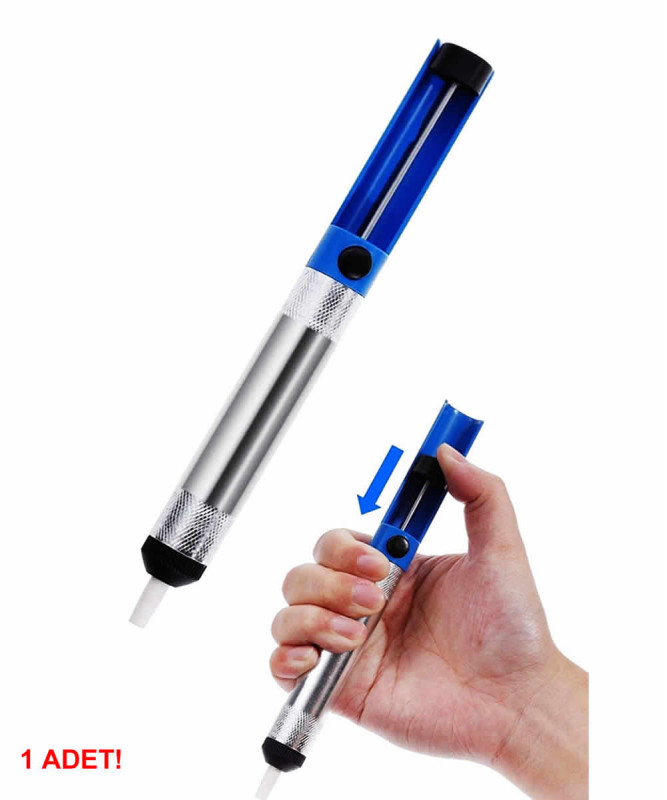

     Thanks to its spring and button mechanism it can easily be used with one hand. Every time you press it the vacuum system cleans itself and prevents clogging. It helps you remove faulty solder quickly and cleanly. It is suitable for professional technicians, service centers and electronics hobby users. The plastic color of the tip section may be black or white depending on stock status.

Features:

• Model: ZD-192 desoldering pump
• Aluminum alloy metal body
• Suction capacity: 30cm-Hg
• Durability: Resistant to high temperature and mechanical impact
• Suitable for professional and amateur use.
• Replaceable heat resistant teflon tip
• Usage type: Manual (one hand control)
• Application: Dip component, PCB desoldering
• Fast and easy residue cleaning
• Piston with double sealing gasket
• Antistatic
• Color: Blue
• Hole inner diameter: 3mm
• Length: 195mm
• Diameter: 18mm
• Weight: 26gr

Areas of Use

• Electronic circuit maintenance and repair work
• Cleaning faulty solder on the PCB
• Removal of dip components
• Service, repair workshop and hobby projects

Package contents:

•  1  Piece Solder Pump ZD-192
