VS1838B 38KHZ IR Receiver Sensor

VS1838B 38KHZ IR Receiver Sensor

Universal Infrared Remote Control Television Satellite Receiver Air Conditioner Receiver 1838 Led TL1838 Nec RC5 Optical Switch Encoder

      It is an infrared remote control receiver sensor. It is on the 1838 type ir receiver.  It operates at 38Khz frequency. It can work up to 18 meters. It is not affected by light and electromagnetic noise. With this sensor operating at 38 KHz frequency, it can be used with protocols such as NEC and RC5.

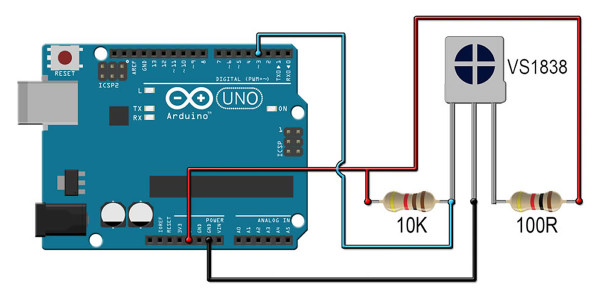

     You can carry out your various control applications using your remote controls. It can be used with boards such as Arduino Raspberry and circuits made with different mcus. It is widely used in devices such as television, satellite receiver, cd player, air conditioner, remote controlled toy.

Features:

•     Operating voltage: DC 2.7V / 5.5V
•     IR frequency: 38kHz 1838 NEC Code
•     Compatible communication standard: NEC code, RC5 code.
•     Angle: 45 Degrees

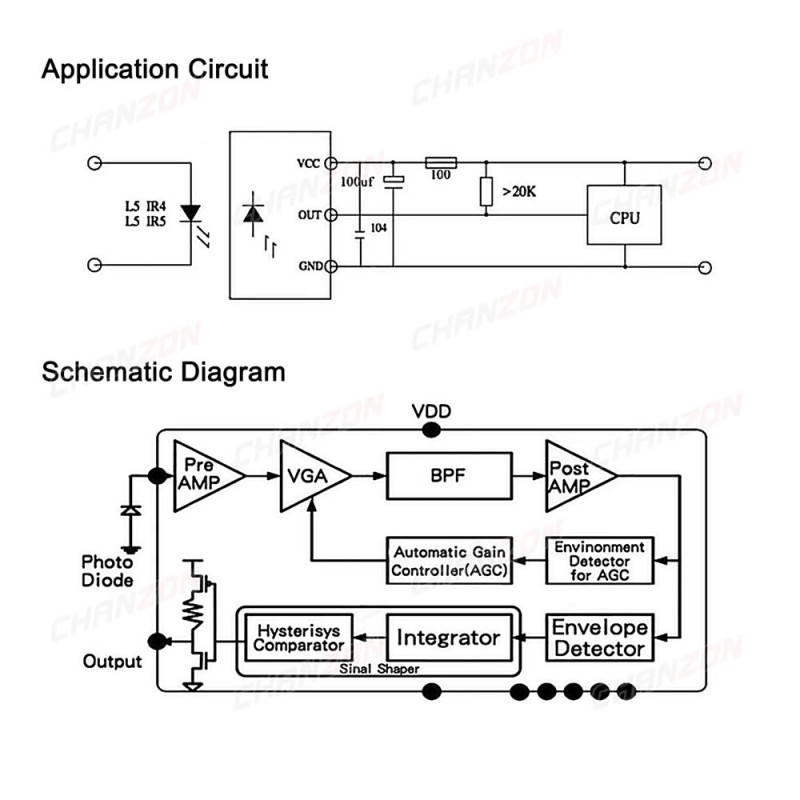

•     Internal amplifier circuit with high gain
•     High speed
•     High sensitivity
•     Little affected by ambient light.
•     Protection little affected by interference
•     Metal shell structure for protection from electric field
•     TTL and CMOS compatibility
•     Universal receiver. 38 kHz
•     Wavelength: 940Nm
•     Detection distance: 18 Meters
•     Pin pitch distance: 2.54mm
•     Pin length: 20mm

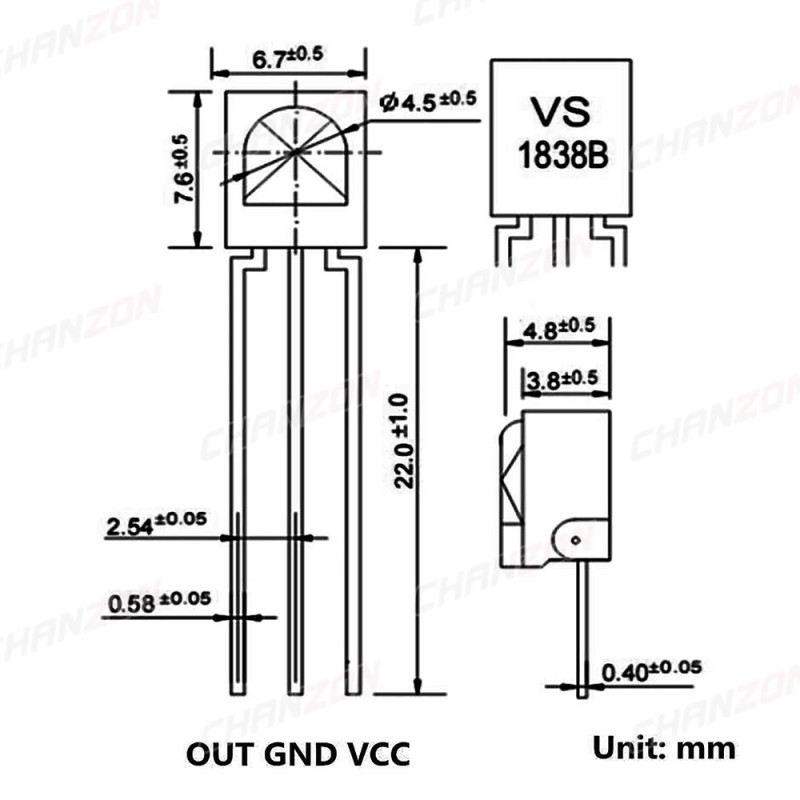

•     Dimensions: 5mm x 7,5mm x 6.7mm
•     Weight: 0.5gr

Package Contents:

• 1 pcs VS1838B 38KHZ IR Receiver Sensor

.
