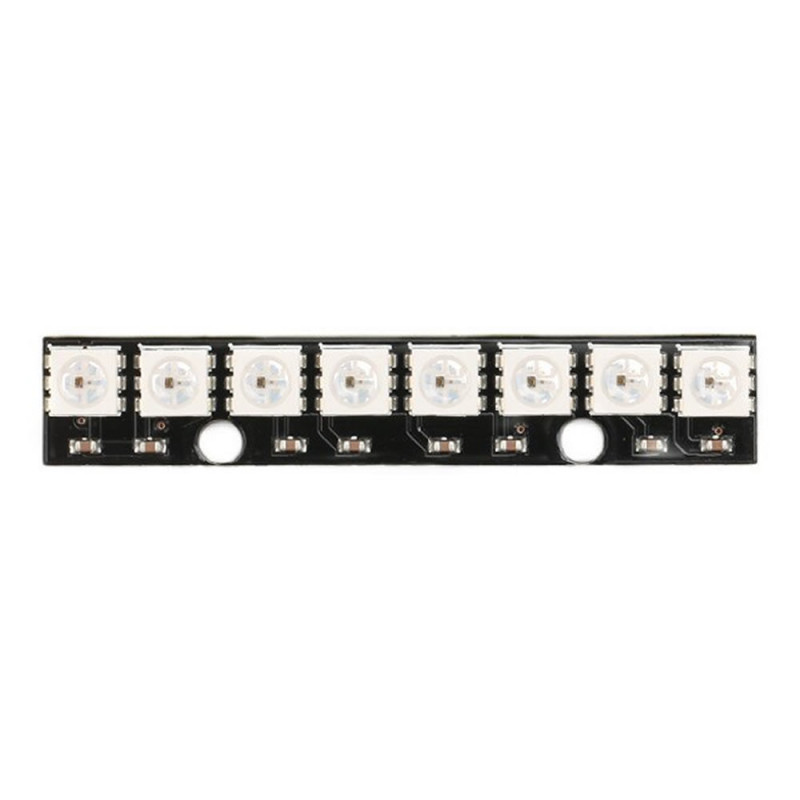

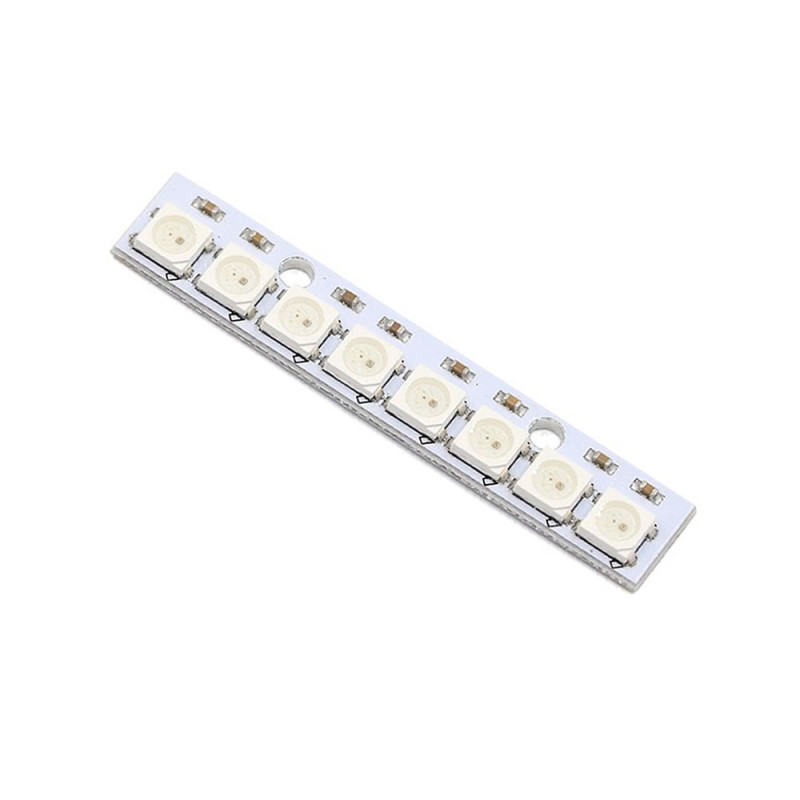

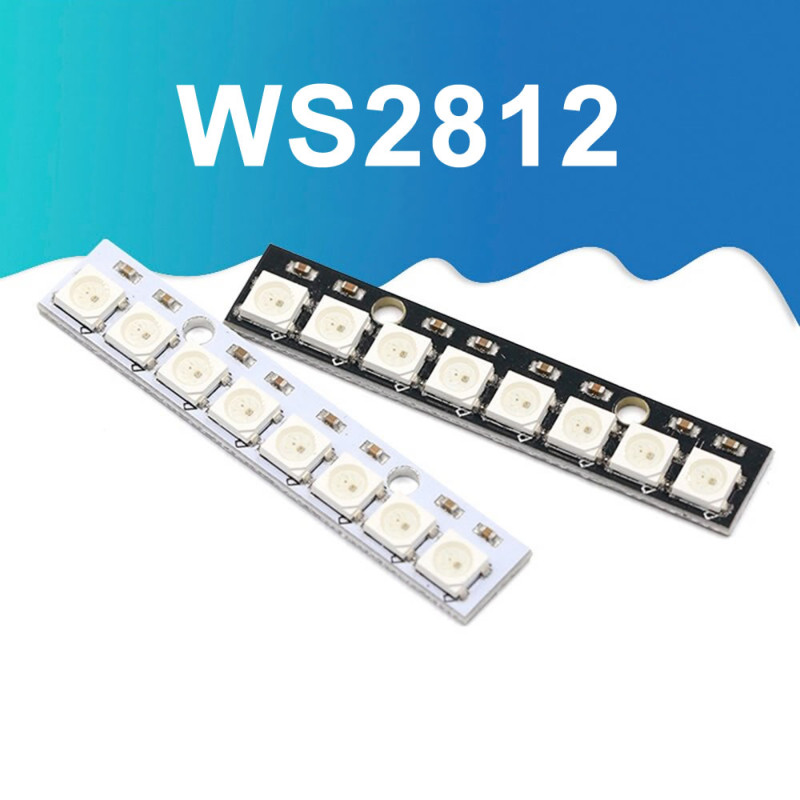

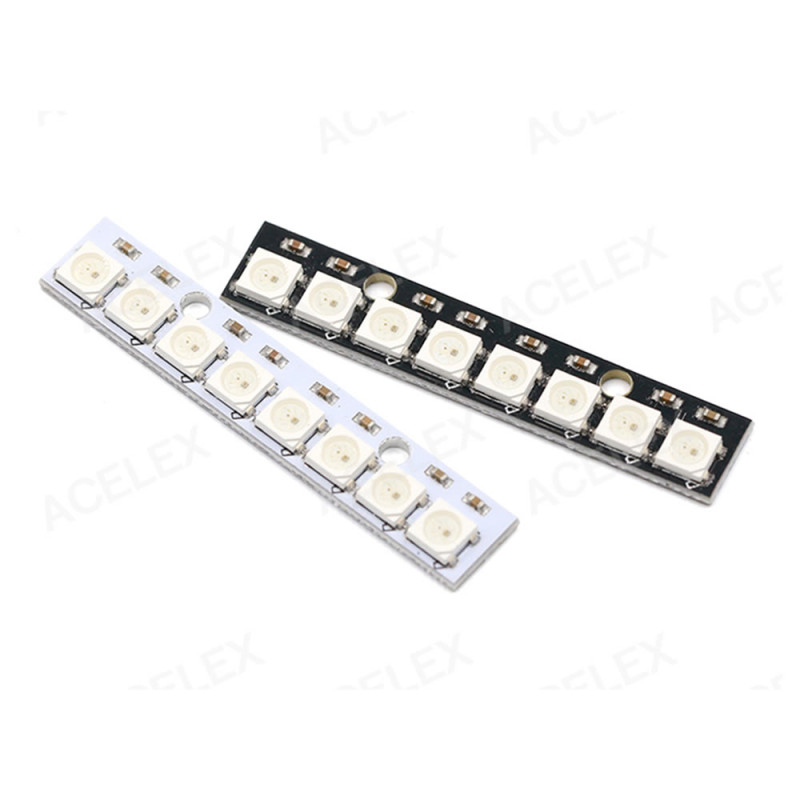

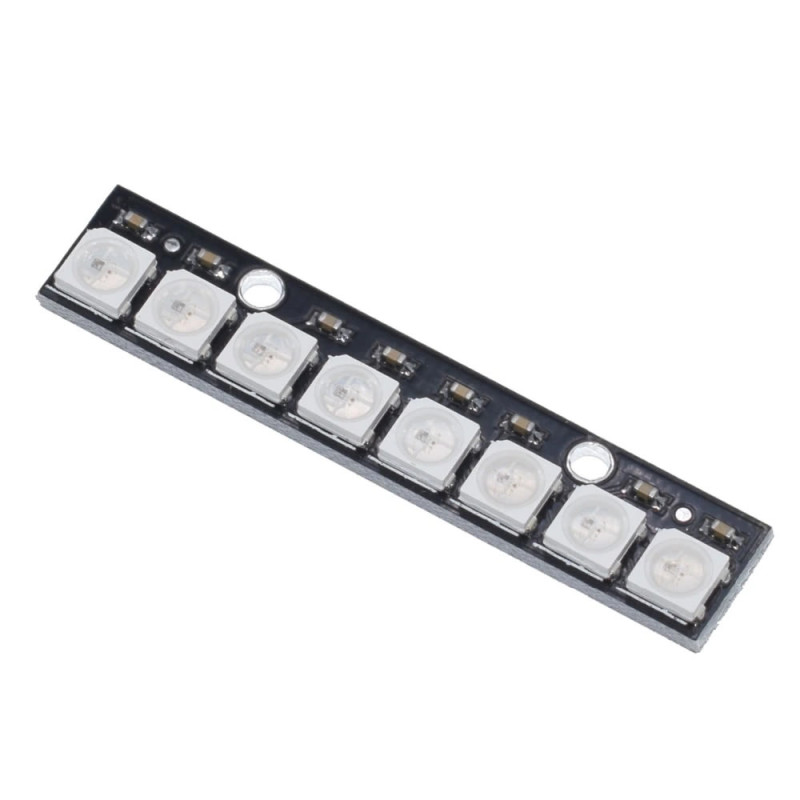

8x WS2812B 5050 RGB LED

8 Bit NeoPixel WS2812B 5050 Rgb Led Module

8x 5050 Addressable Rgb Stick Lamp Strip Board Full Color

Install the FastLED library on Arduino. If necessary we can provide sample code by mail.

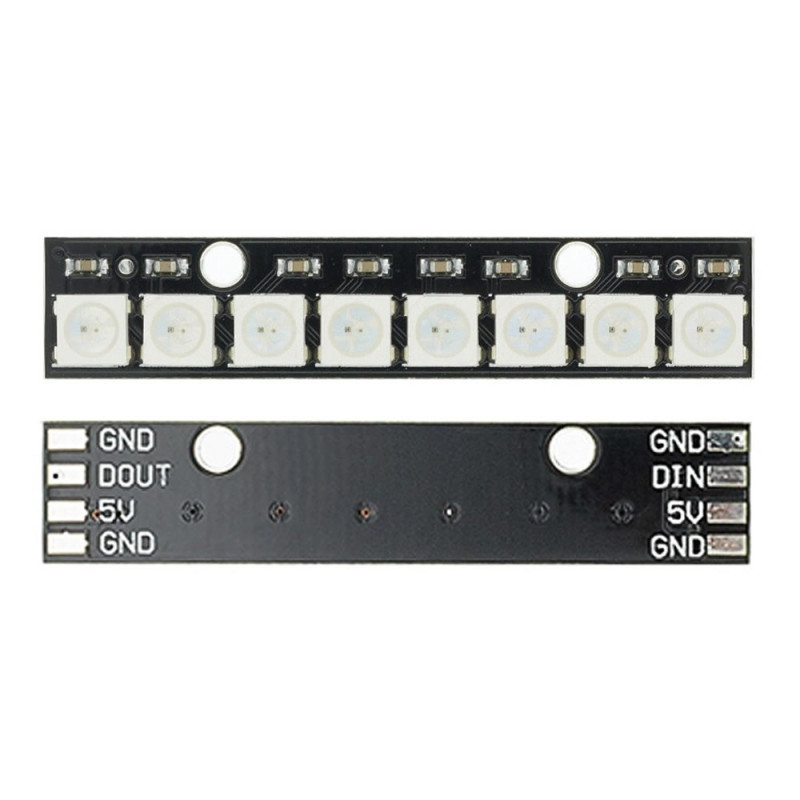

     It is a board module containing 8 addressable ws1228b rgb leds. 50x50 rgb led is used. On the back of the board there are 4 input and 4 output solder pads. The connection is made with a 3 pin cable, 2 supply and 1 data. It can be driven with development boards such as Arduino, AVR, PIC. You can create all colors with the rgb leds. It gives high brightness. The led boards can be used by connecting one after another. A maximum of 1024 points can be connected.

     There are supply lines and 1 data line. The input data signal goes out from the other end of the board. This gives the possibility to connect more than 1 module to each other. It has a structure that can communicate precisely. Up to a total of 1024 leds can be connected in series to the system.  It can be used in applications such as various color signal applications, lamps, decorative lighting.

     With the 8 ultra bright RGB LEDs on it, you get perfect results in all the colors you want. If you want, you can connect multiple NeoPixel Stick modules to each other and use them together. With the color information transferred over a single cable, it offers the possibility to control specifically the LED you want. It can be controlled with any AVR, Arduino, PIC, mbed etc. microcontroller that can perform real time processing.

Features:

• 8 Pieces WS2812 5050 rgb led
• Ultra bright and support for all colors
• Operating voltage: DC 5V ( 4V – 7V )
• Current: 20mA
• Refresh rate 30Fps ( 1024 Led Maximum )
• Data rate: 800Kbps.
• 24 bit color depth
• Digital communication
• 2 Pieces mounting hole

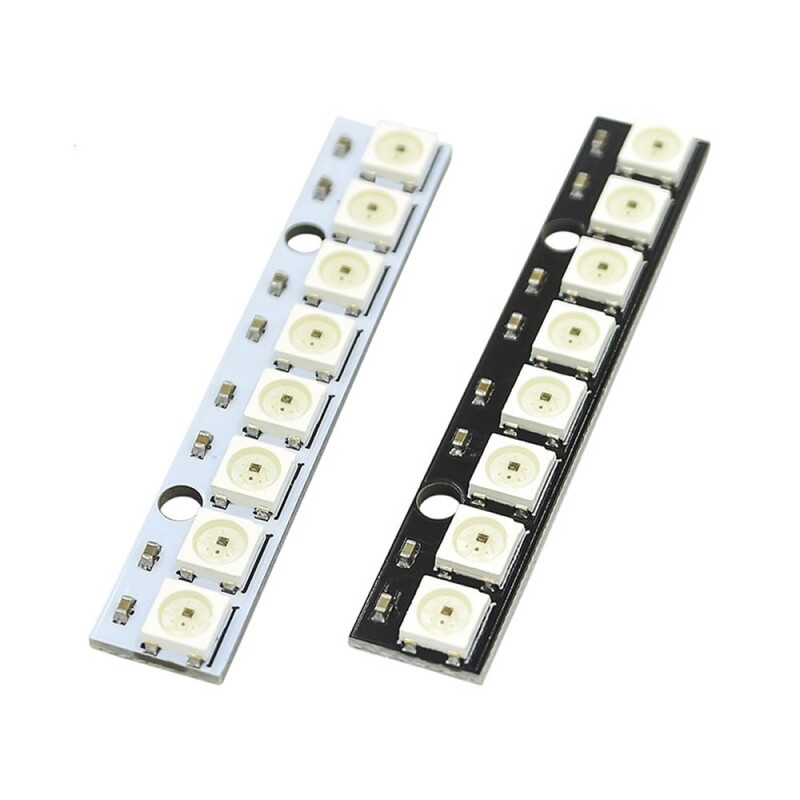

• Pcb Color: Black / White

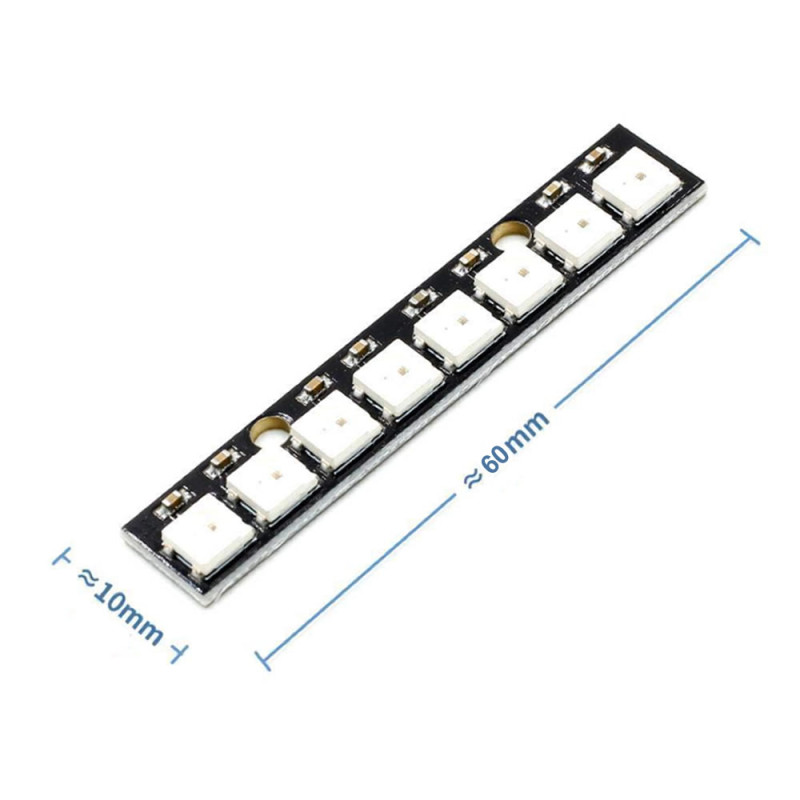

• Dimensions: 10mm x 60mm
• Weight: 3gr

Package Contents:

•      1 Piece 8x WS2812B 5050 Rgb Led

.
