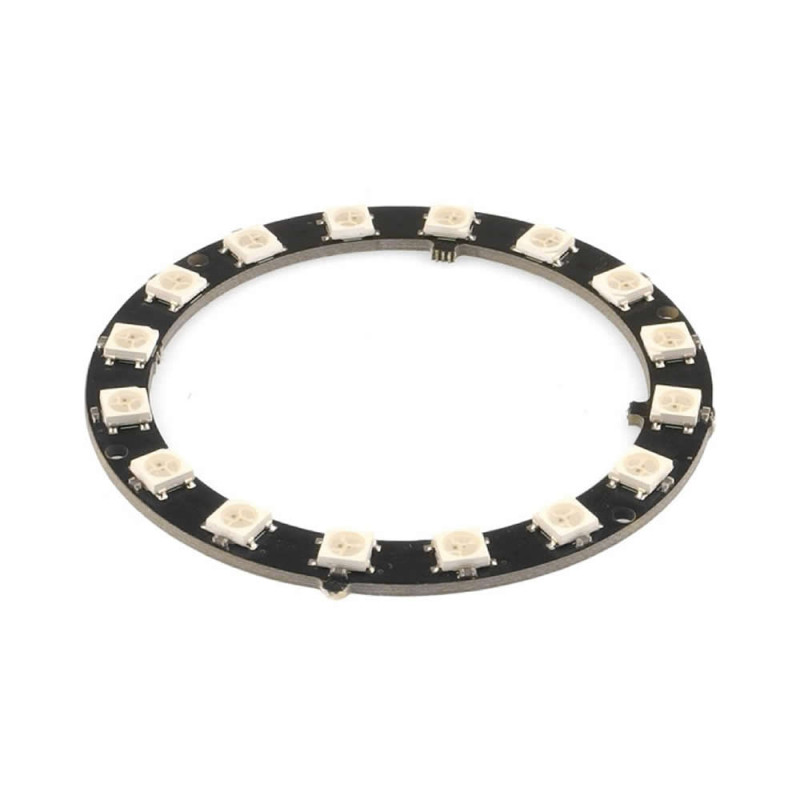

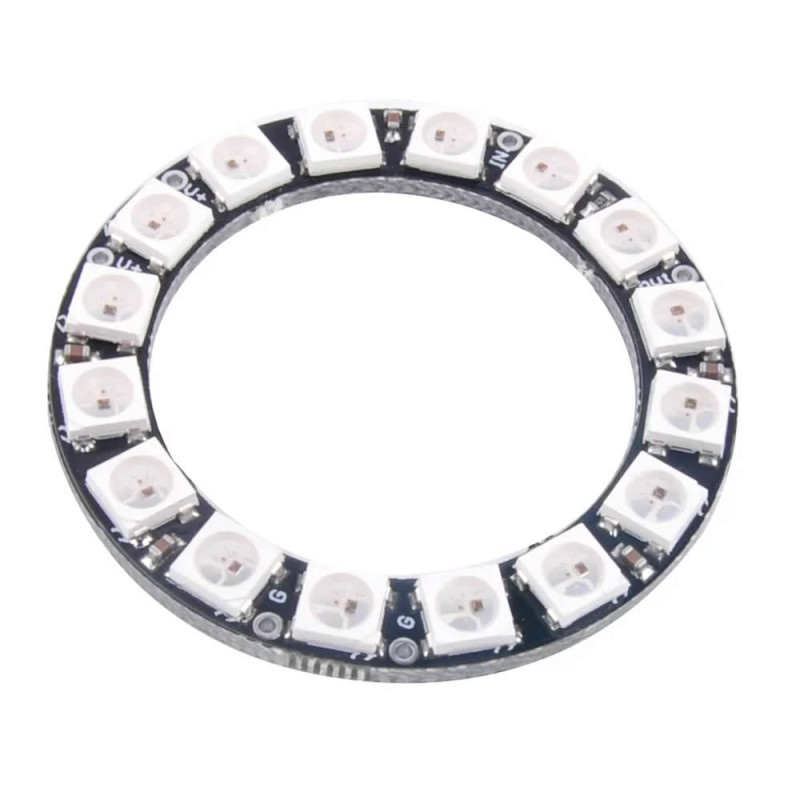

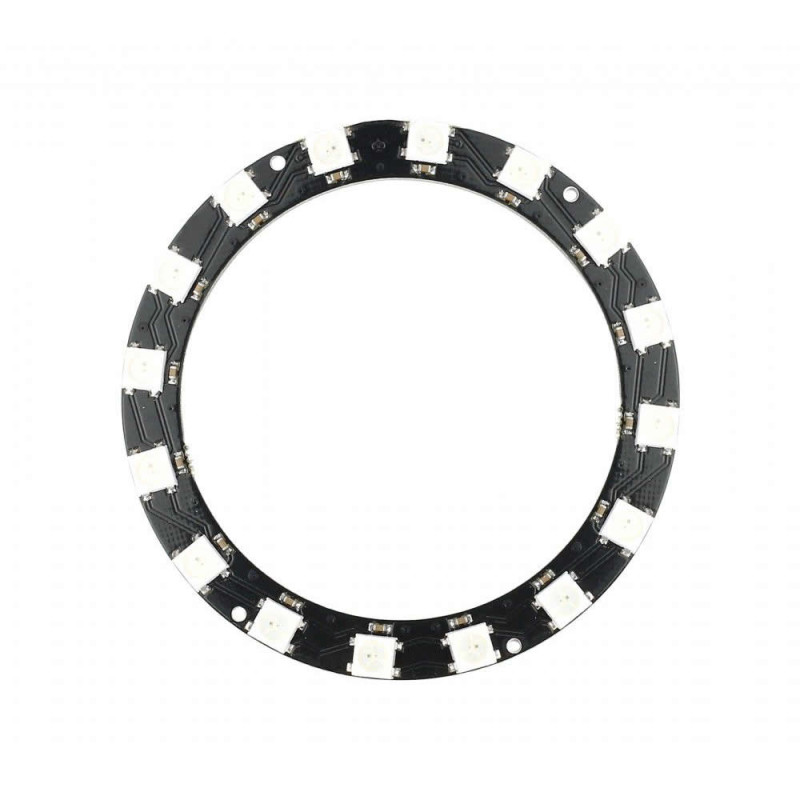

16 Bit NeoPixel Ring WS2812B 5050 Rgb Led Module
16 Piece Digital Addressable Lamp Programmable Full Color FastLED Decorative Lighting
Install the FastLED library in Arduino. If necessary, we can provide sample code via mail.

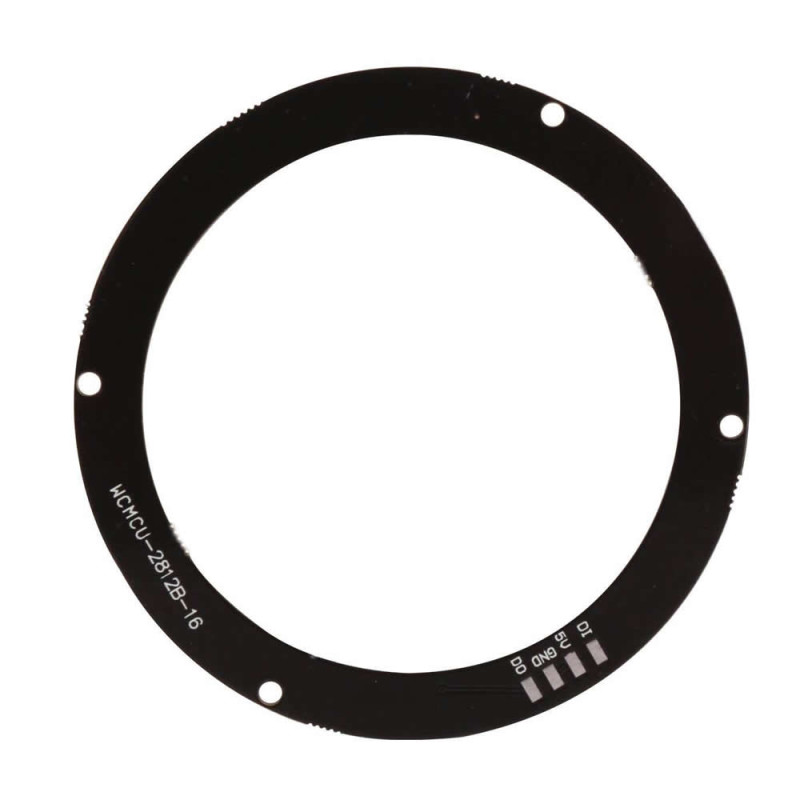

It is a ring shaped module containing 16 addressable ws1228b rgb leds. 50x50 rgb leds are used. There are 4 pin smd solder pads on the back of the board for connection. Connection is made with a 3 pin cable, 2 supply and 1 data. It can be driven with development boards such as Arduino, AVR, PIC. You can create all colors with rgb leds. It gives high brightness. Led boards can be used by joining them one after another. A maximum of 1024 points can be joined.
There are supply lines and 2 data lines. The input data signal is connected to the board from the DI pin. Connection is made from the DO pin to the data line of the other board. This gives the possibility to connect more than one module to each other. It has a structure that can communicate precisely. A total of up to 1024 leds can be connected in series to the system. It can be used in applications such as various color signal applications, lamp, decorative lighting.

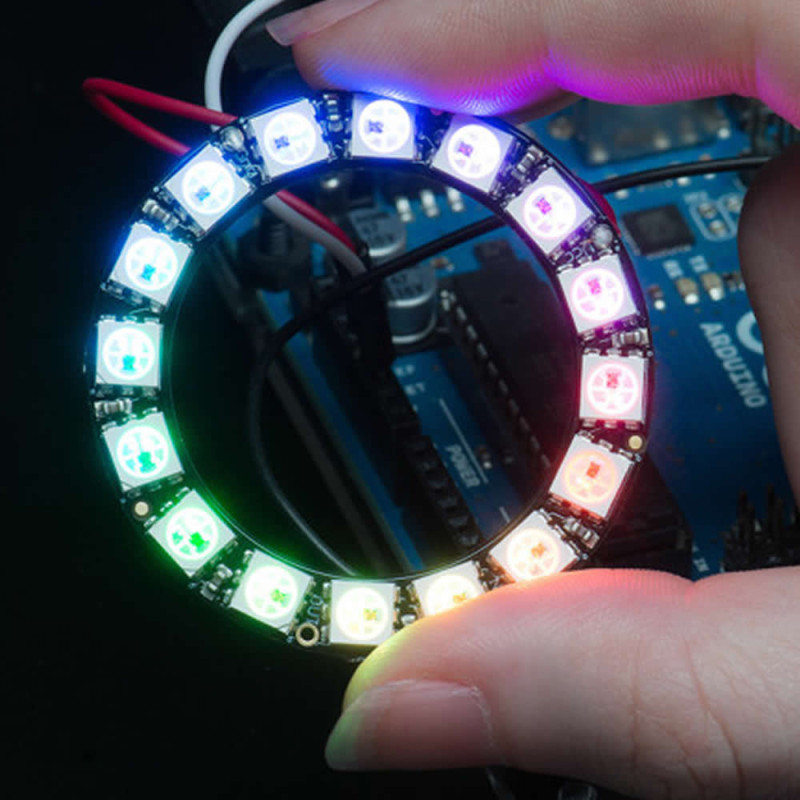

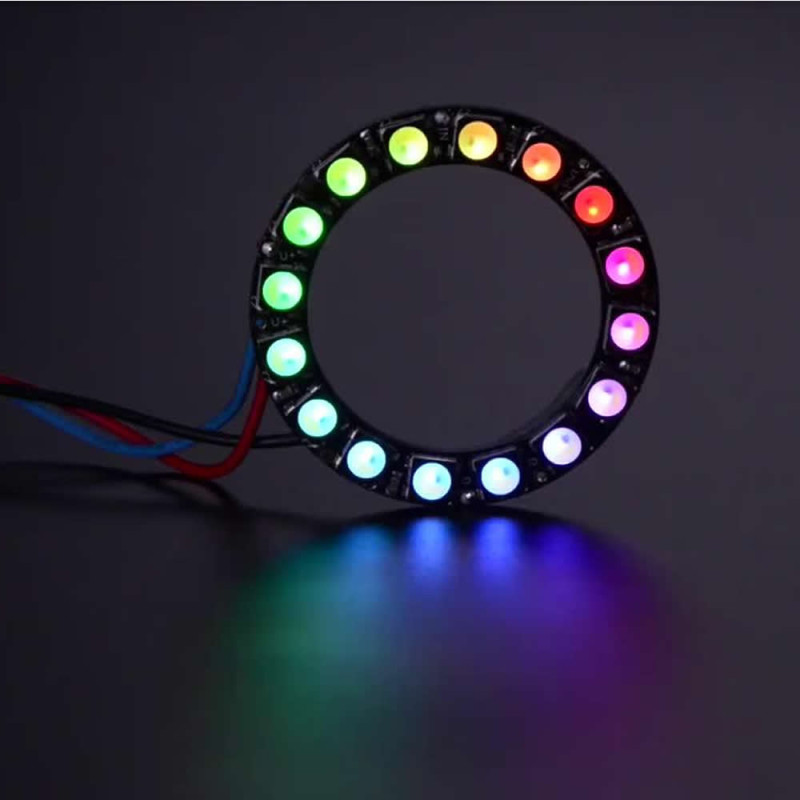

With the 16 ultra bright RGB LEDs on it, you get perfect results in all the colors you want. If you wish, you can connect more than one NeoPixel module to each other and use them collectively. With the color information transferred over a single cable, it offers the possibility to specifically control the LED you want. It can be controlled with any microcontroller that can perform real time processing such as AVR, Arduino, PIC, mbed etc.
Each led has 256 brightness levels. A 3 led rgb led can give 256x256x256 = 16.7 Million different colors. Input data with DI can be connected to a different led with DO. It works smoothly at a connection distance of up to 5 meters.
Features:
- 16 Pieces WS2812 5050 rgb led
- Ring shaped pcb structure.
- Ultra bright and 16.7M colors support
- Operating voltage: DC 5V ( 4V / 7V )
- Current: 60mA
- Refresh rate: 30Fps ( 1024 Led Maximum )
- Data rate: 800Kbps.
- 24 bit color depth
- Digital communication
- 2 Pieces mounting hole
- Pcb color: Black

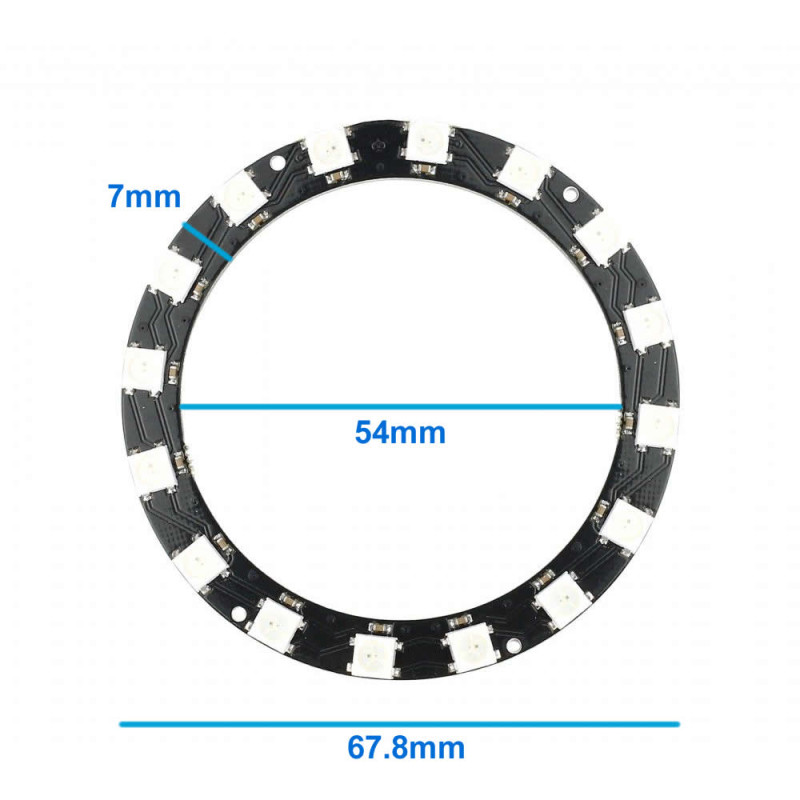

- Outer diameter: 67.8mm
- Inner diameter: 54mm
- Weight: 6gr

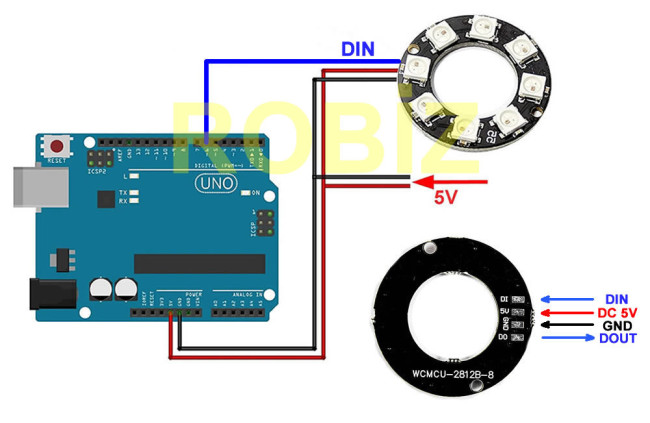

Pin description:
- 5V
- GND
- DIN: Data input pin
- DOUT: Data output pin
Package contents:
- 1 Piece 16 Piece Ring WS2812B 5050 Rgb Led
