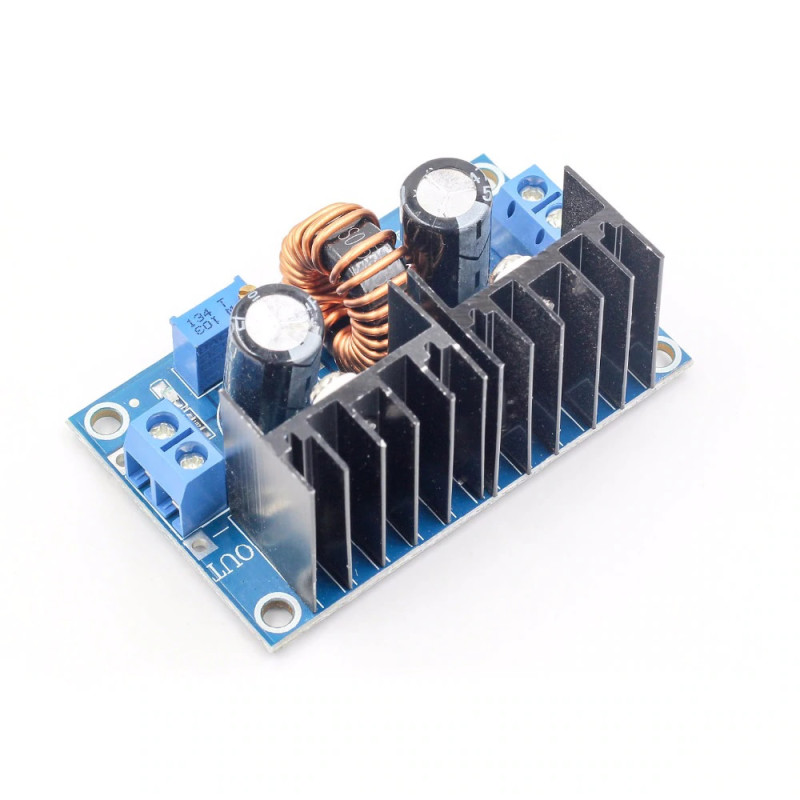

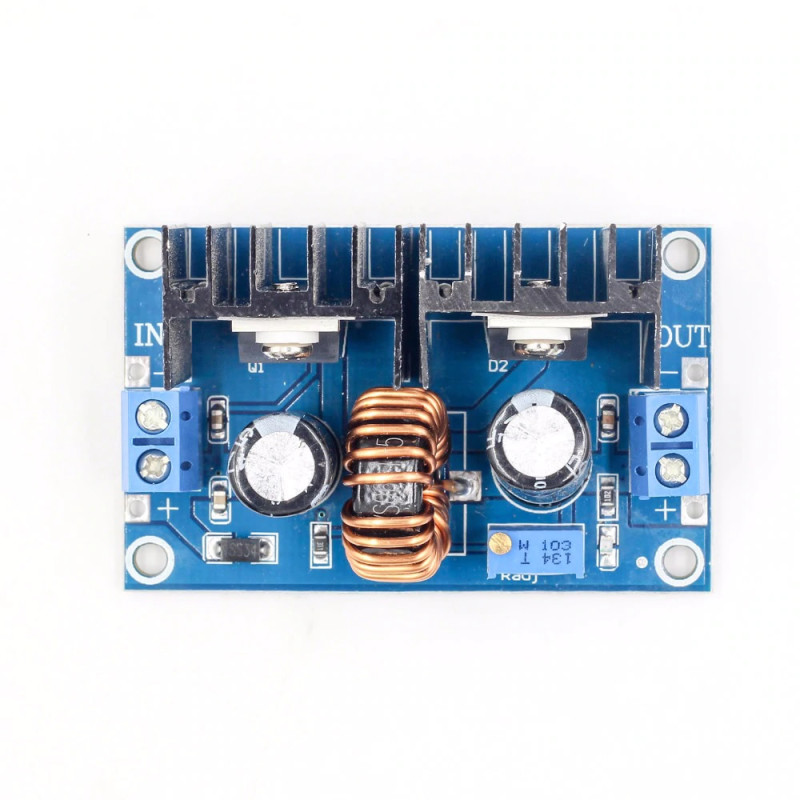

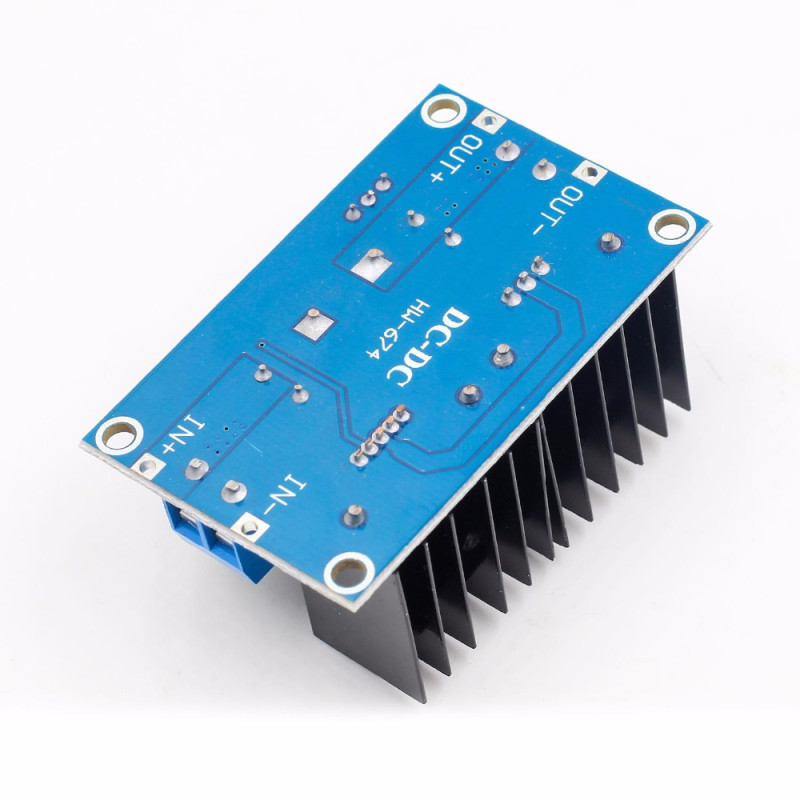

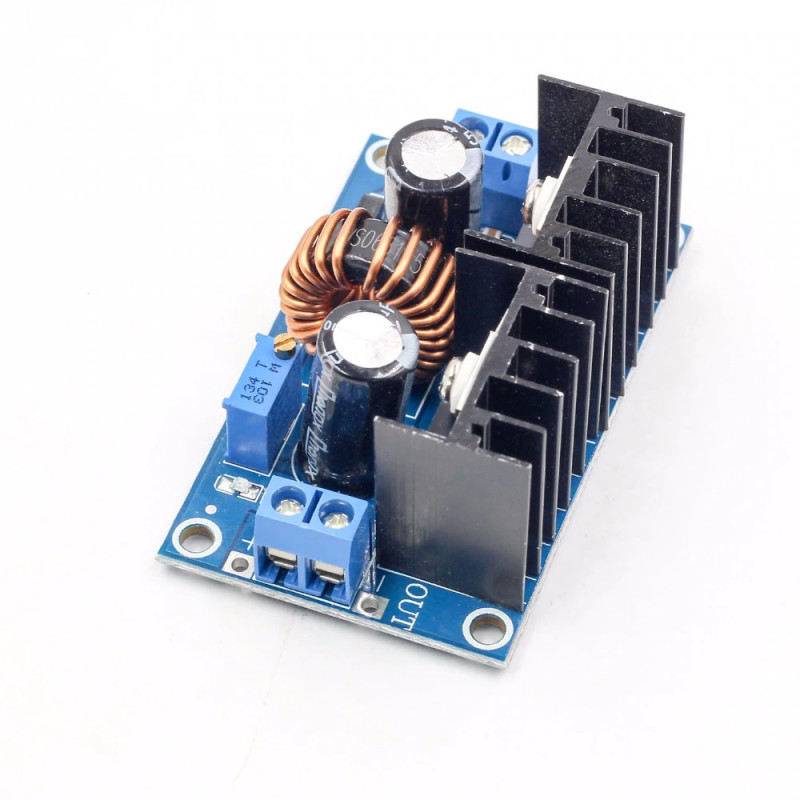

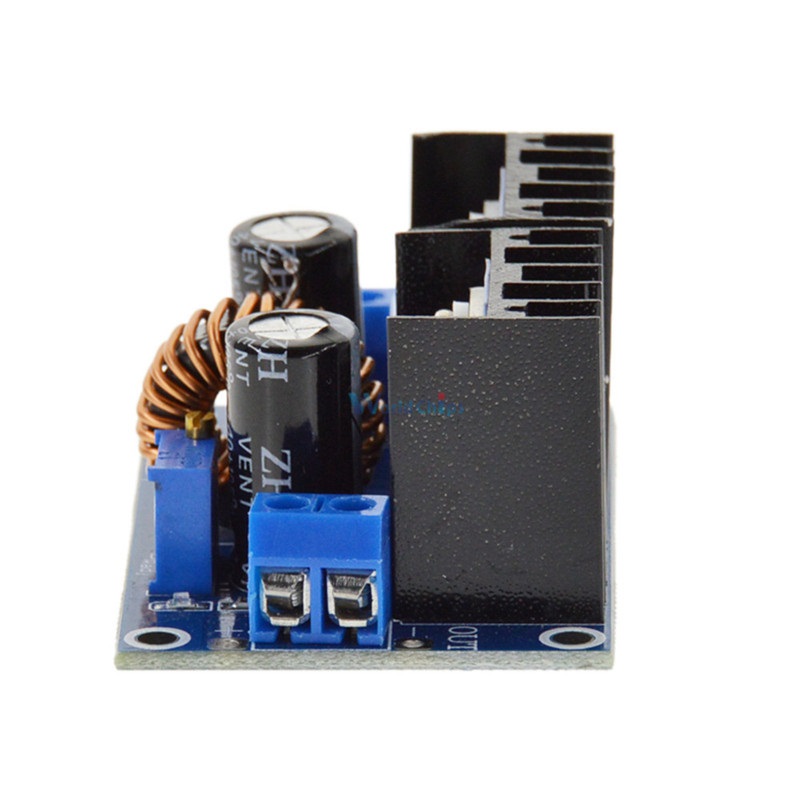

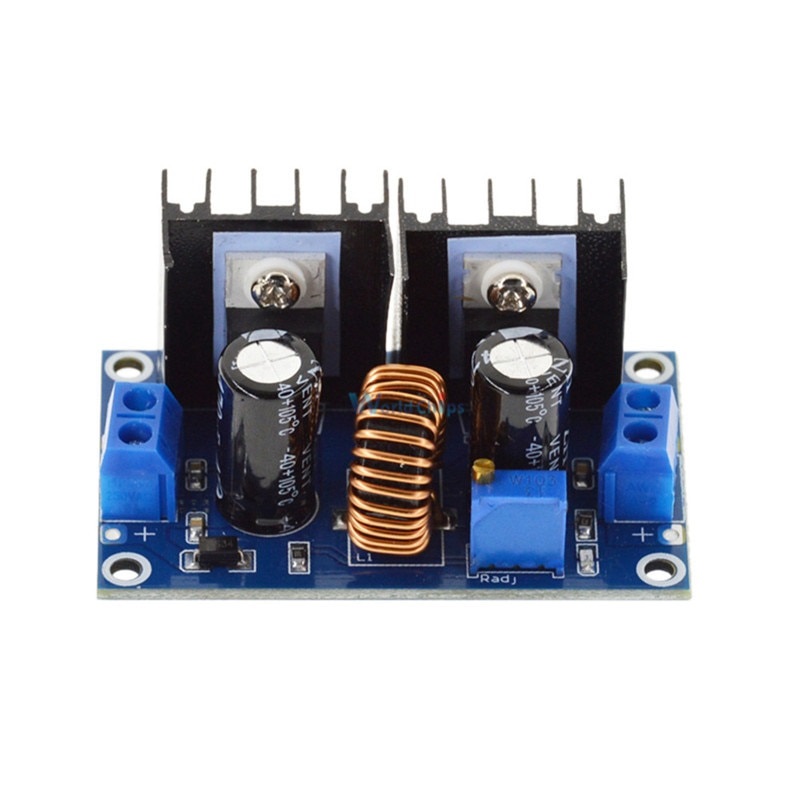

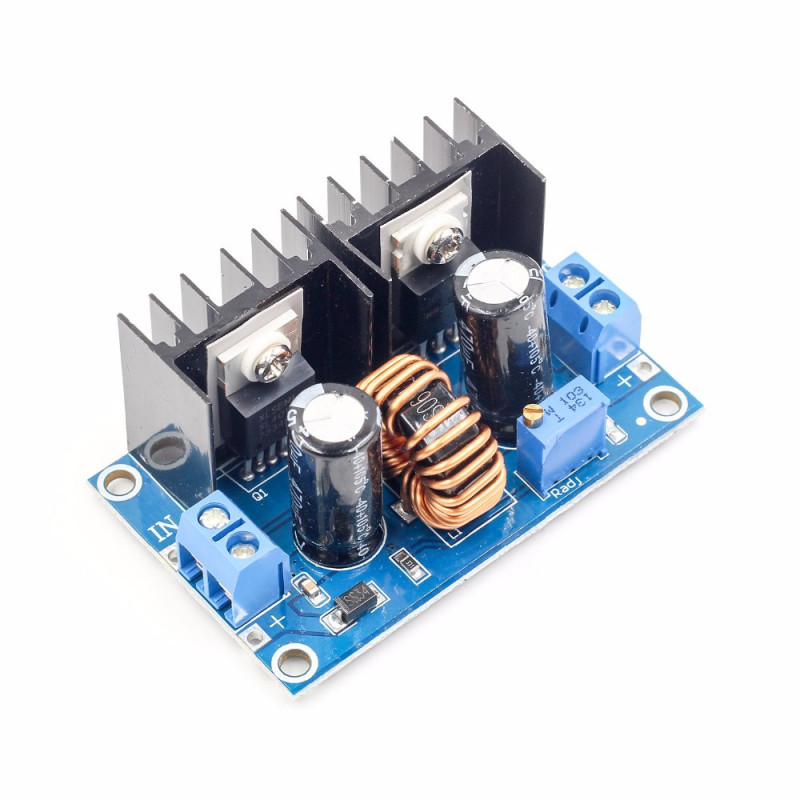

XL4016 5A Adjustable Power Supply

XL4016 Adjustable 4-40V To 1.25-36V 5A Step-Down Power Supply ( Steps Voltage Down )

     XL4016 adjustable voltage supply module. It has 5A ( 8A ) current power. DC 36V maximum input voltage can be applied. Output Voltage can be adjusted between DC 1.2V and 32V.

     Voltage adjustment is made very precisely with multi turn ( 20-30 turns ). You can observe the output voltage on the voltmeter on the module.

Features:

•     Input Voltage: DC 4-40V
•     Output Voltage: DC 1.25-35V ( Adjustable )
•     Maximum current: 5A ( A cooling fan must be used at currents between 5A-8A.) ( Do not use above 5A. )
•     Maximum power: 200W  65C ( A cooling fan must be used at powers between 200W-300W. )
•     Efficiency:  94%
•     Operating frequency: 180KHz
•     Output short circuit protection
•     Input reverse connection protection
•     Voltage accuracy: ± 1%
•     Voltage Adjustment Potentiometer ( Clockwise increases. Counterclockwise decreases. )
•     Operating Temperature: -10C to +85C

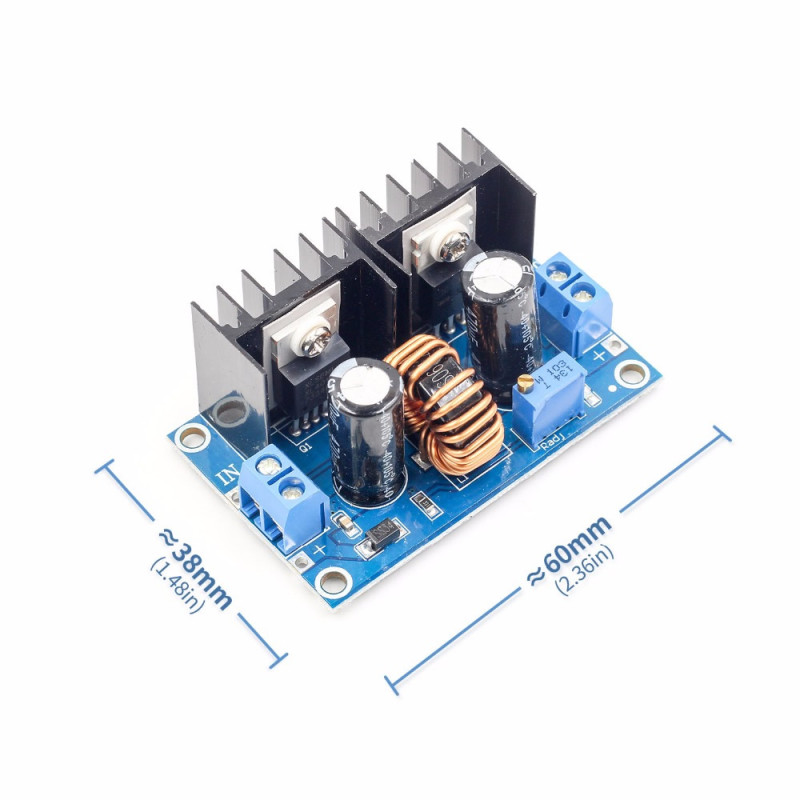

•     Dimensions: 60mm x 38mm

Warnings:

•    There is a 2V difference between the input and the output. For this reason, a 2V higher voltage must be applied from the input to obtain the desired output.
•    In long term use, you should draw less than 5A current.
•    It steps voltage down, it does not step it up.

Potentiometer usage:

• The potentiometers are multi turn. They can turn 20-30 turns in both directions. Generally, the mistake of turning very little and thinking the products do not work can be made. It is necessary to turn a lot to see the effect.
• Turning clockwise; increases the value for the relevant parameter. For example, the voltage increases.
• Turning counterclockwise; decreases the value for the relevant parameter. For example, the voltage drops.

Package contents:

•     1 pcs XL4016 Power Supply Module
