Pot Knob 30mm

Pot Knob 30mm Black Aluminum Clad 10mm Height 6mm Knurled Shaft Potentiometer Knob

Large Volume Control Knob Encoder Amplifier Mixer Speaker Radio Power Supply Dimmer Fan Speed Soldering Station Thermostat

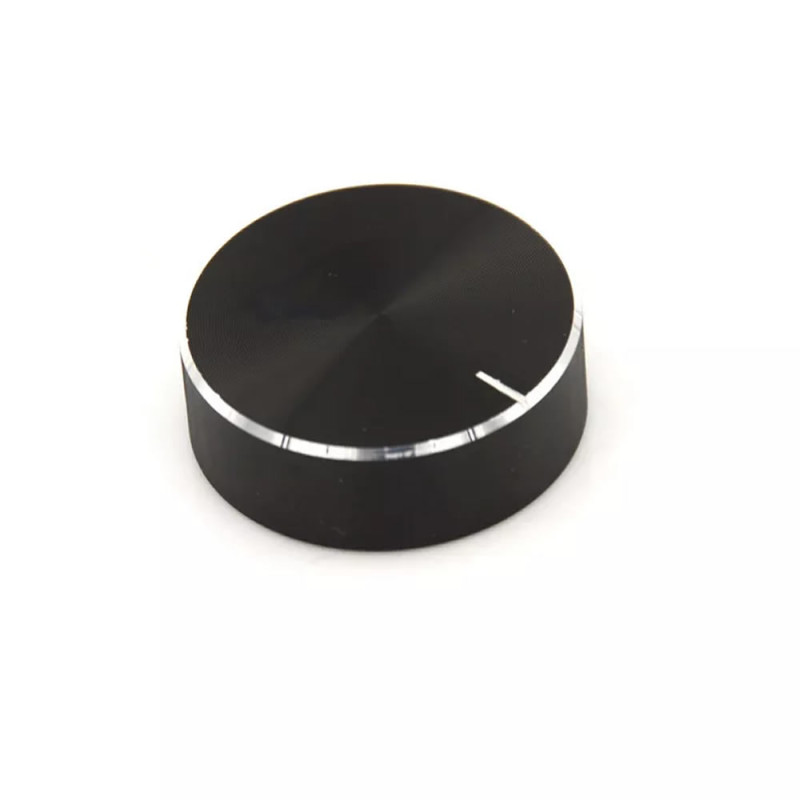

     The Pot Knob 30mm is a wide and low profile turning knob fitted on potentiometers, encoders and rotary switches with a 6mm knurled shaft. Its outer diameter is 30mm and its height is 10mm. The outer shell is black aluminum, with a plastic inner body inside that grips the shaft; thanks to this construction it weighs only 5gr.

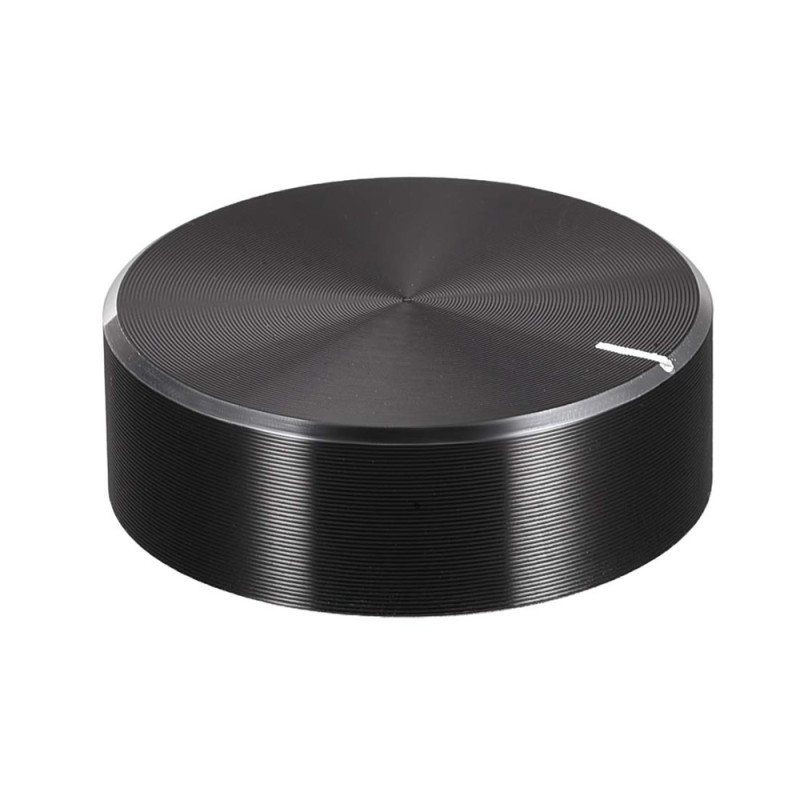

     The top surface has a circular brushed pattern, a bright silver colored chamfer on the edge and a marker line showing the position. The side surface has fine horizontal lines. There is vertical knurling inside the shaft hole; the knob is pressed onto a knurled shaft and the knurls grip the shaft to keep the knob from slipping. No screw is needed to fit it.

     The 30mm diameter gives a wide grip surface for the finger; it makes precise turning easy in volume, voltage, speed and temperature adjustments that need fine control. It is used as the main adjustment knob on the front panels of amplifiers, mixers, active speakers, radios, adjustable power supplies, dimmers, fan speed controllers and soldering stations.

Key features:

     Aluminum outer shell: The black aluminum shell and bright silver chamfer give the device panel a metal knob look; thanks to the plastic inner body the knob stays light.

     Knurled 6mm shaft seat: The vertical knurls inside the hole grip the 6mm knurled shaft; the knob seats by pressing onto the shaft and turns without slipping.

     Wide grip surface: The 30mm diameter and low 10mm body give comfortable and precise turning by finger on main volume or voltage adjustment.

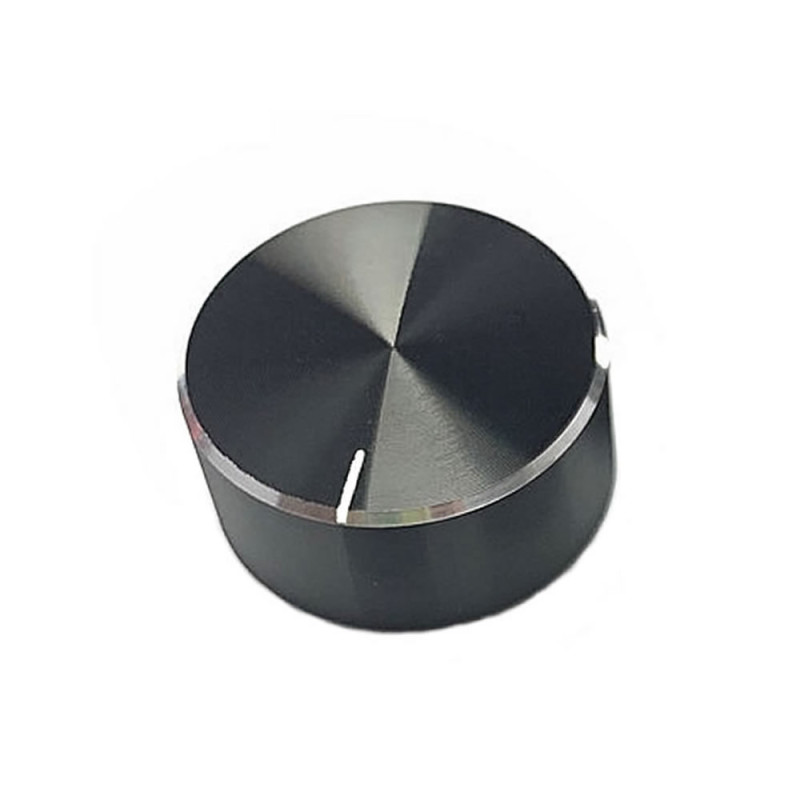

     Position marker: The line on the edge of the top surface shows the position of the shaft when looking at the panel.

     Screwless fitting: The knob is fitted only by pressing, without a set screw, and removed by pulling.

Features:

• Product type: Potentiometer / encoder turning knob (pot knob)
• Model: Pot Knob 30mm
• Shaft hole: 6mm
• Hole inner structure: Vertical knurled; grips the inserted shaft better
• Compatible shaft: Suitable for 6mm knurled type shaft products (potentiometer, encoder, rotary switch)
• Fixing: Press-fit onto the shaft, no screw
• Position marker: Marker line on the edge of the top surface

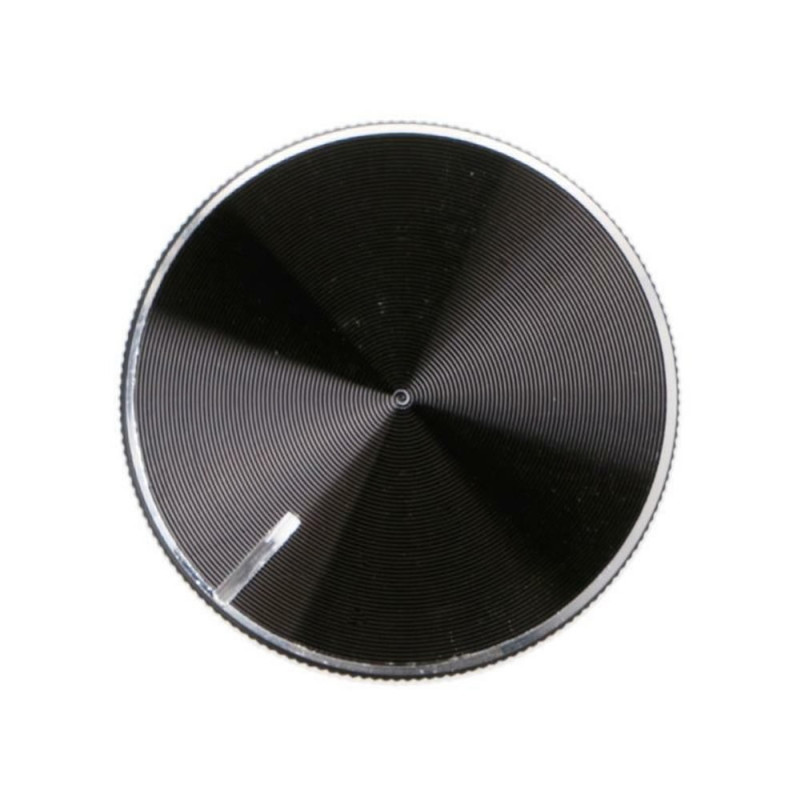

• Top surface: Circular brushed pattern
• Edge: Bright silver colored chamfer
• Side surface: Fine horizontal lines

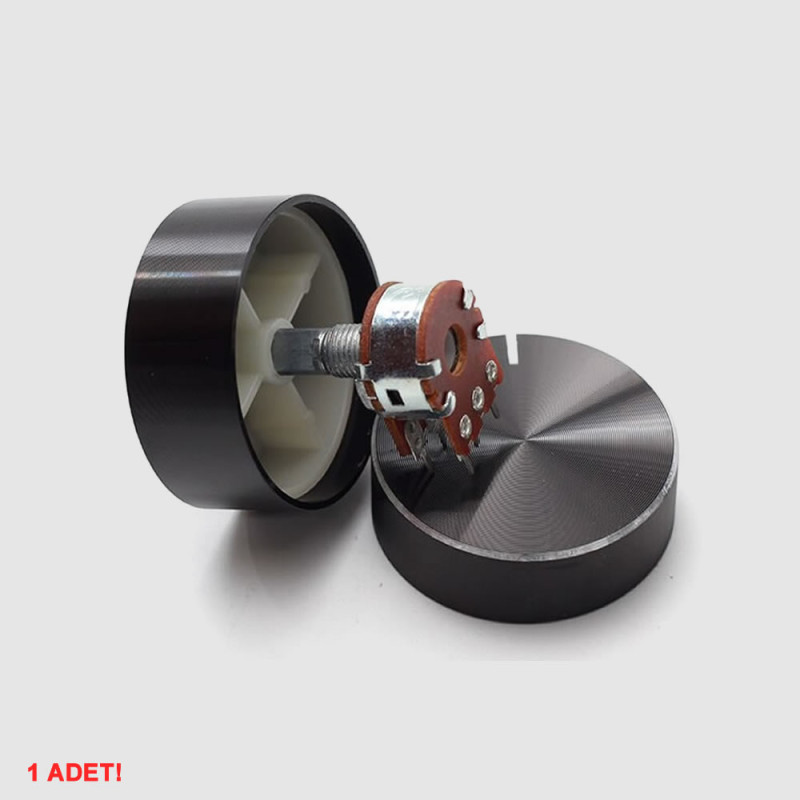

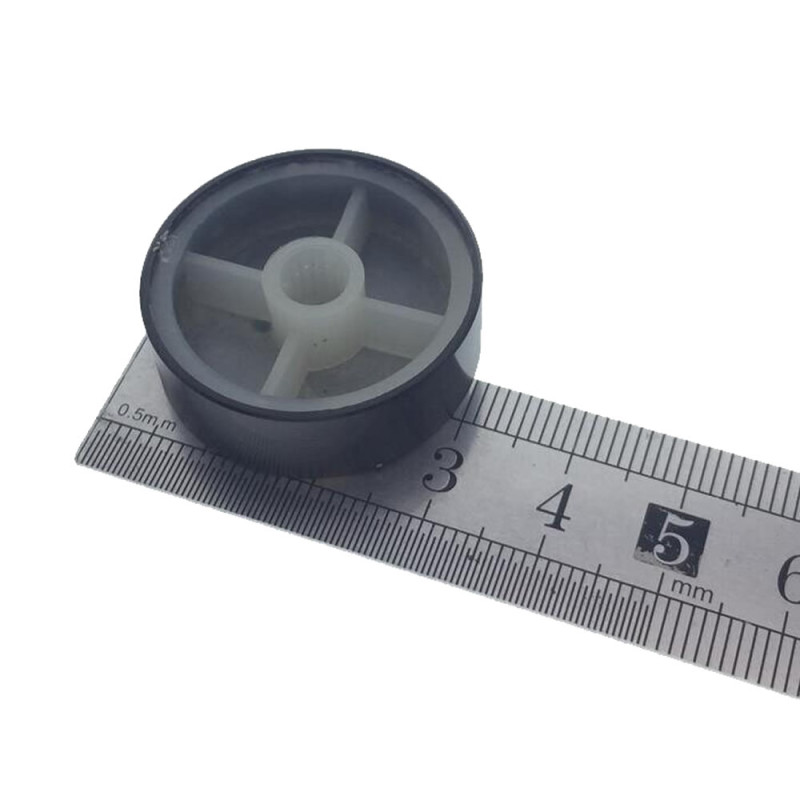

• Inner body: Plastic, ribbed hub
• Place of use: Device front panel, adjustment boxes
• Sales unit: 1 piece
• Material: Aluminum outer shell, plastic inner body
• Color: Black (silver edge)

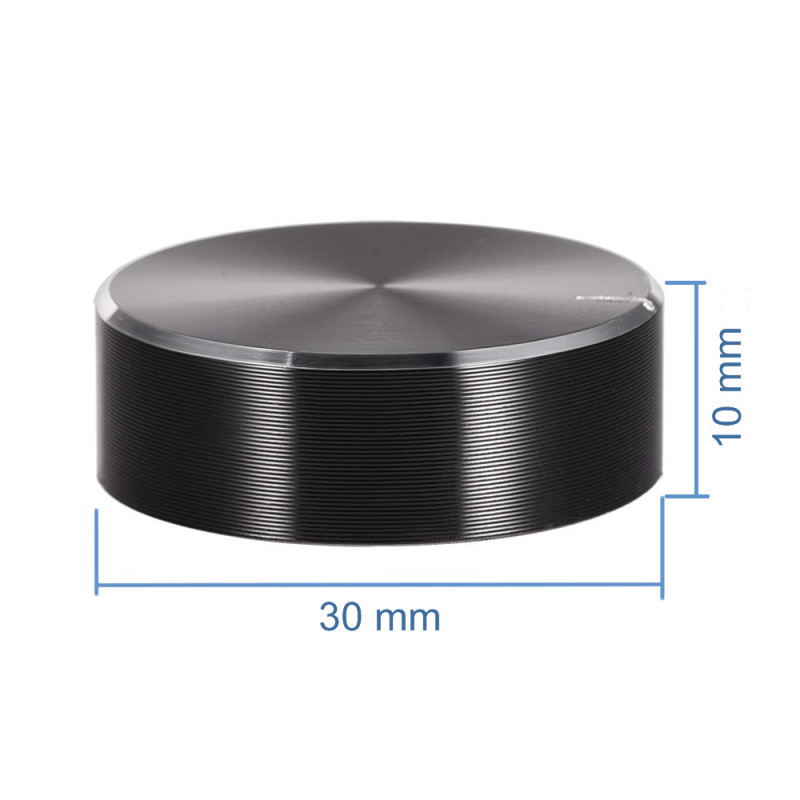

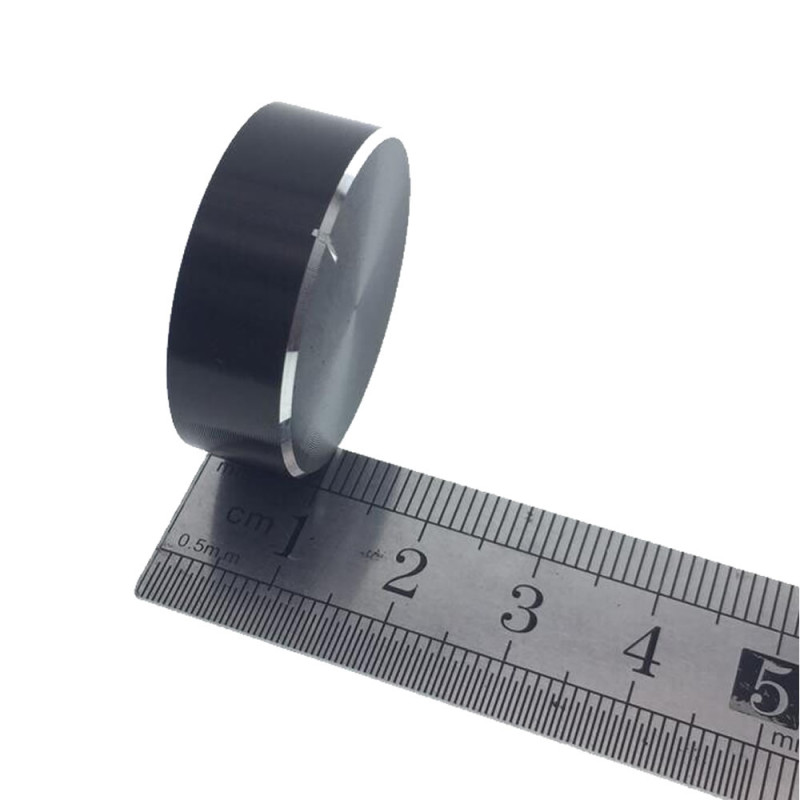

• Outer diameter: 30mm
• Height: 10mm
• Weight: 5gr

Usage information:

• First fix the potentiometer to the panel with its nut; turn the shaft fully left and align the marker line of the knob with the start point of the panel scale.
• Press the knob straight onto the shaft and push until the knurls grip the shaft; leave enough clearance for the knob to turn without touching the panel.
• If the shaft is long, shorten it by cutting so that the base of the knob sits close to the panel without touching it; the knob height is 10mm.

Areas of use:

•  Amplifier volume adjustment (volume, bass, treble)
•  Mixer and sound card front panels
•  Speaker (active) volume knob
•  Radio and audio device adjustment knobs
•  Power supply voltage and current adjustment
•  Dimmer brightness adjustment for led and lamps
•  Fan and motor speed control boards
•  Soldering station temperature adjustment
•  Thermostat adjustment knobs
•  Encoder menu and value selection

Precautions:

•  The knob is for a 6mm knurled shaft. It may not hold tightly on a plain or D type shaft; it does not fit a 6.35mm (1/4 inch) shaft.
•  Do not hammer the knob onto the shaft or force it sideways; the plastic inner body can crack.
•  The knob has no set screw; if it is fitted and removed very often, the knurled seat may loosen.
•  The 30mm diameter takes up wide space; if several knobs are fitted side by side, leave more than 30mm between shaft centers.

Package contents:

•  1 Piece Pot Knob 30mm
•  Note: Potentiometer and encoder are not included in the package.
