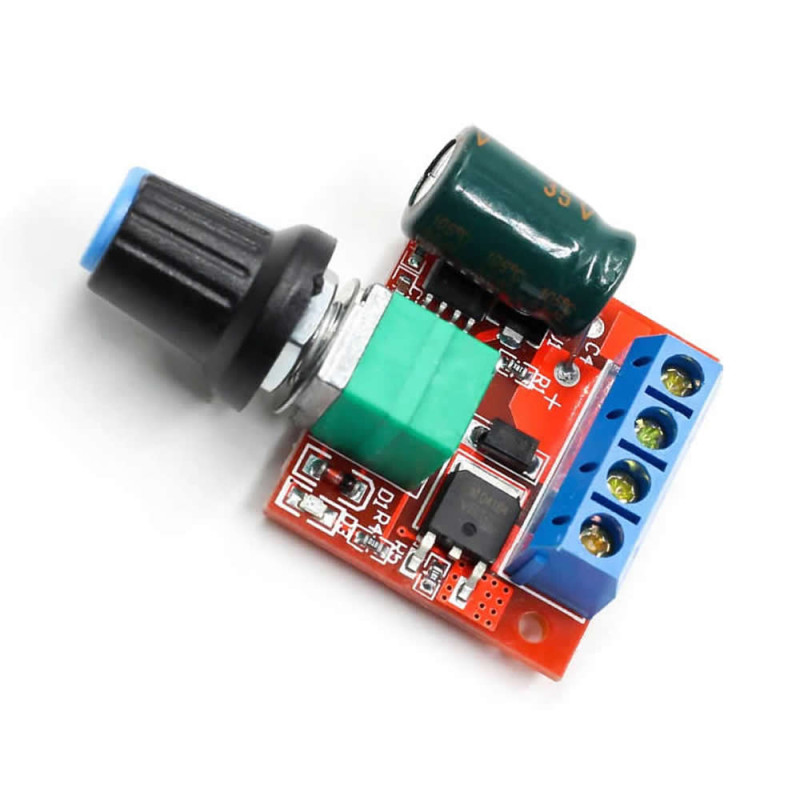

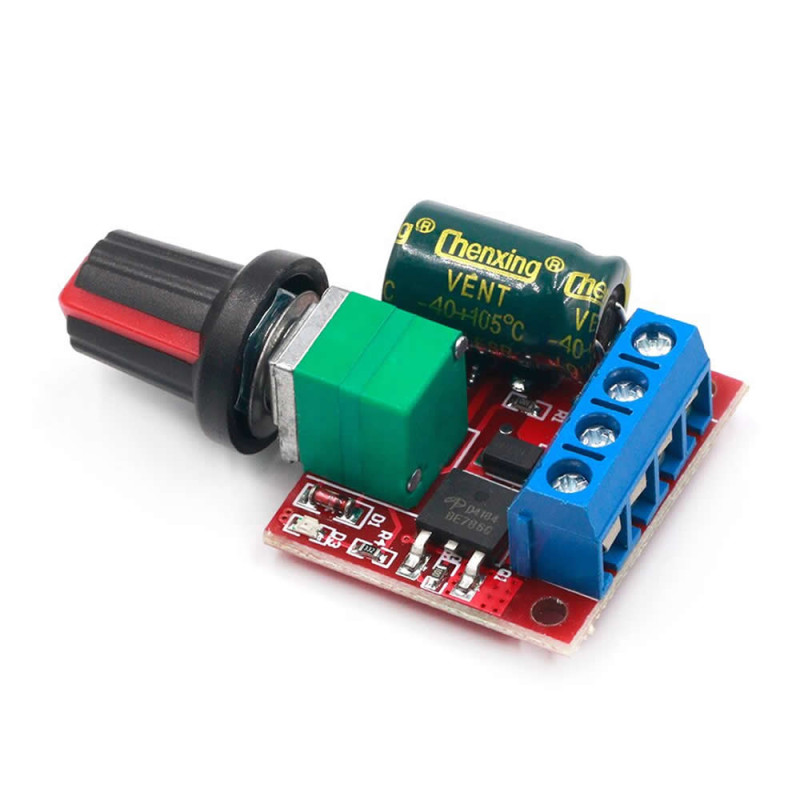

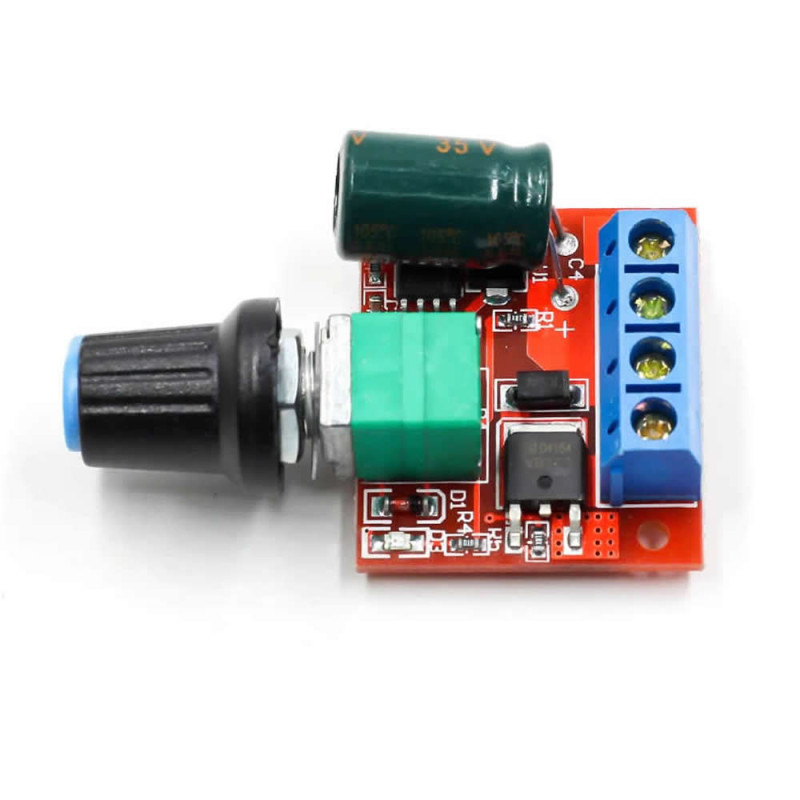

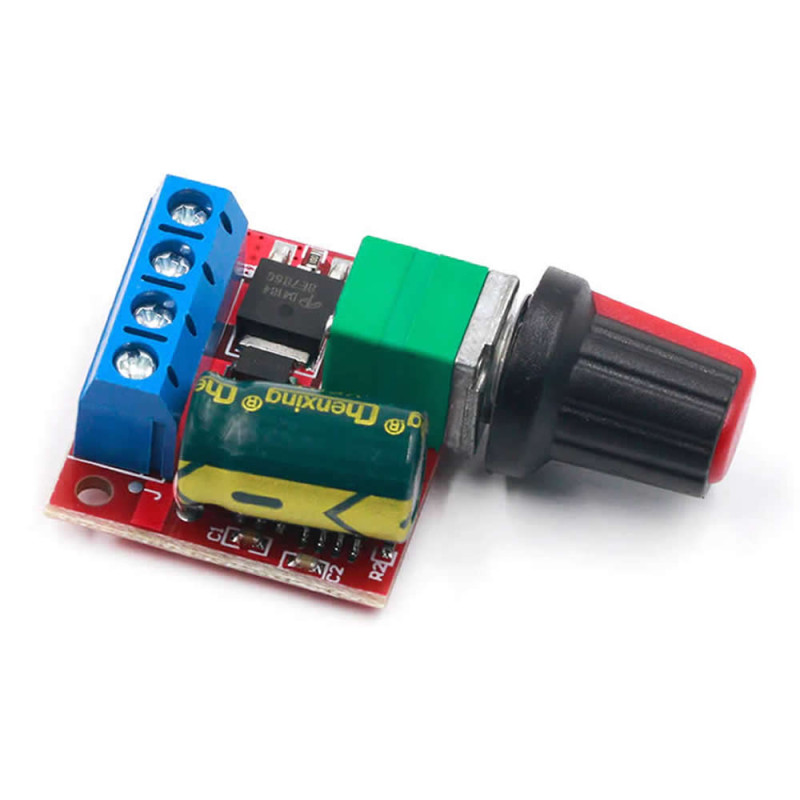

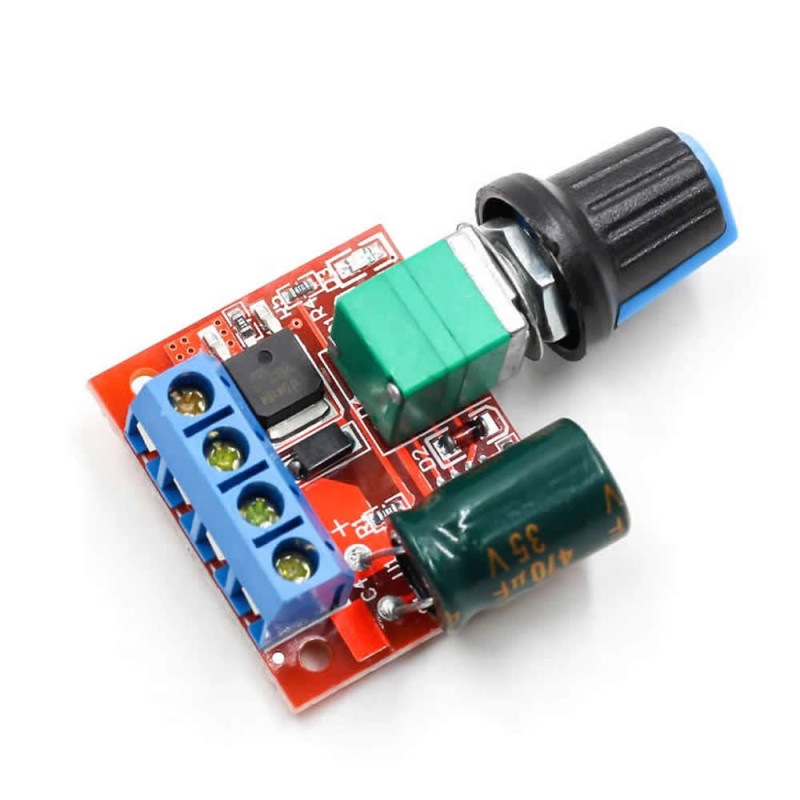

5A 35V Mini DC Motor Speed Control Circuit

5V / 35V 5A Mini DC Motor Driver Speed Control Circuit

0-100% Pot Controlled Pwm On Off Button Adjustable Voltage Module Fan Pump DC Led Dimmer

     Motors can draw 5 times their normal current at the moment they are strained. You need to make your motor driver selection accordingly. If you do not choose a driver according to the current it can draw at the moment of strain, the product will break down immediately. Its affordable price is thanks to the absence of many protection circuits on the device. The absence of protection circuits causes the product to be damaged in incorrect uses. If the input voltage is flowing to the output pins, it means the mosfets inside the product have burned out.

     It is a dc motor driver speed control circuit operating in the 5V and 35V range up to a maximum value of 5A. You can also drive loads other than DC Motors. A voltage approximately 1V lower than the supply voltage is applied to the motor.

Features:

•     5A Mini DC Motor Driver
•     Input supply voltage: DC 5V / 35V
•     Maximum continuous output current: 5A  ( We recommend using it with loads of 3A and below. )
•     Maximum output power: 90W
•     Speed range: 0% / 100%
•     NE555 control integrated circuit
•     Pwm Frequency: 20Khz
•     Speed adjustment potentiometer.
•     On off switch on the potentiometer
•     Material: Various electronic components
•     Supply indicator led
•     Operating temperature:   -10C  /  +80C
•     2 Mounting holes

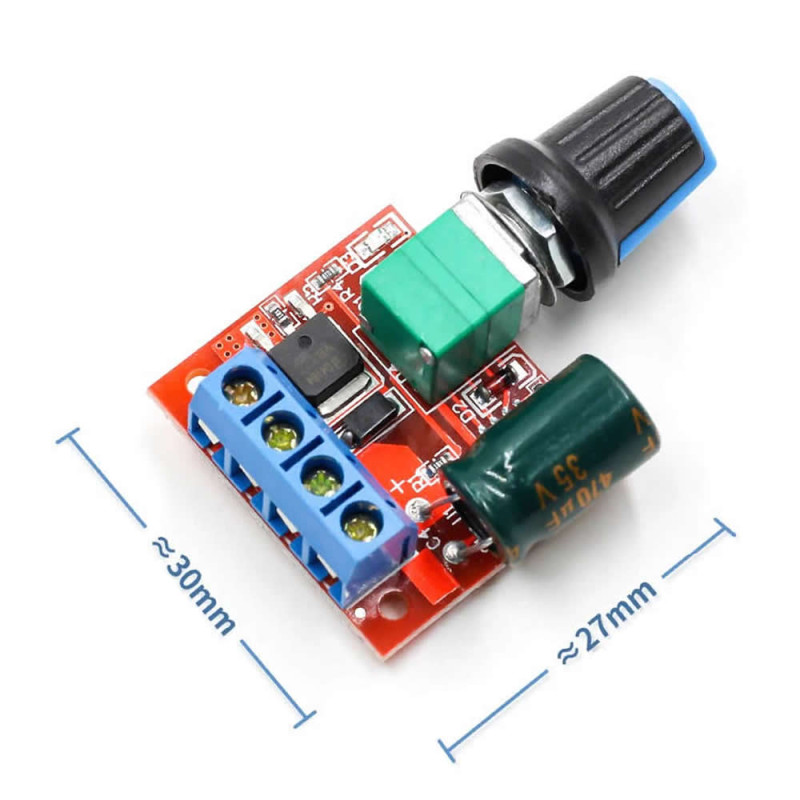

•     Dimensions:  27mm x 30mmm x 14 mm  ( Length including pot 51mm )
•     Weight:  15gr

Warnings:

•      Speed adjustment is made with the speed control pot. Speed adjustment is obtained by changing the voltage to be delivered to the motor between 0V and the max input voltage. At low voltages there will certainly be losses in torque. It is not suitable for those who want the motor torque to remain at maximum while the speed decreases to use this type of chinese made product.
•      You cannot use this product with AC voltage.
•      There is no reverse connection protection on the DC supply input. The product may break down in a reverse connection.

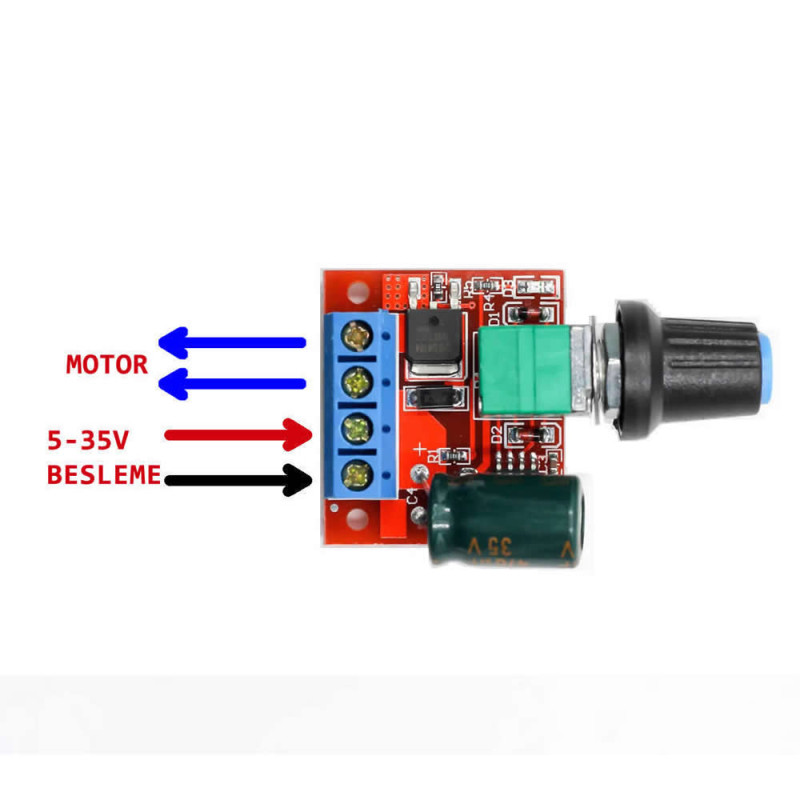

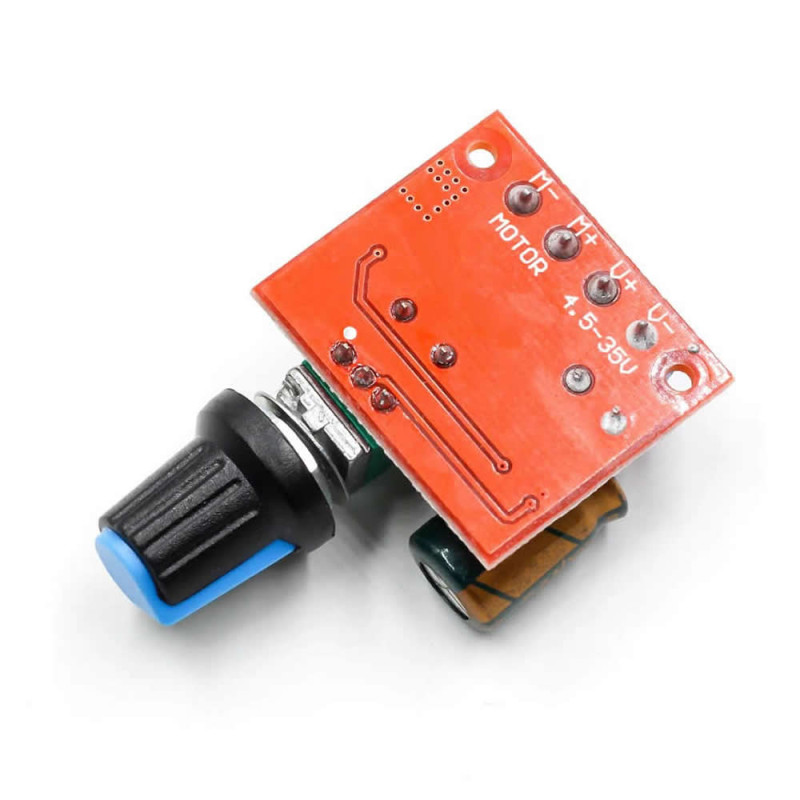

•      The motor direction is formed according to the connection. To move it in the reverse direction, the motor connection must be reversed.

Package Contents:

• 1 Piece 5A 35V Mini DC Motor Speed Control Circuit

.
