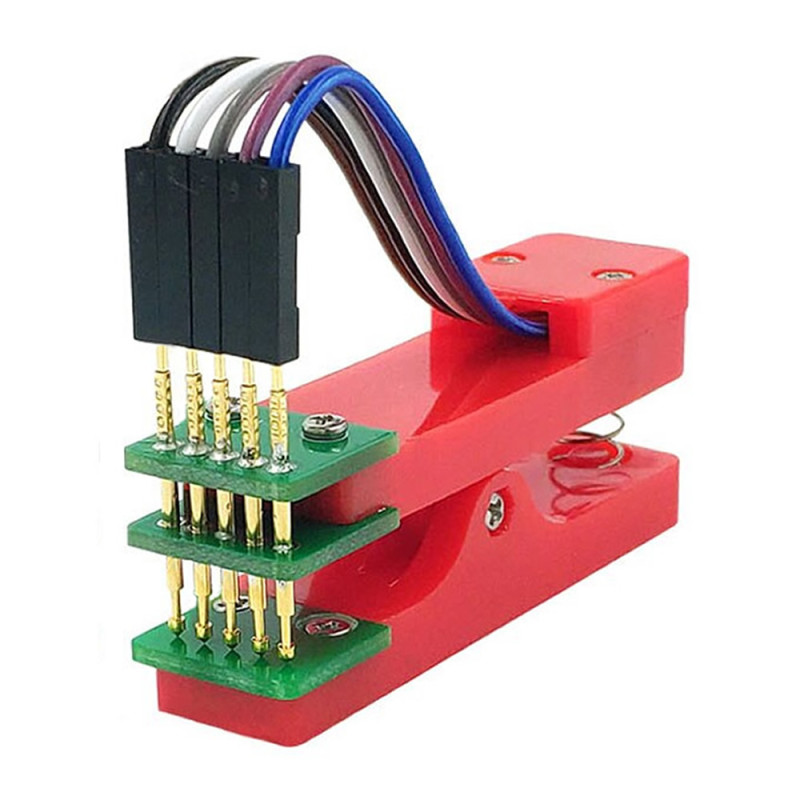

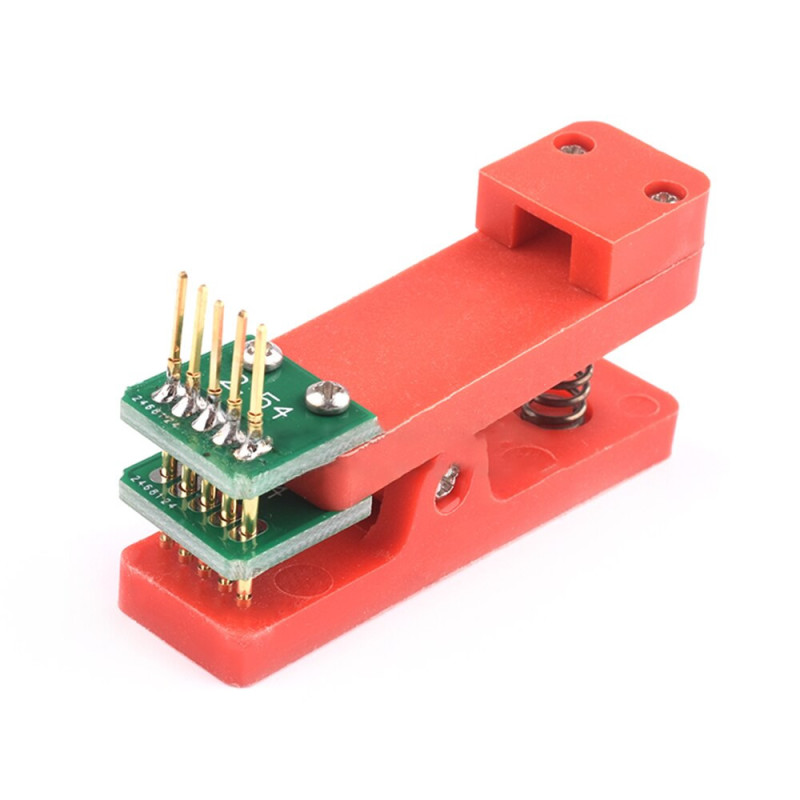

5 Pin Programming Fixture

5 Pin Programming Fixture

2.54mm Pogo Pin Spring Clamp Clip Mass Production IC Fast Programmer Arm Pic Atmel Eprom Flash Bios

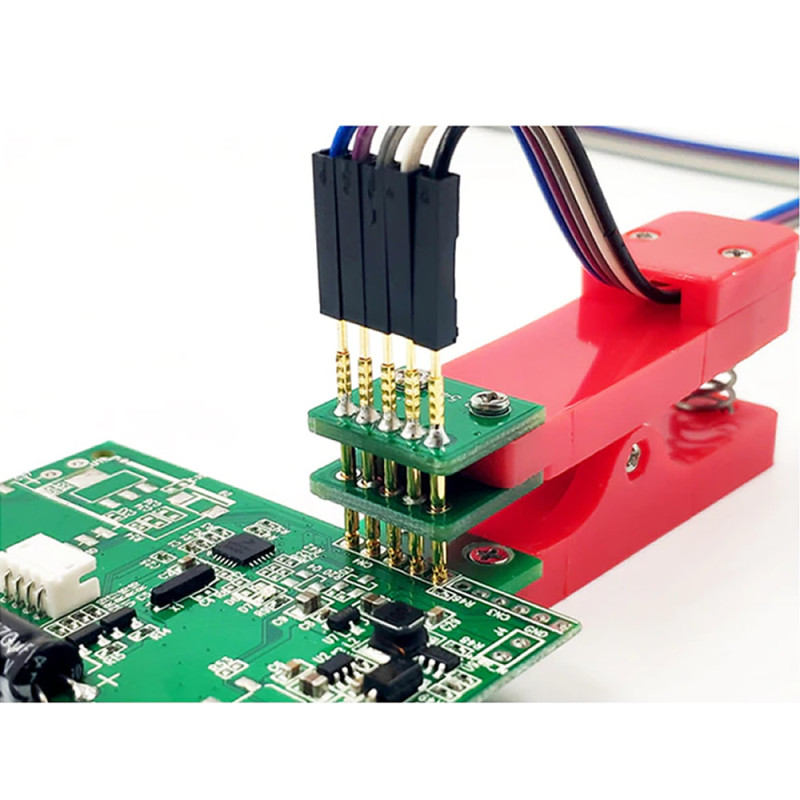

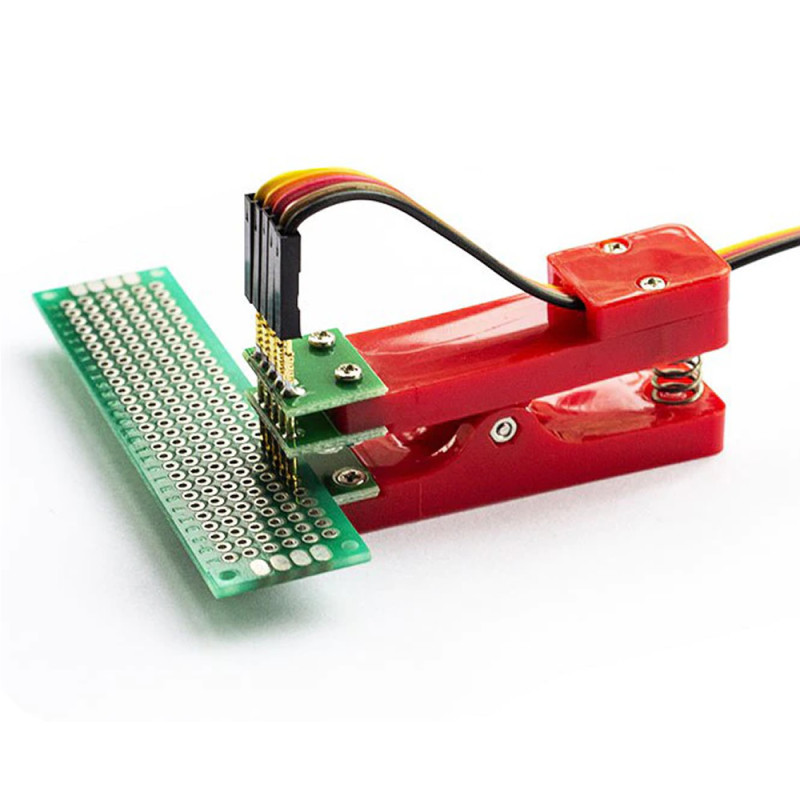

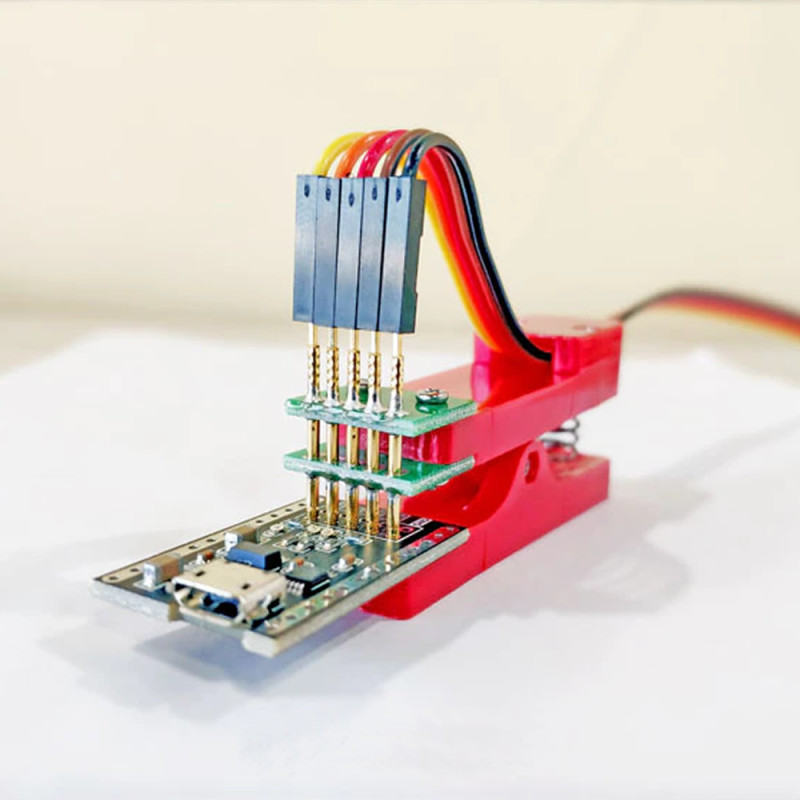

     It is a solderless fast and easy programming fixture for the ICs on electronic boards. Pogo pins are used as the programming probe. With its spring clamp structure, connection to the target board is established quickly and it is detached from the circuit again. It is the most suitable solution for mass production programming needs.

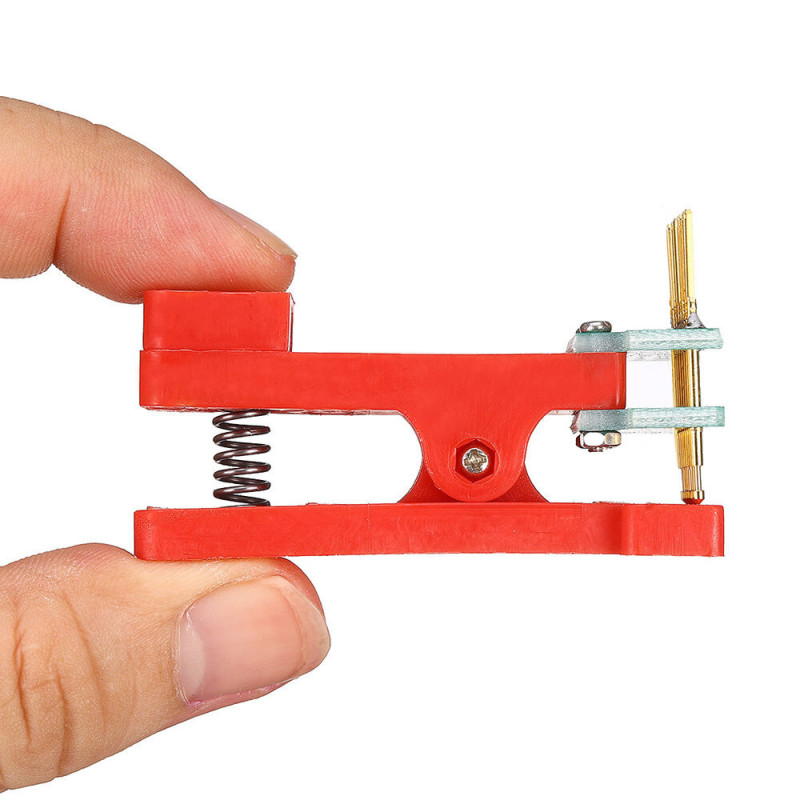

     Comfortable use with its removable cable collector groove structure. The spring on the fixture can be changed. The pogo pins can be changed. It has a design in which the pin mounted pcbs on the front part can be changed for special needs with different pin counts and pin pitches.

Features:

• 5 Pin programming fixture
• Pin count: 5  Single row
• Pin pitch: 2.54mm

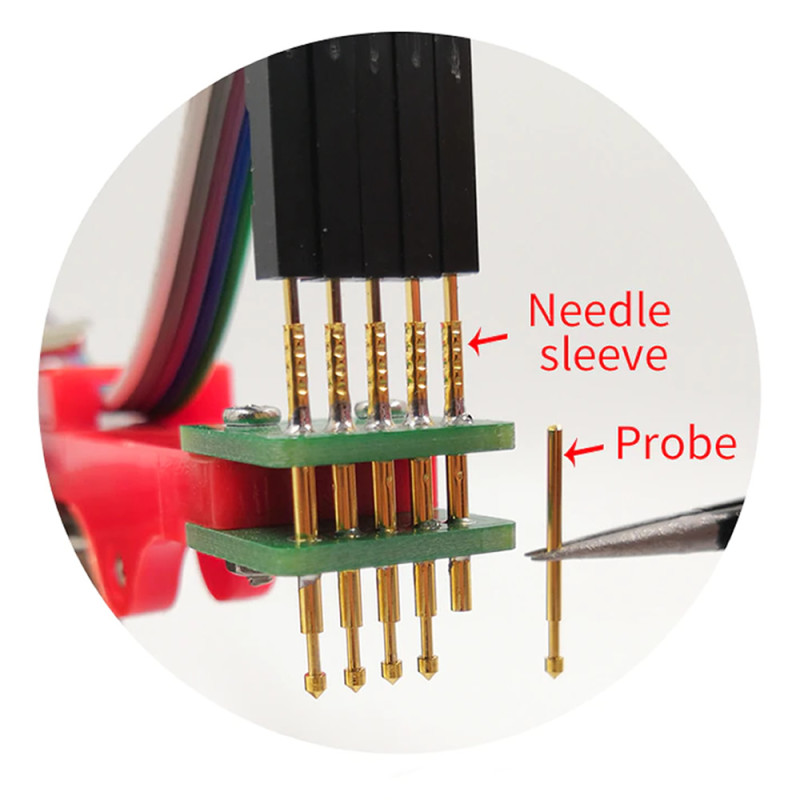

• Pogo pin: P75-E2 ( Soldered )
• Needle diameter: 1.2mm
• Needle model R75-3W
• Cable length：30cm
• Material: Plastic / Metal
• Color: Red
• Dimensions: 29,5mm x 60mm
• Weight:  25gr

Package Contents:

•    1 pcs 5 Pin Programming Fixture
•    5 Pin 30cm female female dupont cable
