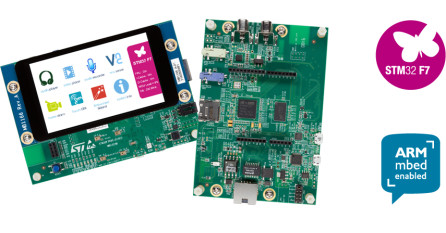

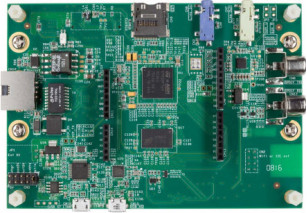

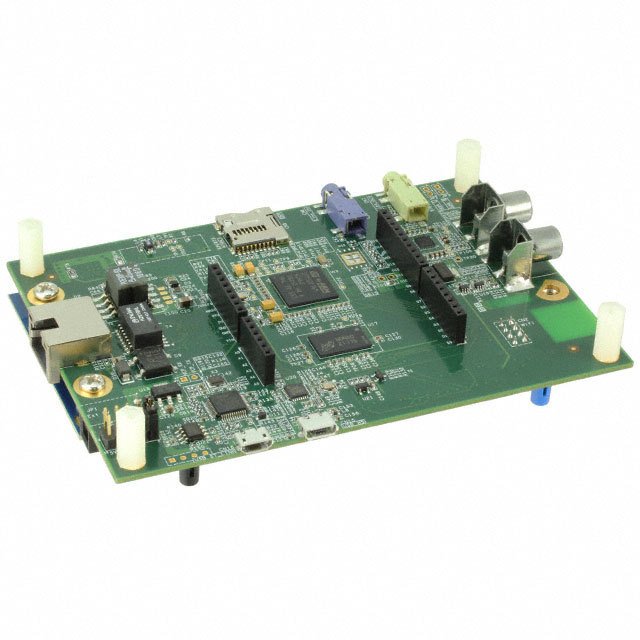

STM32F769I-DISCO

4" capacitive touch LCD display, 128-Mbit SDRAM, 512-Mbit Quad-SPI Flash memory, ESP01 Wifi, Ethernet,

     The STM32F7 discovery kit allows users to develop and share applications with the STM32F7 Series microcontrollers based on the ARM^®Cortex^®-M7 core.

     The discovery kit enables a wide diversity of applications taking benefit from audio, multi- sensor support, graphics, security, video and high-speed connectivity features.

     The Arduino^™connectivity support provides unlimited expansion capabilities with a large choice of specialized add-on boards.

Key Features

• STM32F769NIH6 microcontroller featuring 2 Mbytes of Flash memory and 512+16+4 Kbytes of RAM, in BGA216 package
• On-board ST-LINK/V2-1 supporting USB reenumeration capability
• USB ST-LINK functions: virtual COM port, mass storage, debug port

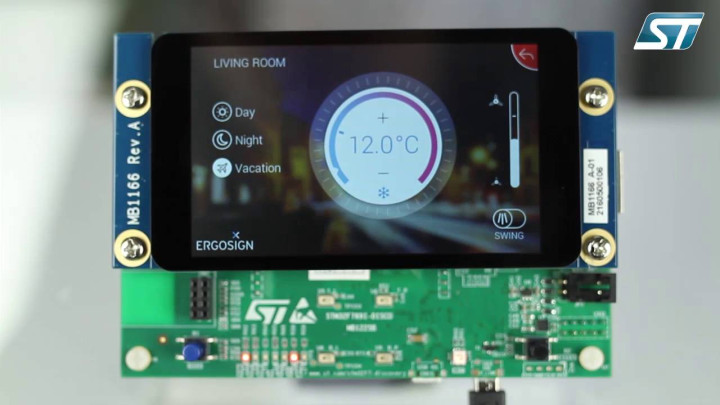

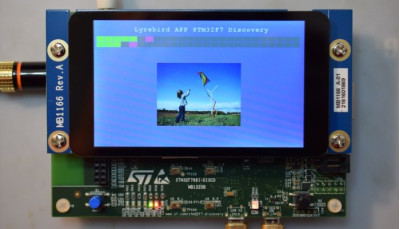

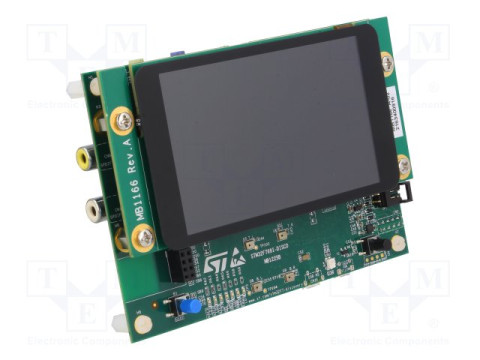

• 4" capacitive touch LCD display with MIPI® DSI connector (on STM32F769I-DISCO only)
• SAI audio codec
• Two audio line jacks, one for input and one for output
• Stereo speaker outputs
• Four ST MEMS microphones on DFSDM inputs
• Two SPDIF RCA input and output connectors
• Two push-buttons (user and reset)
• 512-Mbit Quad-SPI Flash memory
• 128-Mbit SDRAM
• Connector for microSD card
• Wi-Fi or Ext-EEP daughterboard connector
• USB OTG HS with Micro-AB connector
• Ethernet connector compliant with IEEE-802.3-2002
• Five power supply options:
  • ST LINK/V2-1
  • USB HS connector
  • 5 V from RJ45 (Power Over Ethernet)
  • 5 V from Arduino^™ or external connector
  • USB charger
• Power Over Ethernet based on IEEE 802.3af (Powered Device, 48 V to 5 V, 3 W)
• Power supply output for external applications: 3.3 V or 5 V
• Arduino^™ Uno V3 connectors
• Comprehensive free software including a variety of examples, part of the STM32Cube package
• Supported by a wide choice of integrated development environments
