20cm Female Sma Ipex RF Cable
64.68TL
53.90TL + KDV
10 or more 54.98TL
Buy 10 or more of this item and the unit price drops by 15%; pay by bank transfer for a total 20% discount.
- Stok Durumu: Stok Var
- Marka: OEM
- SKU: RBZ.100.540

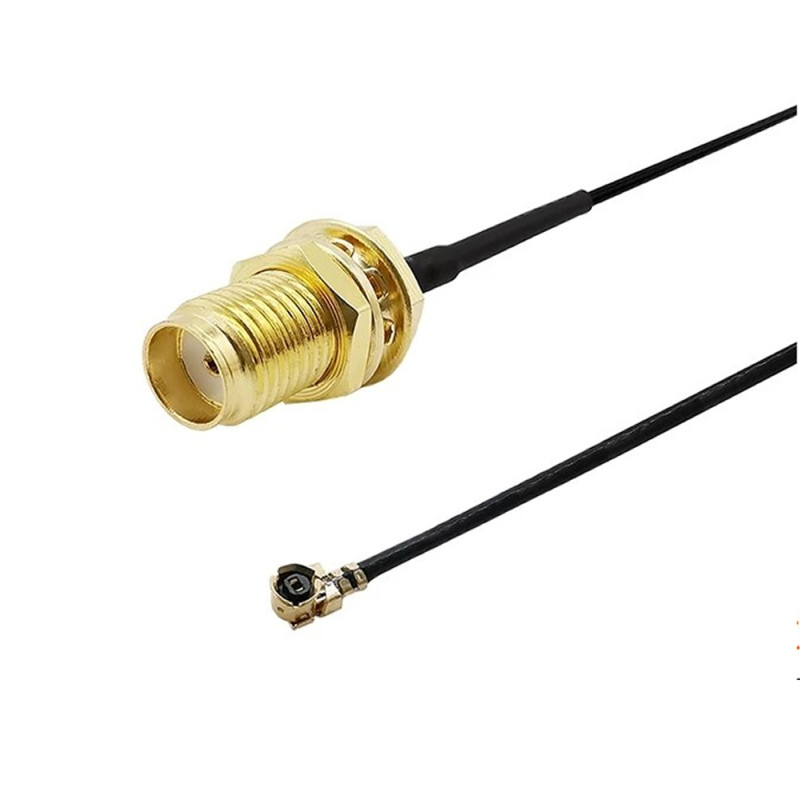

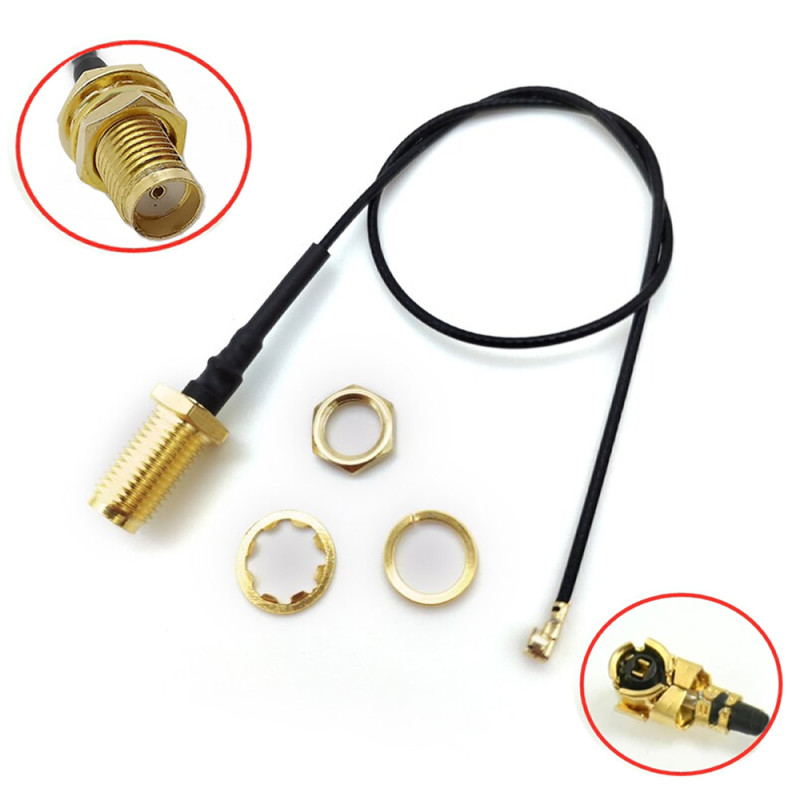

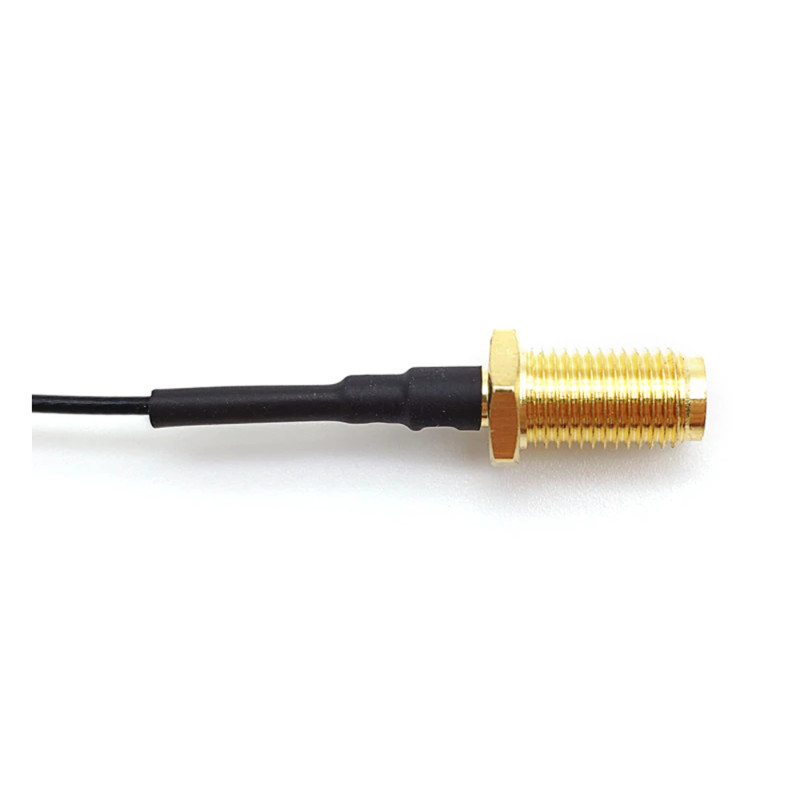

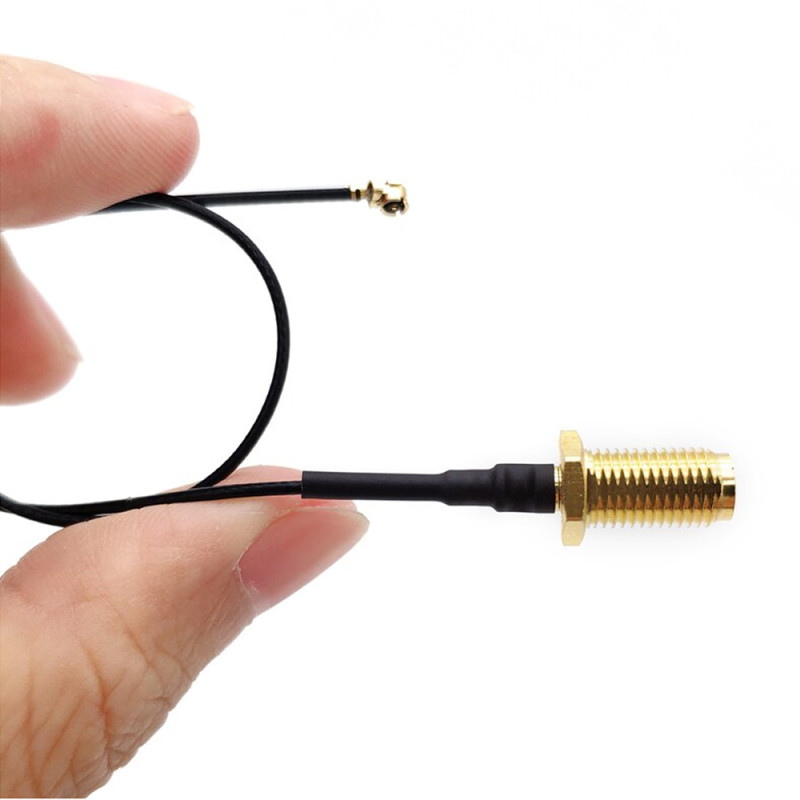

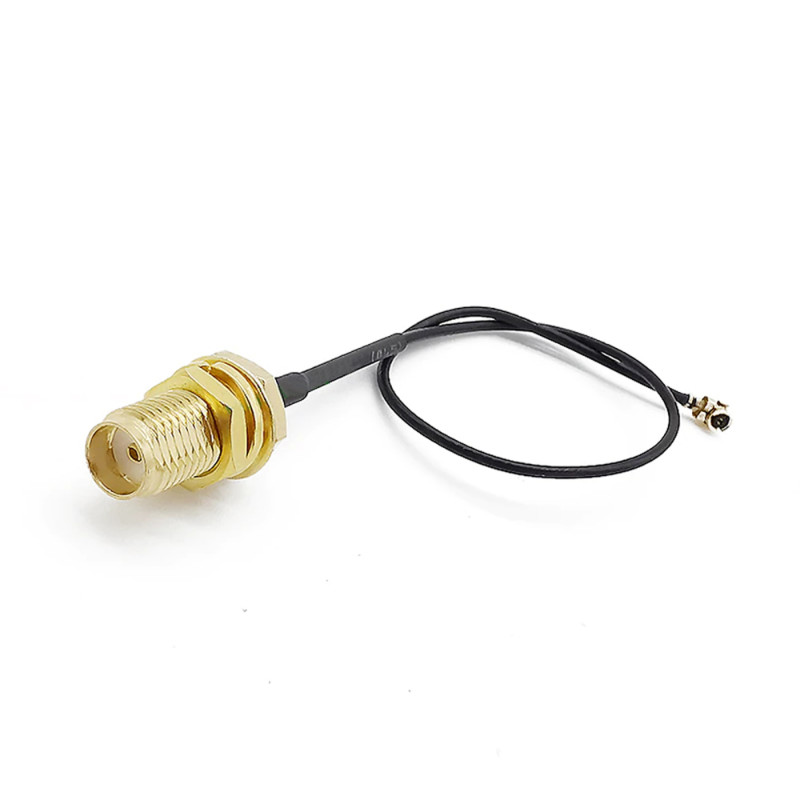

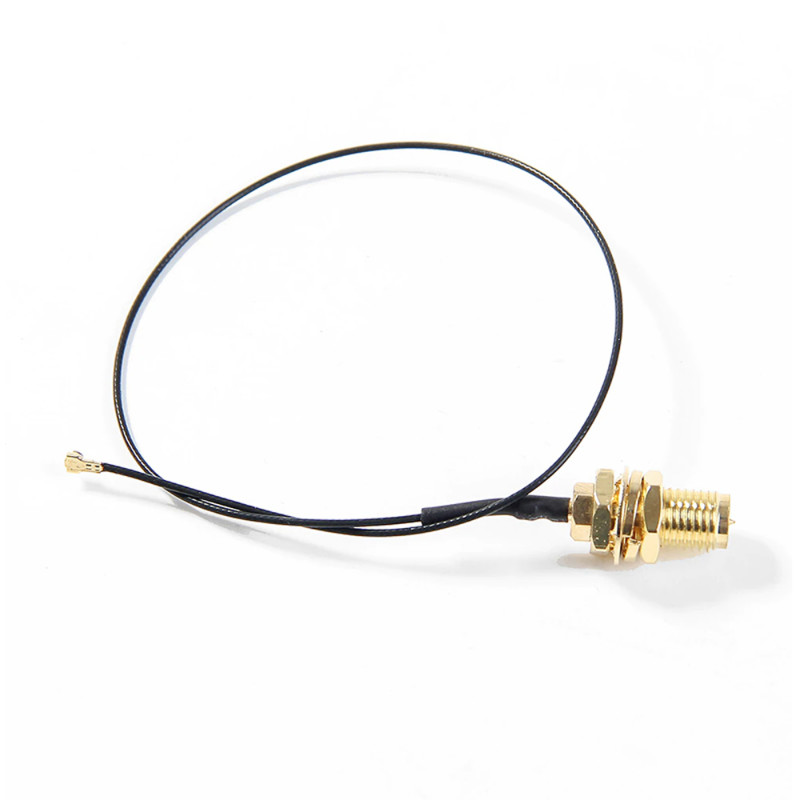

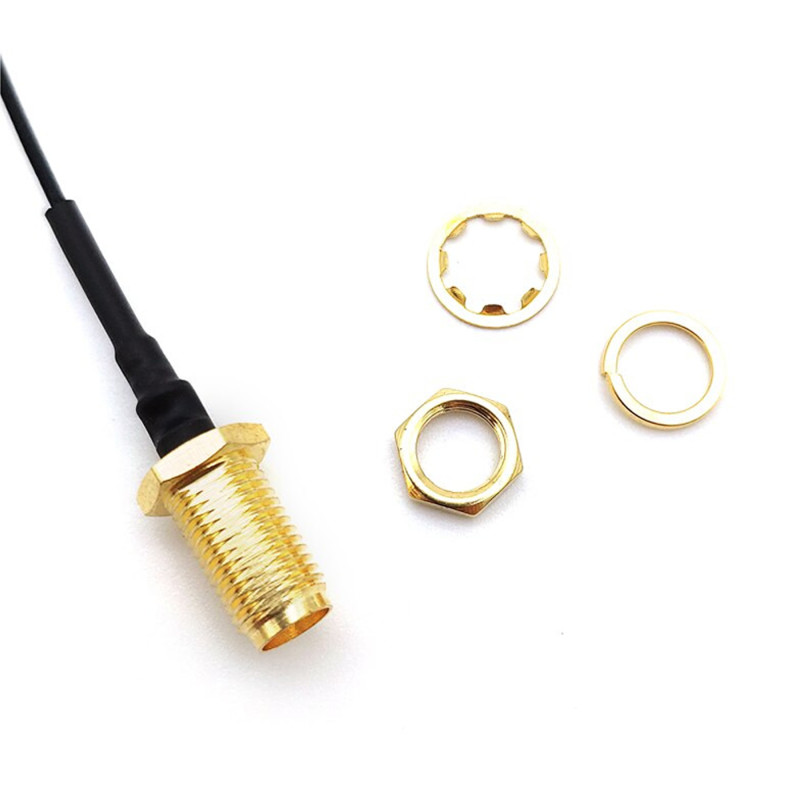

20cm Female Sma Ipex Mhf1 RF Connection Cable
SMA Female Socket to Gold Plated Connector Coaxial Cable UFL U.FL IPX IPEX Mini PCIe 1.13 Wifi Gsm Gps
It is suitable for the UFL socket. This type of socket is used on mini pcie cards. Mhf4 sockets are generally used on M2 Ngff products.
High performance low loss flexible rf connection cable. One side has a female sma socket and the other end has ipex sockets. It can be used in a wide frequency range. It has a cable length of 20cm.
Features:

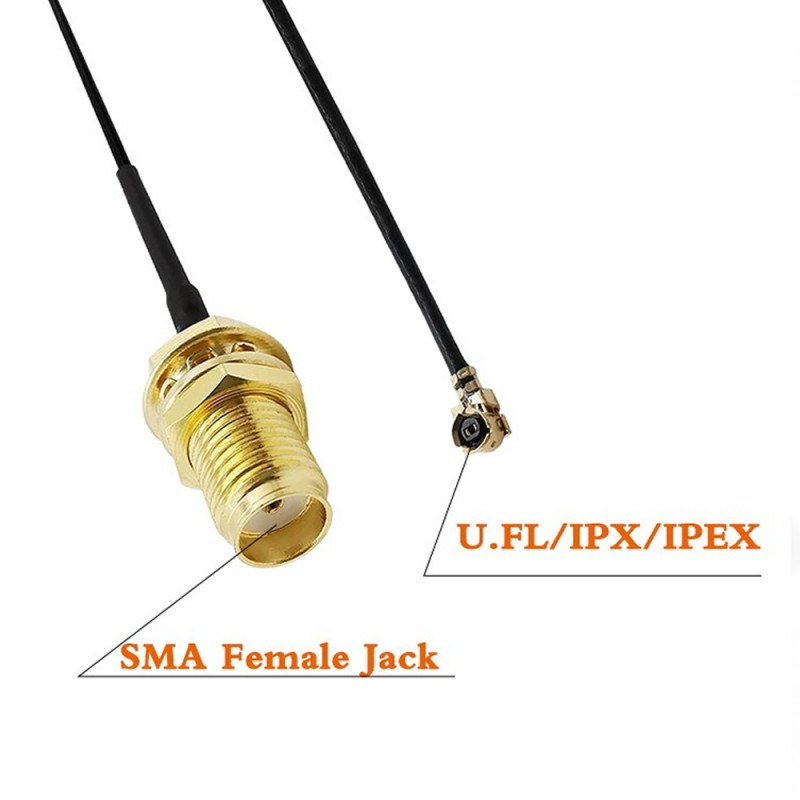

- Female SMA Socket
- IPEX Socket ( Mhf1 ) ( Suitable for the Ufl socket )
- Cable type:1.13
- Impedance: 50 ohm
- Contact resistance: 3mohm and below
- Frequency range: 0Hz / 12 GHz
- Voltage withstand: 1000V maximum
- Flashover voltage: 3000Vrms
- VSWR: 1.1 and below
- Operating temperature: -45C / 85C
- Life: less than 500 insertions and removals
- High performance
- Low loss
- Flexible structure
- Cable length: 20cm
- Weight: 4gr
Package contents:
- 20cm Sma Ipex Female RF Cable
