Arduino AVR ISP Programming Shield

Arduino AVR ISP Programming Shield

Expansion Board 28 Pin Zif Socket Buzzer Uno R3 Mega2560 Pro Mini Atmega328P Bootloader Loader

To use the product, you must have an external programmer or usb uart converter.

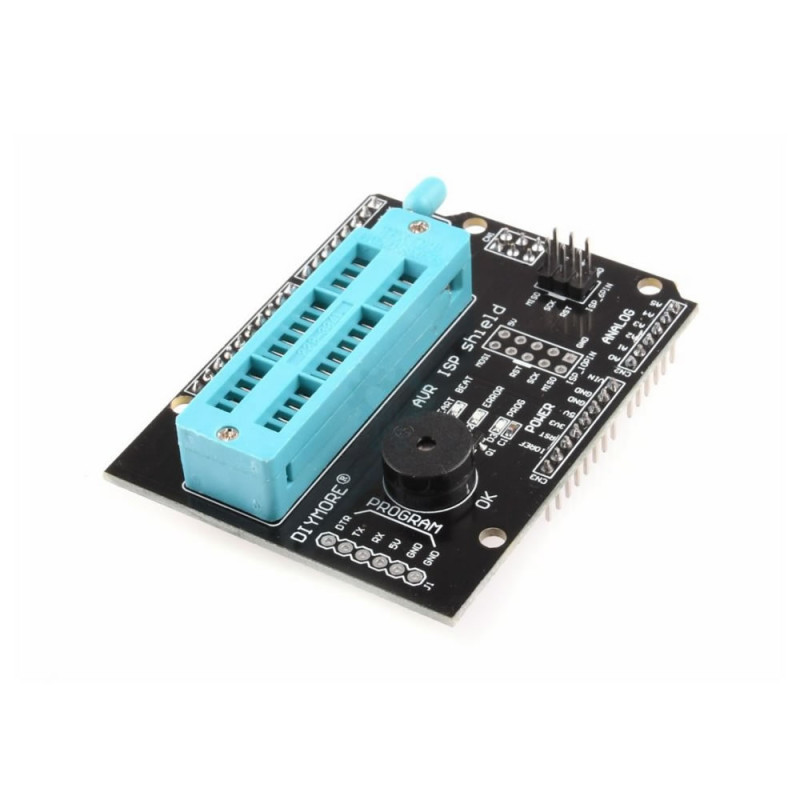

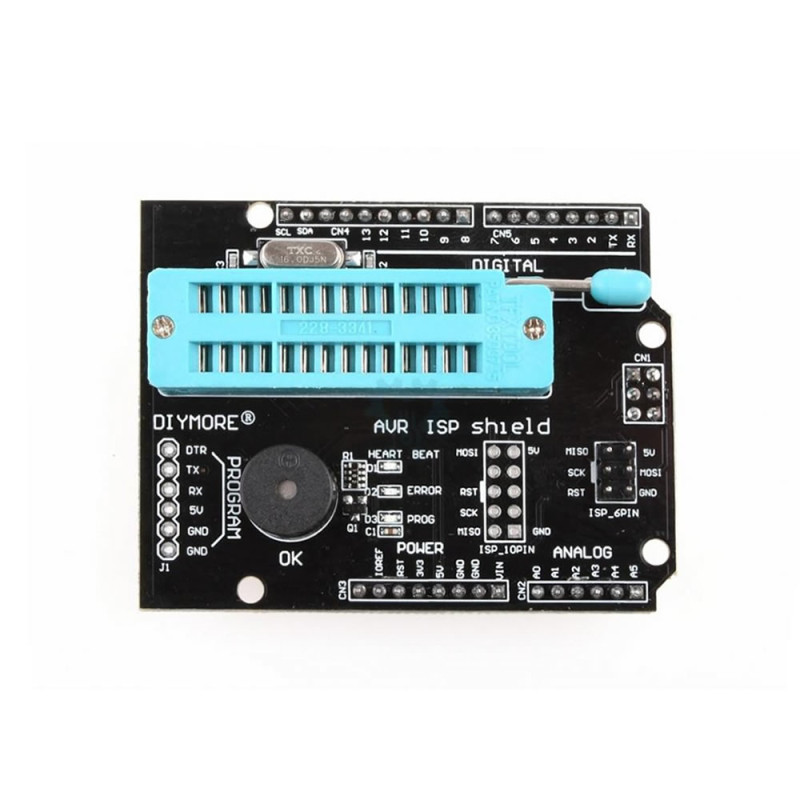

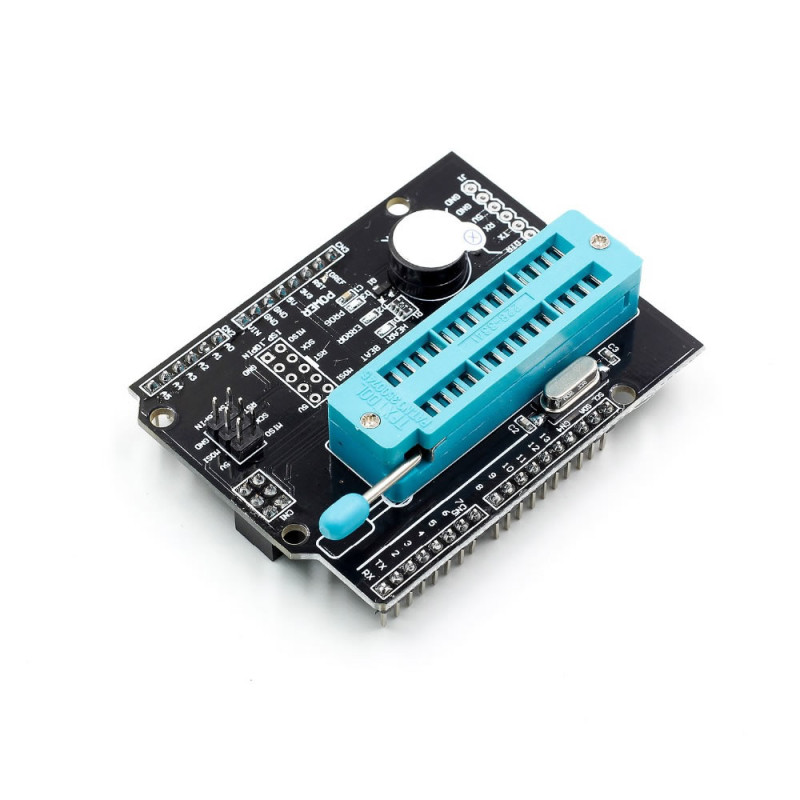

     This product is an expansion board that allows you to program your Arduino boards or external atmel integrated circuits, load the bootloader and change the fuse settings. You can use it by inserting the integrated circuits to be programmed into the zif socket on it. The board is not a programmer, it is an expansion board. You need to use it by connecting your external atmel programmers or usb ttl converters.

      It has a built-in buzzer and LED indicators that report whether the writing was successful. It is easy to use. In situations that require programming a lot of integrated circuits, the zif socket will be very useful to you.

Features:

• Compatibility: Compatible with Arduino UNO R3 / Arduino Mega2560. ProMini (5V )
• It allows you to program your board directly by connecting to the ISP socket.
• Operating voltage: 5V
• Operating current: 500mA (max.)
• Built-in buzzer sound warning support1 makes a sound at the start and 1 at the end. If 2 sounds are not heard, programming has failed.
• The led indicator flashes during programming.  The prog led flashes during programming. If programming fails, the error led will light up red.

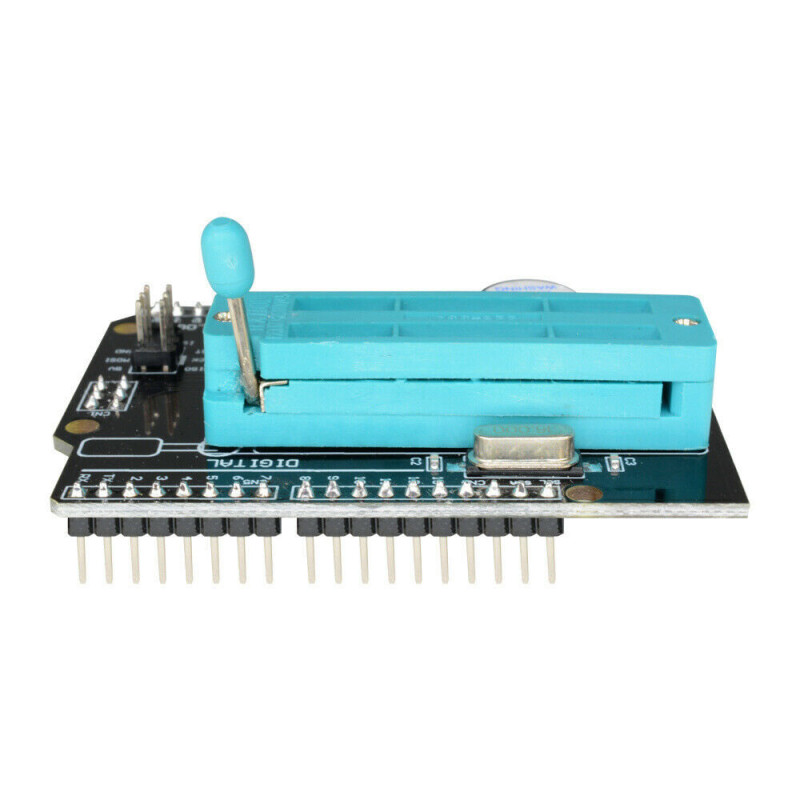

• 28 pin zif socket where Atmega328P, Atmega168P, Atmega8 integrated circuits can be used.
• 6 pin isp connection socket. Again another 6 pin connection socket for arduino connection.
• 10 pin isp connection socket with the socket not soldered on the board.
• 6 Pin ttl uart connection socket.

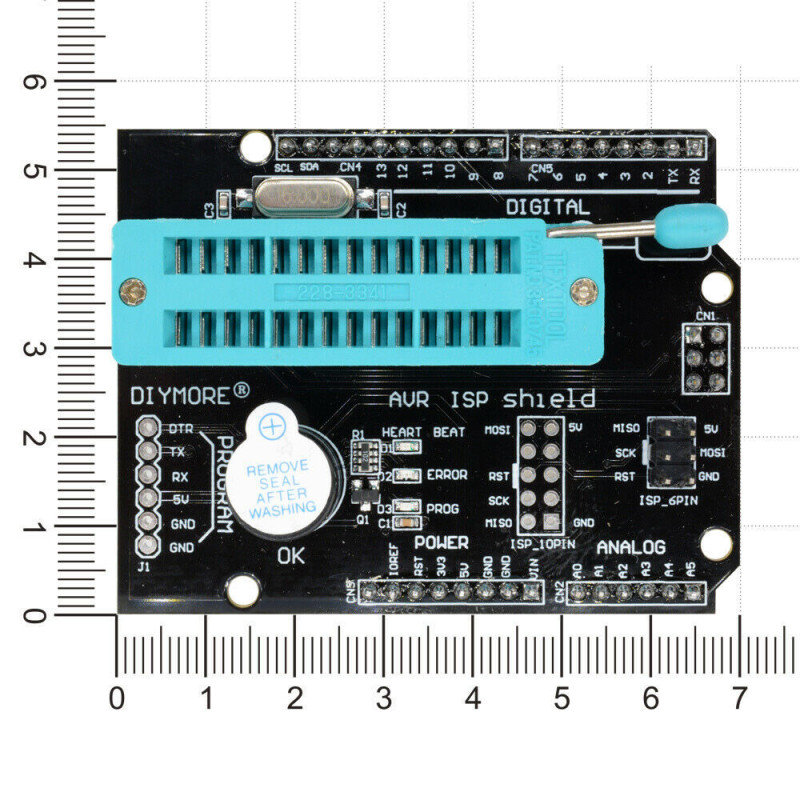

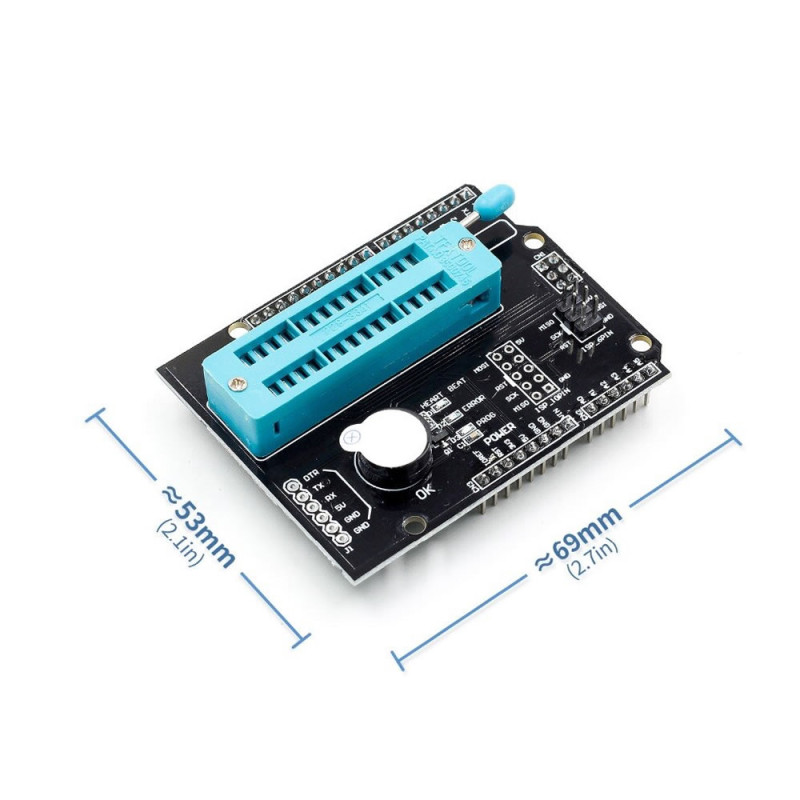

• Size: 6.9 cm x 5.4 cm x 2.3 cm
• Weight: 30 gr

Package contents :

• 1 Piece Arduino AVR ISP Programming Shield
