- Stok Durumu: Stok Var
- Marka: OEM
- Model: 200 Adet 6x6mm Tact Buton Set
- SKU: RBZ.101.076

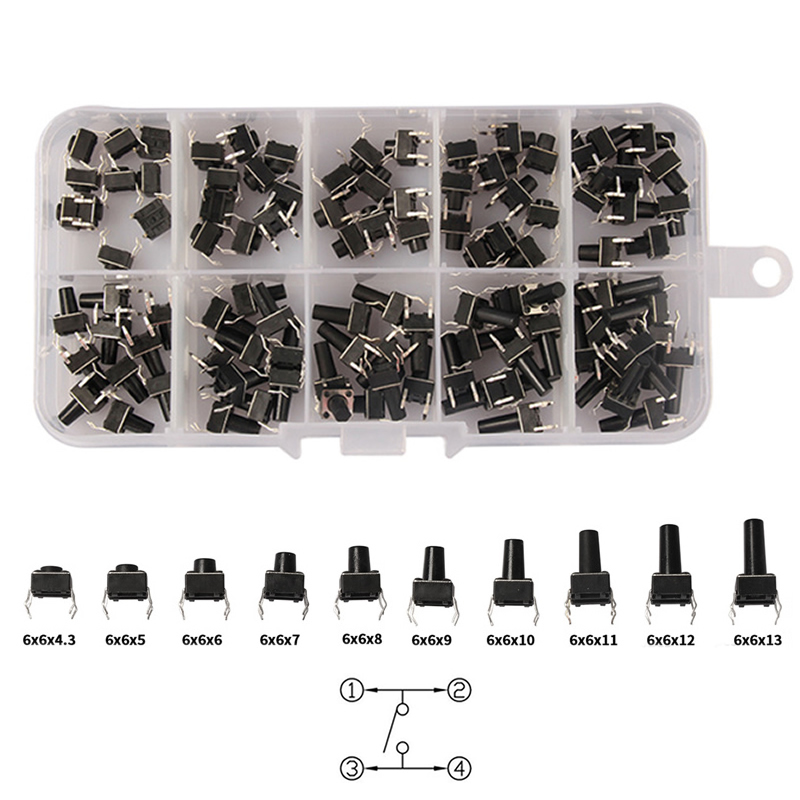

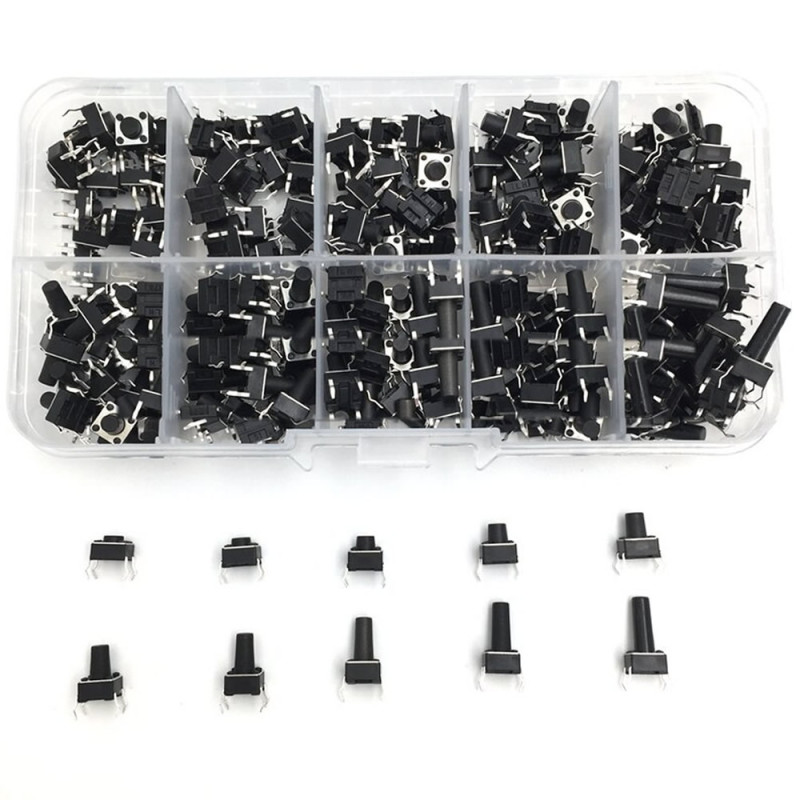

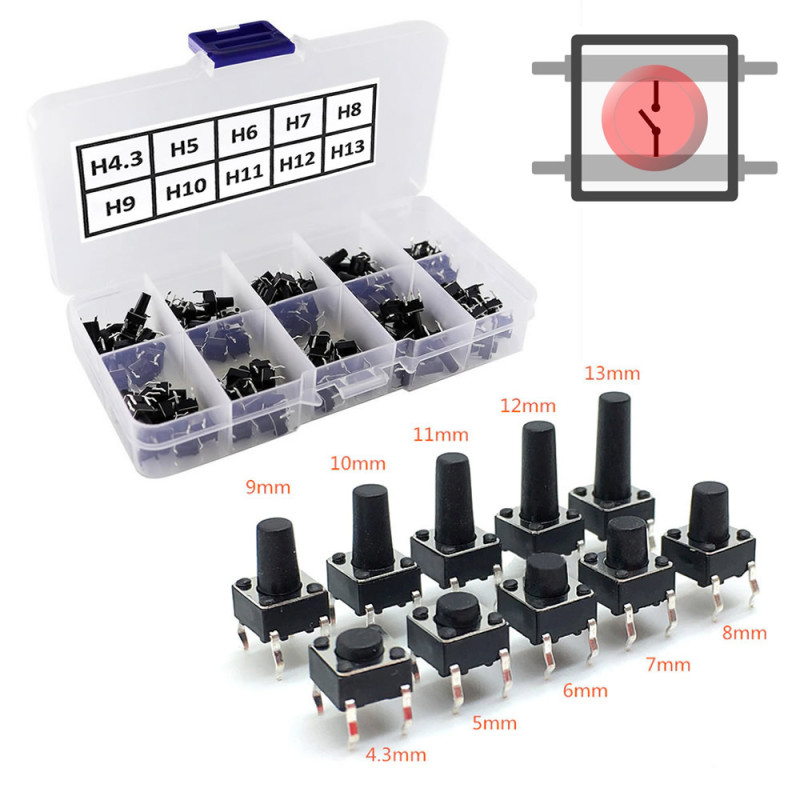

200pcs 6x6mm Tact Button Set
10 Different Heights 4 Pin Tactile Momentary Push Button Switch 4.3/5/6/7/8/9/10/11/12/13mm Boxed Button Kit
This is a tact button set used as a switch in electronic projects. The boxed set contains 200pcs mini buttons in 10 different types. It is used in electronic applications on breadboards, prototype boards, tv remote controls, camera and computer products and many other similar devices with buttons.

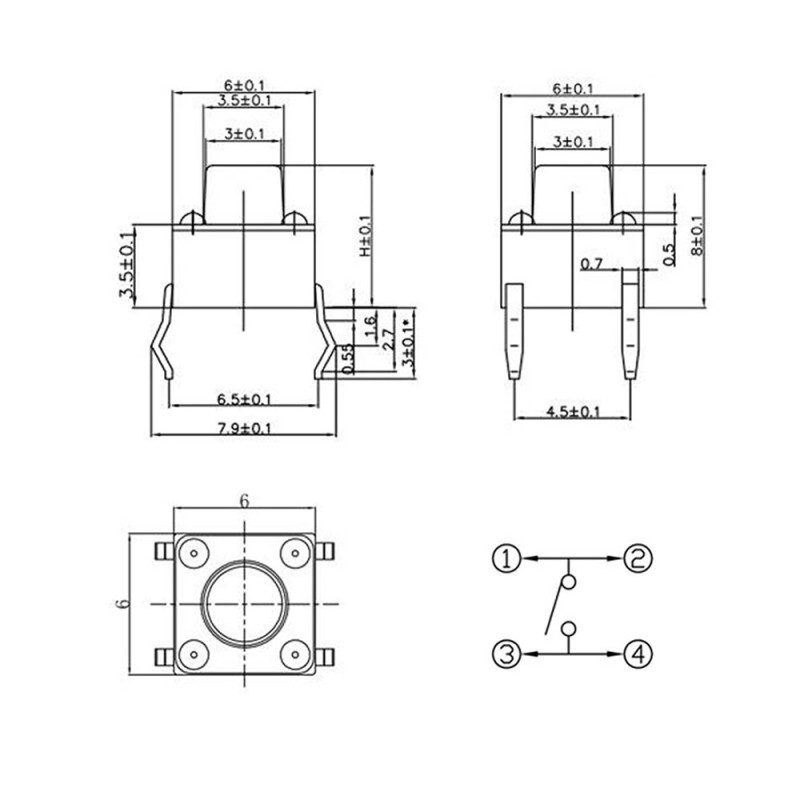

The button has 4 legs. The 2 on each side are short circuited to each other inside the button. It is used like a 2 pin switch. When the switch is pressed, the legs on the 2 sides are short circuited to each other. When the press is released, it returns to open circuit. The buttons are shipped in a transparent box. It takes up very little space and is easy to carry. The box can also be used for storing different materials.
Features:
- 6mm x 6mm tact button set
- 20pcs each of 10 switch models ( Momentary )

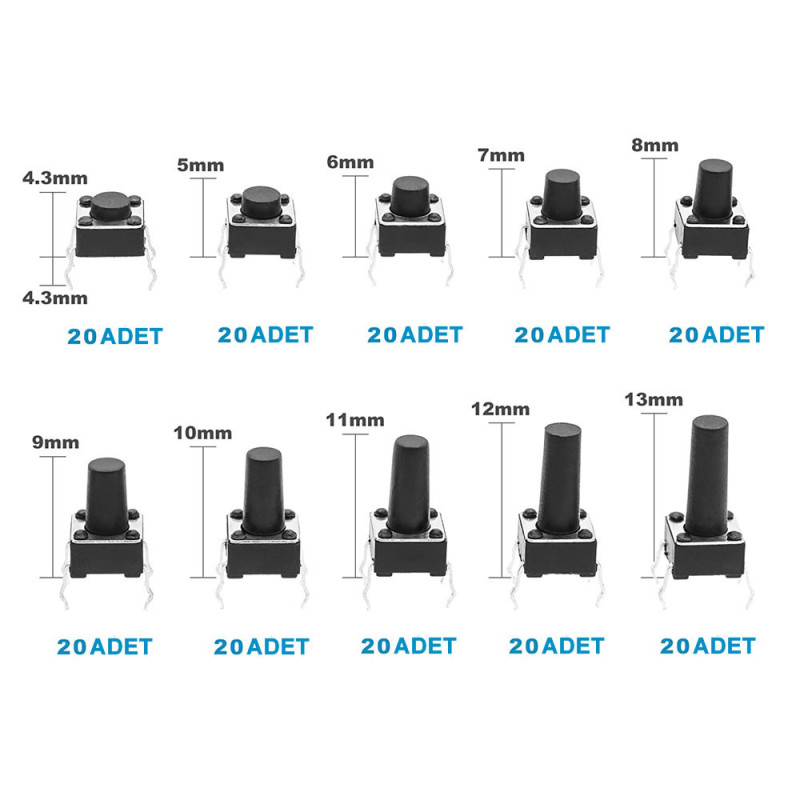

- Button heights: 4.3mm / 5mm / 6mm / 7mm / 8mm / 9mm / 10mm / 11mm / 12mm / 13mm

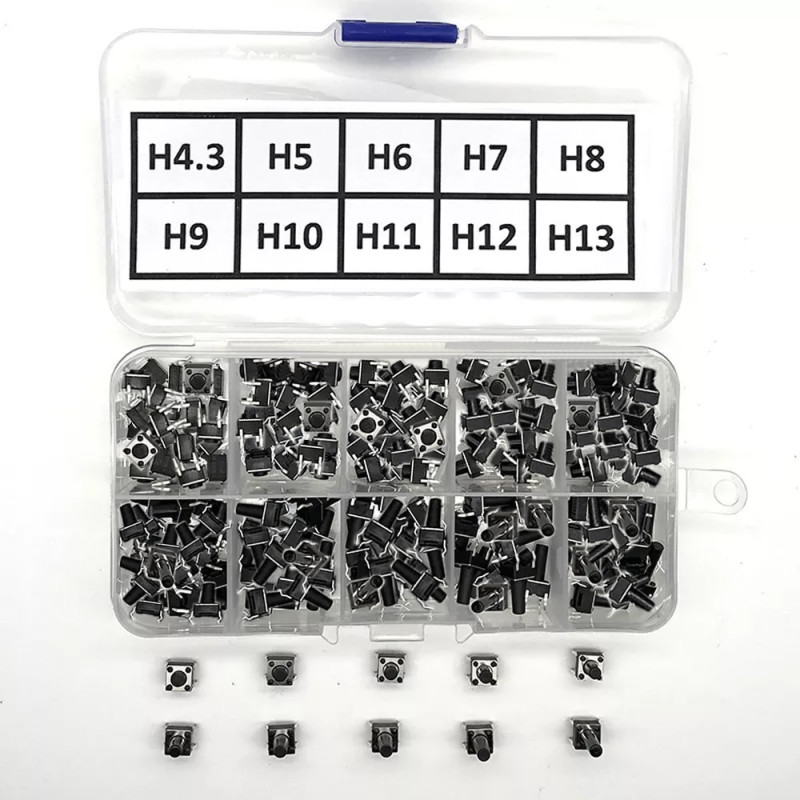

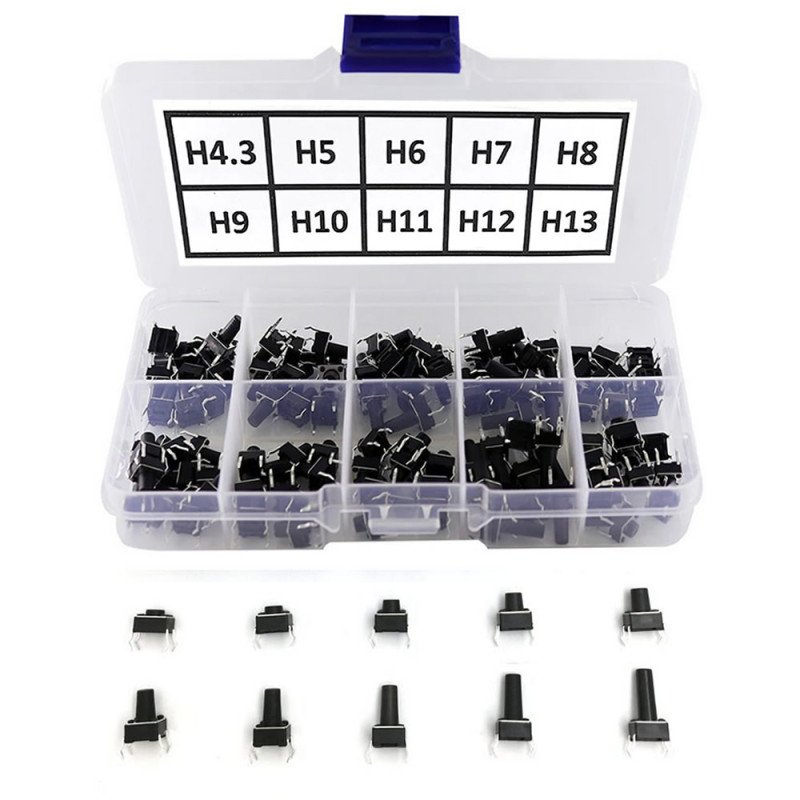

- Transparent box with 10 compartments
- Operating voltage: DC 12V
- Operating current: 50mA
- Temperature: -30C / +70C
- Contact resistance: 0.03ohm
- Insulation resistance: 100M Ohm
- Life: 100000 presses
- Long life durable
- Not affected by substances such as dust, water and oil.
- Material: Plastic, Metal
- Color: Black

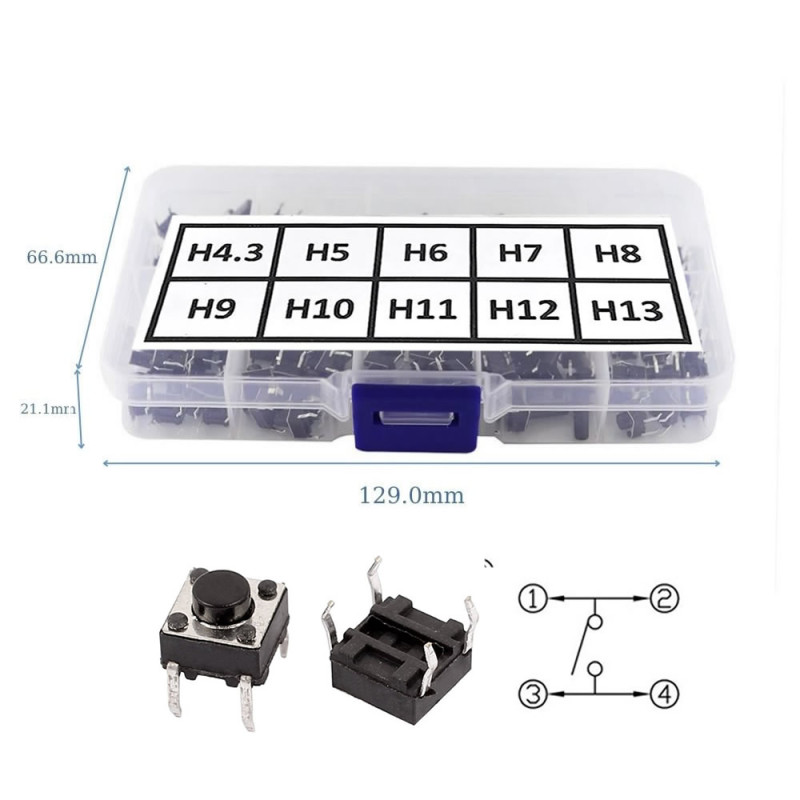

- Box Dimensions: 130mm x 66mm x 22mm
- Weight: 80gr.
Button Types and Quantities
- 6x6mm x 4.3mm 20pcs
- 6x6mm x 5mm 20pcs
- 6x6mm x 6mm 20pcs
- 6x6mm x 7mm 20pcs
- 6x6mm x 8mm 20pcs
- 6x6mm x 9mm 20pcs
- 6x6mm x 10mm 20pcs
- 6x6mm x 11mm 20pcs
- 6x6mm x 12mm 20pcs
- 6x6mm x 13mm 20pcs
Package Contents:
- 200pcs 6x6mm Tact Button Set
- 1pc Transparent Material Box
