Boxed DB25 to Dip Adapter Male
345.60TL
Ex Tax: 288.00TL
- Stok Durumu: Stok Var
- Marka: OEM
- Model: Kutulu DB25 to Dip Adaptör Erkek
- SKU: RBZ.101.473

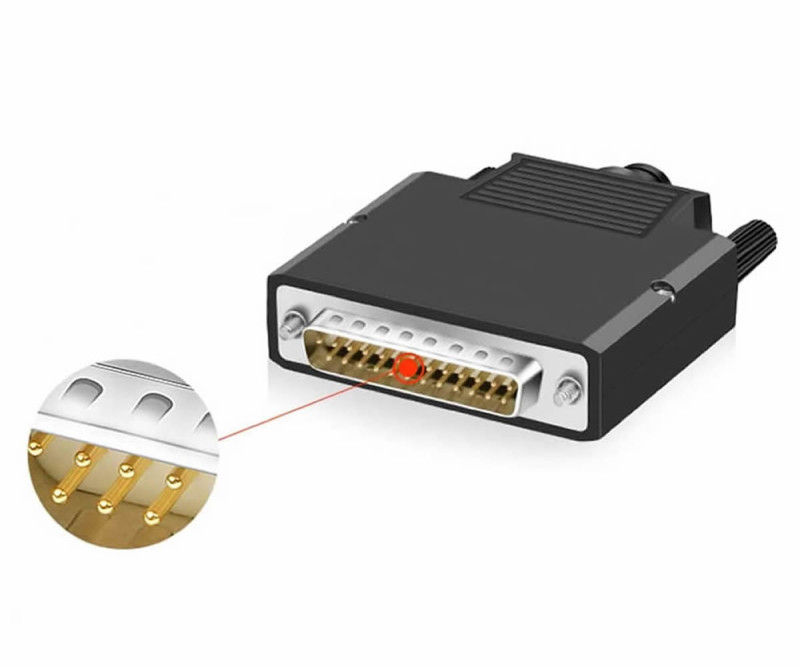

Boxed DB25 to Dip Adapter Male Terminal Socket
25 Pin D-Sub Parallel Port Communication Uart DC 3V 5V Computer Modem Satellite Receiver GSM Barcode Cash Register Firmware Update

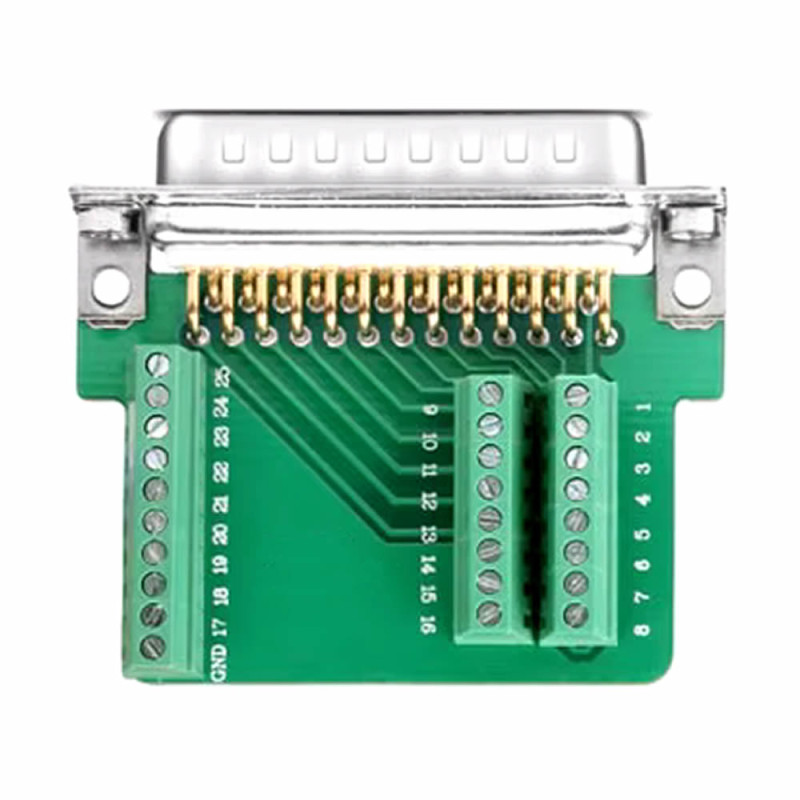

It is a converter that allows easy connection to the DB25 male socket pins with terminal blocks. There are 5 pin 2 row terminal blocks. You can easily mount the cable without soldering. It can be used in parallel port communication systems. It is widely used in many electronic devices such as computers, modems, satellite receivers, industrial devices, automation etc.

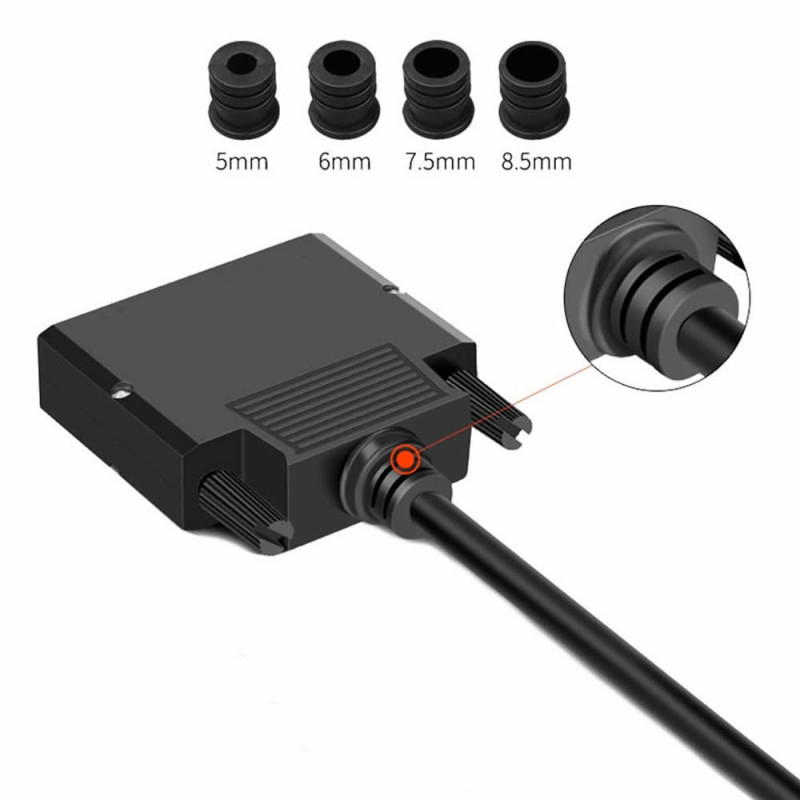

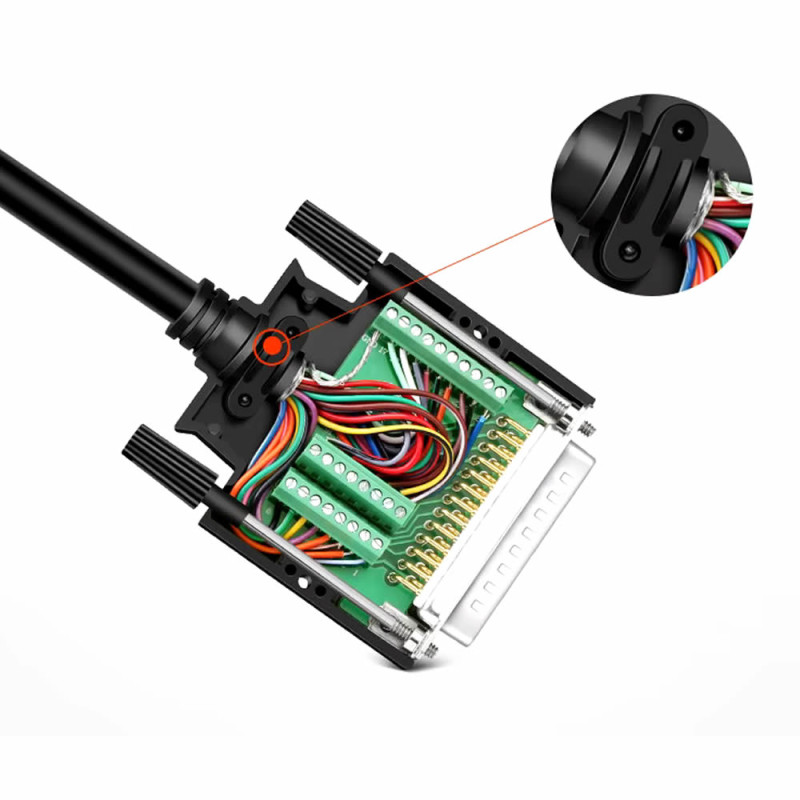

It has a plastic box. A plastic part and 2 screws come with it for fixing the cables. Cables with 10mm diameter can be used.
Features:
- Boxed db25 to dip adapter male
- Output socket type: Db25 male
- Number of pins: 25 Pin
- Current: 1A Maximum
- Terminal block sockets
- Solderless easy installation
- Quality plastic box
- Plastic box is fixed with screws
- Material: Metal / Plastic
- Color: Black / Green
- Operating temperature: -40C / 65C
- Dimensions: 57mm x 64.4mm x 16.5mm
- Cable thickness: 10mm / 26-16 AWG
- Weight: 52gr

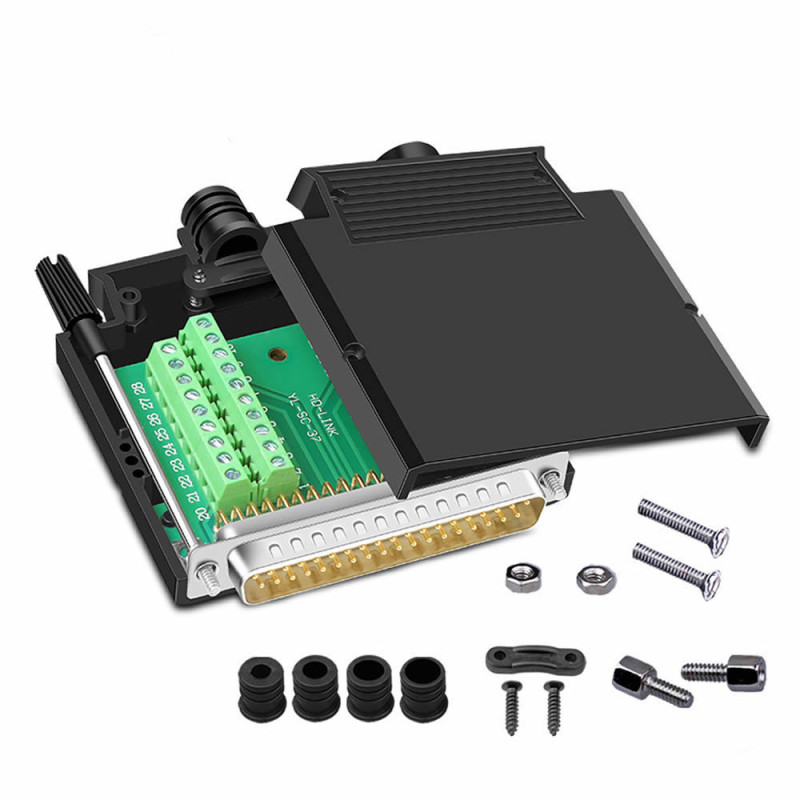

Package contents:
- 1 Pcs Boxed DB25 to Dip Adapter Male
- 4 Pcs screws
- 1 Pcs cable fixing plastic part
