DB9 to Dip Adapter Male

DB9 to Dip Adapter Male Terminal Socket

9 Pin D-Sub Serial Port RS232 RS485 Communication Uart Computer Modem Satellite Receiver Gsm Cash Register Firmware Update

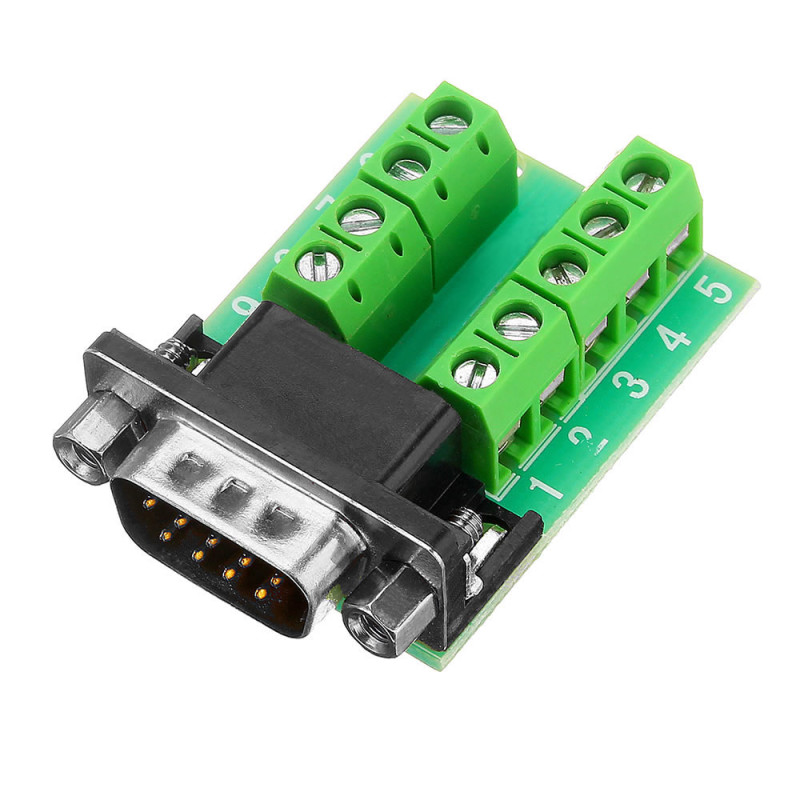

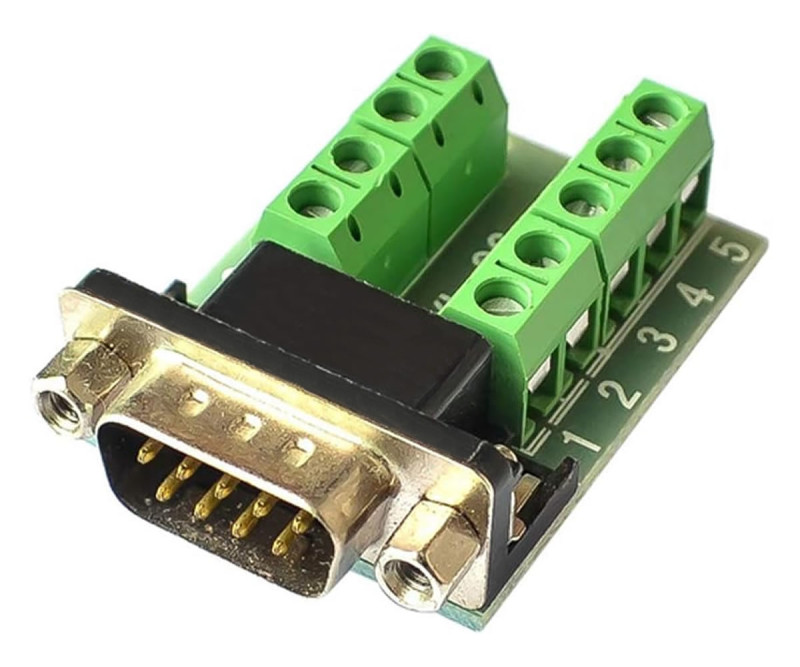

     This product is a converter board consisting of terminal blocks connected to the Db9 male socket pins. It is designed to make access to communication signals such as RS232 and RS485 easier. Signals become quickly and safely accessible through the terminal blocks. It provides practical use by connecting the cables to the terminal blocks without the need for soldering. It is widely preferred in various electronic devices such as computers, modems, satellite receivers, industrial devices and automation systems.

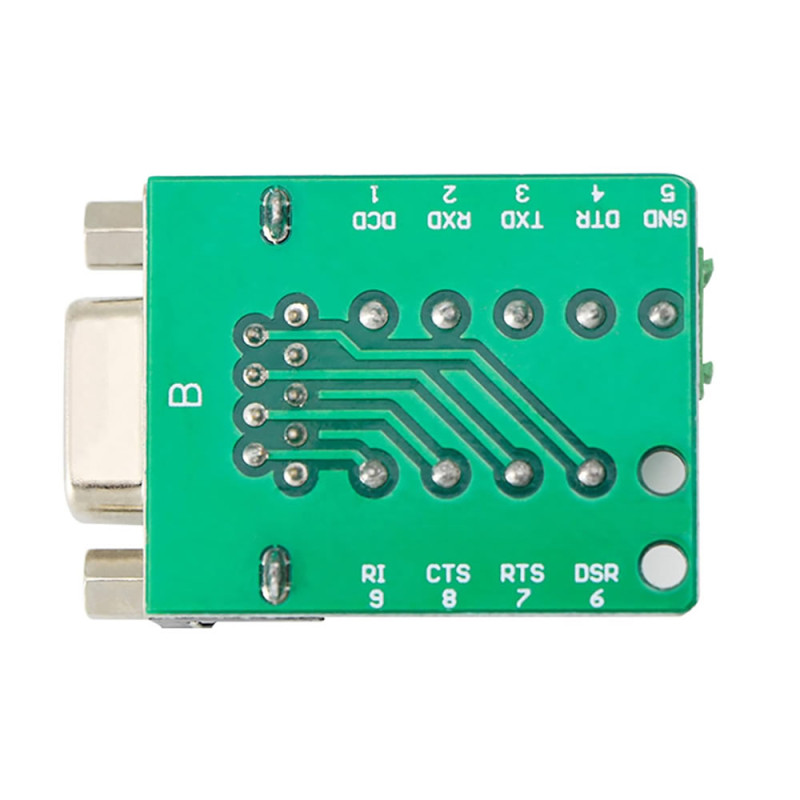

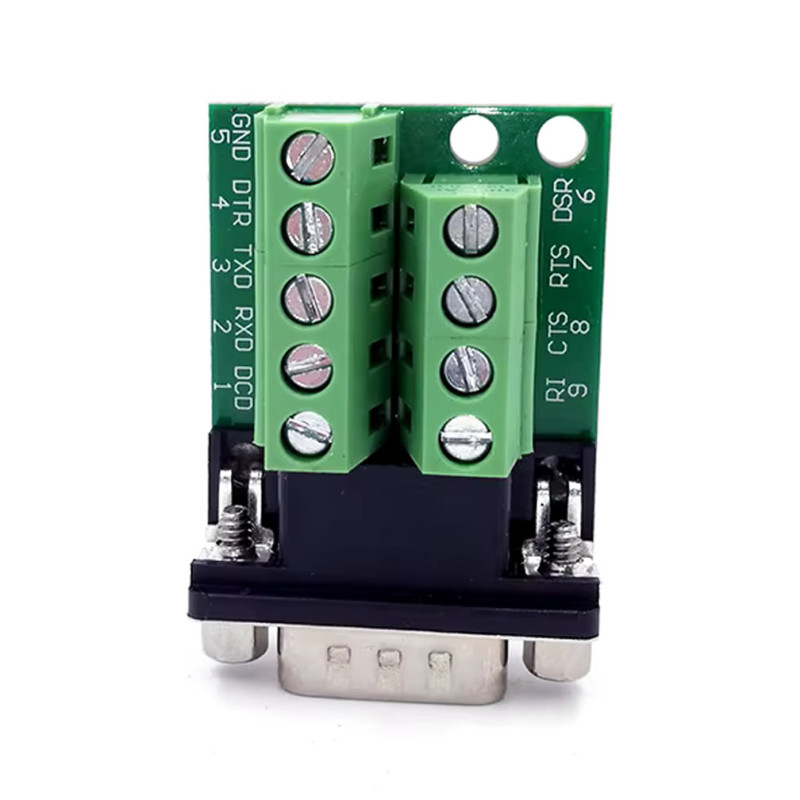

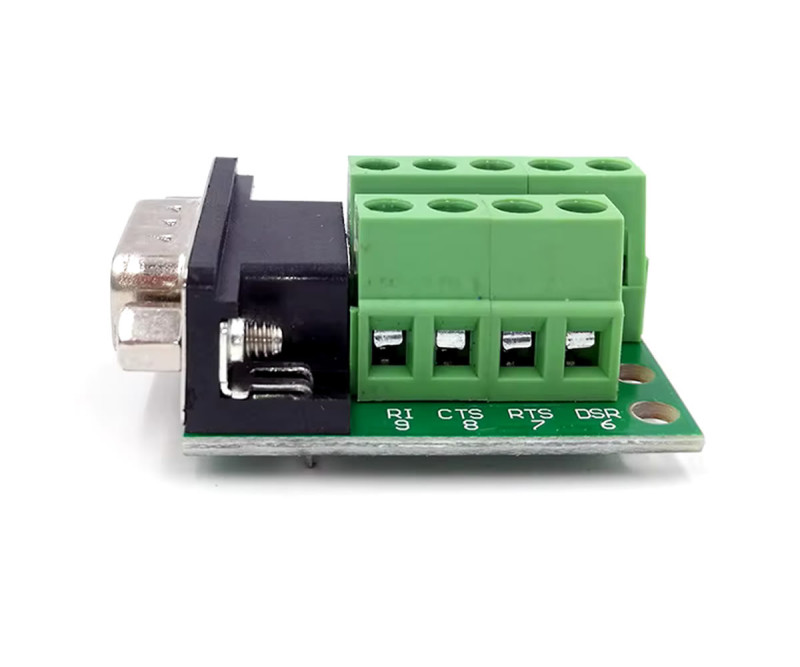

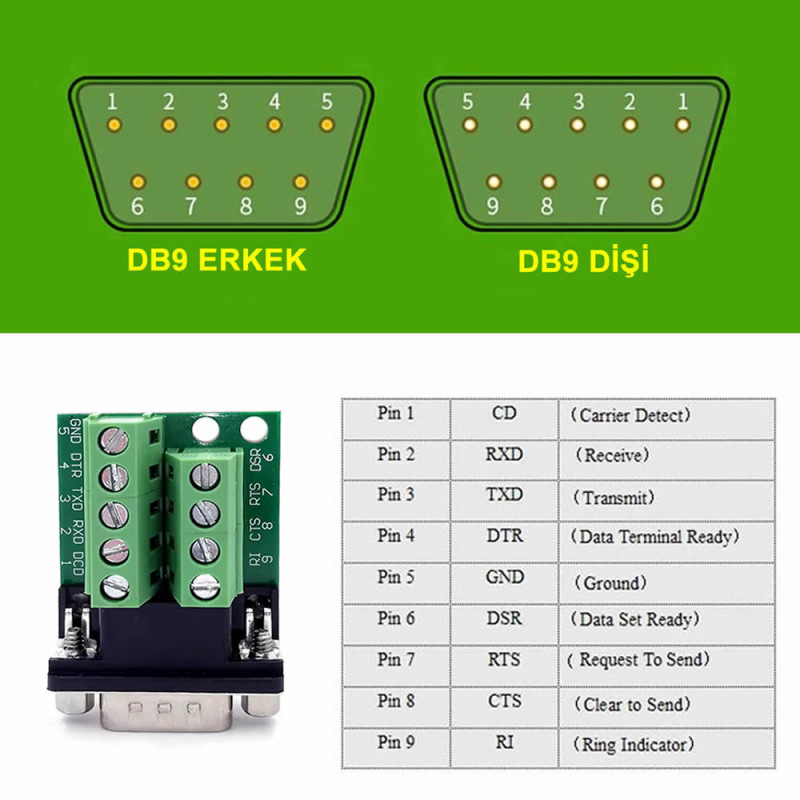

     5+4 pin terminal blocks are on the board. The signal names and numbers are written next to the terminal blocks. The distance between 2 terminals is 5mm. There is 1 mounting hole of 2.5mm.

Features:

• Db9 to dip male adapter

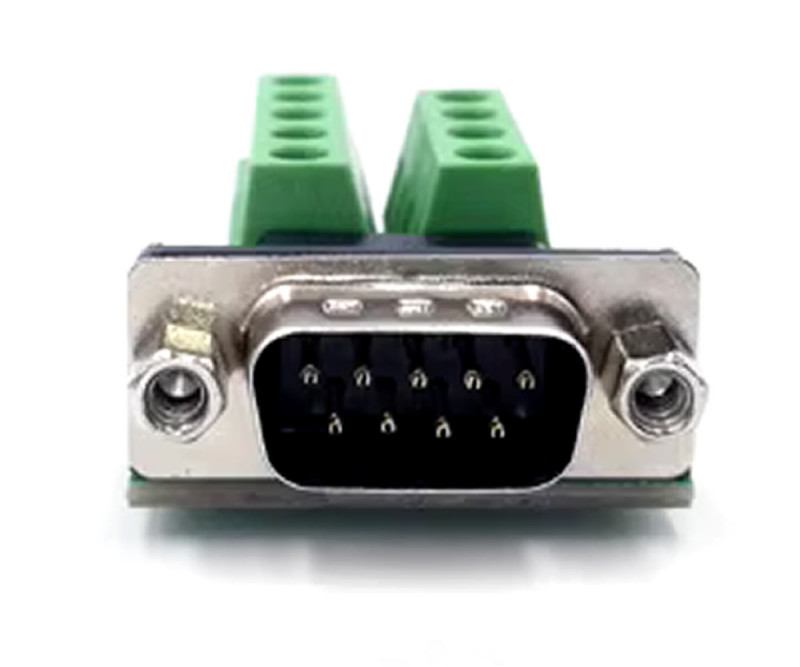

• Output socket type: DB9 Male
• Terminal block pitch:  5.0mm
• Terminal block cable thickness:    1.2mm - 4mm   /   18-26AWG
• Current: 1A  Maximum
• 9 Pin rs232  socket.
• 4-way and 5-way terminal block sockets
• Solderless easy mounting
• Material: Metal / Plastic
• Color: Black / Green
• Operating temperature:  -40C  /  65C
• Dimensions :48mm x 32mm x 18mm
• Weight: 14gr


Package contents:

•   1 pc DB9 to Dip Adapter Male
