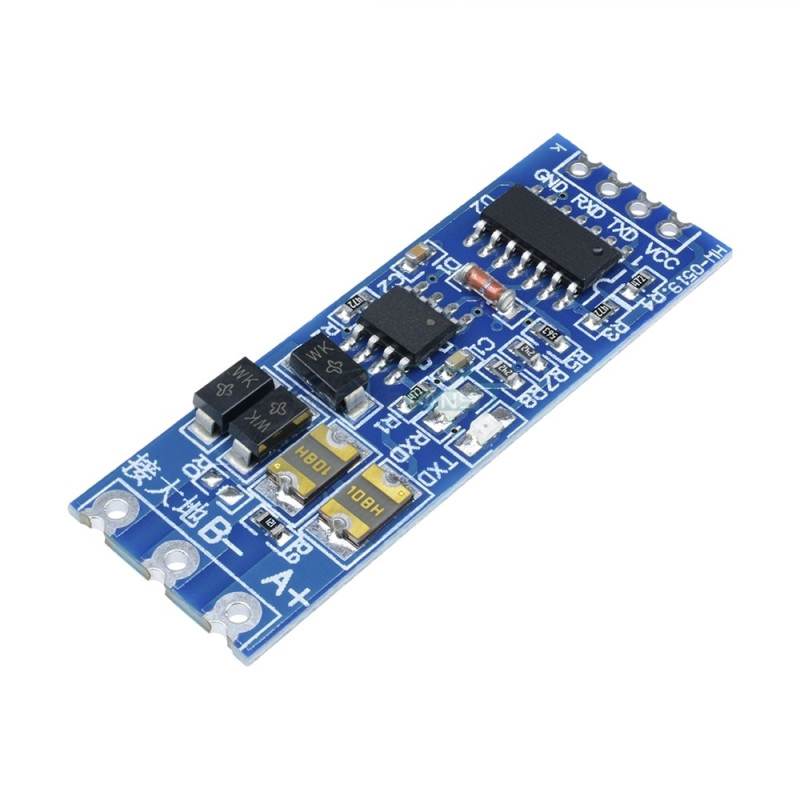

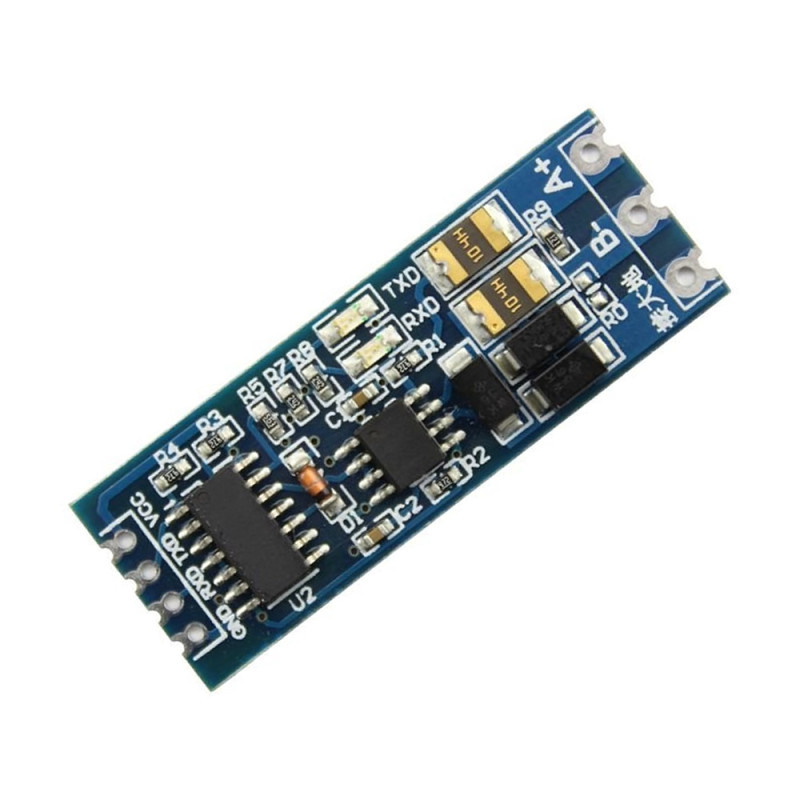

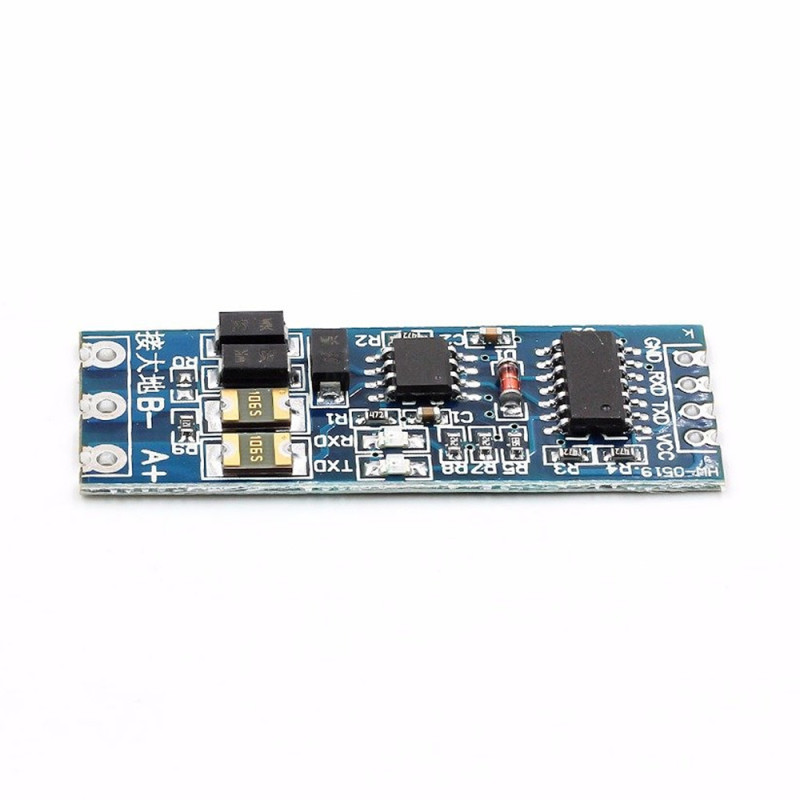

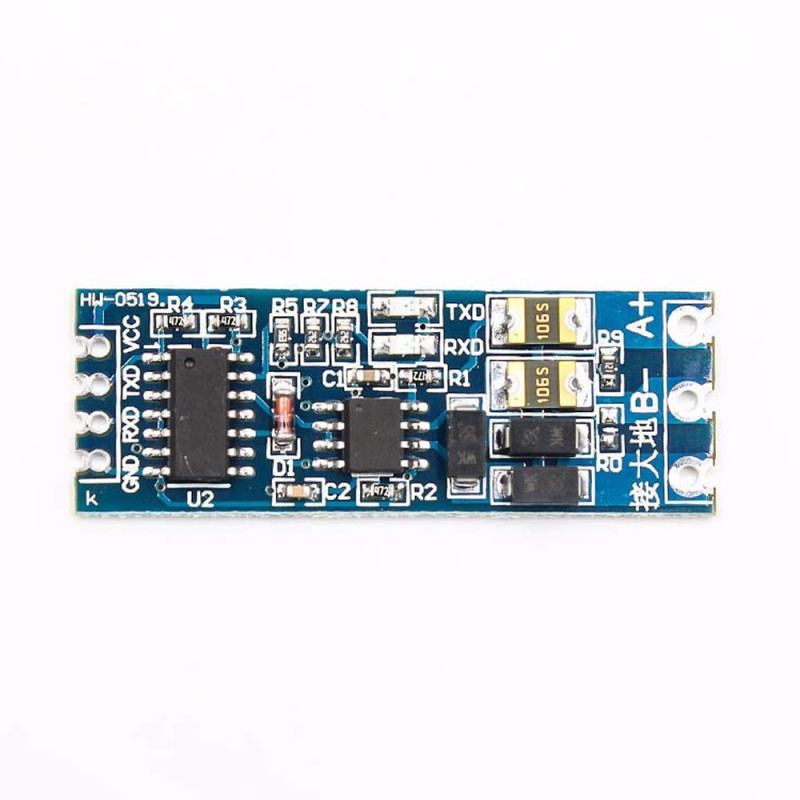

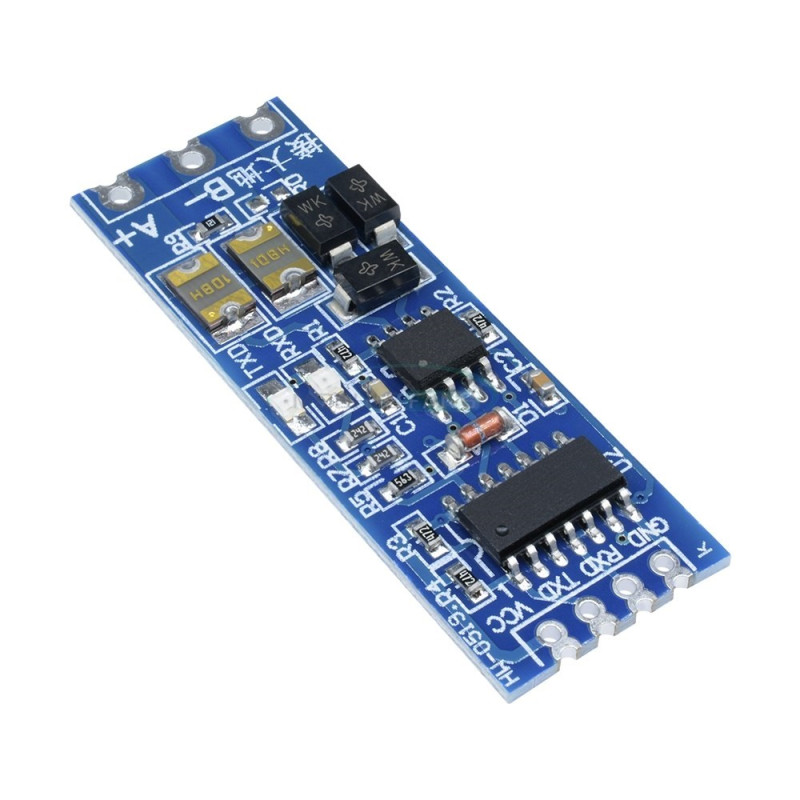

TTL to RS485 Module Automatic Direction Control
57.60TL
Ex Tax: 48.00TL
- Stok Durumu: Stok Var
- Marka: OEM
- Model: RS485 AFC Modül
- SKU: RBZ.100.337
UART TTL to RS485 Module Automatic Direction Control AFC
Industrial Type Com Serial Port Signal Converter Communication Tvs Esd Protection Automation Plc Medical

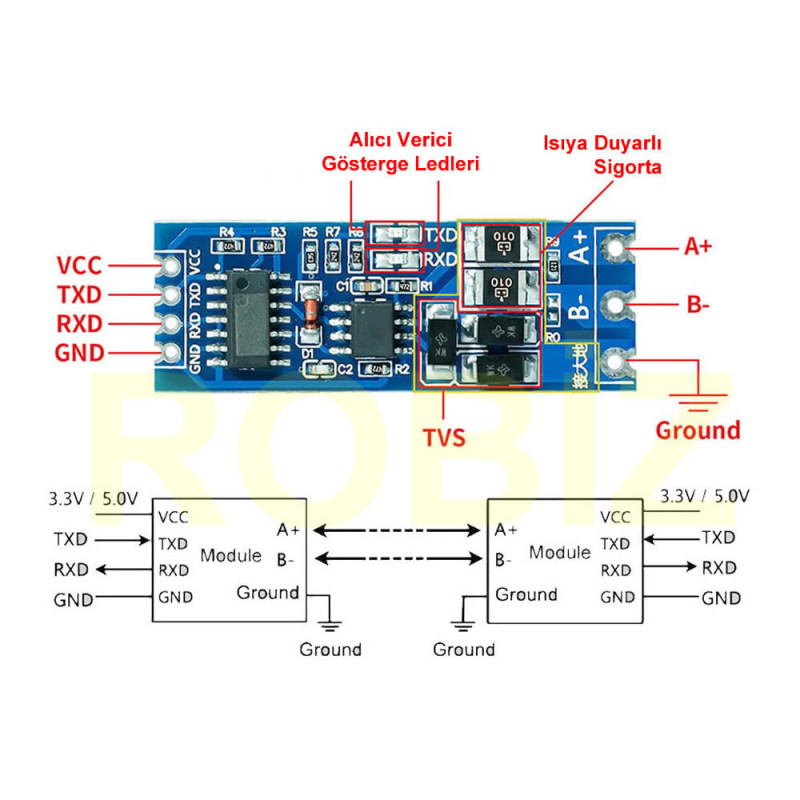

It is a converter module that enables connection to the RS485 network over Uart. It has high voltage protection. It has communication indicator leds. You can set up an RS485 network with 2 modules. It recognizes and controls the communication direction automatically by hardware without requiring extra jumper setting etc. The communication distance is a maximum of 1200 meters.
Features:
- Uart Rs485 converter module
- Operating voltage: DC 3.3V / 5V
- Communication support: RS-485
- Communication network support for up to 128 devices
- RS485 signals: A B
- Communication speed: 600bps to 115.2Kbps
- Communication distance: 1200 meters maximum ( adding a repeater is appropriate after 800 meters )
- Communication indicator leds
- 120ohm termination resistor can be put into use by shorting R0.
- AB line short circuit protection
- Tvs protection diodes.
- Good emc emi protection performance
- Isolation voltage: DC 2500V
- Thermal protection fuses
- Material: Metal
- With half circle pin connection support, it can be mounted like an smd component without creating height on circuits.
- Operating temperature: -40C / +85C
- Color: Blue

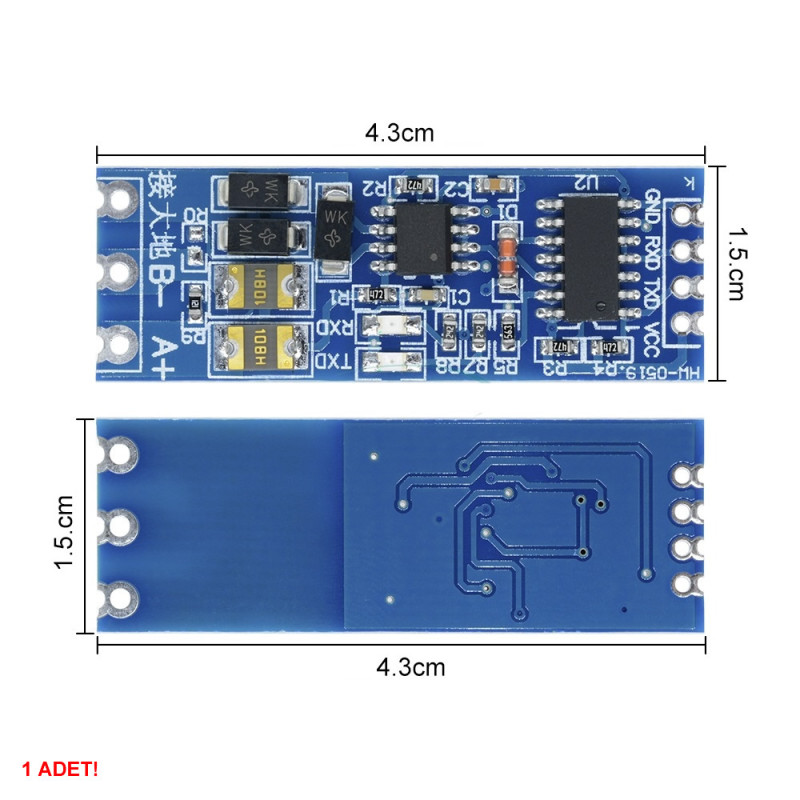

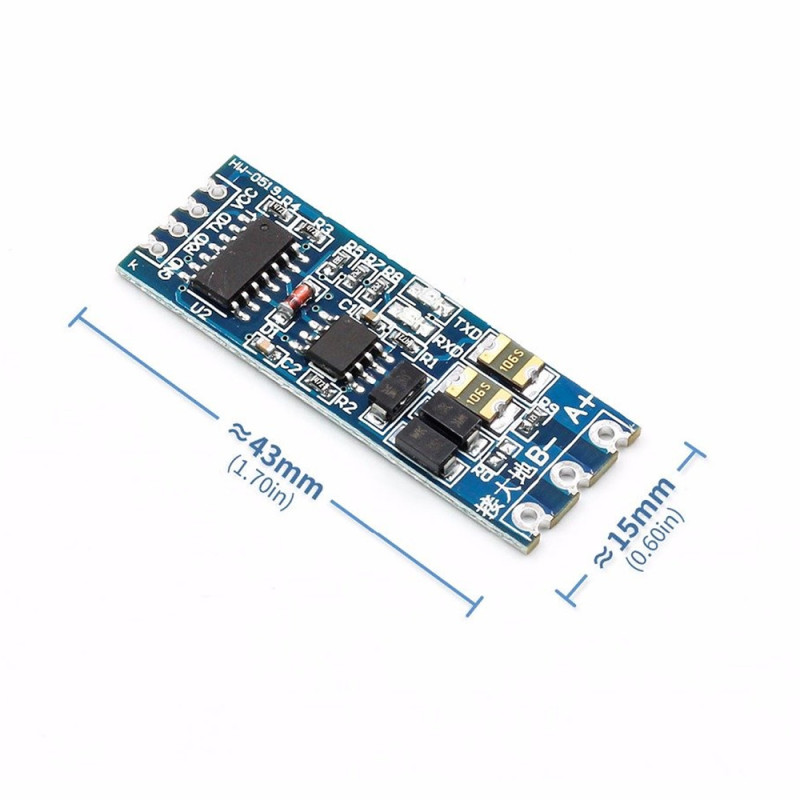

- Dimensions: 15mm x 43mm
- Weight: 3gr
Package Contents :
- 1 Piece TTL to RS485 Module Automatic Direction Control
