8520 DC Motor

8520 DC Motor 3-5V Coreless Brushed

35000/50000 Rpm 8.5x20mm 3.7V Drone Helicopter Rc Plane Quadcopter Tinywhoop

The product is available in stock with black white or red blue cables. If you state the cable color during the order, the product will be shipped in those colors. If you do not state a color, it is sent mixed.

     8520 Coreless motors are high speed and efficient brushed DC motors. They are widely used especially in mini drones, quadcopters, RC planes and similar air vehicles. Despite their small size they can reach high rotation speeds. Thanks to its coreless structure it has low resistance and a fast response time. Thanks to its brushed structure the driver circuit is simple and it is directly compatible with mosfet based or ready made drone boards.

     These motors are high speed but low torque. Long term use at full load can shorten the motor life. The products in stock are of a single type with black white cable. This situation may change from batch to batch.

Highlighted features:

• Low vibration and quiet operation thanks to the coreless structure
• High speed, fast responding characteristic
• Light structure, ideal for micro drones
• Easy mounting and common pin compatibility
• Compatible with Tinywhoop and micro fpv projects

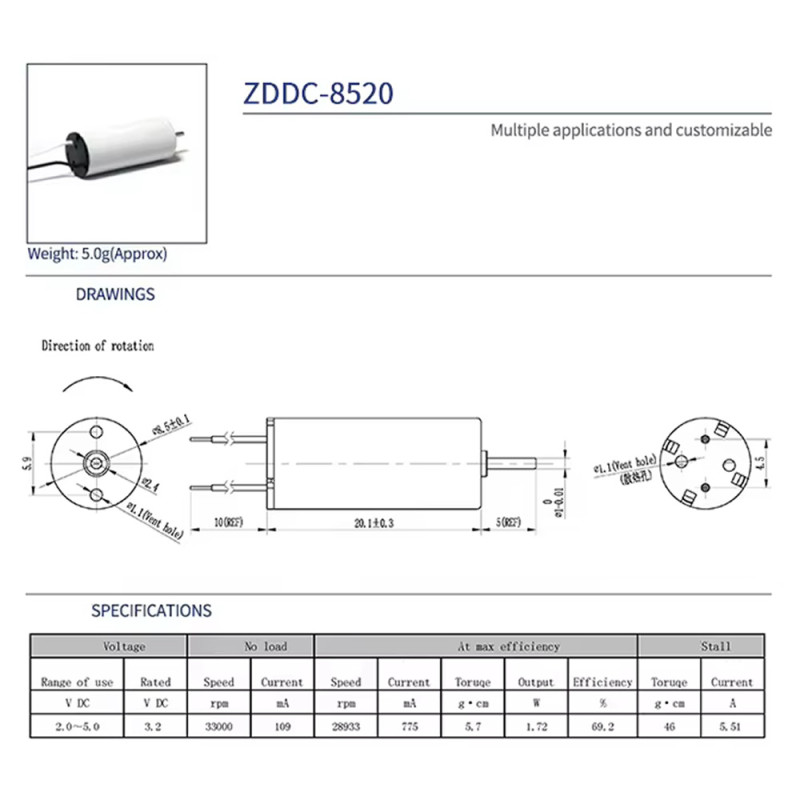

Specifications:

• 8520 DC Motor
• Operating voltage: DC 3-5V
• Nominal voltage: 3.2V – 3.7V
• No load rotation speed:  3V: 35000 – 37000 rpm  /  5V: 50000 rpm
• Current (nominal): 0.15A
• Maximum current (short term): 2A
• Operating temperature: -10C  /  50C

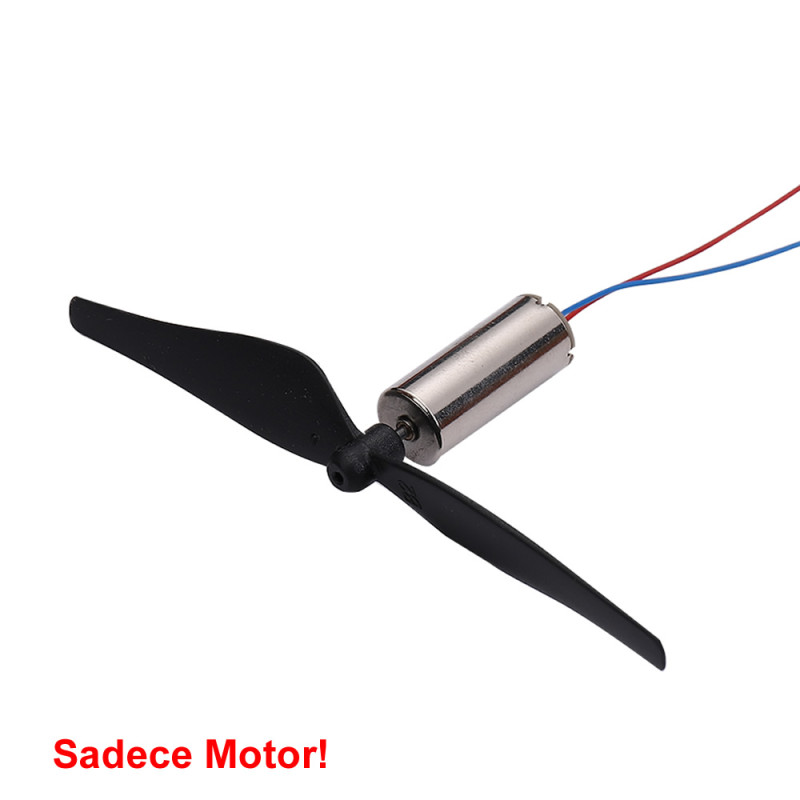

• Recommended propeller size: 75mm diameter

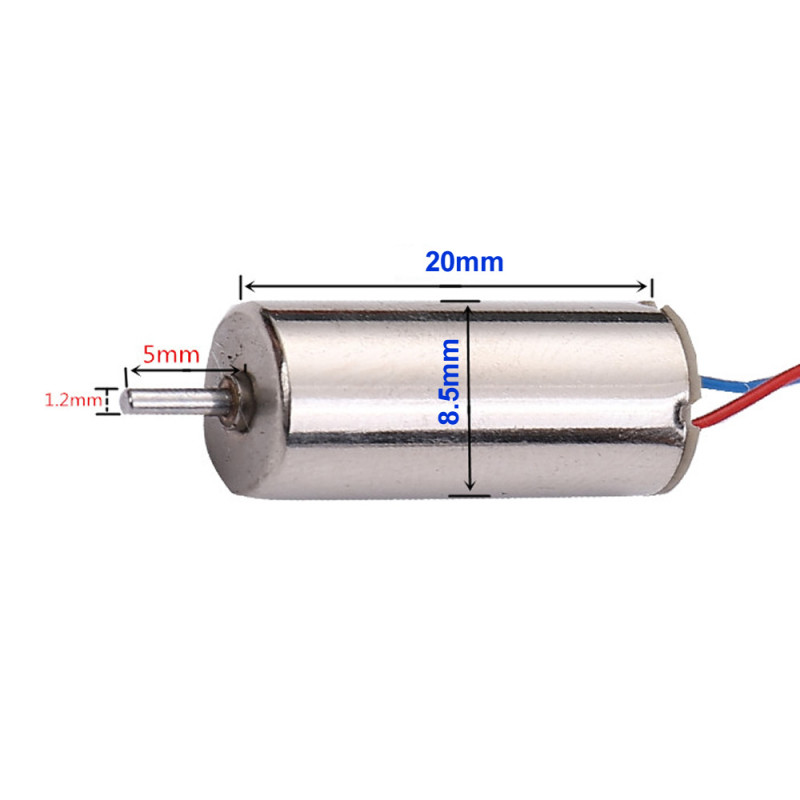

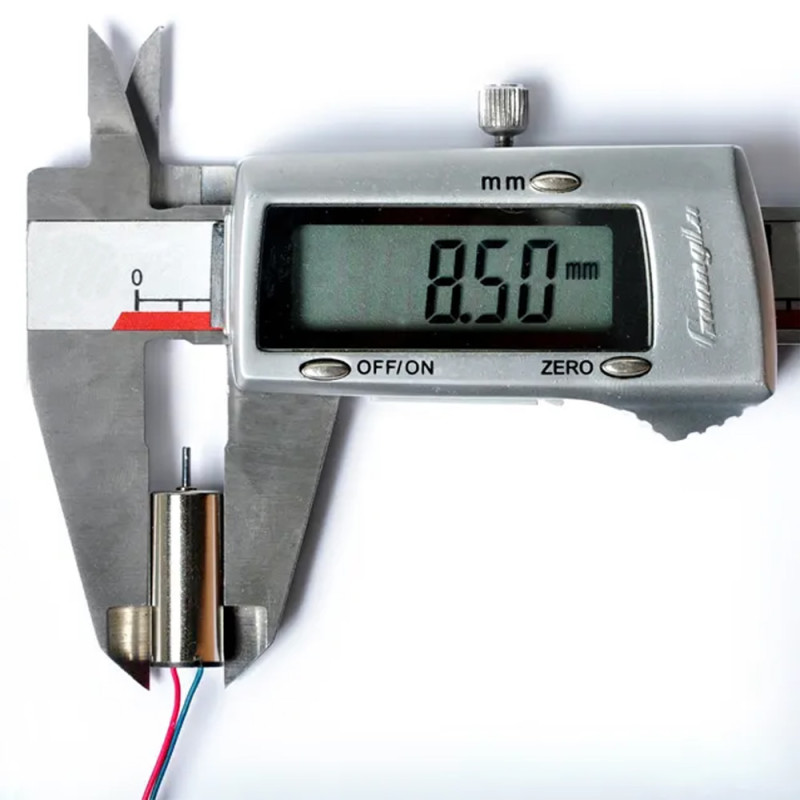

• Motor diameter: 8.5mm
• Shaft diameter: 1mm
• Shaft length: 5mm

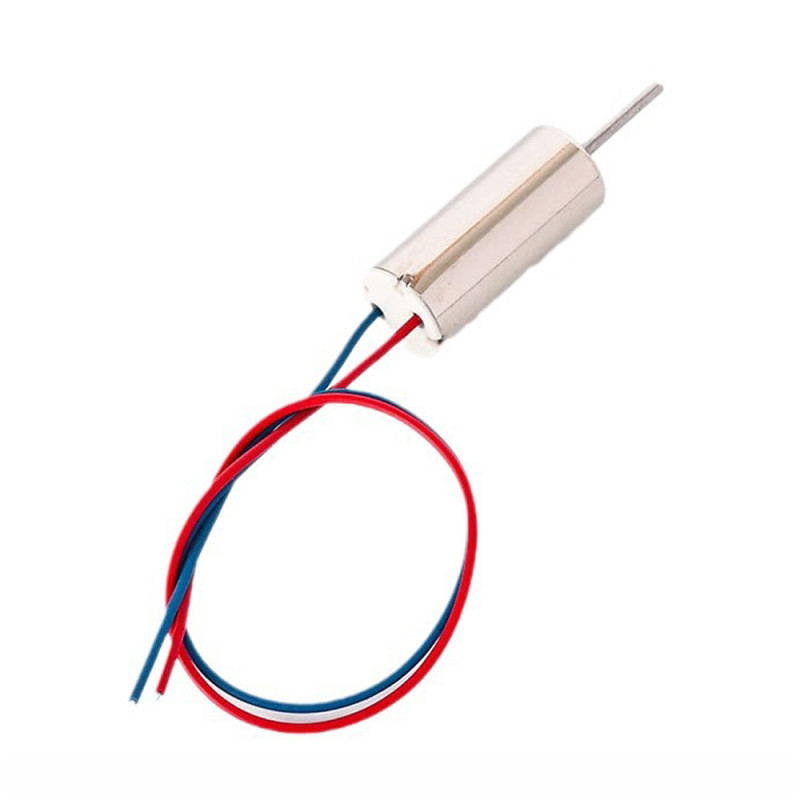

• Cable length: 13cm
• Cable color: White + / Black –
• Dimensions: 8,5m x 2.26cm x 20mm
• Weight: 5gr

Package contents:

• 1 Piece 8520 DC Motor
