A2212 1800KV Brushless Motor

A2212 1800KV Brushless Motor
2S/ 3S Lipo RC Model Airplane Helicopter Multicopter Drone Quadcopter Fpv Racing High Power Bldc Lipo

     The A2212 1800KV brushless motor is a powerful motor offering high speed and efficiency. It is designed to be used in your hobby projects such as drones, RC airplanes and helicopters. Thanks to its brushless structure it produces less heat and provides long lasting performance. With its light and compact structure it is ideal for small sized model vehicles. The 1800KV motor is an excellent choice for applications requiring high speed. Thanks to its balanced rotor design it reduces vibration to a minimum level, thus offering a trouble free usage experience. When operated together with a suitable esc driver it provides superior control.

Features:

• A2212 1800KV Brushless Motor
• Speed (KV): 1800KV
• Maximum power: 230W
• Operating voltage:   7.4V  /  11.1V
• Battery cell count: 2S / 3S Li-Po
• Current:  20A  (Requires a heatsink in long term use)
• No load current:  10V 0.5A
• Maximum thrust:  1000/1100gr  (3S)
• Efficiency:   80%
• Connection type: 3 phase cable ( banana connector compatible )
• Application area: RC drone, airplane and helicopter projects
• Material: aluminium alloy body
• Operating temperature: -10C /  50C
• Colour:  Metallic grey / Gold
• Mounting holes: Standard cross mounting (25mm x 25mm)
• Dimensions: 27.5mm x 30mm
• Shaft diameter: 3.17mm
• Colour:Yellow
• Weight: 54gr  ( 67gr including accessories )

Package contents:

•    1 Piece A2212 1800KV Brushless Motor
•    4 Pieces Screw

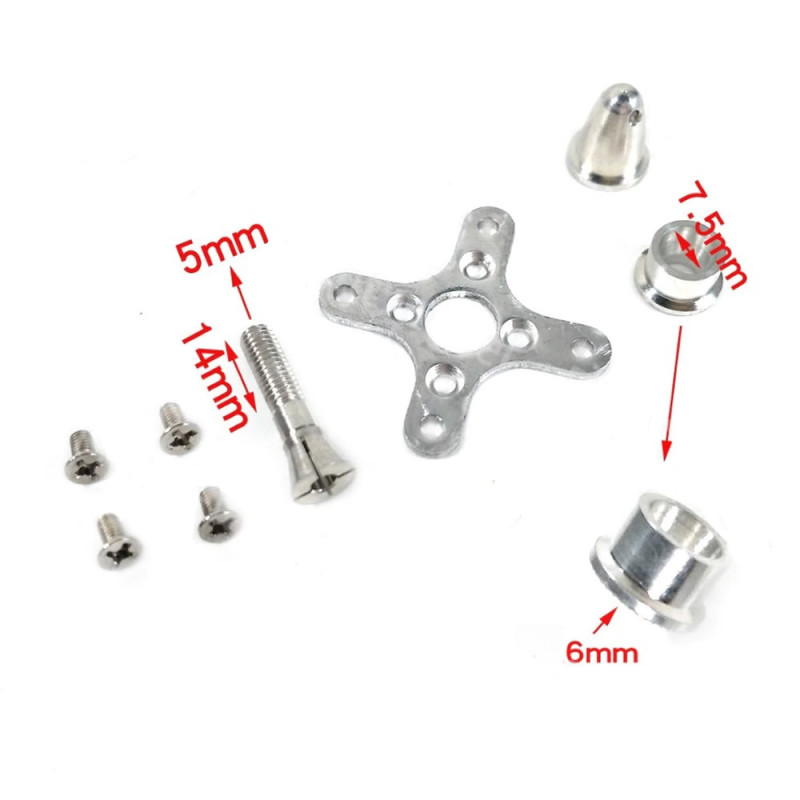

•    Various motor parts ( Picture 4 )
