CY8CKIT-147

Infineon Cypress CY8CKIT-147 PSoC 4100PS

PSoC 4 32 Bit Arm Cortex M0+ Mcu Development Board KitProg2 Programmer 32kb Flash

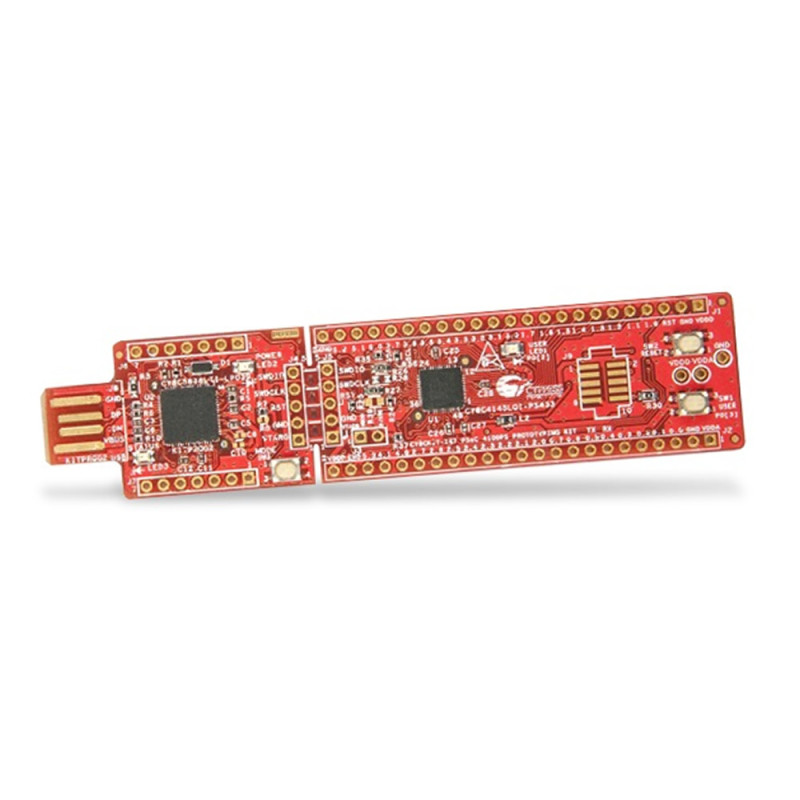

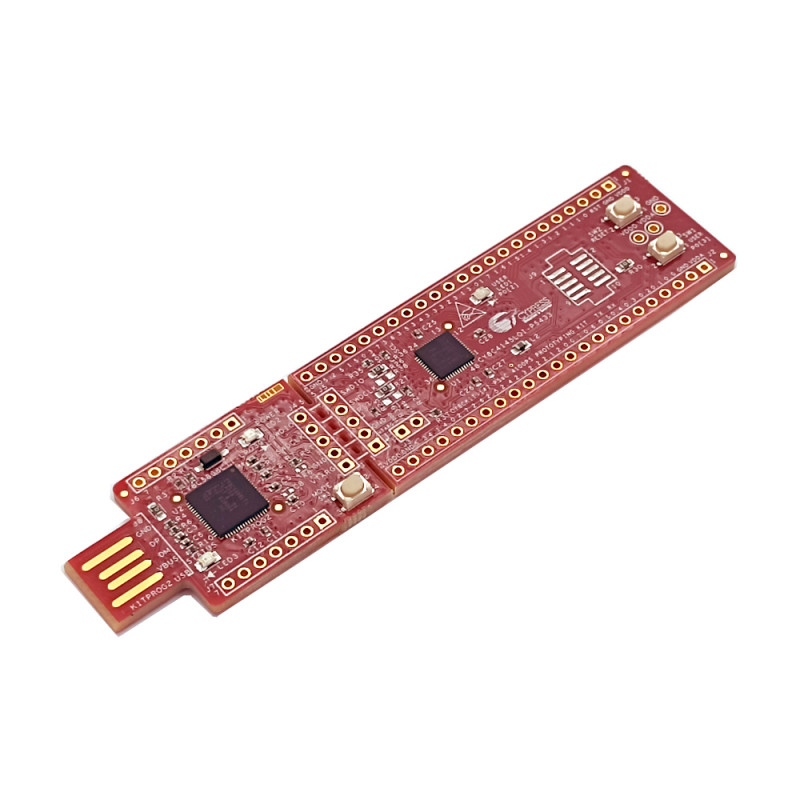

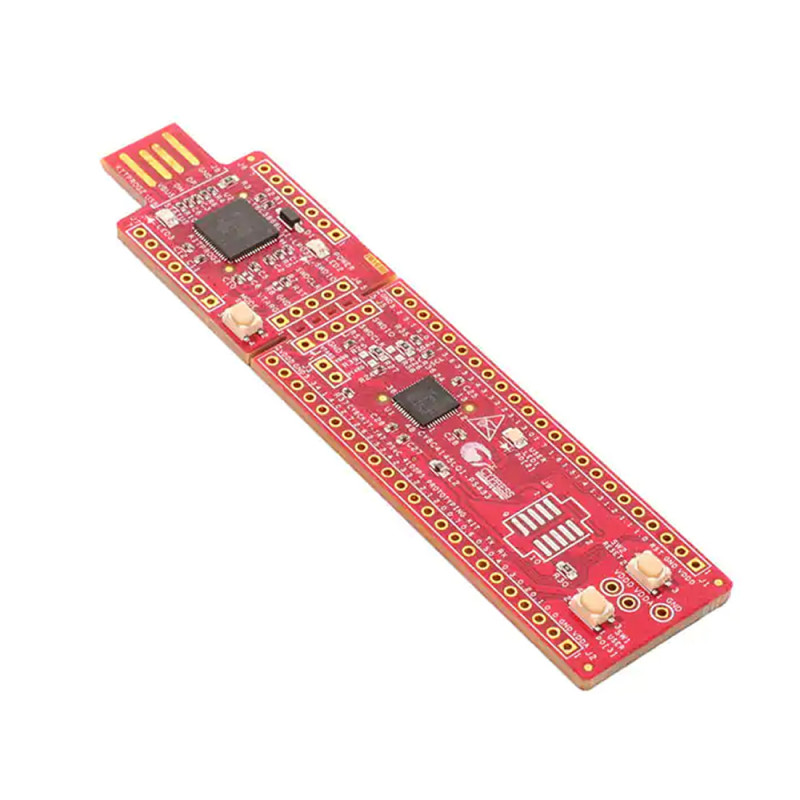

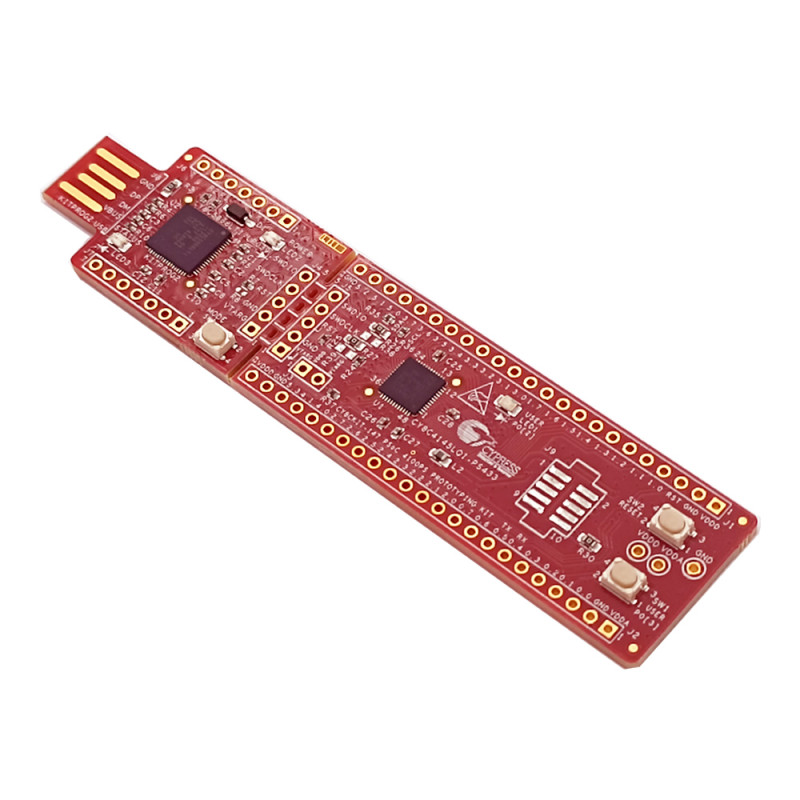

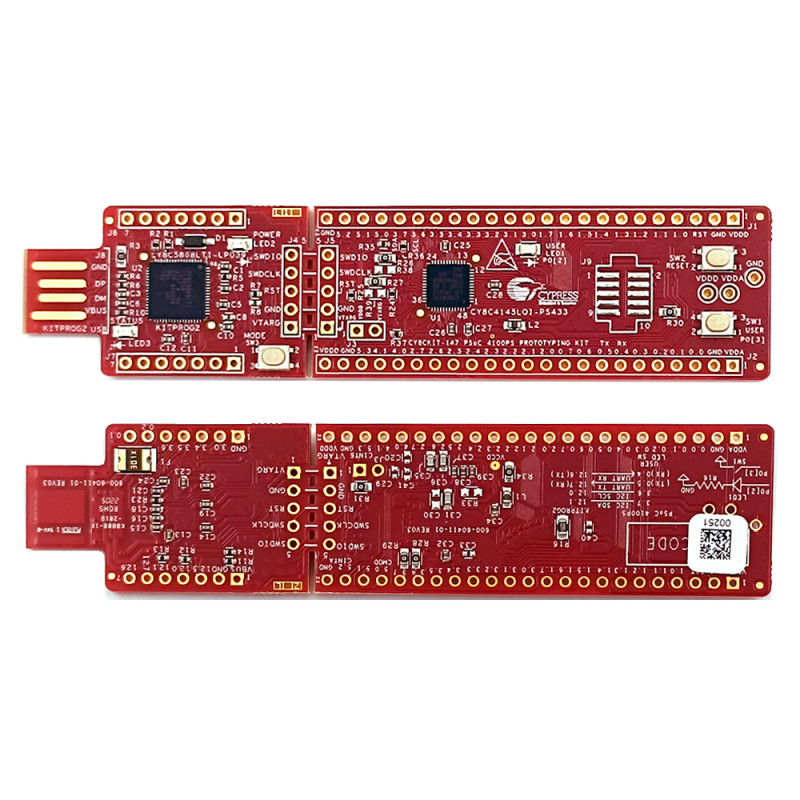

     Infineon Technologies CY8CKIT-147 PSoC 4100PS Prototyping Kit is used to evaluate and develop with the PSoC 4100PS device. The PSoC 4100PS is an analog capable Arm Cortex®-M0+ MCU solution with up to 32KB flash, and 4KB SRAM. The kit features a snap-away form factor to allow the on-board Programmer and Debugger to be separated from the target board to use independently.

     The PSoC 4100PS device is Infineon's PSoC 4 with an Arm Cortex-M0+ core and 13 programmable analog blocks, 11 programmable digital blocks, and 38 general purpose I/Os, including 8 Smart I/Os™. The PSoC 4100PS also features the fourth-generation, low-power CapSense solution..

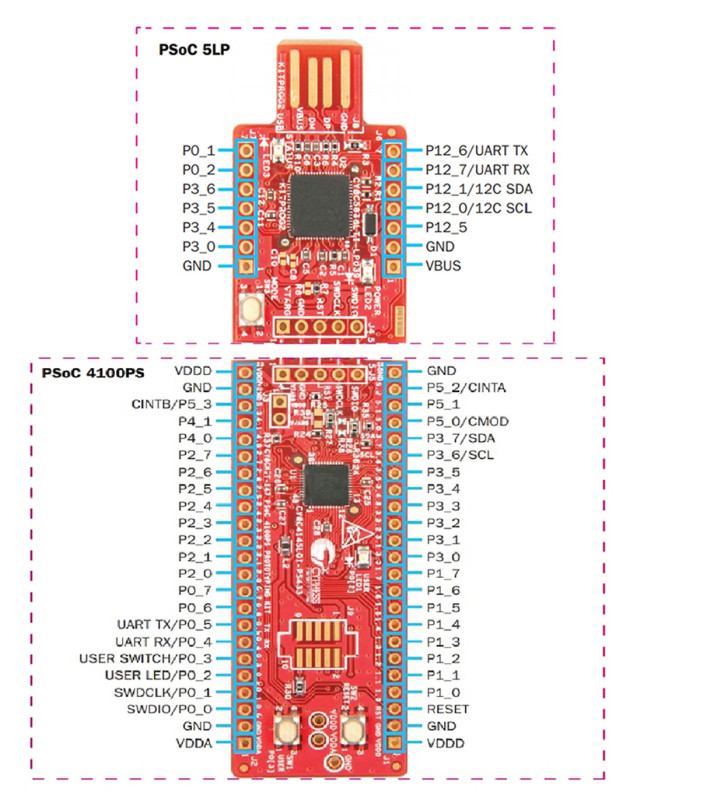

     The kit allows easy access to all the device I/Os in a breadboard-compatible format and includes an LED and a push button. This kit's on-board Programmer and Debugger, KitProg2, is designed with the PSoC 5LP, and can support industry standard programming interface like CMSIS-DAP and Drag-and-Drop programing. The KitProg2 also integrates bridging functionality, like USB-UART and USB-I2C.

PSoC Creator IDE: The PSoC Creator Integrated Design Environment (IDE) enables concurrent hardware and firmware editing, compiling and debugging of PSoC systems. Applications are created using schematic capture and over 150 pre-verified, production-ready peripheral components.

Kit Contents:

•     CY8CKIT-147 PSoC 4100PS Prototyping board

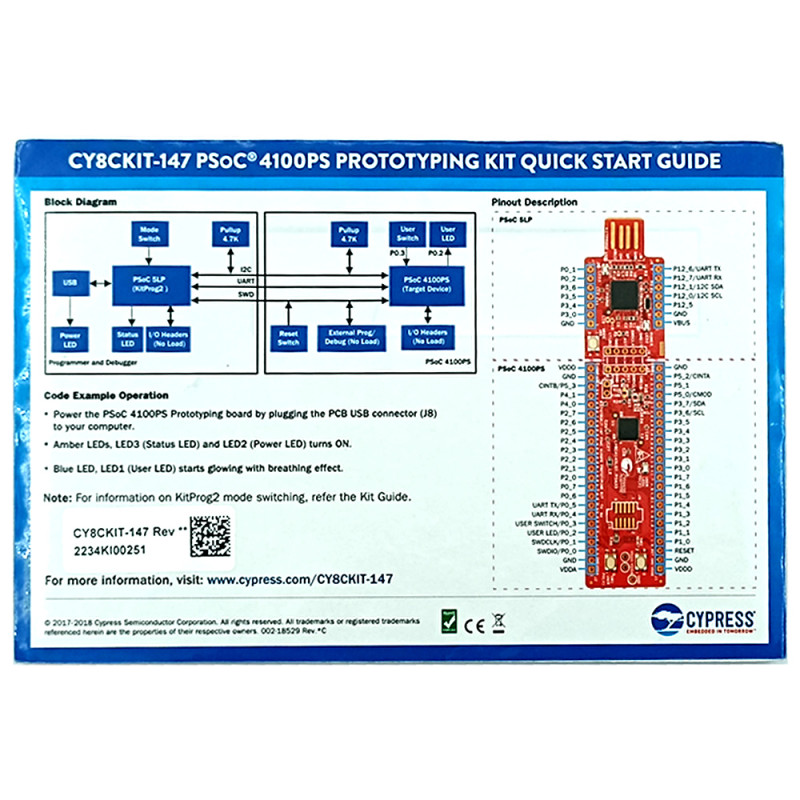

•     Quick Start Guide
