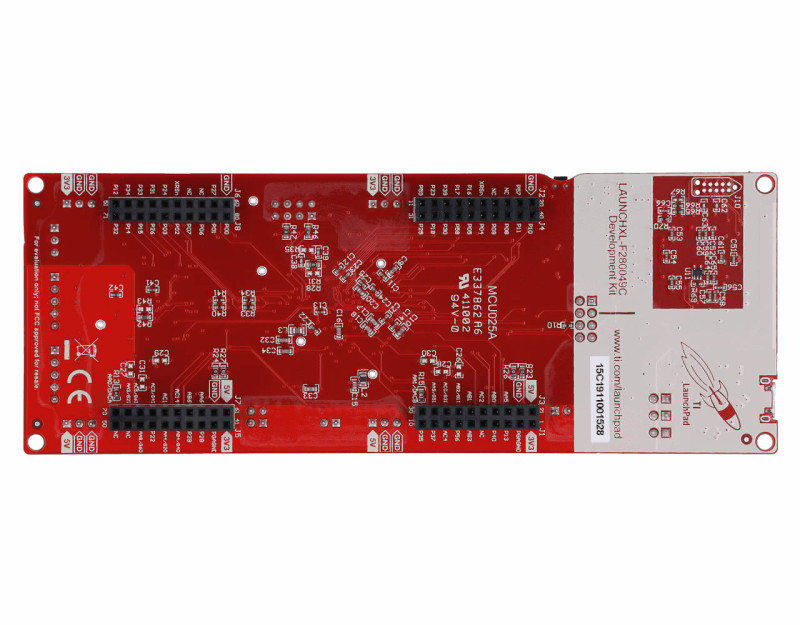

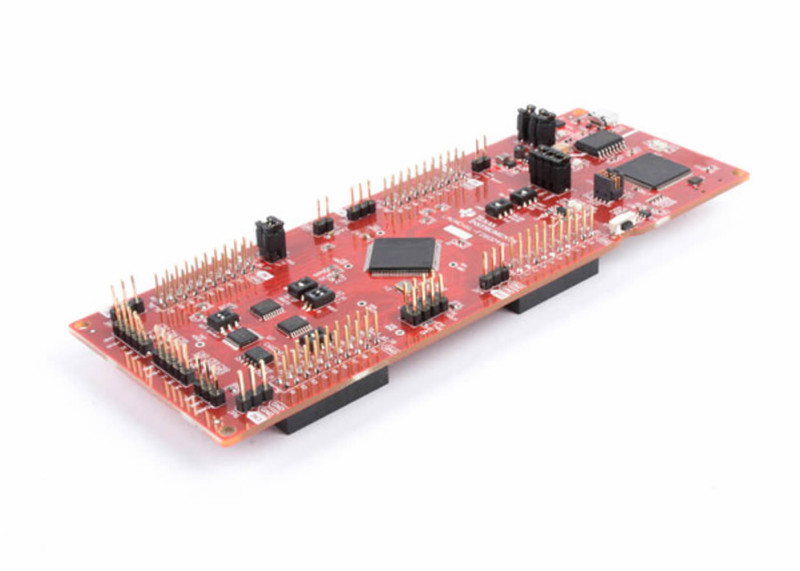

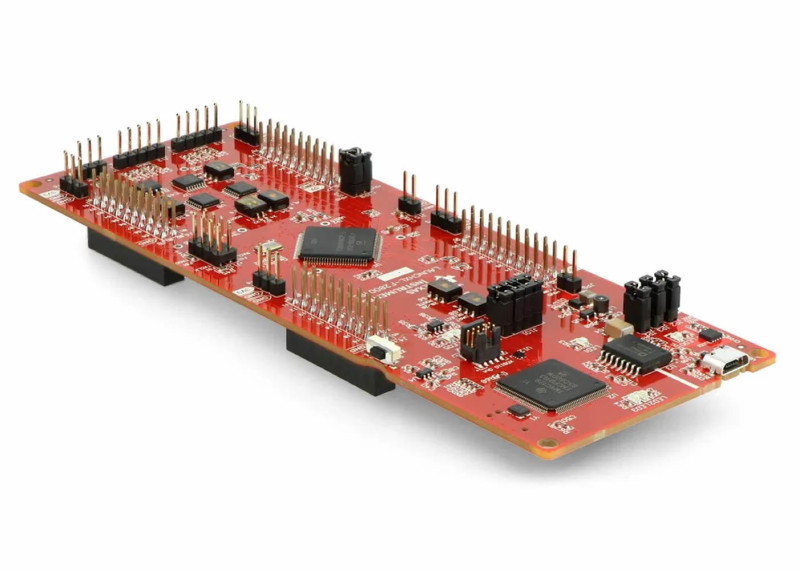

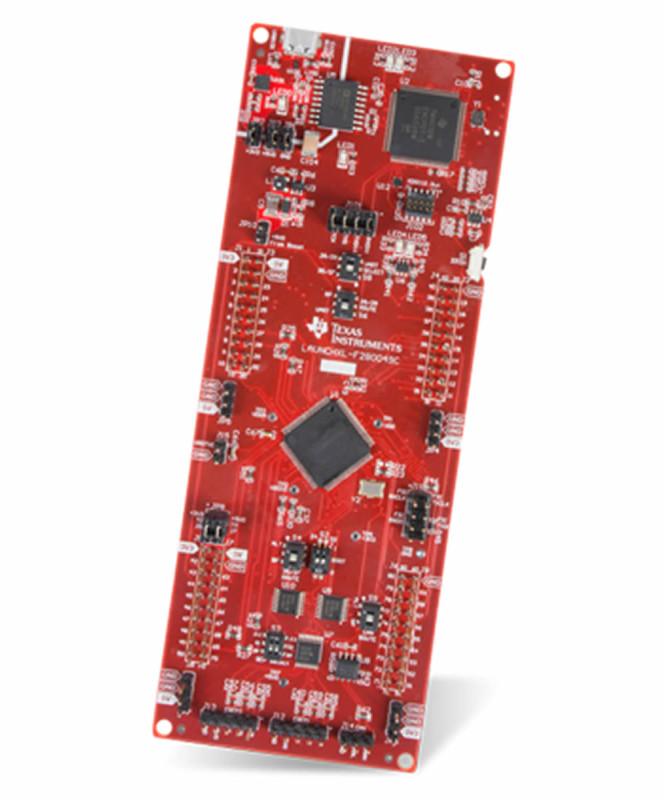

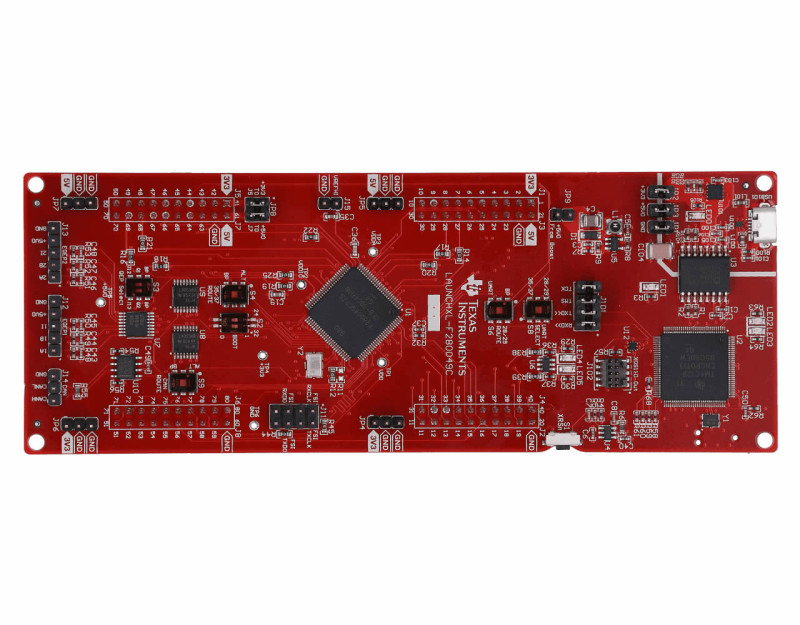

LAUNCHXL-F280049C LaunchPad

TI LAUNCHXL-F280049C TMS320F280049C LaunchPad Development Board

C2000 Piccolo 100 MHz Mcu Fpu 256Kb Flash Adc Can Encoder Fsi Uart Xds110 Programmer Debugger

     LAUNCHXL-F280049C is a low-cost development board for TI C2000 Real-Time Controllers series of F28004x devices. Ideal for initial evaluation and prototyping, it provides a standardized and easy to use platform to develop your next application. This extended version LaunchPad offers extra pins for development and supports the connection of two BoosterPacks. As part of the vast TI MCU LaunchPad ecosystem, it is also cross-compatible with a broad range of plug-ins, including InstaSPIN-FOC capability.

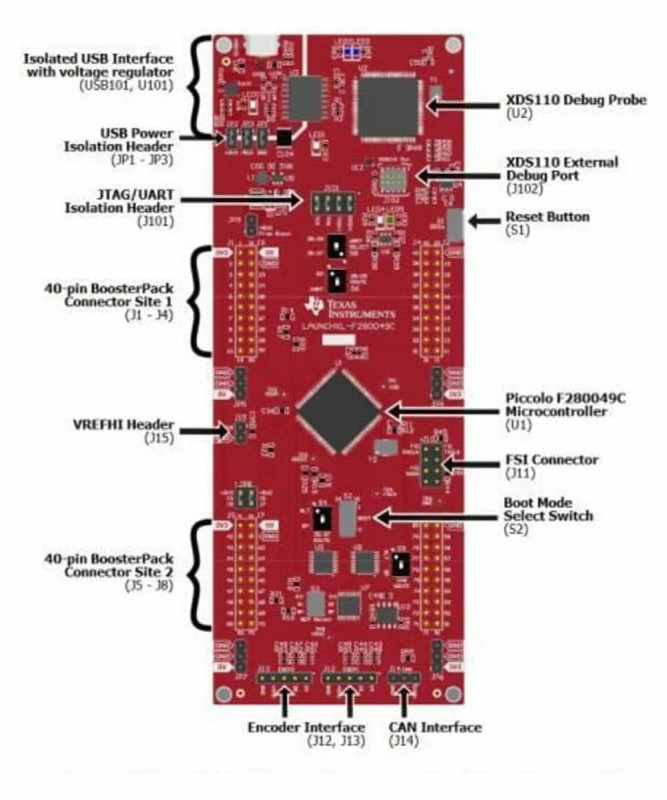

Features:

•     TMS320F280049C: 100 MHz C28x CPU with FPU and TMU, 256 KB Flash, InstaSPIN-FOC enabled, 3x 12-bit ADC, CAN, encoder, FSI, UART, and more
•     On-board XDS110 debug probe for real-time debug and flash programming
•     80 pin LaunchPad leveraging the BoosterPack ecosystem
•     Power domain isolation for real-time debug  and flash programming
•     Isolated CAN transceiver
•     Two encoder interface connectors
•     FSI interface connector
•     Hardware Files are in C2000Ware at boards\LaunchPads\LAUNCHXL_F280049C
•     Free download of Code Composer Studio IDE
•     Free download of C2000Ware for device drivers and example projects
•     Free download of MotorControl SDK
•     MathWorks MATLAB & Simulink example models include the following:
•         Embedded Coder
•         Motor Control Blockset
•         SoC Blockset
•     solidThinking Embed Support
•         Training Video: PMSM control series, including InstaSPIN-FOC
•     Powersim PSIM Support
•         InstaSPIN Processor-in-the-Loop (PIL) and code generation feature

TMS320F280049C

• CPU C28x, CLA
• Frequency (MHz) 100
• Flash memory (kByte) 256
• RAM (kByte) 100
• ADC resolution (bps) 12
• Total processing (MIPS) 200
• Features Configurable logic block, FPU32, InstaSPIN-FOC technology
• UART 3
• CAN (#) 2
• Sigma-delta filter 3, 4
• PWM (Ch) 16
• TI functional safety category Functional Safety Quality-Managed, Functional Safety-Compliant
• Number of ADC channels 12, 14, 21
• Direct memory access (Ch) 6
• SPI 2
• QEP 1, 2
• USB No
• Operating temperature range -40C to 125C
• Communication interface CAN, FSI, I2C, LIN, PMBUS, SPI, UART

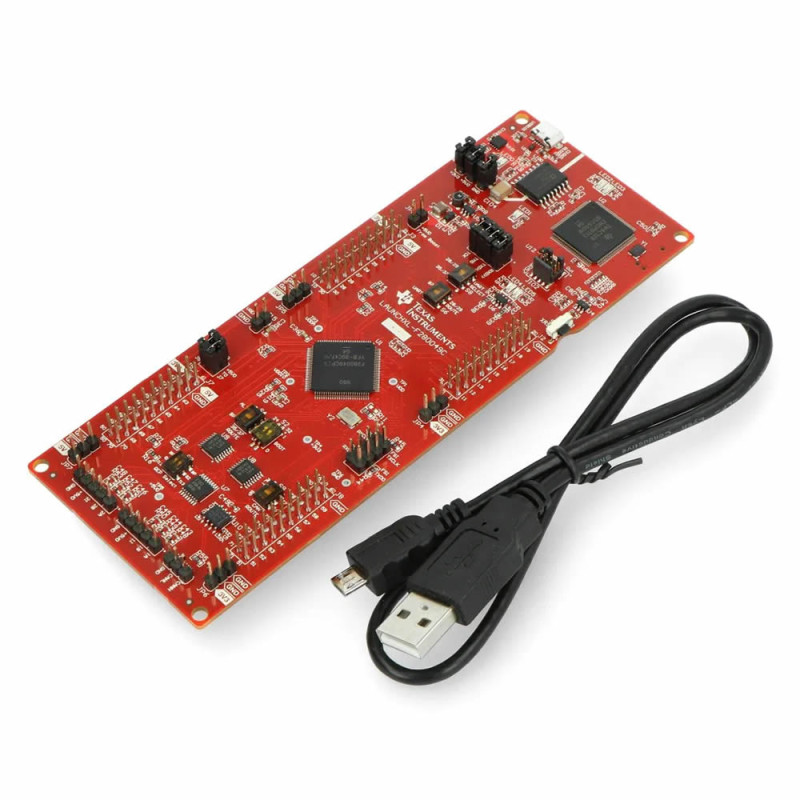

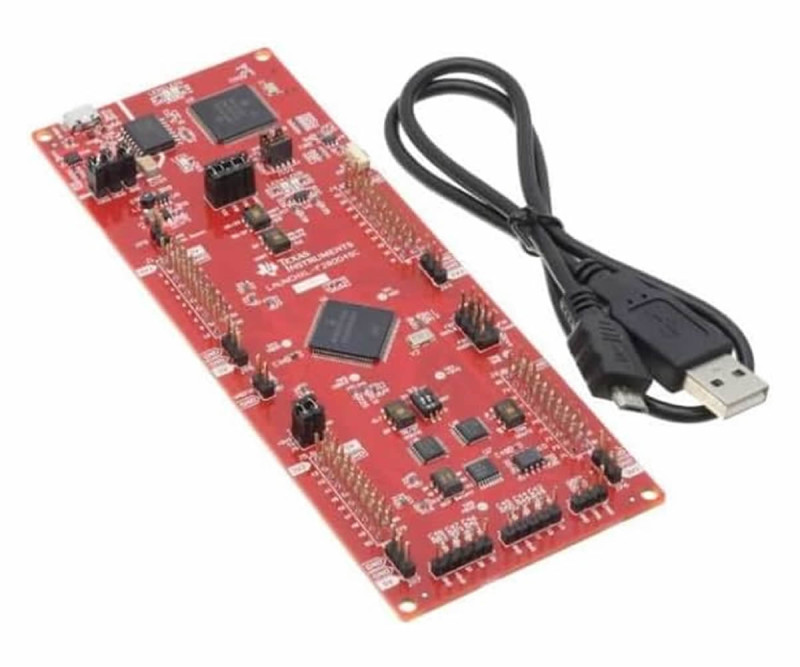

Package contents:

•    1 Pcs LAUNCHXL-F280049C
