Renesas E2 Lite

Renesas E2 Lite Emulator RTE0T0002LKCE00000R

On-Chip Debugger Flash Programmer RX RA RL78 RISC-V Mcu Usb Jtag Swd Debugger

It is original Renesas production.

Technical support related to the use of the product will not be provided.

     Renesas E2 Lite (RTE0T0002LKCE00000R) is an original on-chip debugging emulator and flash programmer developed for Renesas RX, RA, RE, RL78 series and RISC-V MCUs. With its low cost structure, it is suitable for a wide range of use from education to initial evaluation, from prototype development to mass product development. It is compatible with the E1 emulator and connects to boards designed for E1; however, the supply voltage is 3.3V and 5V is not supported. Used together with the E2studio IDE and compiler, debugging and flash programming can be done on the RL78 and RX families.

Features:

• Renesas E2 Lite
• Product Code: RTE0T0002LKCE00000R
• Product Type: On-chip debugger and flash programmer
• Supported interfaces: Serial, JTAG and SWD
• Supported mcu families: RX, RA, RE, RL78 and RISC-V
• Computer connection: usb 2.0 full speed
• Target operating voltage: 1.8V to 5.5V (depends on the target MCU)
• Power supply from the emulator: 3.3V, maximum 200mA
• Use as an on-board programmer: Supported
• Transparent plastic box
• 2x7 pin connection socket
• Dimensions: 96.2mm x 52.7mm x 17.2mm
• Weight:  140gr

Software:

• renesas.com/en/software-tool/e2-emulator-lite-rte0t0002lkce00000r?srsltid=AfmBOoo8HWnyczXxlvIq0JyQ6UaOFTy4K76gYWWaiqtAquTDtPSXeEJt#overview

Areas of use:

• Renesas RX, RA, RL78 and RISC-V MCU development environments
• Microcontroller programming for education and learning purposes
• Initial evaluation and prototype development
• Mass product development and production programming
• Integrated debug and flash programming with e2studio IDE

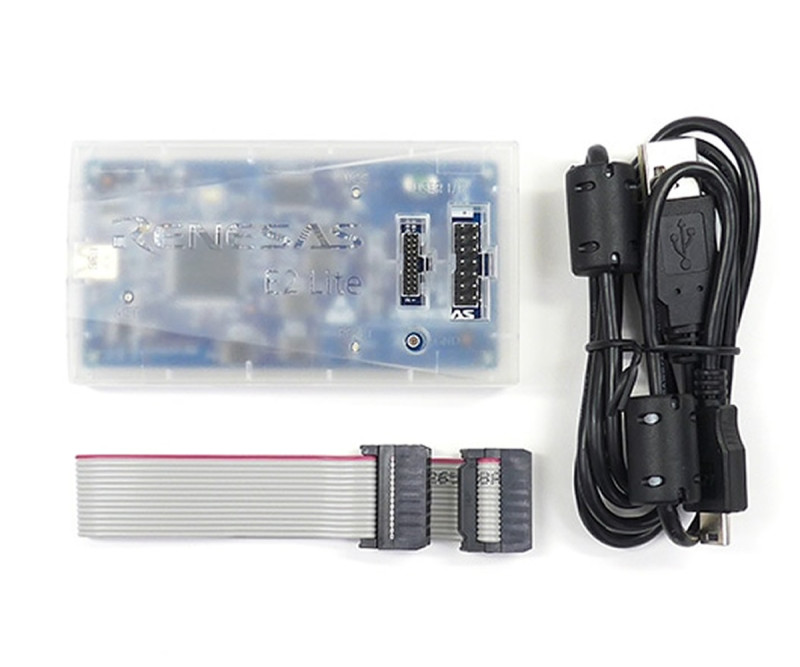

Package contents :

• 1 Pcs Renesas E2 Lite
• 1 Pcs 2x7 pin 20cm IDC Flat Cable
• 1 Pcs Mini usb cable
