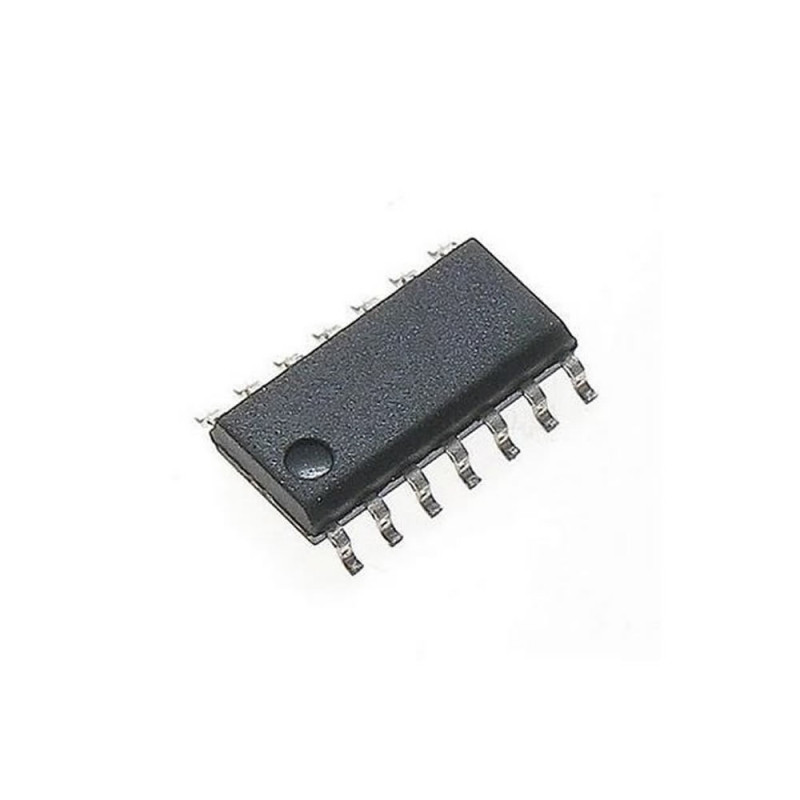

SN74LV125ADR

SN74LV125ADR 4 Channel Buffer

     The SN74LV125A quadruple bus buffer gate is designed for 2V to 5.5V VCC operation.

Features:

•     2-V to 5.5-V VCC Operation
•     Max tpd of 6 ns at 5 V
•     Typical VOLP (Output Ground Bounce)
•     < 0.8 V at VCC = 3.3 V, TA = 5C
•     Typical VOHV (Output VOH Undershoot)
•     > 2.3 V at VCC = 3.3 V, TA = 25C
•     Support Mixed-Mode Voltage Operation on
•     All Ports
•     Ioff Supports Partial-Power-Down Mode Operation
•     Latch-Up Performance Exceeds 250 mA Per
•     JESD 17
•     ESD Protection Exceeds JESD 22
•     4000-V Human-Body Model
•     200-V Machine Model
•     2000-V Charged-Device Model

Package Contents:

• 1 Piece SN74LV125ADR
