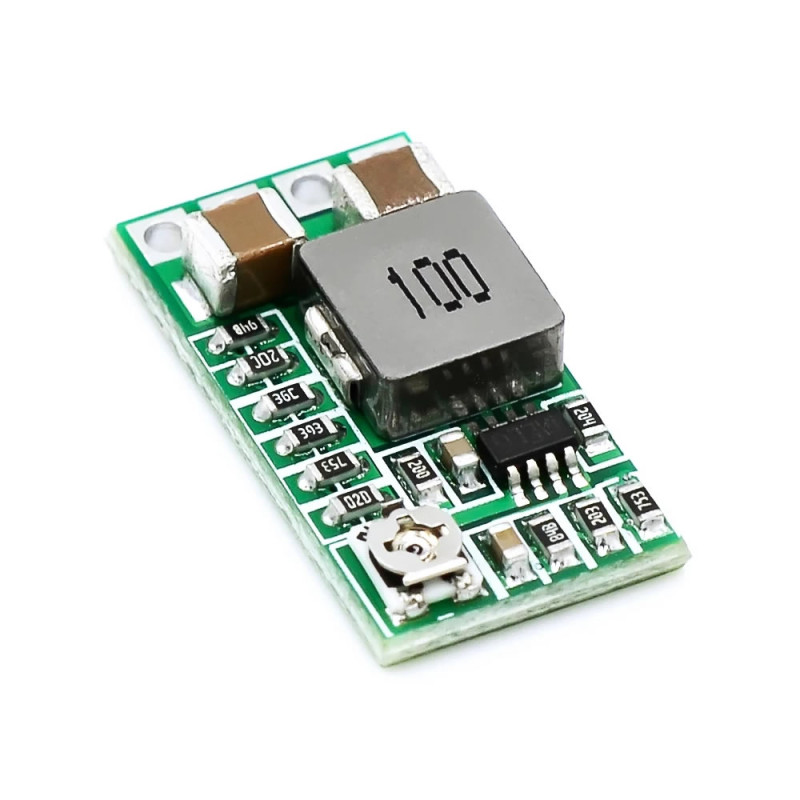

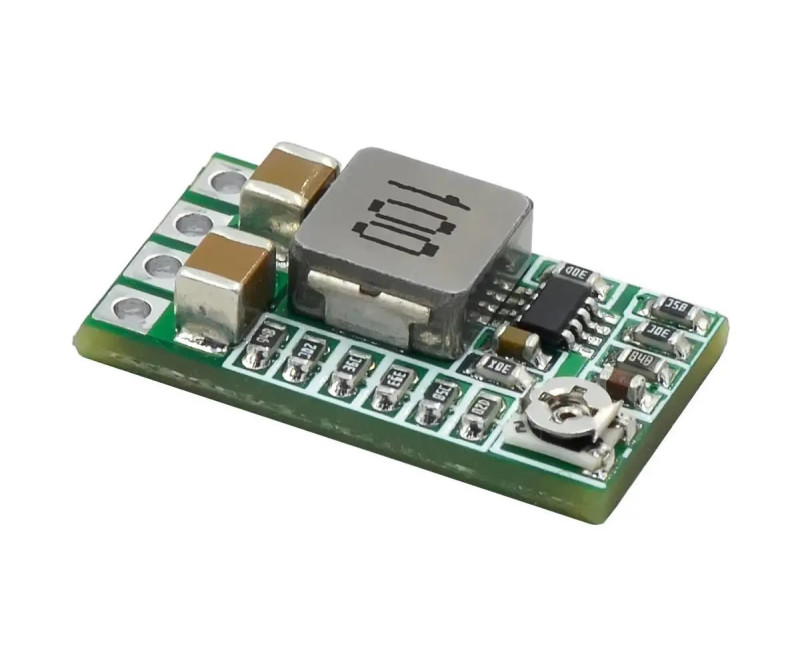

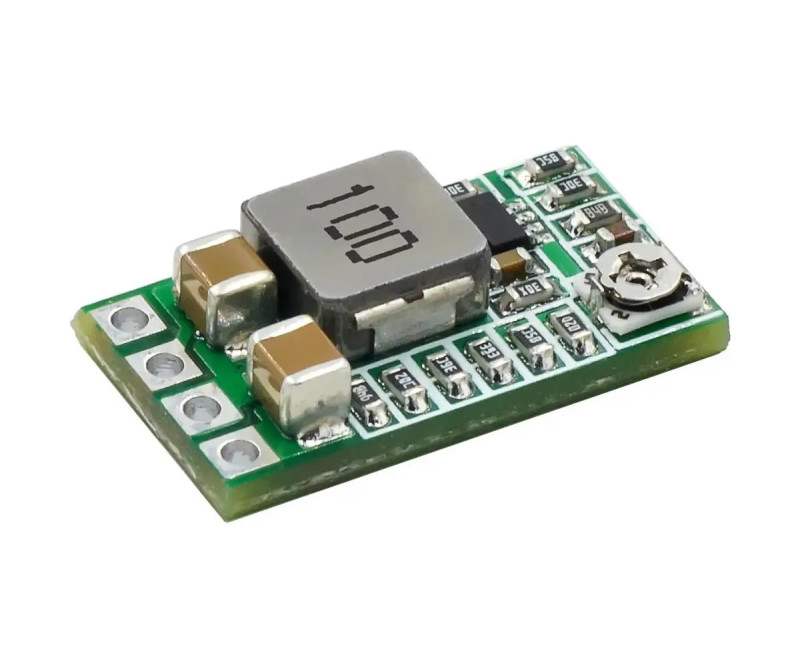

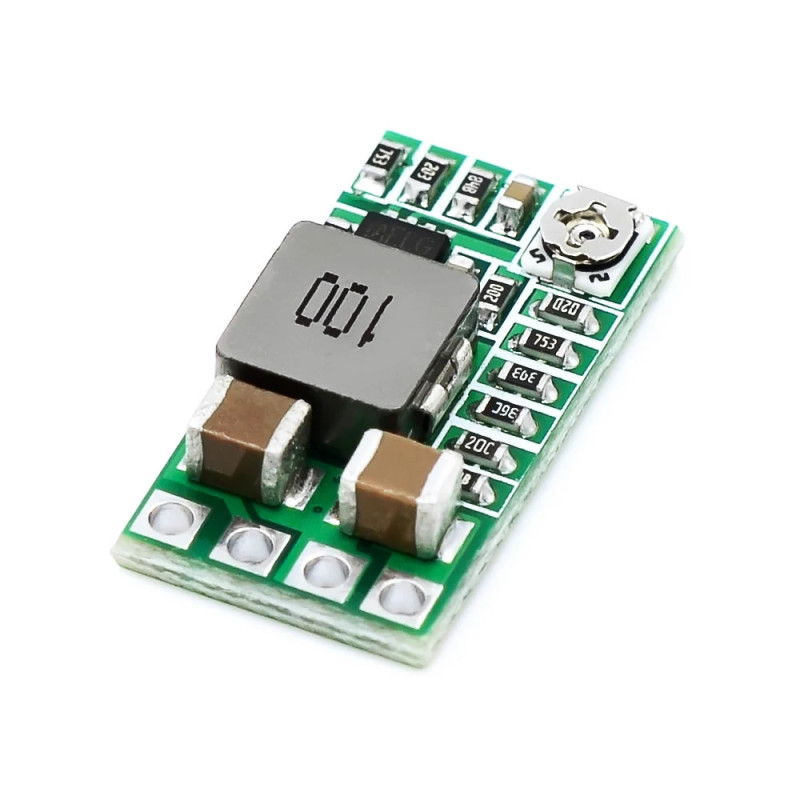

MP2315 24V to 5V 2A Voltage Step Down Module
Power Supply Voltage Adjustable and Fixed Output 1.8V 2.5V 3.3V 5V 9V 12V Mini Step Down
Mp2315 5V 2A voltage step down module. It is suitable not to use it above 1.5A in continuous use. The module can be turned on and off with the enable pin. It can work with adjustable or fixed output voltage options. The product is shipped from the factory in adjustable output mode. Output voltage adjustment can be made with the pot on it. The pot is made of a delicate material. It is appropriate to be gentle while adjusting, it can be damaged easily.

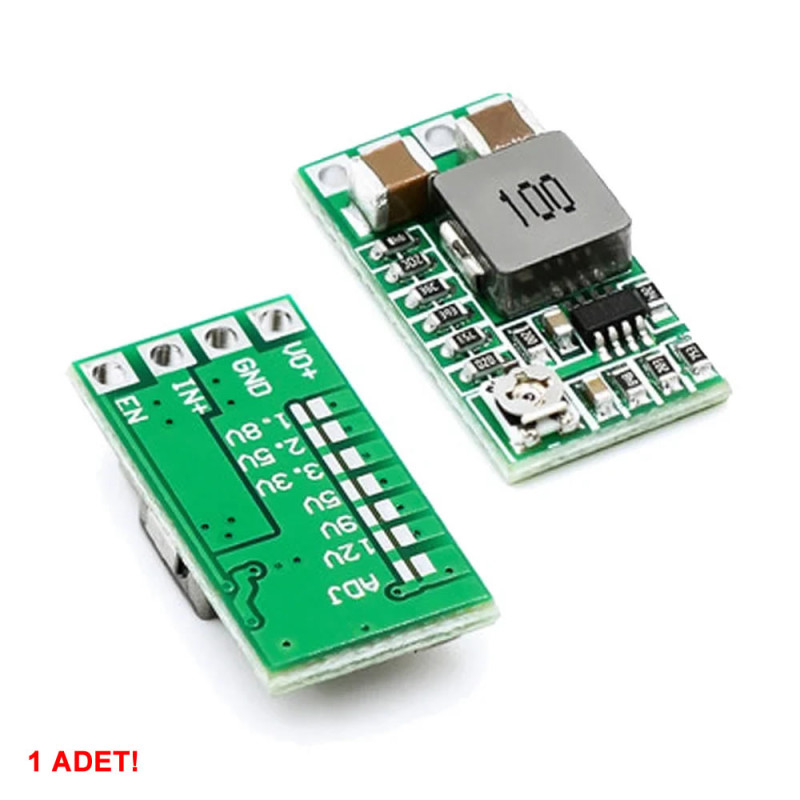

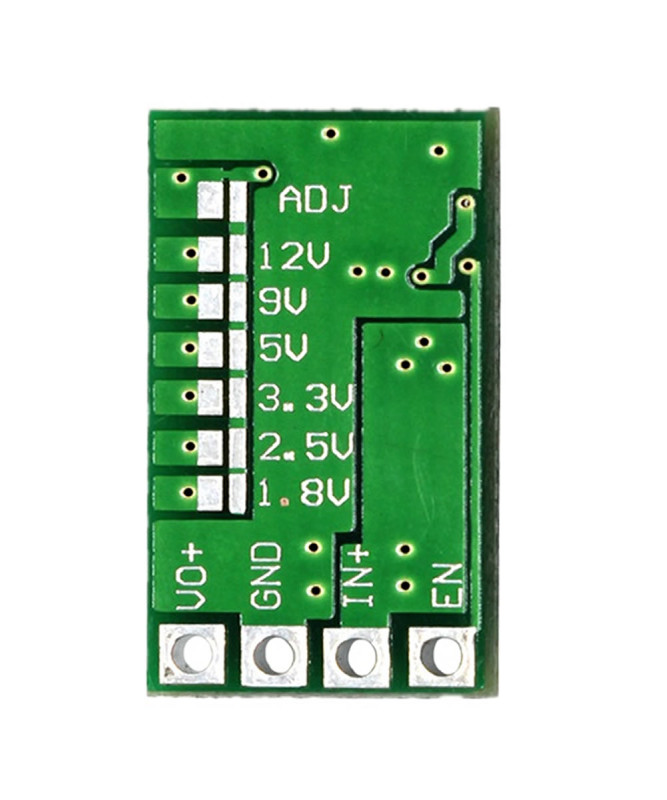

It has 1.8V, 2.5V, 3.3V, 5V, 9V and 12V fixed output options. If you want to use it in fixed voltage output mode, the pads on the back surface of the pcb can be used. The pcb connection trace on the Adj pad is cut. Then the pads of the desired fixed output are short circuited and used.
Features:
- IC: MP2315
- Input voltage: DC 4.5 / 24V
- Output voltage adjustable: Dc 0.8 / 22V
- Output voltage fixed: 1.8V 2.5V 3.3V 5V 9V 12V
- Output current: 1.5A / Short term 2A
- Switching frequency: 500KHz
- Noise: 30mV
- Efficiency: 97% ( Maximum )
- Leakage current: 0.85ma
- Short circuit protection
- Operating temperature: -20C +85C
- 4 Pin connection socket

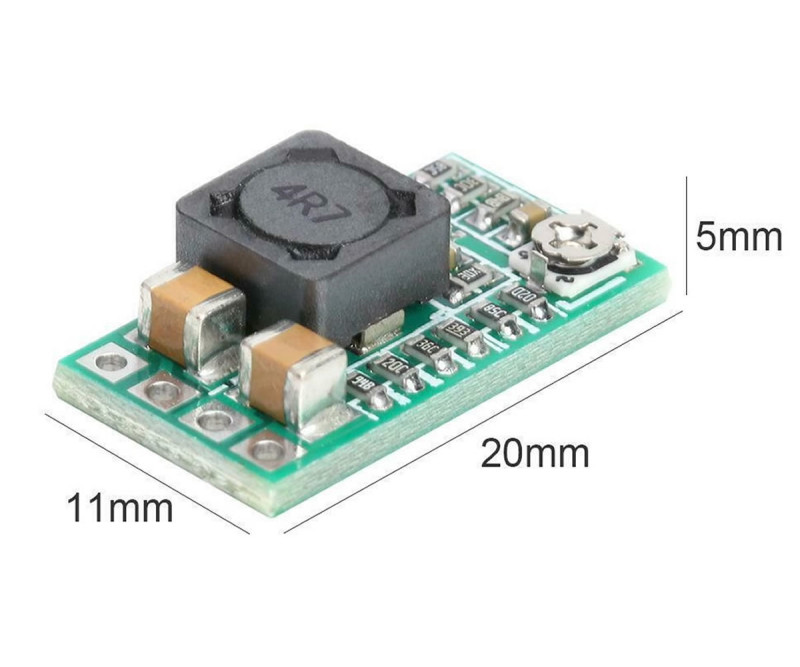

- Dimensions: 11mm x 20mm x 5mm
- Weight: 0.5gr

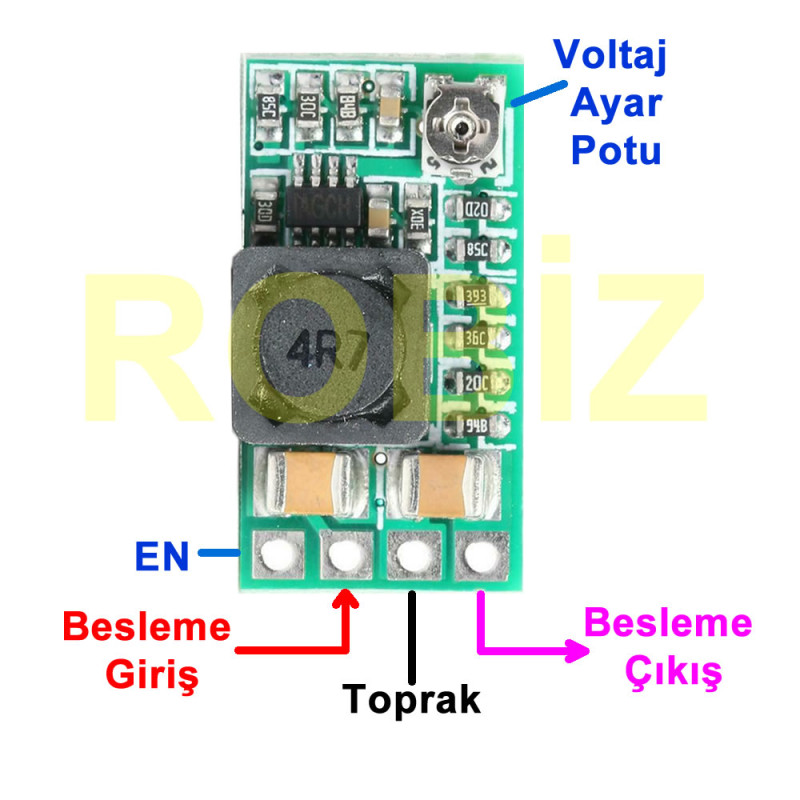

Pin description:
- EN: Pull up the product works. Pull down the product turns off. ( Dc 3.3V / 5V )
- IN+: Power input
- GND: Ground
- VO+: Output voltage
Package contents:
- 1 pcs 24V to 5V 2A MP2315 Module
