Dip Adapter Pcb for TQFP16 TQFP32 TQFP48 ICs

     This pcb converts 0.5mm smd tqfp ICs to dip form. It converts to dip form by fitting 2 pieces of 24 pin header  on the sides. It supports 3 different ICs in TQFP16, TQFP32 and TQFP48 packages.

0.5MM TQFP-2 Adapter Pcb Features
•    Converts smd tqfp packaged ICs with 0.5mm pin pitch to dip form.
•    Provides support for ICs with 3 different pin counts.
           TQFP16     TQFP32     TQFP48
•    There is a 24 way pin header with 2.54mm (100mil) pin pitch positioned to match the 2 edges.
•    There are 0805 component pads on the back surface of the PCB for general purpose use.

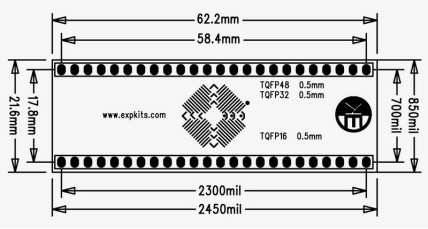

•    Board dimensions are 22mm x 62mm.
•    1st class quality double sided FR4 PCB


Package Contents
•    1 Piece 0.5MM TQFP-2 Adapter PCB

Product presentation page:   http://www.expkits.com/?s=0.5mm_tqfp-2.htm
