CW1D-10A-T 250V 10A C14 Socket with EMI Filter

CW1D-10A-T AC 250V 10A C14 Male Socket with EMI Filter

Line Mains EMC RFI Noise Suppressor Reducer Suppressor Interference Blocker Medical Industrial Control Motor

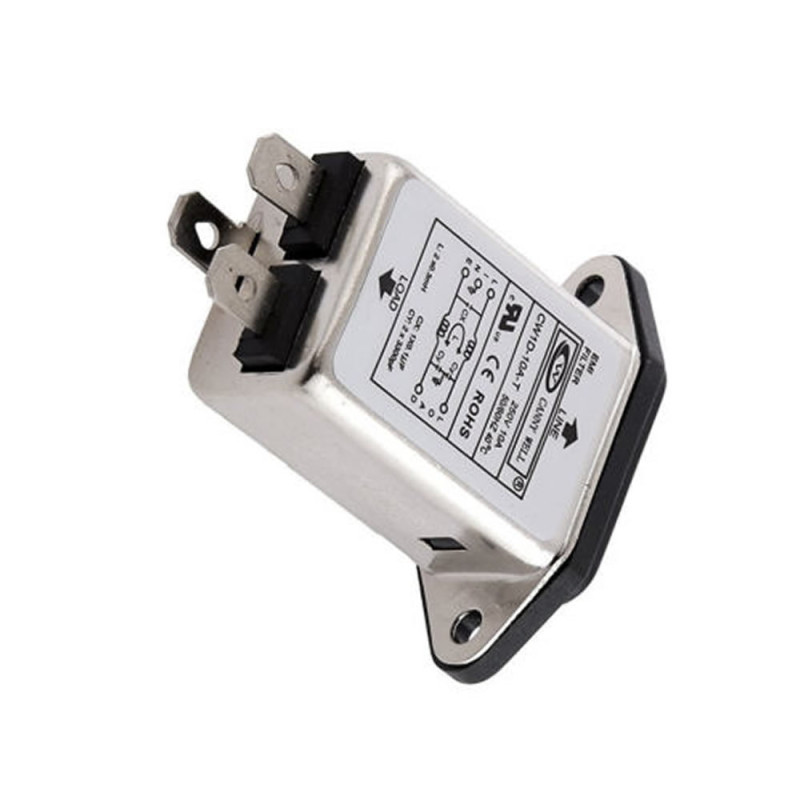

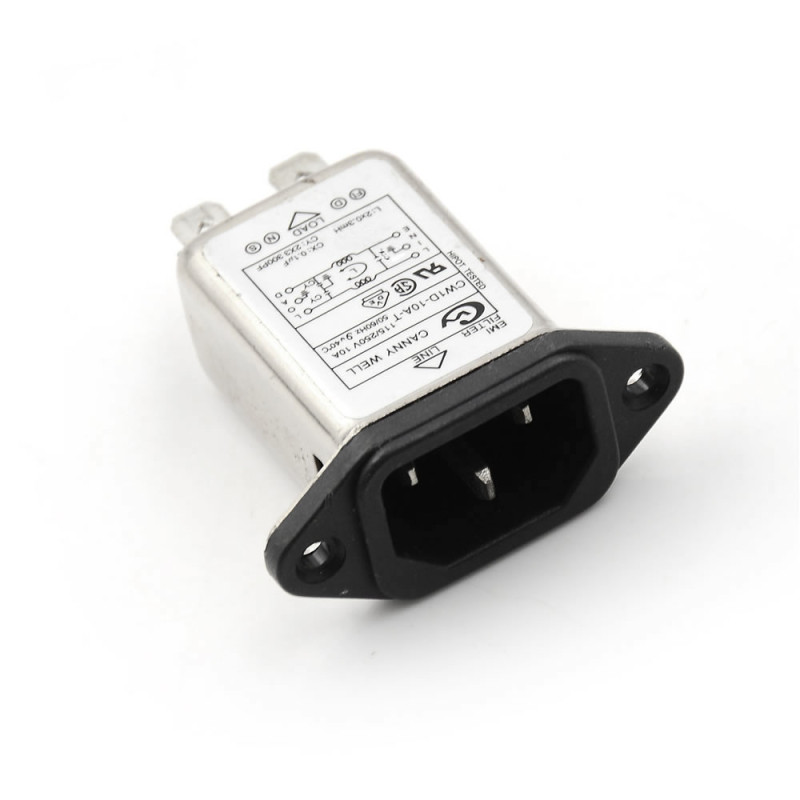

     The CW1D-10A-T is an IEC 60320 C14 male type mains inlet socket with a built in EMI (electromagnetic interference) line filter. It carries up to 10A on 115V / 250V AC, 50/60Hz mains. It is screwed to the device enclosure; a standard power cable with a C13 end plugs into this socket, and the filtered mains is taken into the device from the 3 faston terminals on the back (L, N, earth). It is used on its own and does not need a separate filter board or external parts.

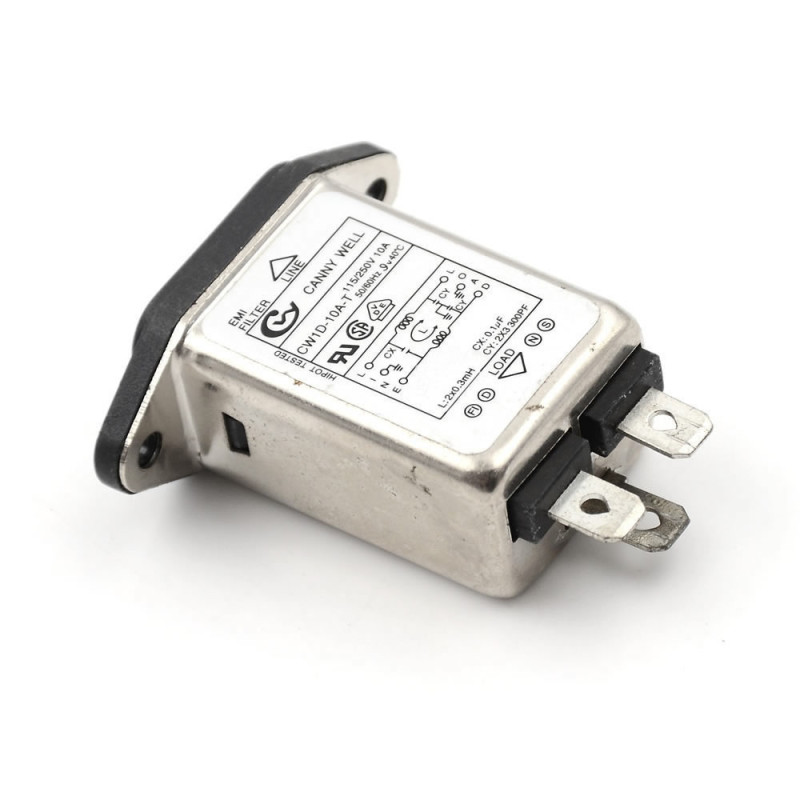

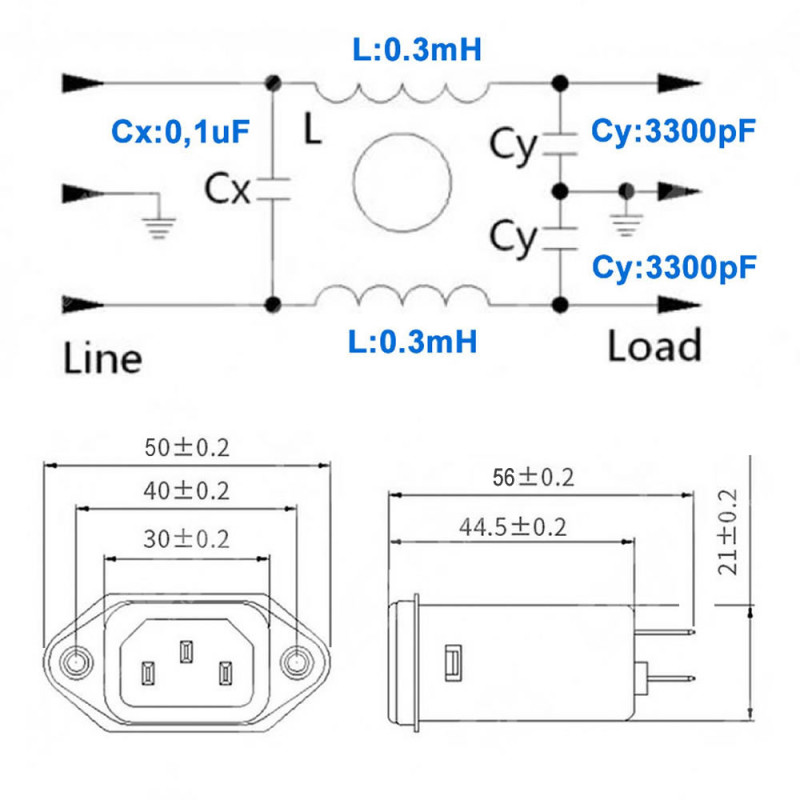

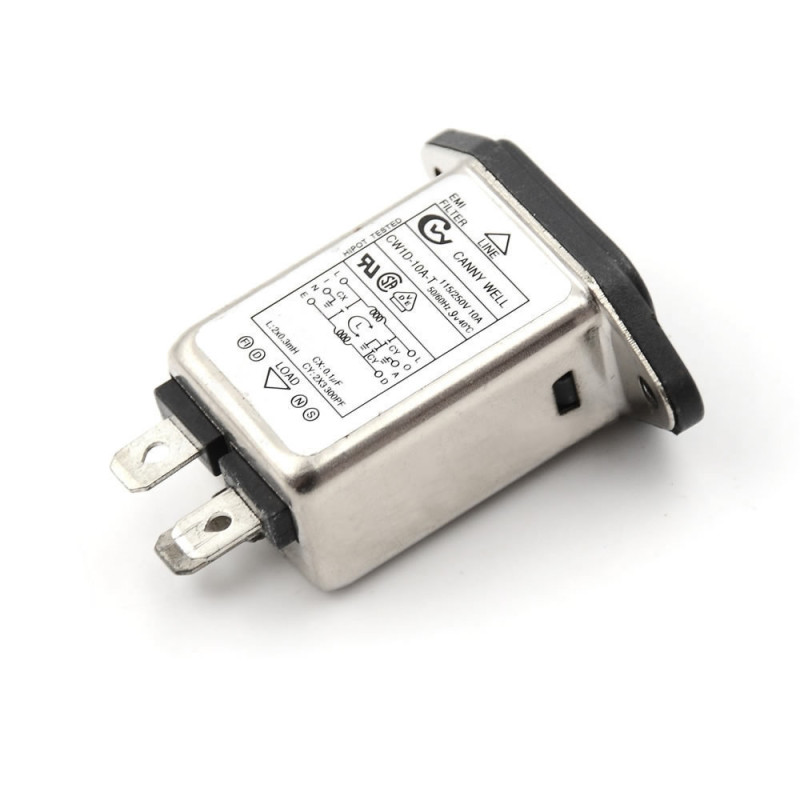

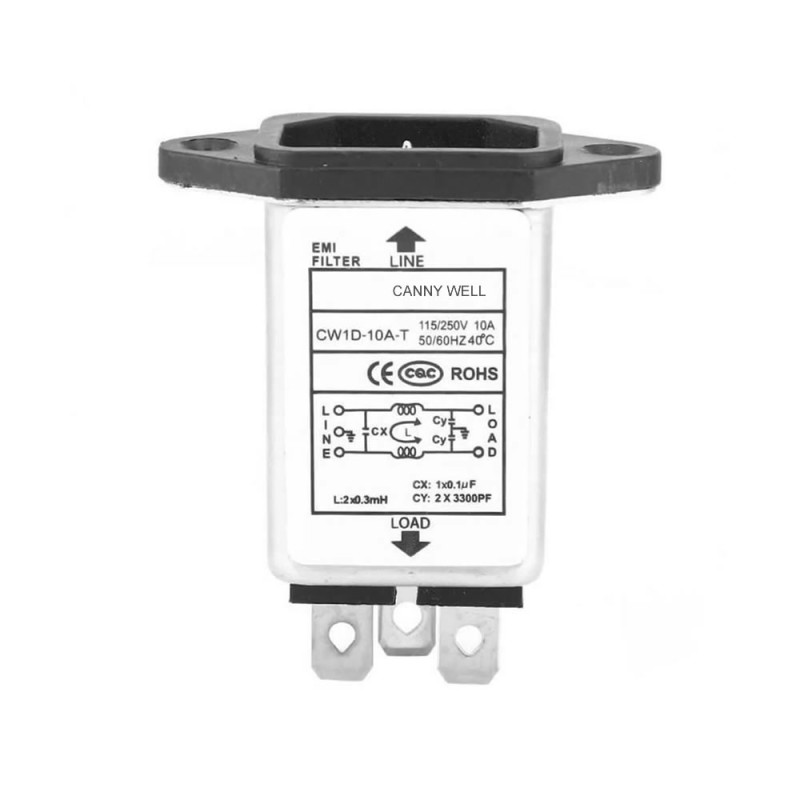

     Inside the metal case there is a 0.1uF X capacitor (Cx), a 2 x 0.3mH choke (L) and 2 x 3300pF Y capacitors (Cy); the values and the circuit diagram are printed on the product label. This filter reduces the high frequency noise coming from the mains into the device and the noise generated by the device (switching power supply, motor driver) going back to the mains. The socket side is LINE (mains), the faston terminals are the LOAD (device) side.

     It is used in mains powered enclosed devices such as power supplies, audio amplifiers, CNC and 3D printer control boxes, laboratory and measuring devices, as both the cable inlet and the noise filter in one part. It is screwed to the panel through 2 mounting holes.

Key features:

     Socket and filter in one part: The C14 power inlet socket and the EMI line filter are in the same body; there is no need to fit a separate socket and a separate filter board to the device.

     10A, 250V AC: Suitable for loads up to 10A on 115V / 250V AC, 50/60Hz mains.

     Known filter values: Cx 0.1uF, L 2 x 0.3mH, Cy 2 x 3300pF; the values and the circuit diagram are on the label.

     Easy faston connection: There are 3 faston terminals for L, N and earth; it is connected without soldering using cables with female faston ends.

     Metal case, screw mounting: The filter is inside a metal case; it is screwed to the device panel through the 2 holes in the black plastic flange.

Features:

• Product type:    C14 mains inlet socket with EMI filter
• Model: CW1D-10A-T
• Operating voltage: 115V / 250V AC
• Operating current: 10A
• Frequency: 50/60Hz

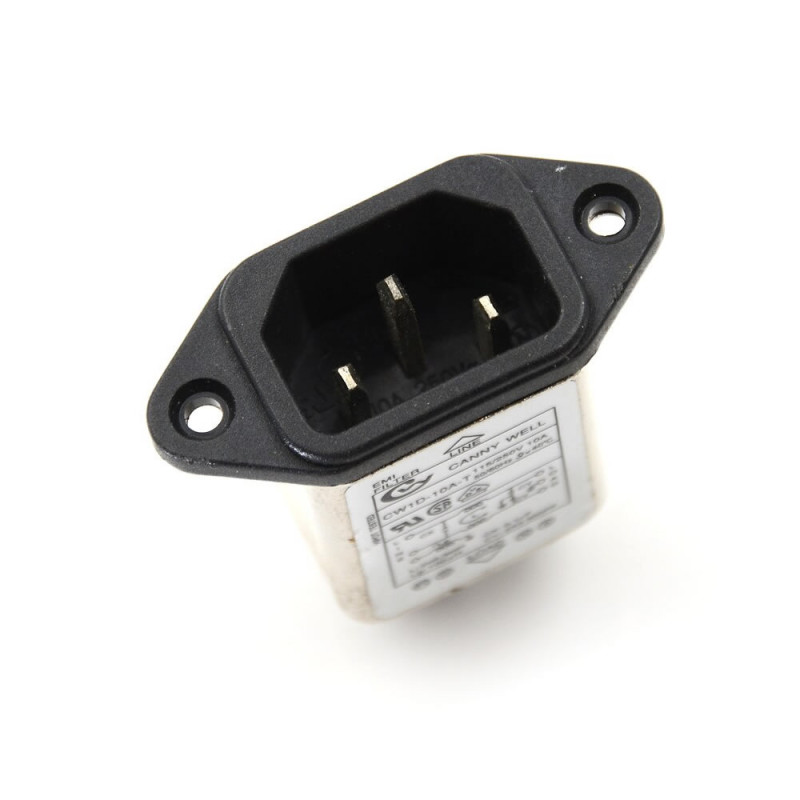

• Socket structure: IEC 60320 C14 (IEC320 C14), male type
• Compatible cable: standard power cable with a C13 female end
• Filter circuit: single stage; Cx 0.1uF, L 2 x 0.3mH, Cy 2 x 3300pF

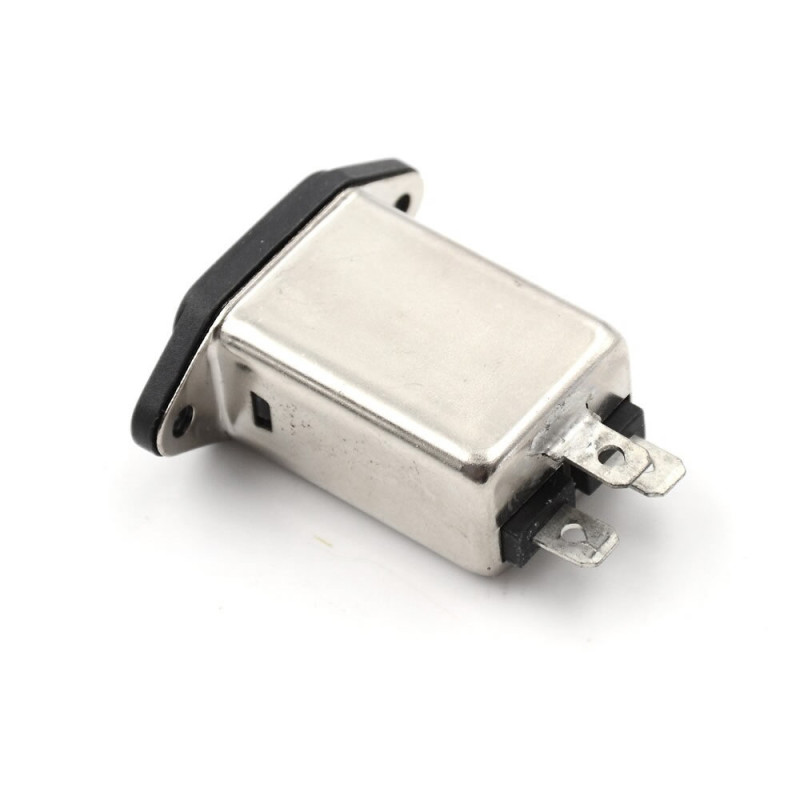

• Terminals: 3 faston terminals (L, N, earth), LOAD (device) side
• Leakage current (line - earth): up to about 0.45mA (250V, 50Hz)
• Test: "HIPOT TESTED" (high voltage insulation test) is printed on its label
• Mounting: screw panel mounting
• Use: can be used on its own, needs no special external part
• Operating temperature: -20°C - +85°C
• Mounting hole: 2 pieces, about 4mm
• Material: metal filter case, plastic socket flange
• Color: grey (metal case) / black (socket)
• Dimensions: 23mm x 50mm x 56mm
• Weight: 40gr

Usage information:

• Place the socket in the cutout of the device enclosure and screw it through the 2 holes in the flange. The mains cable plugs into the C14 socket (LINE side); connect the cables going into the device to the faston terminals on the back (LOAD side).
• Route the line (L) and neutral (N) terminals to the device through the device fuse and switch; always connect the earth (E) terminal to the metal enclosure of the device and to the earth line. The Y capacitors of the filter send the common mode noise on line and neutral to earth; if earth is not connected this part of the filter does not work and the metal enclosure is not safe either.
• Use insulated cables with female faston ends of the right size for the terminals; check that the terminals are not loose.

Applications:

•  Switching power supply and laboratory power supply enclosures
•  Audio amplifier and audio device enclosures
•  CNC and 3D printer control boxes
•  Laboratory, test and measuring devices
•  Device enclosures containing motor drivers and inverters
•  Computer, server and network device enclosures
•  LED lighting driver boxes
•  Control and automation panels affected by mains noise
•  Cable inlet in your own mains powered devices


Precautions:

•  The product works with mains voltage (220V AC). The connection must be made with the power off by a person who knows this work; the faston terminals must not be left exposed.
•  Earth connection is mandatory. The filter passes a small leakage current from line and neutral to earth (up to about 0.45mA); without earth the metal enclosure of the device can cause electric shock, and in installations with a residual current device take the total leakage current into account.
•  The socket has no fuse and no on / off switch; fit a suitable fuse and switch to the device separately.
•  Do not use it with loads above 10A; the socket and the choke heat up.
•  In medical devices in contact with patients the leakage current limits are very low; the product is not suitable for such use.

Package contents:

•  1 Piece CW1D-10A-T 250V 10A C14 Socket with EMI Filter
•  Note: The C13 power cable, mounting screws and faston cables are not included in the package.
