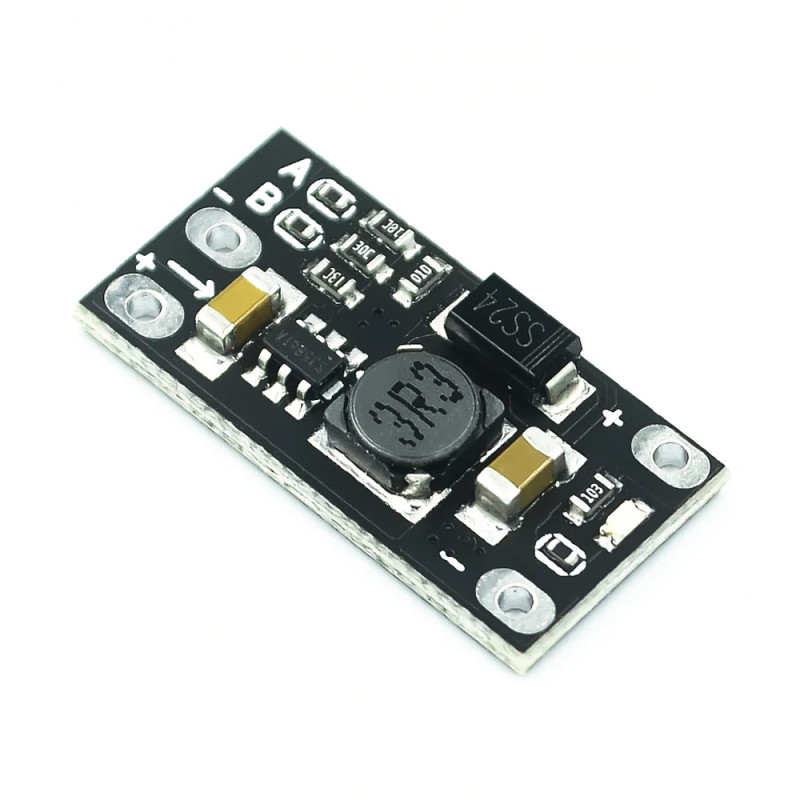

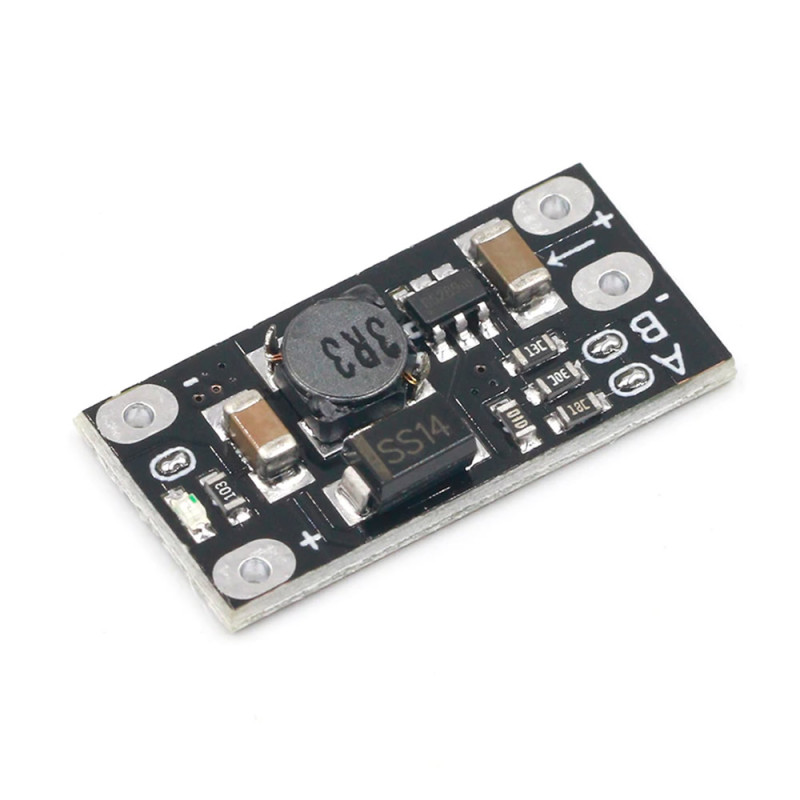

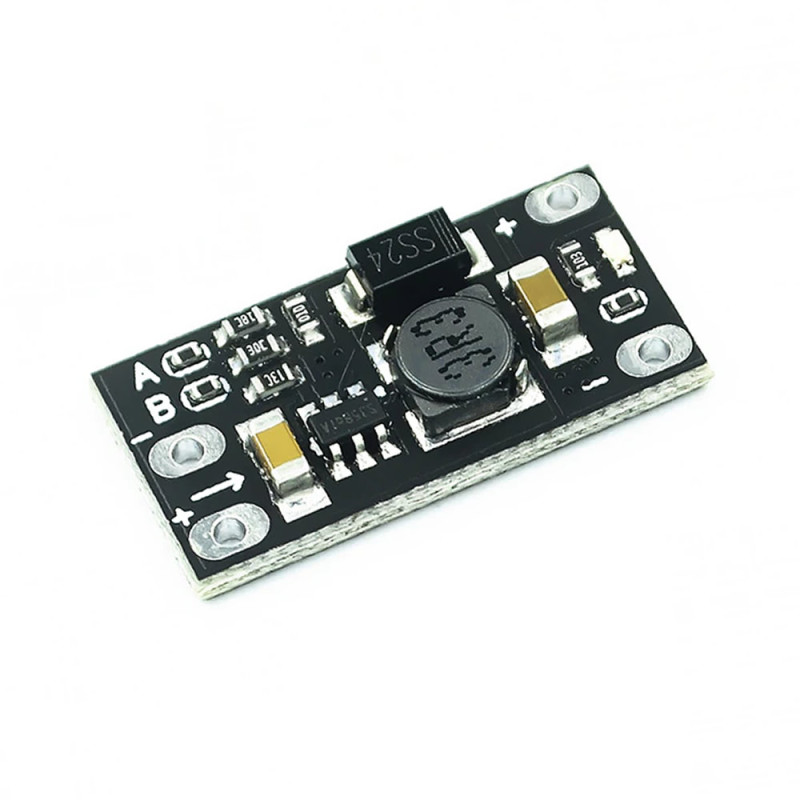

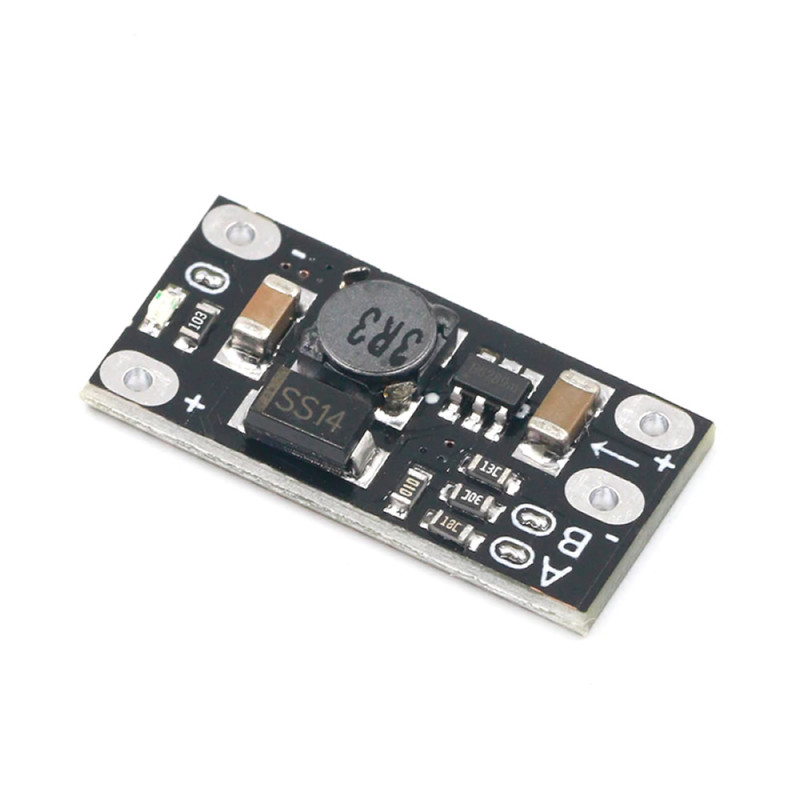

Mini Voltage Booster Module

Mini DC 12V Voltage Booster Module

3V to 12V  5V 8V  9V Step Up SX1308 DC Boost Converter Module Power Supply Module High Efficiency

     Mini voltage booster module. It comes set to 12V output. The output voltage can be set to 5V 8V 9V. The input voltage starts from 2.5V. The input voltage is lower than the output voltage. The output currents are given below.

Current capacity:

• For 3.7V lithium battery: 5V 1A, 8V 0.5A, 9V 0.45A, 12V 0.3A
• For 5V supply: 8V 0.7A, 9V 0.7A, 12V 0.5A

     WARNING: There is no input reverse polarity protection. If you make an incorrect connection, the product is permanently damaged.

Features:

• Input voltage: 2.5V
• Output voltage: 12V
• Adjustable voltage levels:  5V  8V  9V
• Frequency 1.2 MHz
• Efficiency 95%
• Power indicator led.
• Short circuit protection
• Thermal overheating protection
• Color:  Black
• Operating voltage:  -20  /  70C

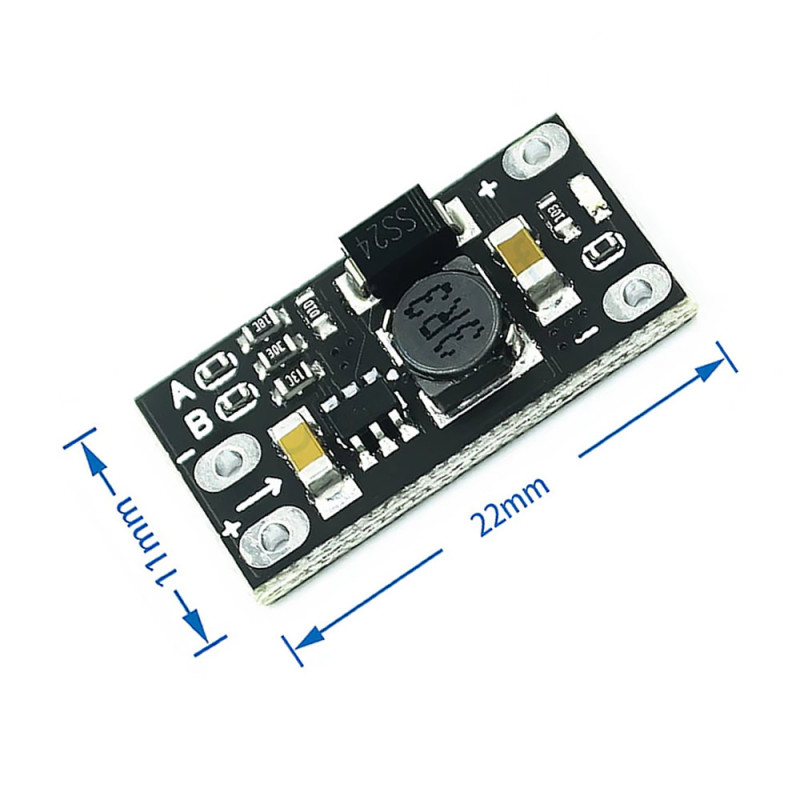

• Dimensions:  11mm x 22mm
• Weight:  1gr

Voltage Settings:

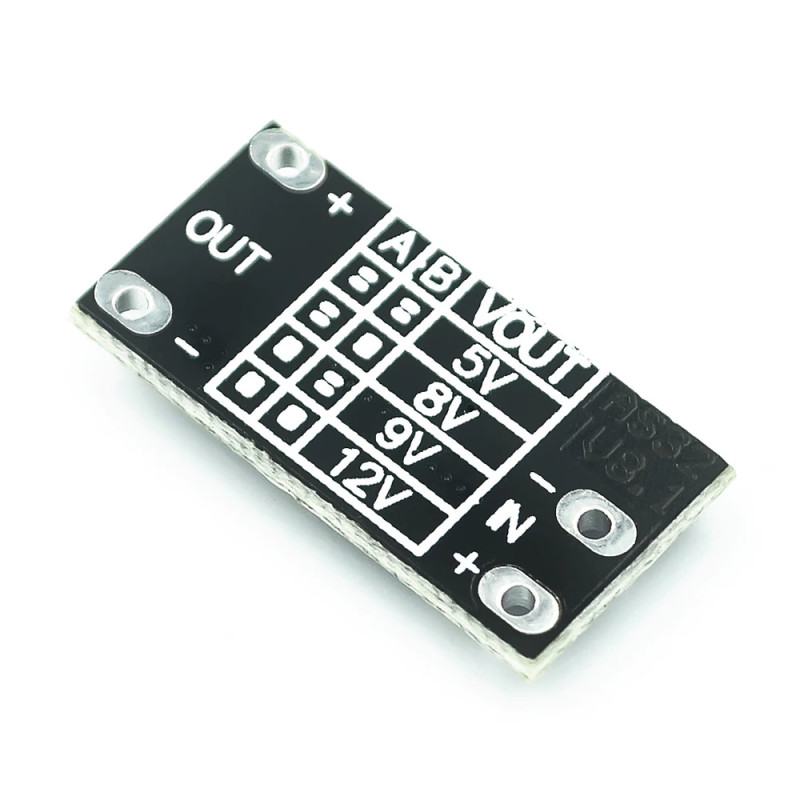

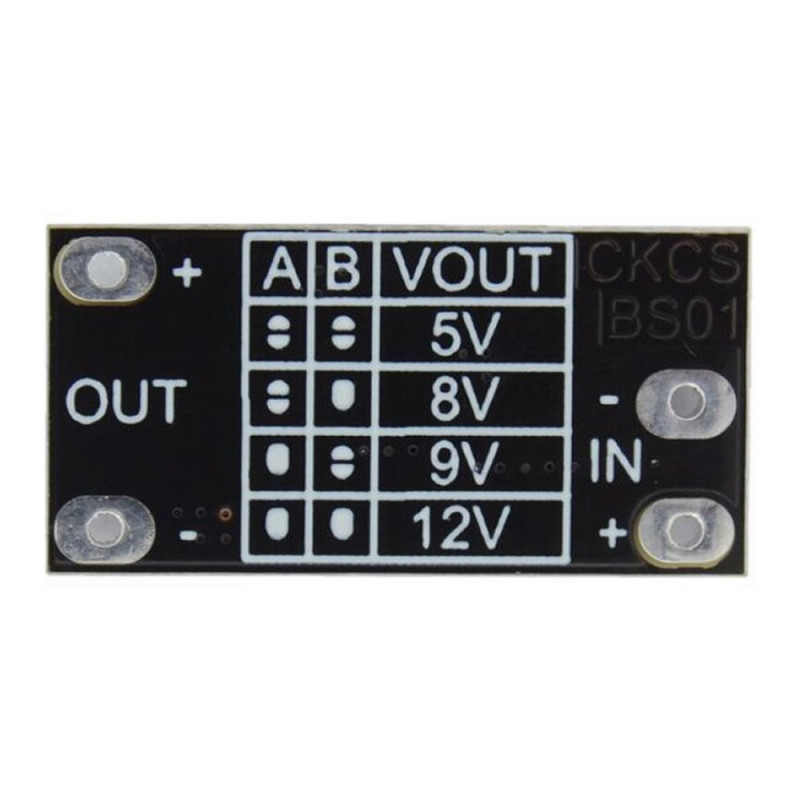

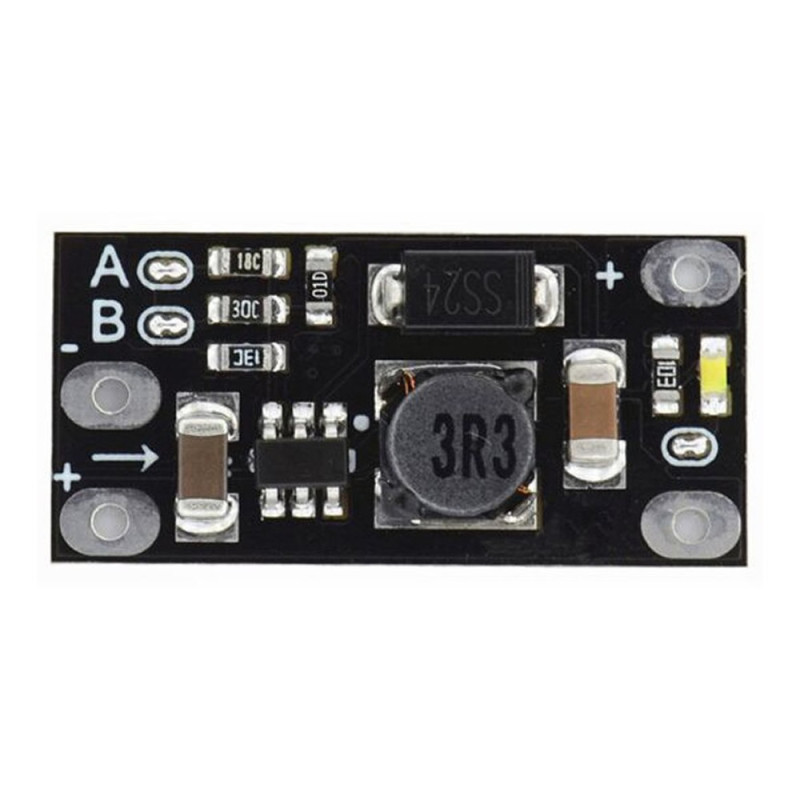

     There are A and B zero ohm  resistors on the front side of the board. The output voltage is set by connecting the resistors as in the table we show below and as shown on the back of the board. Since the A and B resistors come soldered from the factory, the output voltage operates as 12V. For the other voltages, 1 or 2 of the resistors must be removed according to the table. If you heat the pads with a soldering iron at high temperature for a long time ( 3-5sec ), the pads may separate from the pcb. In this case you may not be able to restore the previous condition. If you are going to perform soldering, it is important to work with quality material at the correct temperature for the minimum duration.

A   B   VOUT
0   0     5V
0   1     8V
1   0     9V
1   1    12V

Package contents:

•   1 pcs Mini Voltage Booster Module
