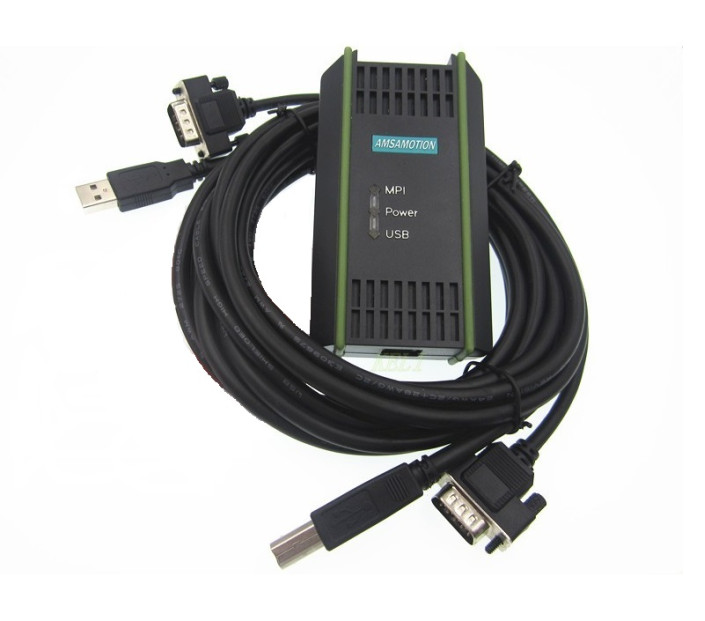

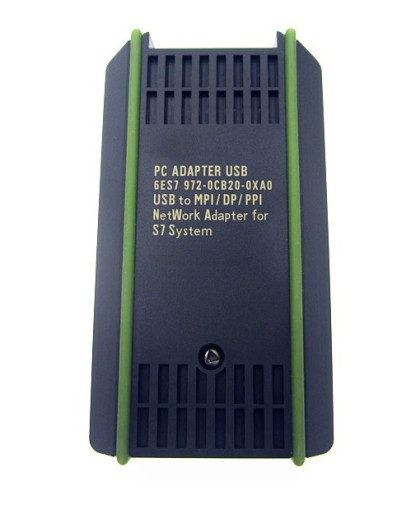

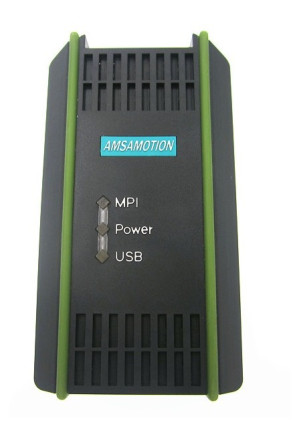

USB to MPI / DP PC Adapter

6ES7972-0CB20-0XA0

SIEMENS USB to MPI / DP PPI PC Adapter S7 200 / 300 / 400 PLC Programmer

    This PC Adapter USB to USB to MPI and PPI protocol adapter, support S7-300/400 PLC MPI/DP, or S7-200 PLC PPI communication.

Features:

•         Support S7 200 / 300 / 400 PLC
•         Support DP master-slave mixed network by EM277 for Simatic S7-200 programming and downloading.
•         Support 840D CNC system programming
•         Use original Siemens drive with USB interface directly, no need to creat COM. (STEP7 V5.5 no need to install driver)
•         Supports full baud rate 9600,  19200, 45.45K,  93.75K,  187.5K, 500K,1.5M kps, MPI port baud rate auto adaptable
•         Support siemens touch panel with MPI/DP port, such as Mobile Panel 170,Mobile Panel 177,TP170A,TP177A,TP170B,OP177B,OP277,OP270,TP177B,MP177,MP270,MP277,MP370,MP377,TP270.
•         Support windows 2000/XP/Vista/Windows 7 32/64bit/Windows 10 32/64bit system.
•         The signal part is high-speed optical coupling isolated like the original.
•         The selection of PTC resettable fuse which can well protect internal circuitry under overvoltage, overcurrent, short circuit conditions.
•         The housing has a soft protection, anti-pressure, drop.

Click here for the driver

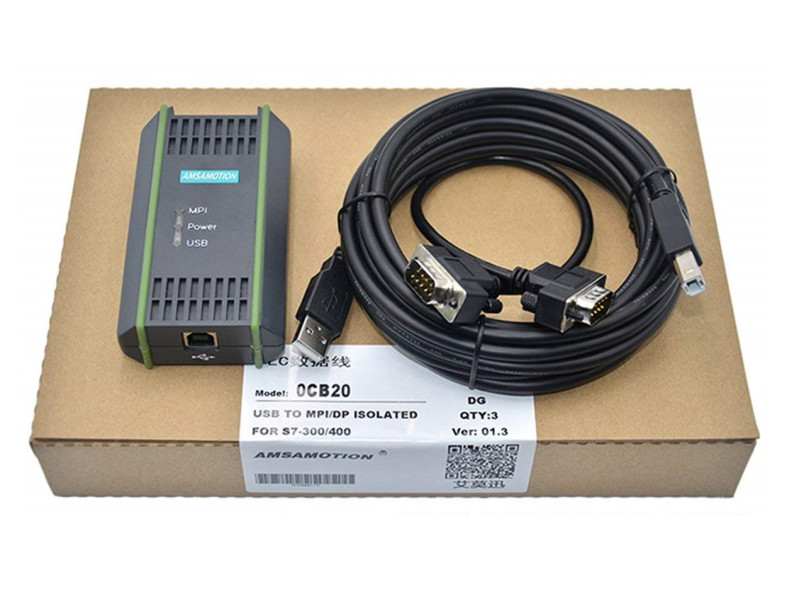

Package contents :

•     1 pcs MPI / DP / PPI PC Adapter 6ES7972-0CB20-0XA0

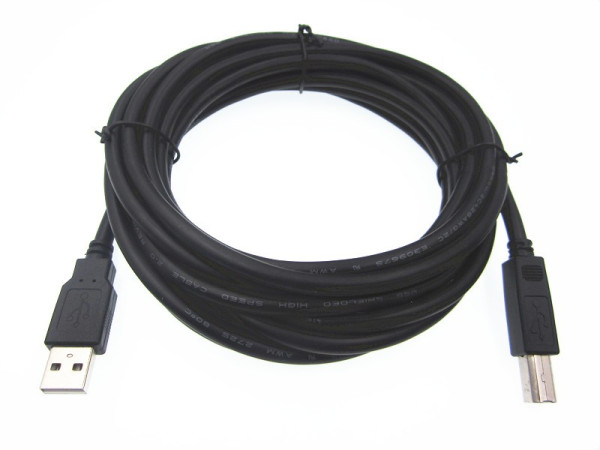

•     1 pcs USB cable

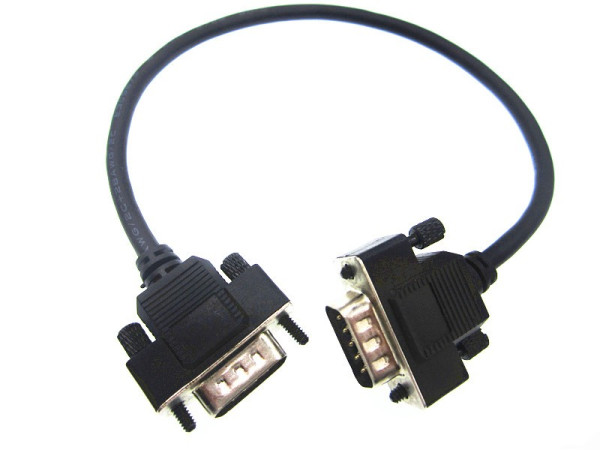

•     1 pcs DB9 connection cable
