Plastic Project Box 100 x 60 x 25mm

Plastic Electronic Project Box 100 x 60 x 25mm

Circuit Prototype Power Supply Amplifier Student Project

     The Plastic Project Box 100 x 60 x 25mm is an electronic circuit box made of black ABS plastic. It consists of two parts, the body and a flat lid; the lid is joined to the body with the help of plastic tabs, so no screws are needed to close it. It protects your circuit against dust, impact and touch and gives your project a finished product look.

     The inner size of the box is about 96mm x 56mm with an inner height of about 21mm. This volume is enough for small development boards, relay and sensor modules and small circuits built on perfboard. There are 4 pcb connection points inside the top lid.

     ABS plastic is easily machined with a drill, a milling cutter or a utility knife; you can drill holes in the body or the lid for switches, LEDs, buttons, DC jacks, USB and cable outlets. The flat lid surface is suitable for a label, a printed front panel or a small display window. It is often chosen for projects such as power supplies, amplifiers, alarms, timers and thermostats, and for student projects.


Features:

• Product type:    Electronic circuit and project box (enclosure)
• Model: Plastic Project Box 100 x 60 x 25mm
• Lid type: Screwless snap-fit lid; the lid is joined to the body with the help of plastic tabs.

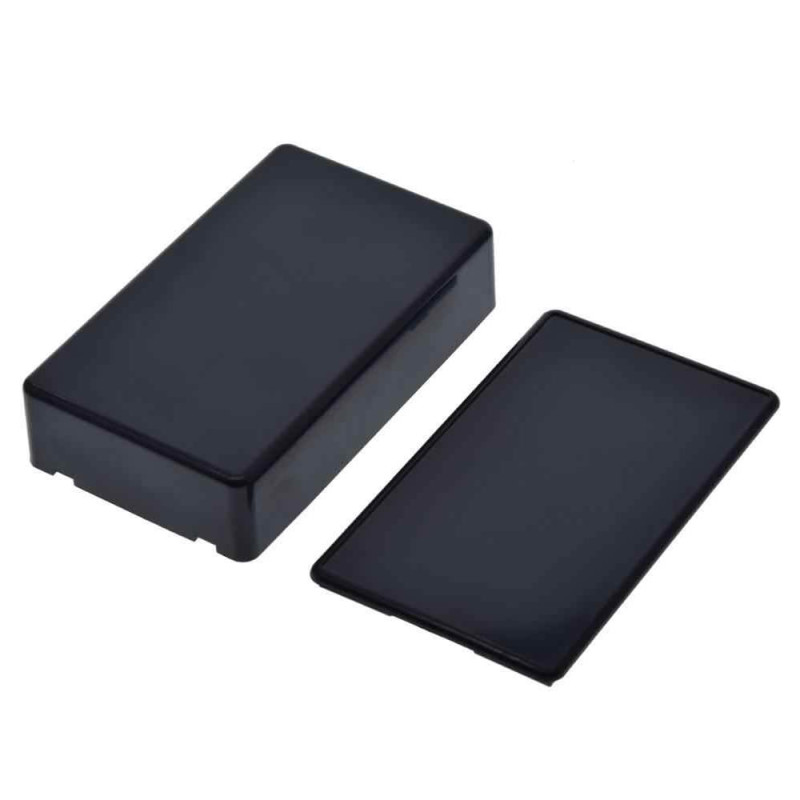

• Construction: Two parts - body and flat lid
• Board mounting: 4 pcb connection points inside the top lid
• Suitable boards: Arduino Nano, Pro Mini, ESP32 / ESP8266 development boards, relay and sensor modules, perfboard
• Machinability: Holes and windows can be made with a drill, a milling cutter and a utility knife.
• Lid surface: Flat; suitable for a label, a printed front panel and a display window
• Corners: Rounded outer corners
• Operating environment: Indoor; it has no sealing gasket and is not waterproof.
• Purpose: Affordable box suitable for all kinds of electronic projects
• Screws: Screws are not included with the product.
• Material: Plastic ABS
• Wall thickness: about 2mm
• Color: Black
• Inner size: about 96mm x 56mm x 21mm

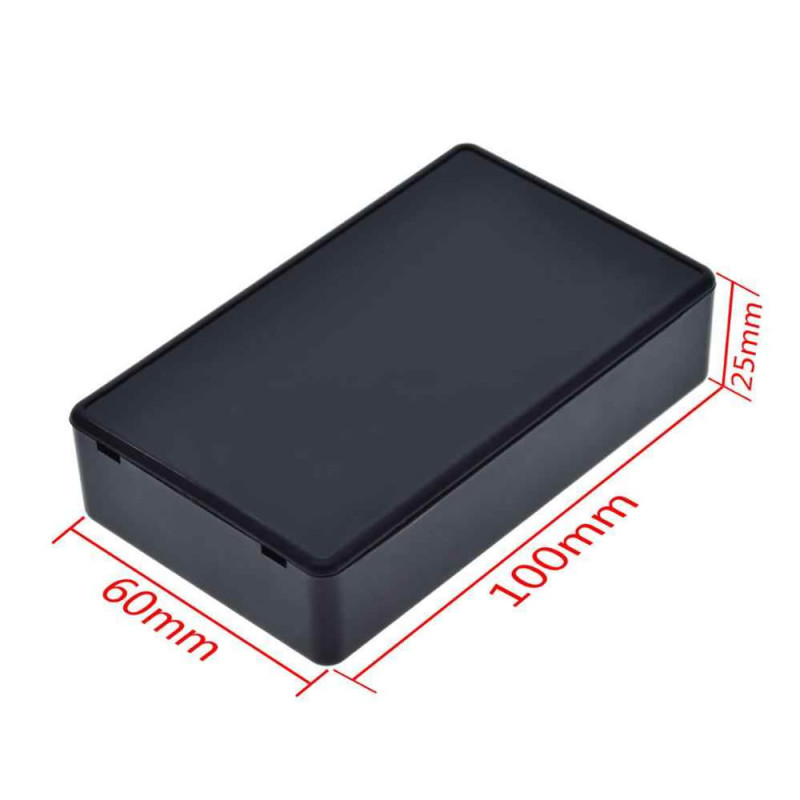

• Dimensions: 100mm x 60mm x 25mm (100 x 60 x 25mm)
• Weight: about 36gr

Usage information:

• To open the lid, lift it gently with a thin flat tip from the tab slots on the edge; to close it, press the lid until the tabs snap into place.
• Before drilling, mark the position of your board and connectors on the box. Drill ABS at low speed; at high speed the plastic melts and the edges are damaged.
• Fix the board to the pcb connection points in the lid with a suitable screw; screws are not included, use a small screw that fits the hole of your board.

Application areas:

•  Enclosing Arduino and ESP32 projects
•  Sensor and measurement circuits
•  Small power supply and charging circuits
•  Amplifier and audio circuits
•  Alarm and warning circuits
•  Timer and relay control circuits
•  Thermostat and temperature control circuits
•  Remote control and receiver circuits
•  Prototype and test circuits
•  Student projects, education and hobby applications


Precautions:

•  The box is not water and dust proof; for a circuit used outdoors or in a humid place, choose a gasketed box with a stated IP rating.
•  ABS plastic softens when hot. Do not press a hot regulator, power resistor or heatsink against the box wall; drill ventilation holes for a circuit that heats up.
•  The inner height is about 21mm. Before closing, check that tall capacitors, battery holders or vertical connectors on the board fit.
•  Opening and closing the lid often strains the tabs; open it by lifting the tabs side by side, do not force it from one corner.

Package contents:

•  1 Piece Plastic Project Box 100 x 60 x 25mm (body and lid)

Note: Screws are not included with the product. Screws and circuit board are not included in the package.
