NRF24L01+PA+LNA 2.4GHz RF Module

NRF24L01+PA+LNA RF Transceiver Module

1000 meters 2.4GHz Wireless Communication Transceiver

    This wireless radio module is an easy and affordable product, and it will allow you to set up a low cost wireless communication system. You can easily add it with your own MCU / ARM / PIC / AVR / STM32 system. Moreover, this NRF24L01 module is designed with a power amplifier and SMA antenna and provides wireless communication up to 1000 meters ( open area ) without obstacles.



Product Features:

•         Frequency: 2.4 GHz to 2.5 GHz
•         Operating Voltage: 3V to 3.6V
•         Output power: Maximum: 20dBm
•         Data Rate: 250 kbps, 1 Mbps, 2 Mbps
•         Maximum 6 channel communication support
•         Max Current: 115mA
•         Power down:400nA
•         In standby mode: 32uA
•         Multi Frequency: 125 Frequency
•         It supports up to data reception of 6 channels.
•         SMA antenna

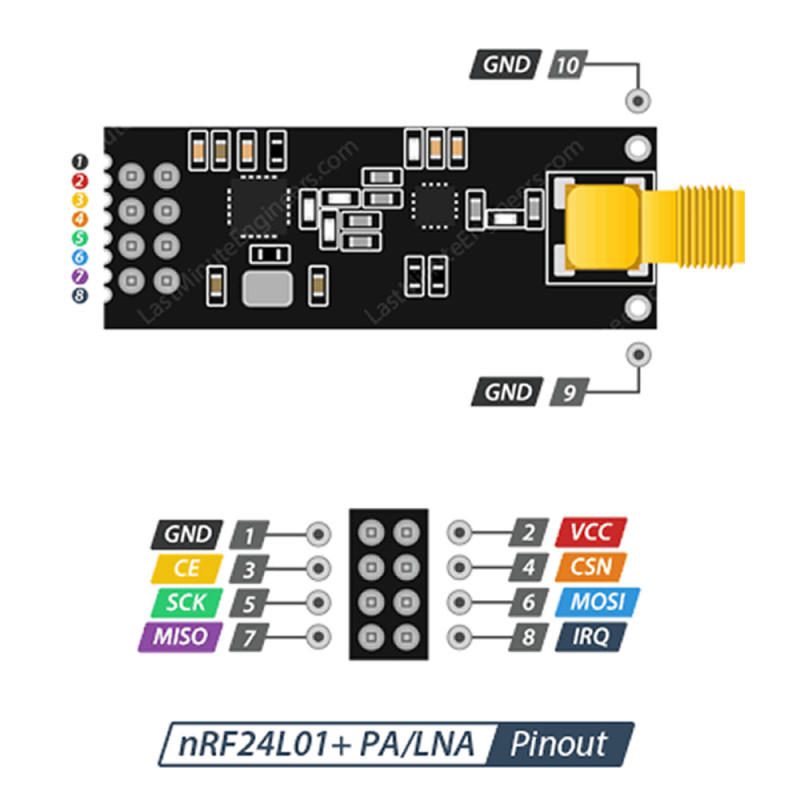

•         8 pin  dip 2.54mm connection socket

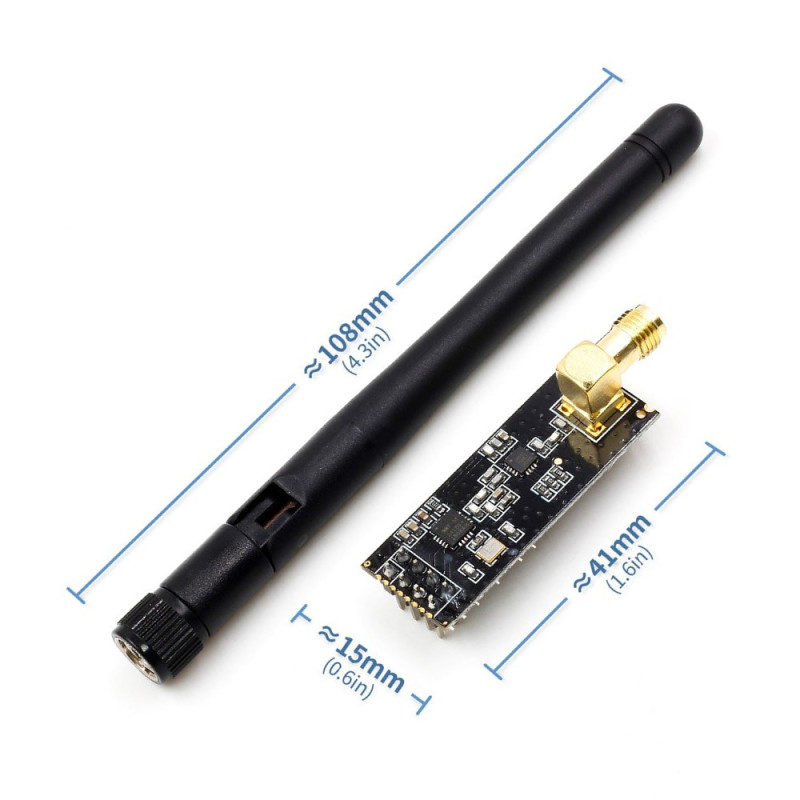

•         Antenna: 108mm ( in 180 degree position )
•         Dimensions: 41mm x 15xx

Package contents:

•     1 x NRF24L01+PA+LNA
•     1 x SMA Antenna
