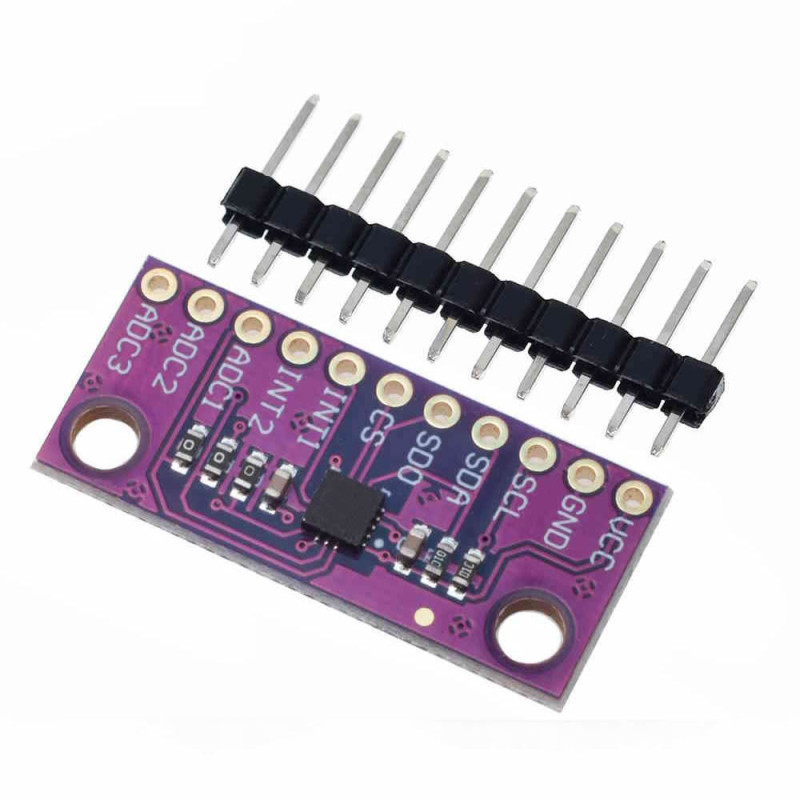

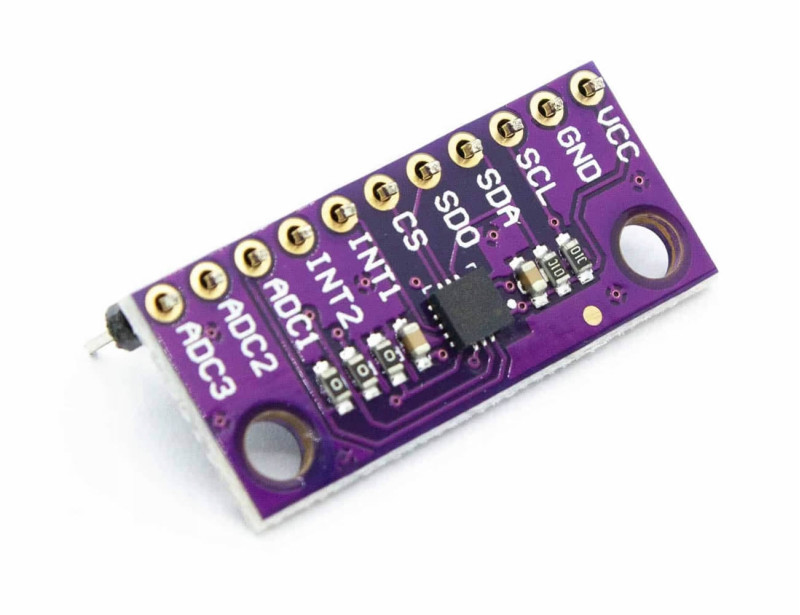

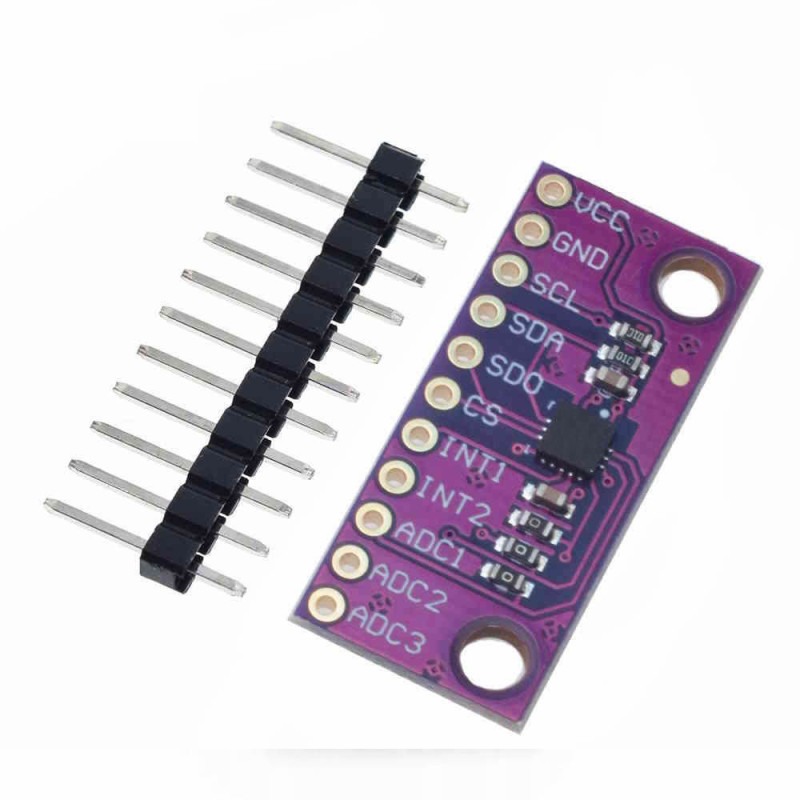

Lis3dsh Accelerometer Sensor Module
3 Axis 16 Bit Adc I2c Spi ±2g ±4g ±6g ±8g ±16g Embedded Fsm Direction Position Rotation Tilt Motion Detector Robot Temperature Sensor
This module is a LIS3DSH based three axis linear acceleration sensor. It is designed for advanced motion detection applications with ultra low power consumption, high resolution data output, wide measurement range and an embedded state machine (FSM). It can easily be used with Arduino, STM32, ESP32 and other microcontrollers over I2c or Spi.
If you want to capture not only the presence of motion in your projects but also its details with high precision, the LIS3DSH is just right for you. This module is an ultra low power consuming, high performance 3 axis linear accelerometer belonging to the "Nano" family of STMicroelectronics.
In addition, the module has 3 analog inputs, two programmable interrupt outputs, an embedded temperature sensor, 16 bit data output and a FIFO buffer.
Unlike standard accelerometers, the LIS3DSH has two programmable embedded state machines (Finite State Machine). This feature allows the sensor to detect certain motion patterns (shaking, double tap, falling etc.) internally without waking up the main processor (Arduino etc.). This means enormous energy savings and a reduction in processor load in battery powered projects.
Advantages:
- Thanks to the wide measurement range from ±2g to ±16g, it is suitable for robotics, balance systems, motion analysis and vibration measurements.
- Embedded FIFO and FSM features reduce the processing load on the microcontroller.
- 16 bit resolution provides high precision measurement.
- 10000g shock resistance offers the possibility of use in harsh industrial environments.
Features:
- Integrated Lis3dsh
- Operating voltage: DC 1.7V / 3.6V
- Measurement axis: 3 axis (X, Y, Z)
- Measurement range: ±2g / ±4g / ±6g / ±8g / ±16g (Programmable)
- Precision: 16-bit Data Output
- Communication: I2c / Spi
- Output data rate (ODR): 3.125Hz / 1.6kHz
- Built-in temperature sensor
- Built-in FIFO buffer (for data storage)
- Two embedded programmable state machines (FSM)
- 3 extra analog inputs (ADC1, ADC2, ADC3)
- Programmable interrupt outputs (INT1, INT2)
- 10000g shock resistance
- Independent IO supply: 1.8V
- Ultra low power consumption
- Color: Purple
- Operating temperature: -20C / 65C
- 2 mounting holes

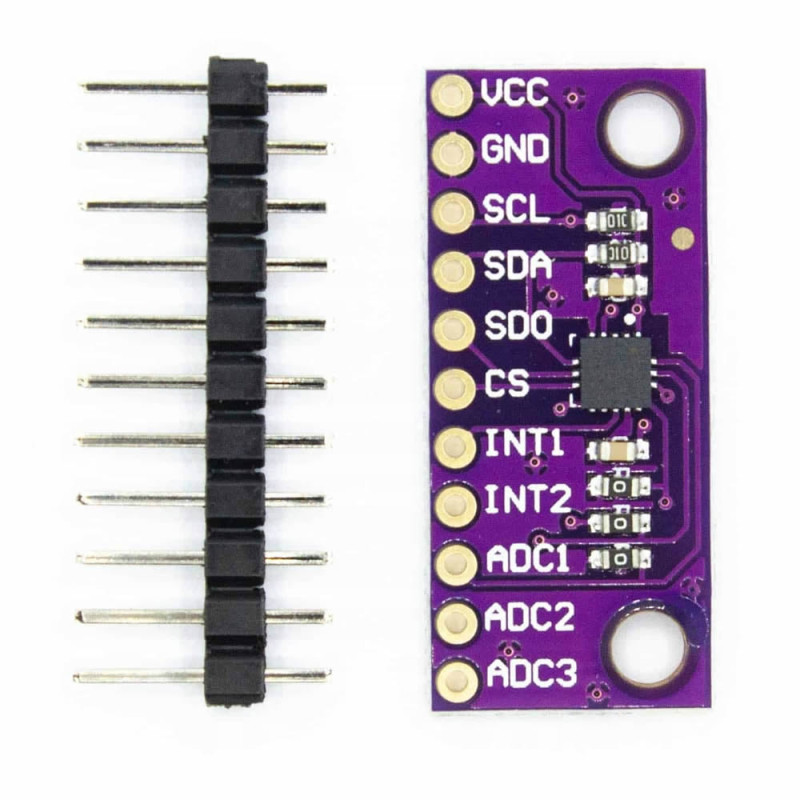

- 11 Pin male header connection socket

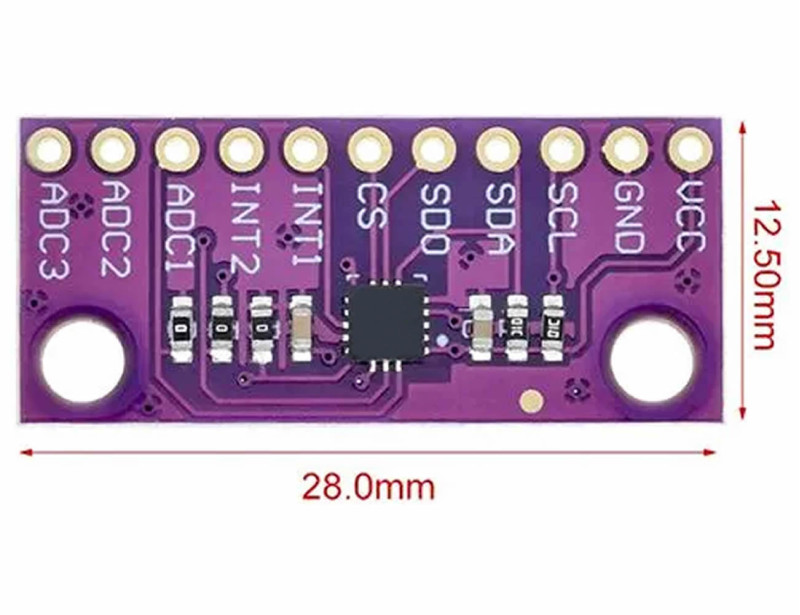

- Dimensions: 29 x 12.6mm
- Weight: 3gr

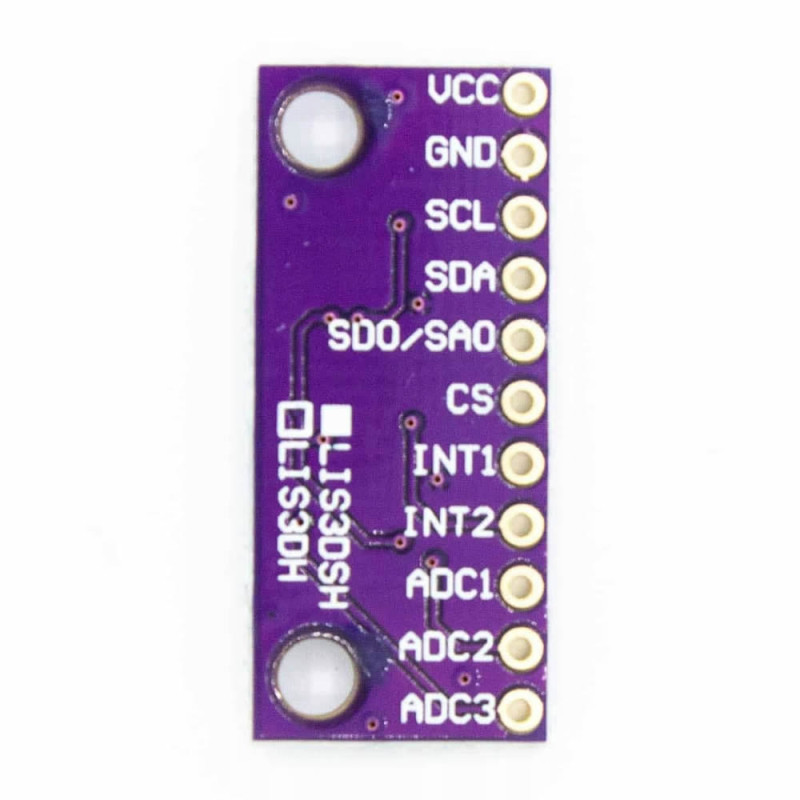

- VCC: 3.3V
- GND
- SCL: I2c clock
- SDA: I2c data
- SDO
- CS: Spi select pin
- INT1 / INT2: Interrupt outputs
- ADC1 / ADC2 / ADC3: Additional analog inputs
Areas of Use
- Advanced robotic balance systems
- IMU applications
- Drone and stabilization systems
- Vibration measurement
- 3D motion detection
- Industrial control systems
- Arduino/STM32/ESP32 sensor projects
- Screen rotation detection in smartphones and tablets
- VR/AR (Virtual Reality) controllers
- Pedometer and activity tracking
- Vibration analysis and condition monitoring
Package contents:

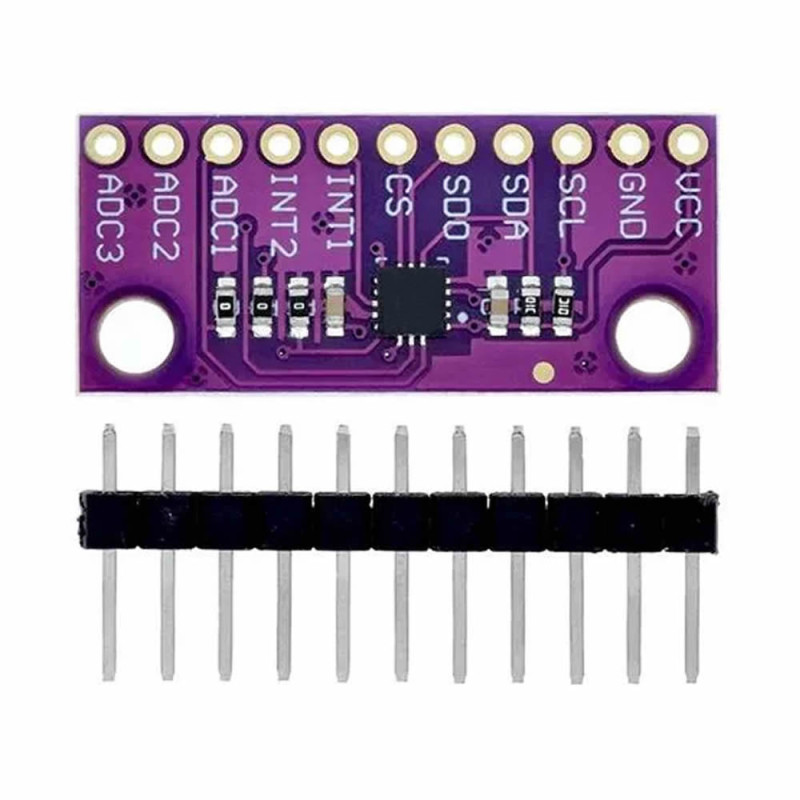

- 1 Piece Lis3dsh Accelerometer Module
- 11 Pin Male header unsoldered
