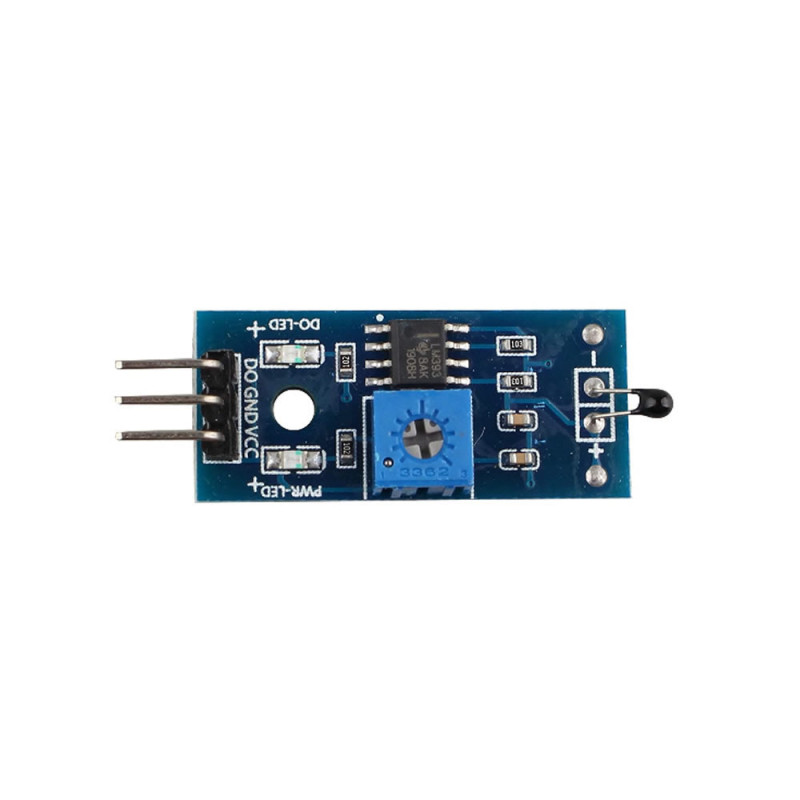

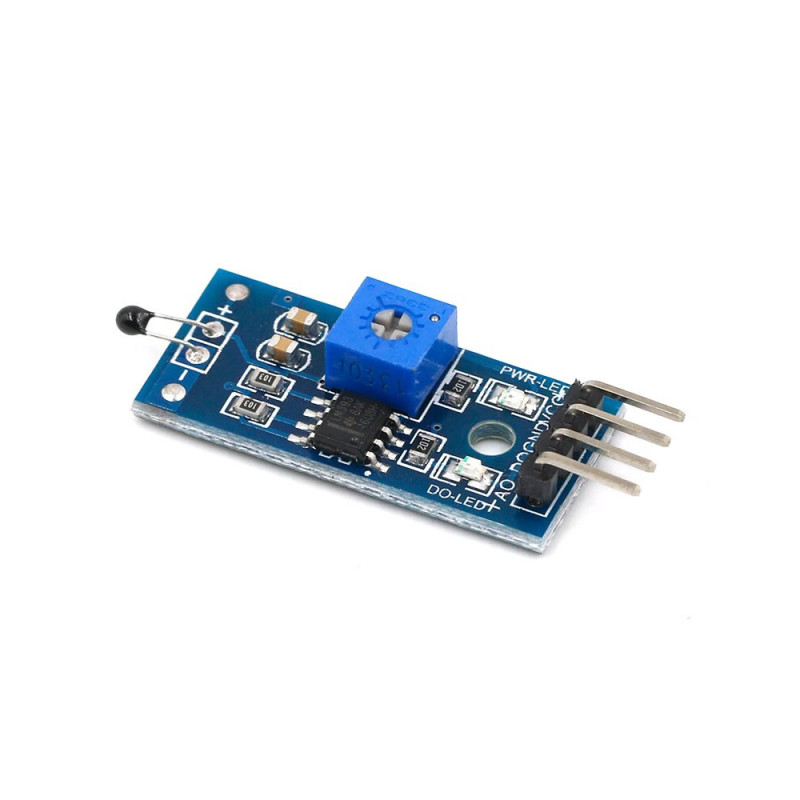

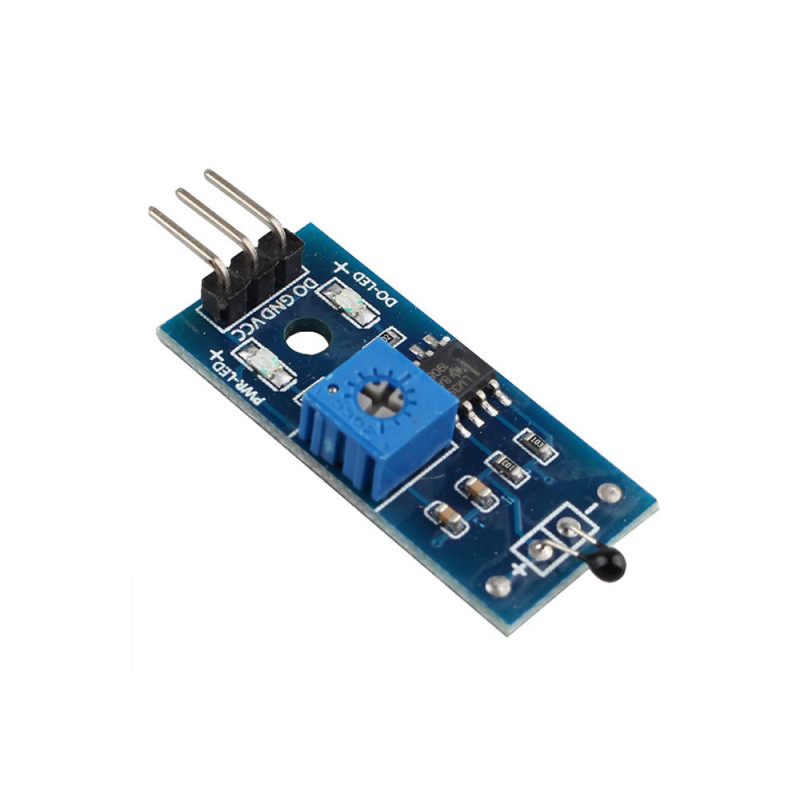

NTC Thermistor Temperature Sensor Module

NTC Thermistor Temperature Heat Sensor Module

20C - 80C Temperature Thermal Control Switch Board Digital Output

     NTCs are resistors whose value changes depending on temperature. As the temperature rises, its resistance decreases. Thanks to this, the ntc thermistor can be used as a temperature sensor. It can easily be used in projects such as heat measurement devices, thermostats, room temperature measurement and smart home systems. It can be used together with Arduino and many similar microcontroller systems.

     It can operate with 3.3 V to 5 V. It provides digital output. It performs temperature control with the opamp and adjustment pot on it. Depending on whether it is above or below the set value, the digital output becomes active. A relay can be driven with this output pin. It works like a kind of switch depending on temperature.

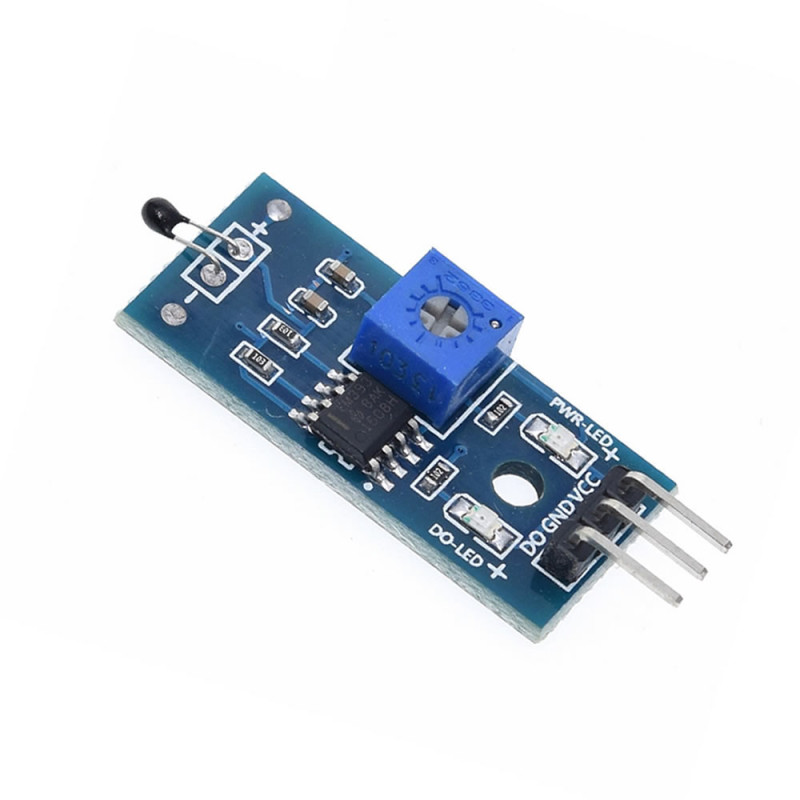

Product Description:

•  When the ambient temperature reaches the setting threshold, that is, when the ambient temperature is more than the set threshold, the D0 output pin goes down to the low level ( 0V ). The detection temperature can be adjusted with the potentiometer, adjust the potentiometer clockwise, turning it clockwise increases the detection temperature level. Turning the potentiometer counterclockwise decreases the detection temperature level.
•  The detection is sensitive and stable. It can be monitored easily with 1 Piece Do indicator led.
•  The sensor module output port can be connected directly to the IO port of microcontrollers. It can also drive a 5V relay directly.
•  It can operate with a DC 3.3V - 5V power source. There is 1 Piece supply indicator led.
•  It can be used in the 20C - 80C temperature range.
•  This module can also be used for water temperature, water tank control, etc.

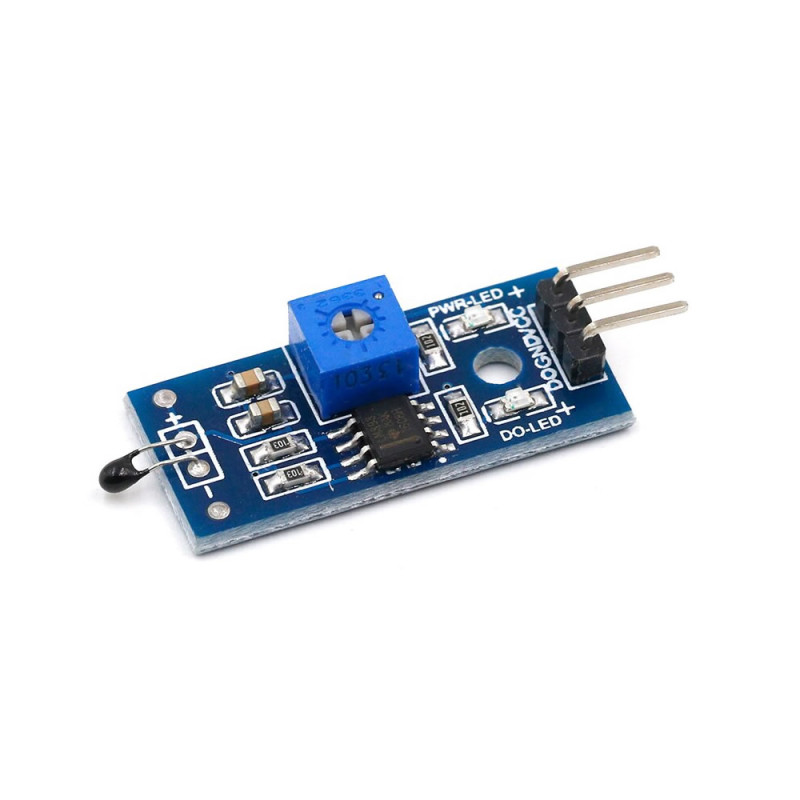

Features:

•  NTC temperature sensor
•  Operating voltage: DC 3.3V - 5V
•  LM393 Comparator integrated circuit
•  20C - 80C operating temperature range
•  Supply indicator led.
•  Output indicator led.
•  The comparison output is clean and reliable. It can be connected to the mcu with 15mA drive current. It can drive a relay.
•  The temperature level setting is adjusted with the potentiometer.
•  Clockwise increases the temperature level. Counterclockwise decreases the temperature level.
•  Output form: Digital output (0 and 1)
•  Easy mounting hole

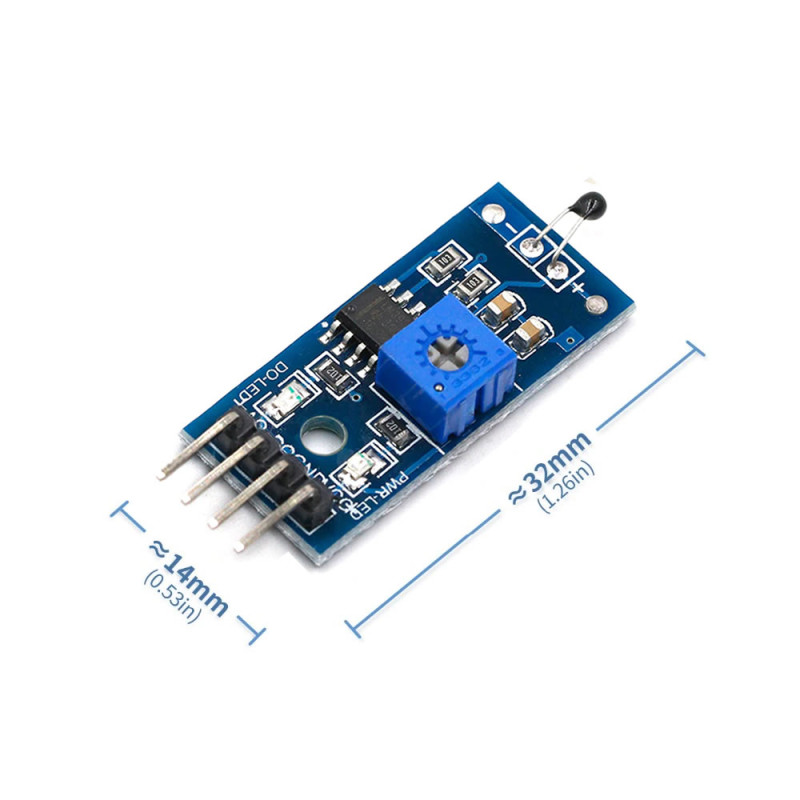

•  Dimensions: 32mm x 14mm
•  Weight: 3gr

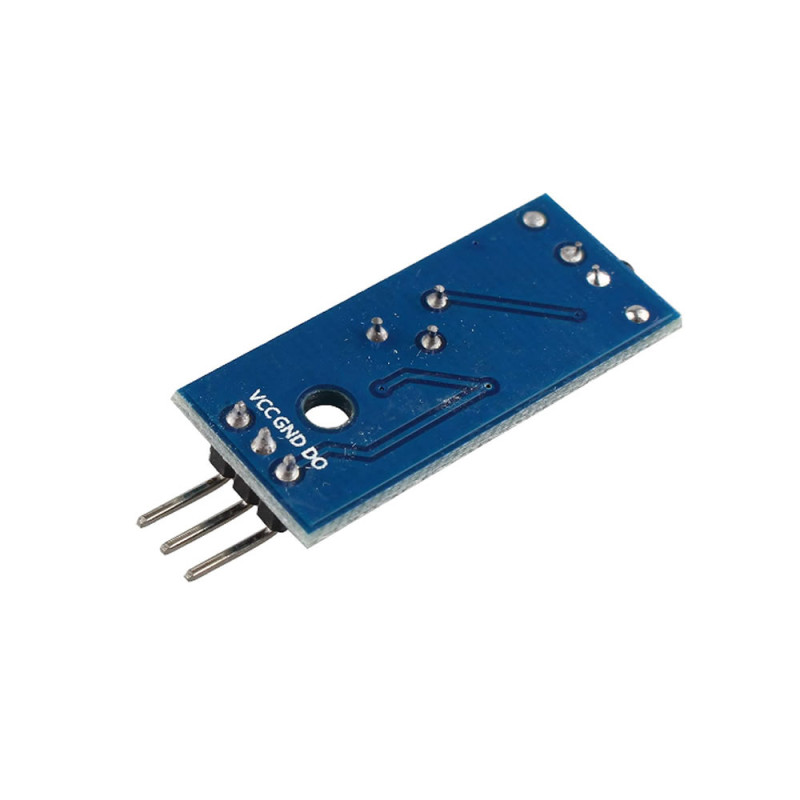

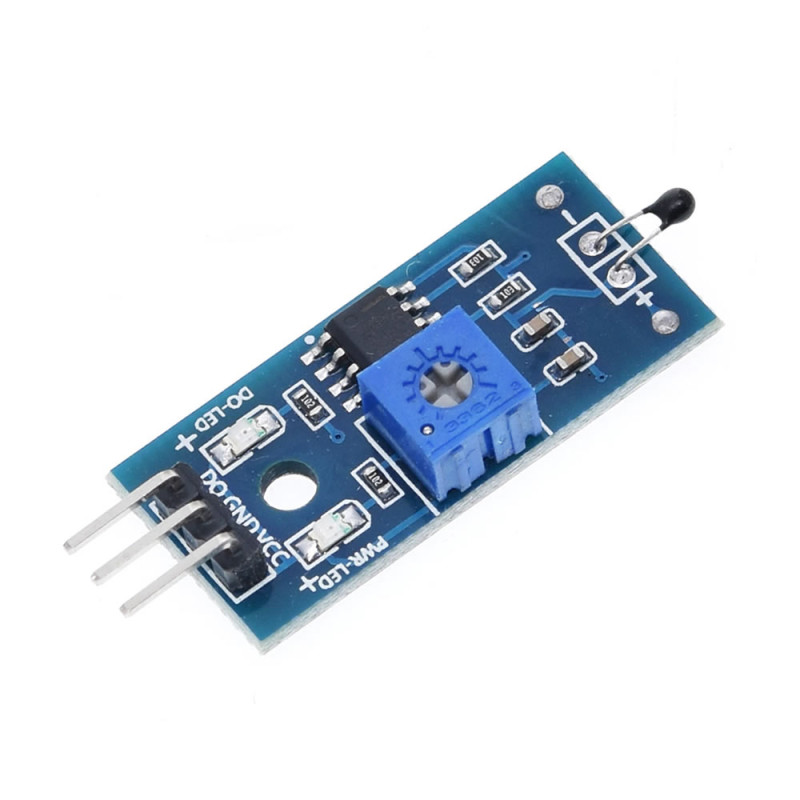

Pin Descriptions:

•  VCC:   DC 3.3V - 5V  Supply positive connection
•  GND: Ground Supply negative connection
•  D0: Digital output pin ( 0 - 1 )

Package Contents:

• 1 Piece Thermistor Sensor Module
