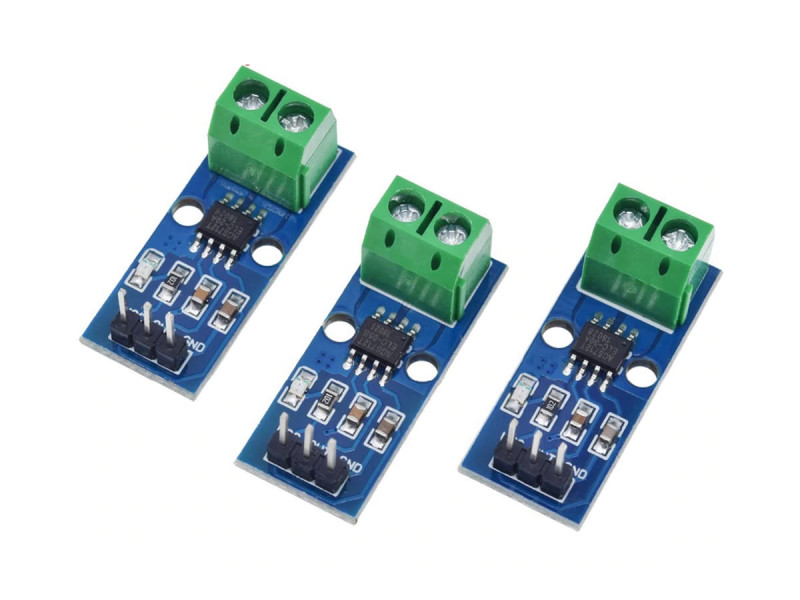

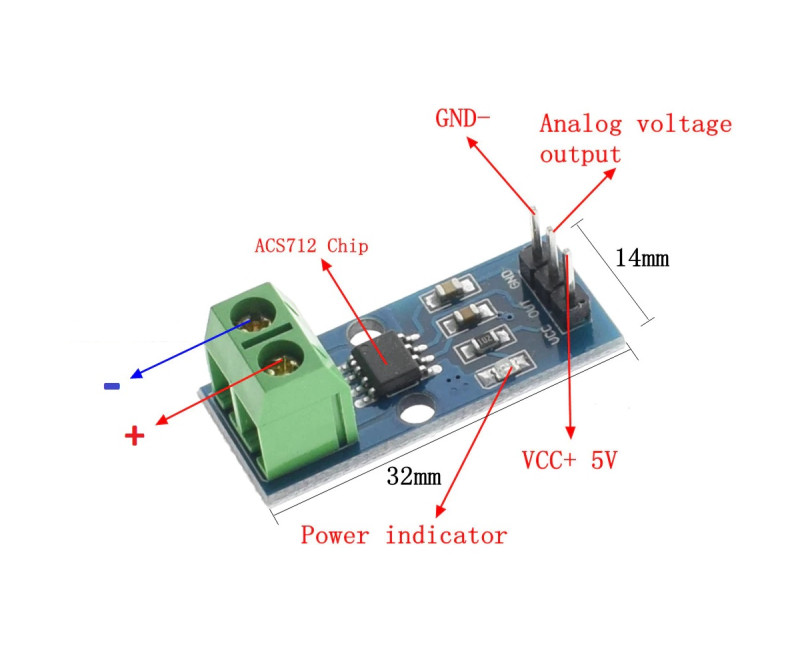

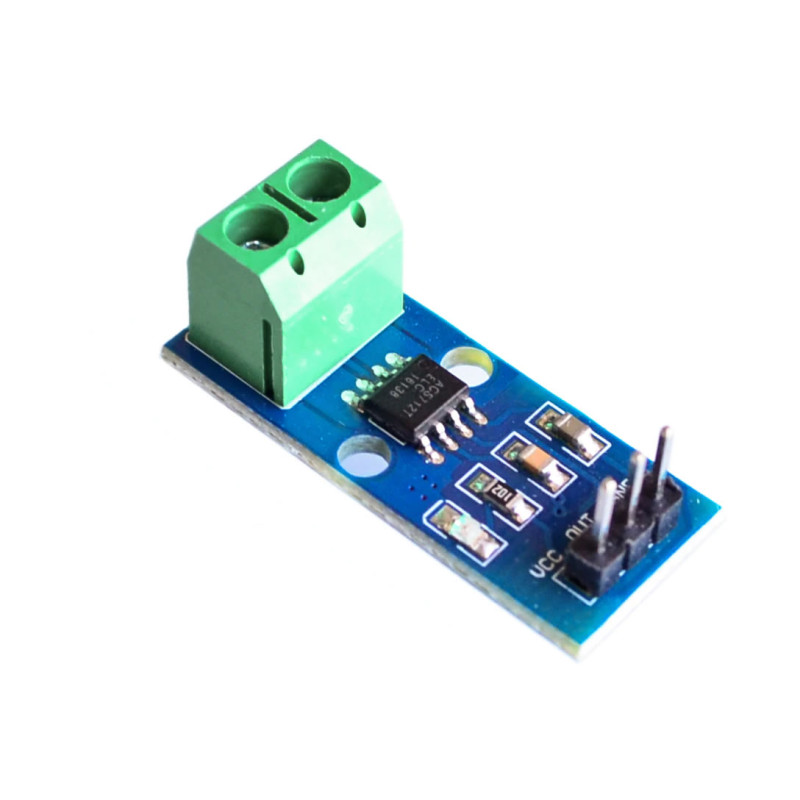

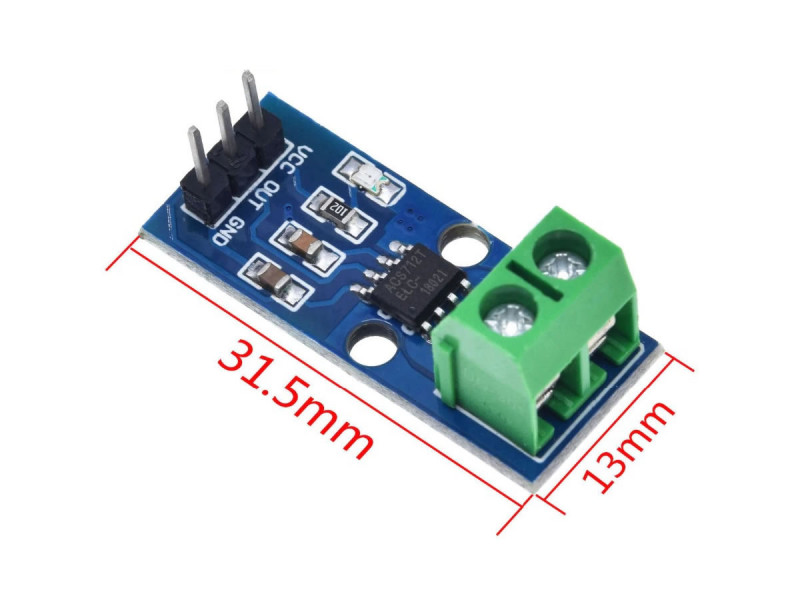

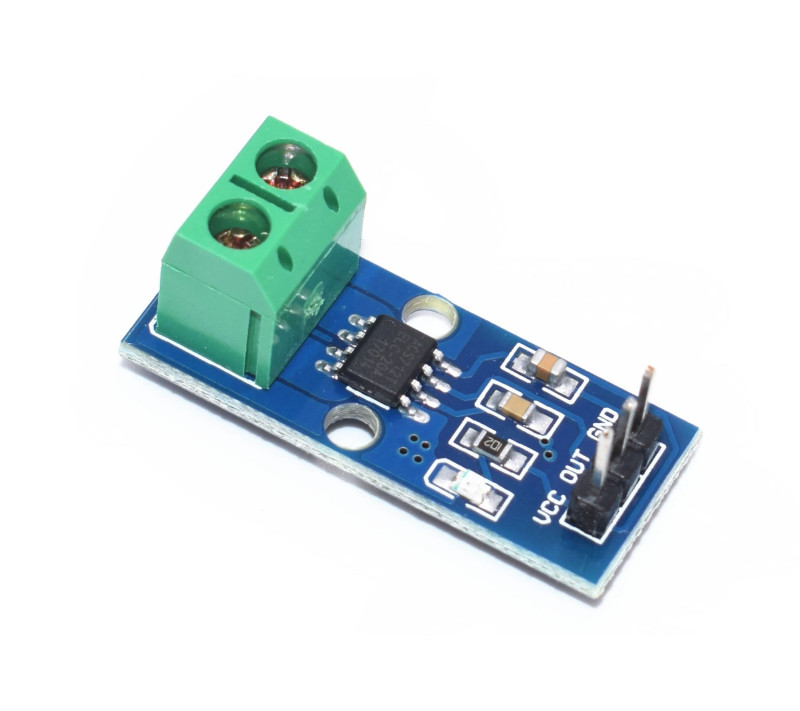

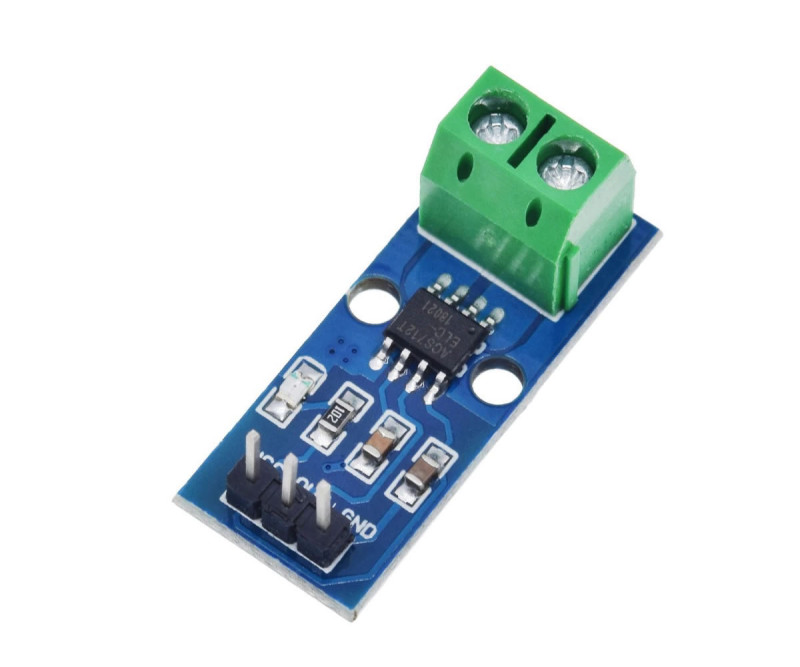

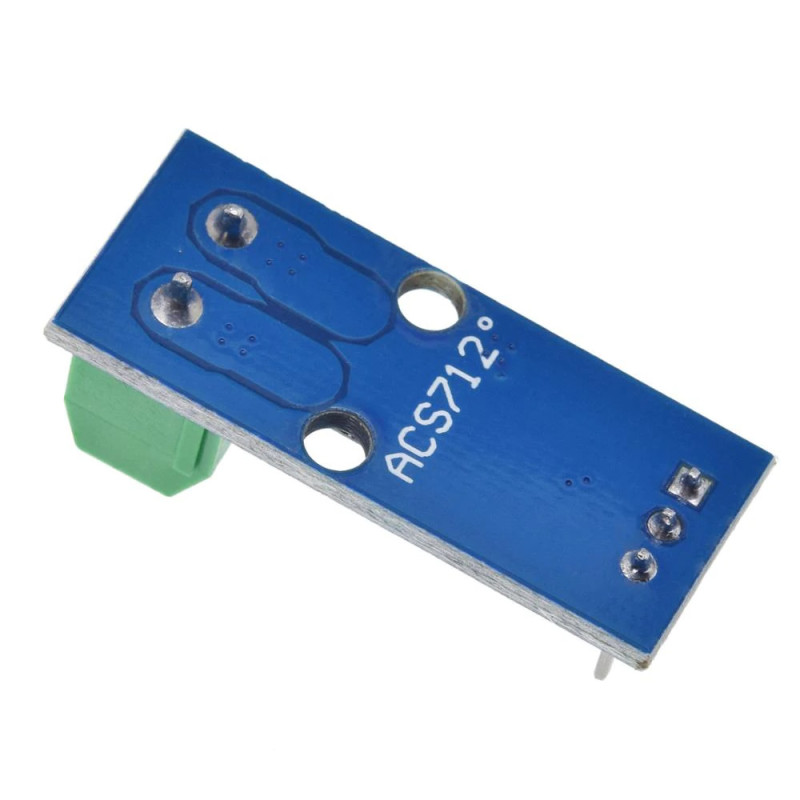

ACS712 5A Current Sensor

 ACS712 5A Current Sensor

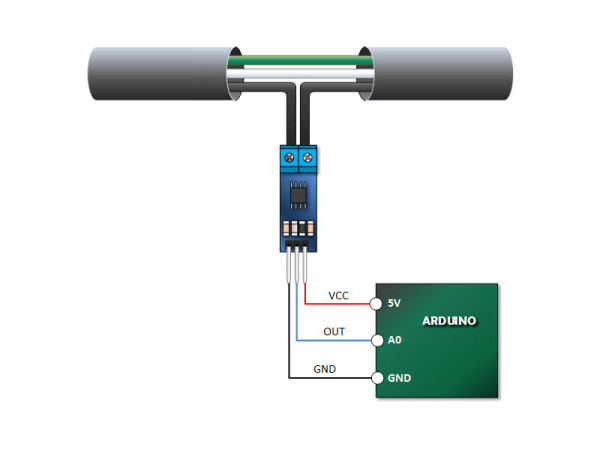

     The ACS712 sensor module is a sensor module that can measure the current flowing through an electrical line with high precision by measuring the magnetic field generated on that line. Thanks to this measurement method, high isolation protection is achieved during the current measurement process.

     This sensor can also measure the current flowing in both directions on the conductor.In this way, for example, it is also possible to measure noise generated in any direction on the line. It can also measure AC and DC currents. There are versions that can measure at 5A 20A and 30A levels.

     It occupies little space with its Soic 8 integrated circuit package.It can easily be applied anywhere current measurement is required. It is used in applications such as motor control applications, load detection, detection and protection of high current flow.

    Features:

•         Current measuring sensor by measuring the Magnetic field on the current path.
•         Isolation advantage between the load due to the absence of direct contact.
•         AC and DC current measurement capability
•         Operating Voltage : 5V
•         Maximum measurable current level : 5A
•         Current measurement capability in both directions.
•         2.1kVRMS isolation protection
•         Resistance on the conductor pins 1.2mΩ
•         Measurement Sensitivity :  between 66mV/A and 185 mV/A
•         Measurement Error : 1.5% at TA = 25°C and 4% at –40°C to 85°C.
•         Response time 5 μs
•         Total output error  1.5% at TA= 25°C

.

Package Contents:

•       1 Piece  ACS712 5A Current Sensor
