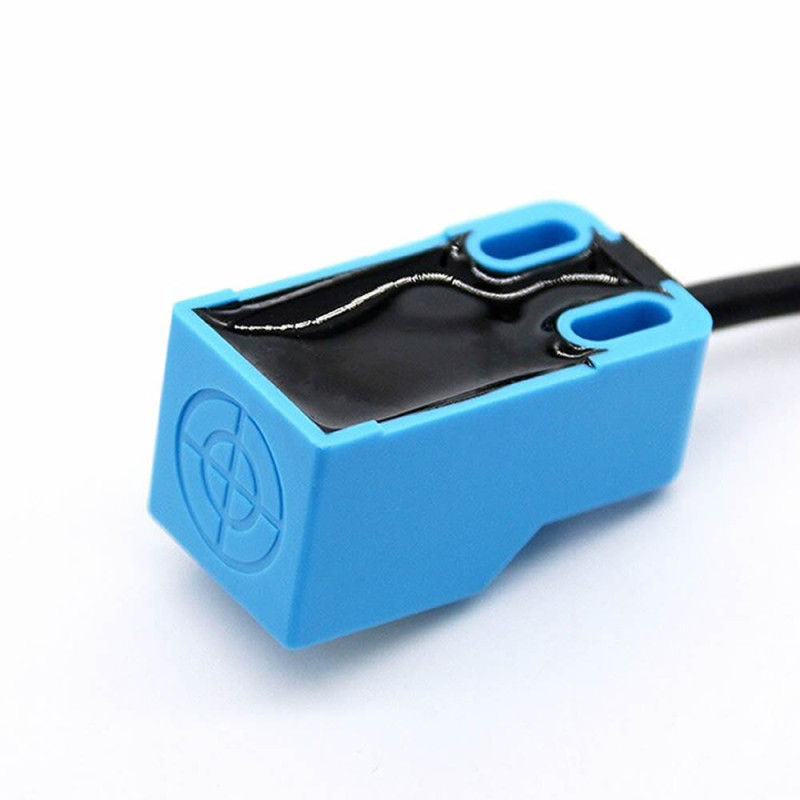

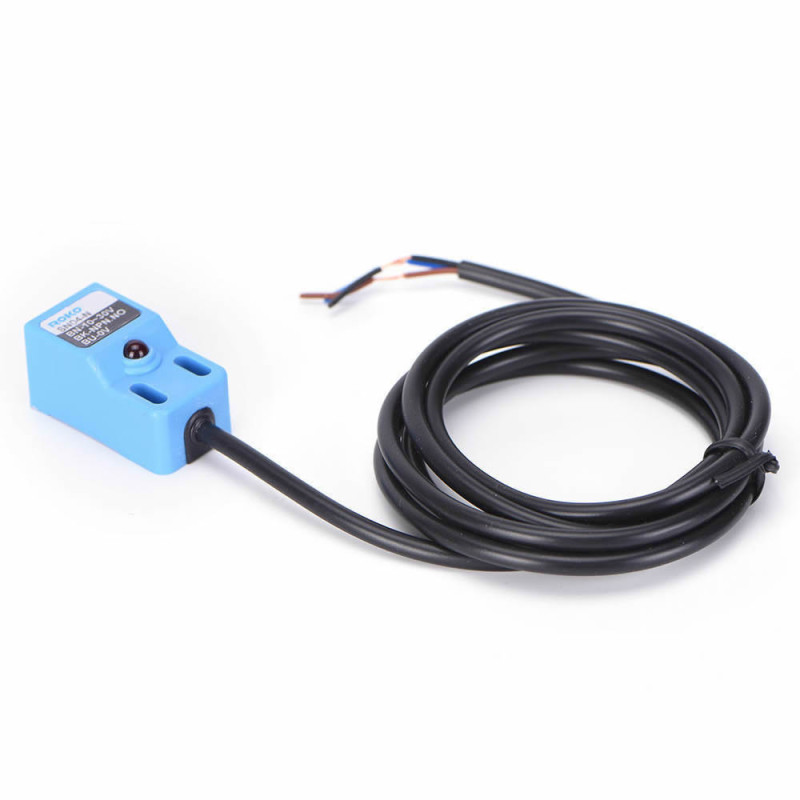

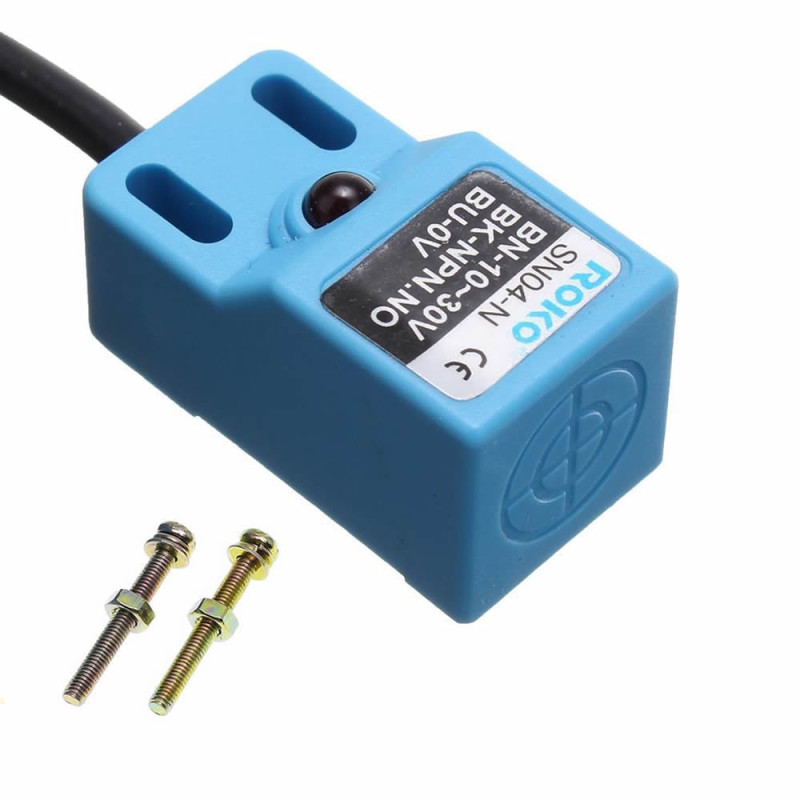

SN04-N1 Inductive Metal Detection Sensor

SN04-N Inductive 4mm Metal Detection Sensor Npn NO

Contactless Proximity Switch DC 10V / 30V CNC 3D Printer Automation Industrial Control Part Counter Frequency Counter IP67

     It is an industrial type sensor that can be used to detect metal objects without contact from a distance of 4mm. It operates with DC 10-30V voltage. The detection indicator led easily shows the sensor operation. It is used in industry as an automatic control detection switch.

     When the metal part comes within 4mm distance, the control signal changes state. It can be used in applications such as part counting, frequency counter, liquid level control. It is manufactured to be unaffected by water dust oil vibration.

Features:

•   Model: SN04-N1
•   Type: Inductive sensor
•   Detected object: Metal
•   Detection distance: 4mm  -+10%
•   Operating voltage: DC 10 / 30V
•   Operating current: 5mA
•   Output: NPN NO  ( Normally open )
•   Red detection led.
•   Frequency:  500Hz Maximum
•   Protection type:  IP67
•   Material: Plastic / Metal
•   Color:  Blue
•   Cable length:  100cm

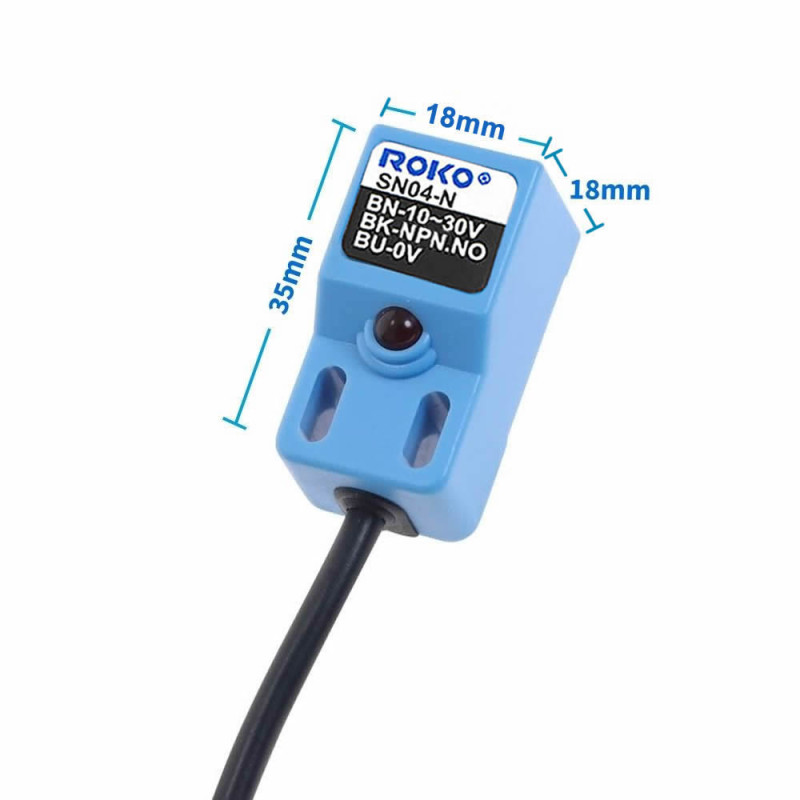

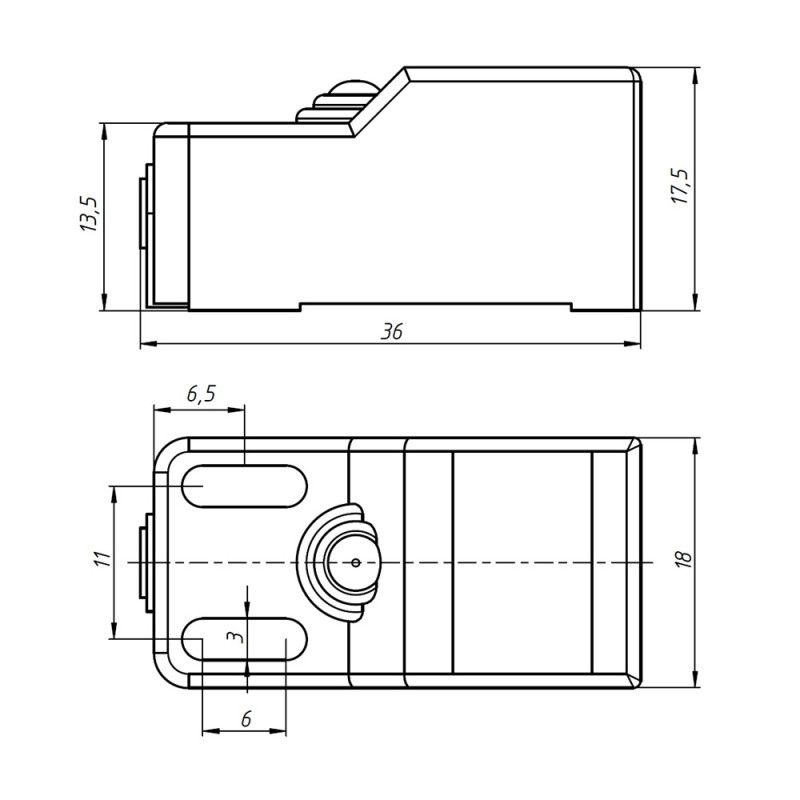

•   Dimensions: 18mm x 18mm x 36mm
•   Weight: 35gr

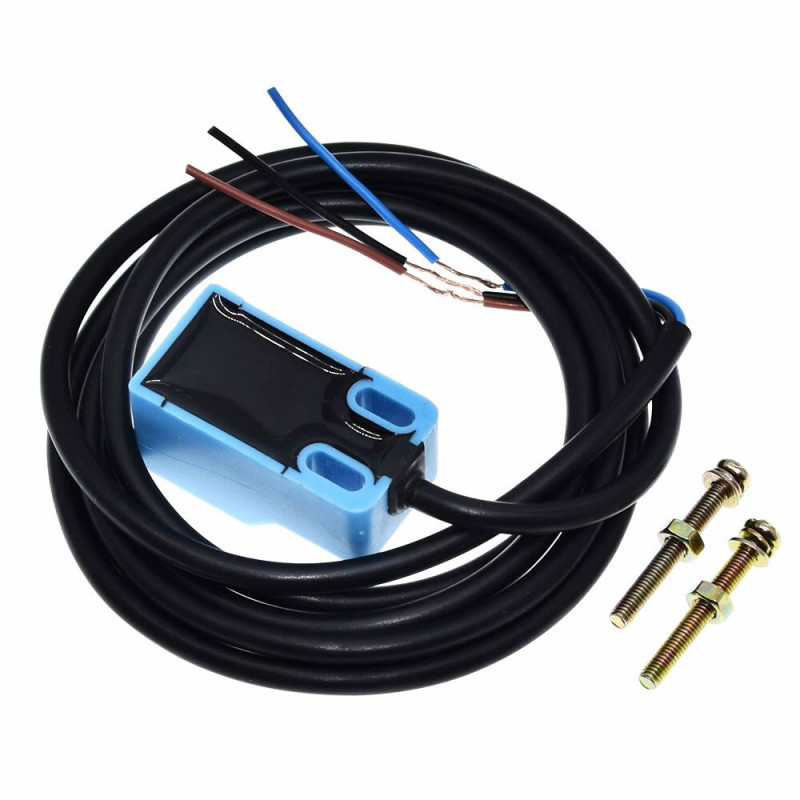

Cable Connections:

•    Brown: Supply + ( DC 10-30V )
•    Blue: GND  0V
•    Black: Data Output

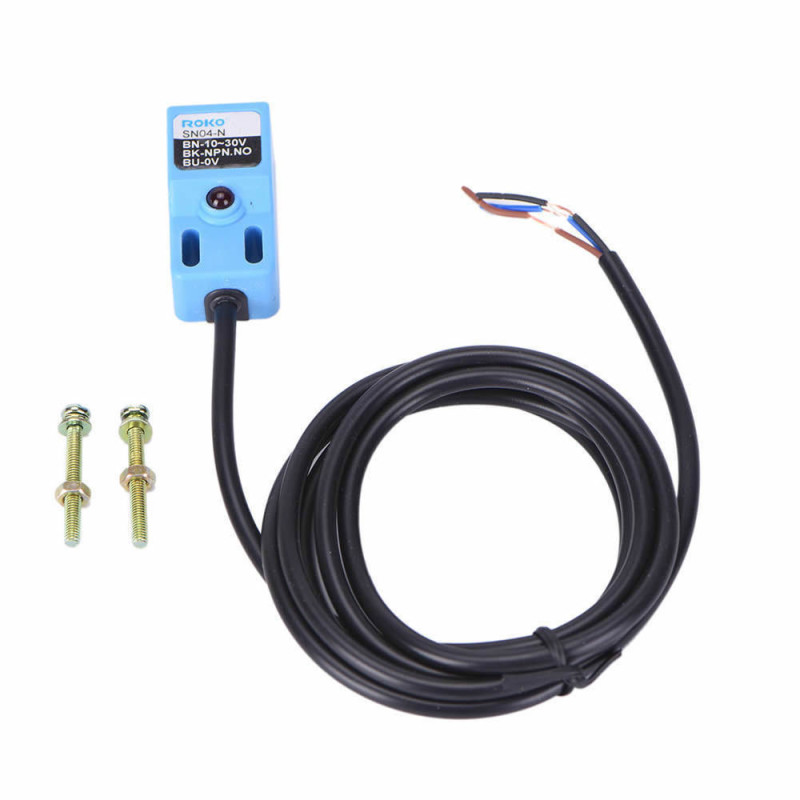

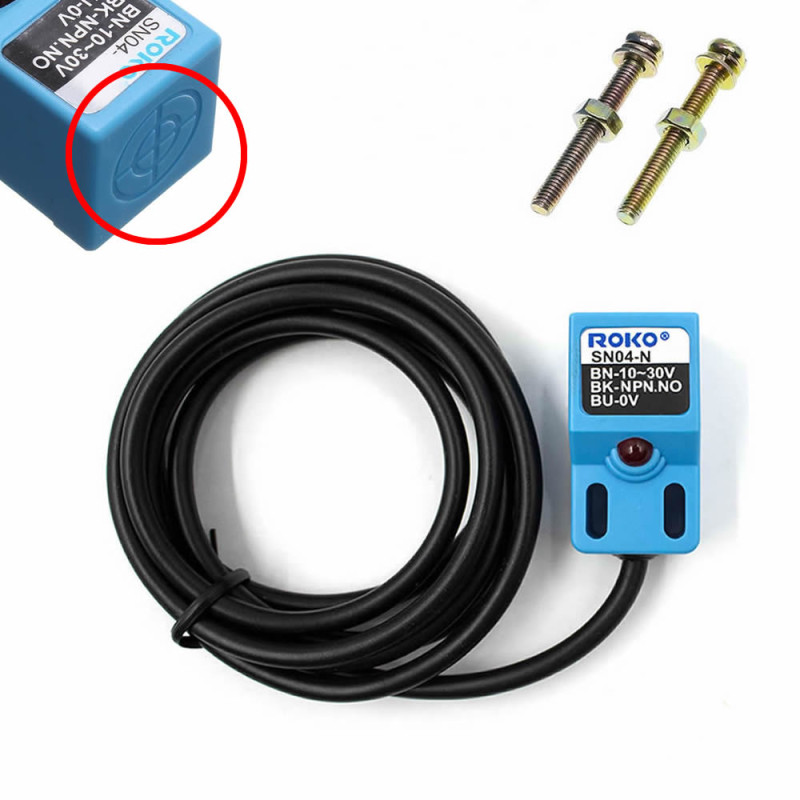

Package contents:

•   1 Pcs SN04-N1 Inductive Distance Detection Sensor
•   2 Pcs screw nut

.
