580 Piece 2.8mm 2/3/4/6/9 Pin Socket Set

580 Piece Electrical Cable Connector Terminal Set

2 3 4 6 9 Pin Male Female 2.8mm Automotive Bicycle Scooter Motorcycle Quick Connection Set

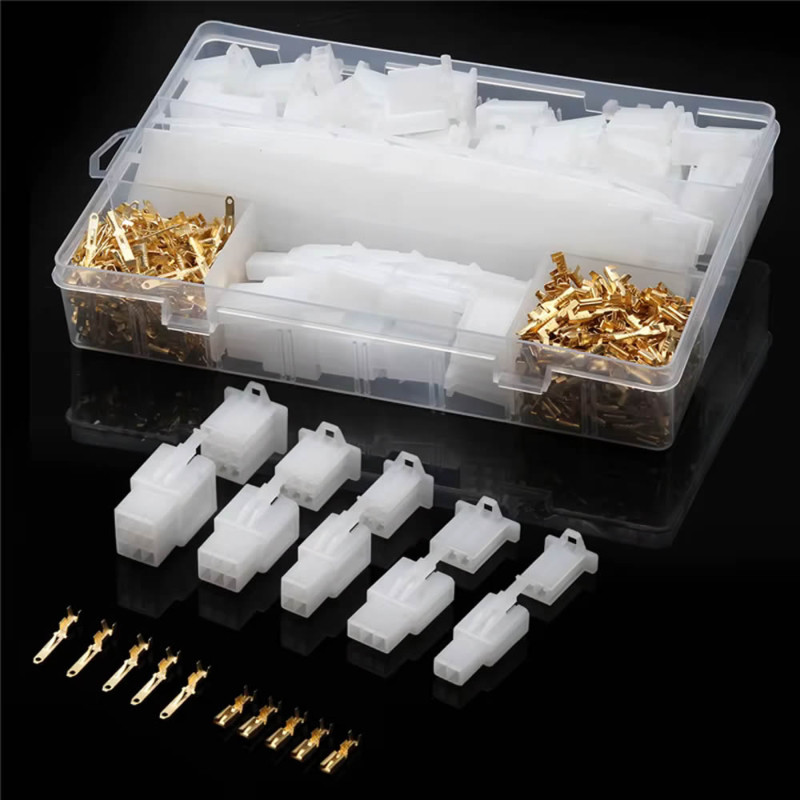

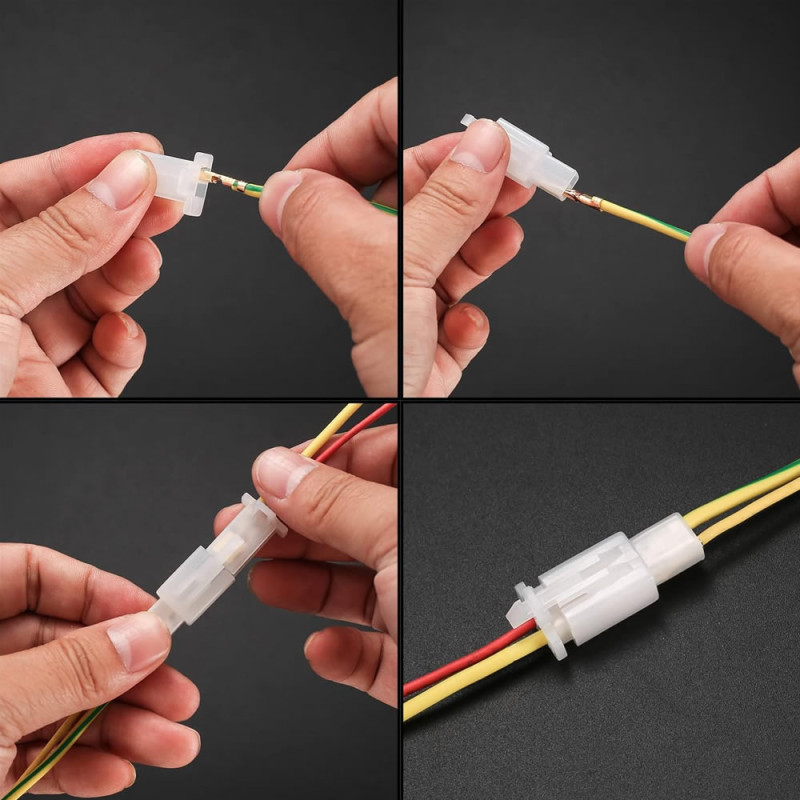

     This 580 piece connector set is one of the most common terminal types used in electrical systems such as vehicles, motorcycles and e-bikes. The set contains 2, 3, 4, 6 and 9 pin male-female connectors and terminals. All parts are presented neatly in a compartmented plastic box. It provides a fast and safe connection in maintenance, assembly and cabling operations on prototype devices.

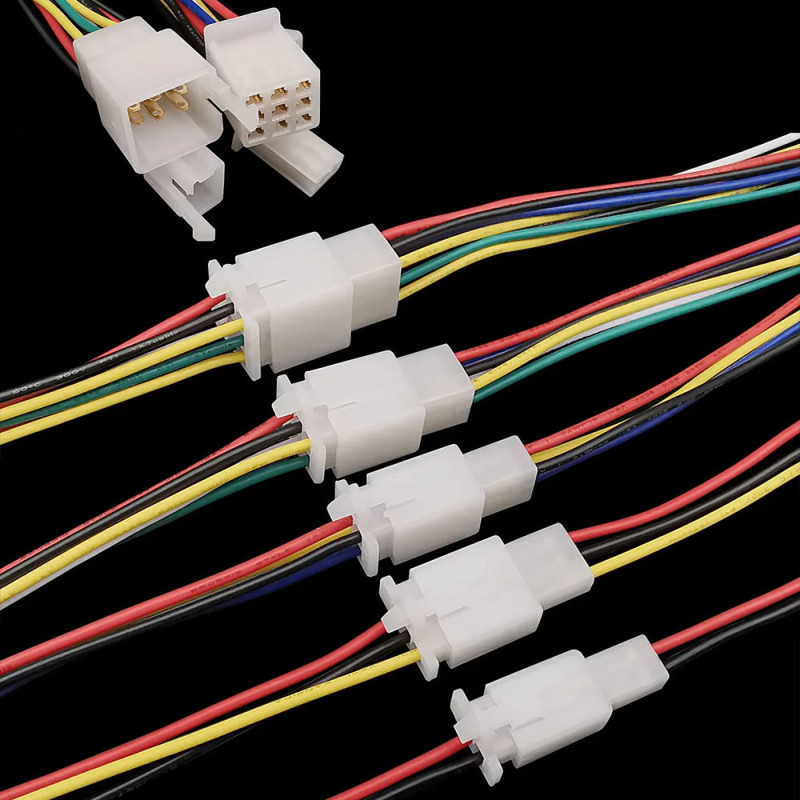

     Thanks to its nylon body and 2.8mm terminal structure, it offers high conductivity, vibration resistance and long lasting use. The connectors, which have a temperature tolerance up to 105C, provide protection against corrosion in humid and harsh environmental conditions. It is an ideal set for those looking for a safe, easy and professional solution in vehicle electrical wiring, sensor, relay and lighting connections.

Features

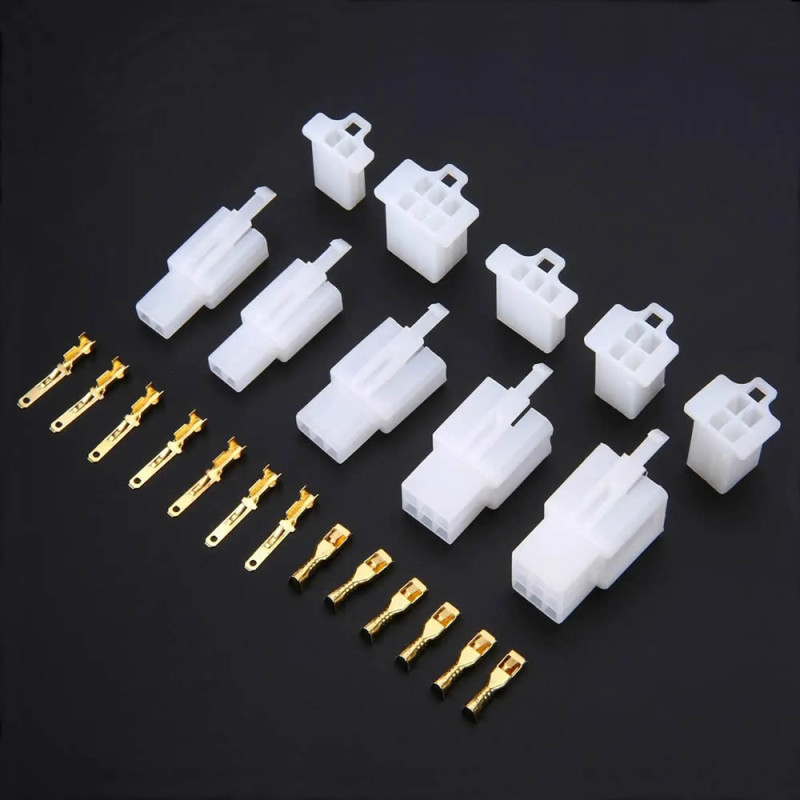

• 580 Piece 2.8mm 2/3/4/6/9 pin socket set
• Operating voltage:  DC36V / 48V (60V at low current)  /  AC 250V
• Operating current: 8A (10A short term)
• Pin spacing (pitch): Approximately 5mm

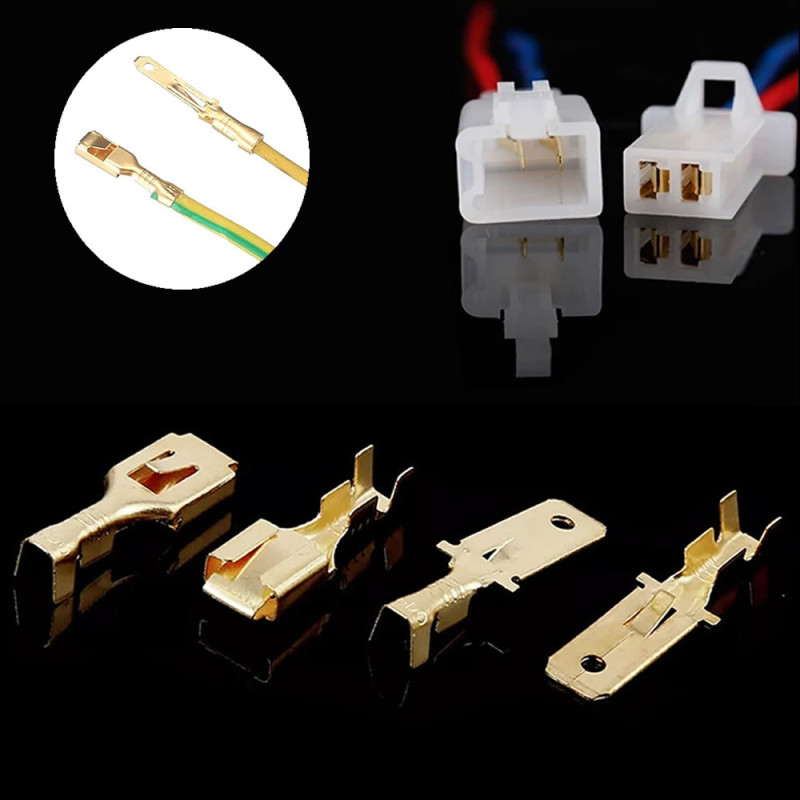

• Terminal thickness: 2.8mm
• Material: Metal /  Plastic
• Color: White / Yellow
• Cable diameter support:  2mm and below

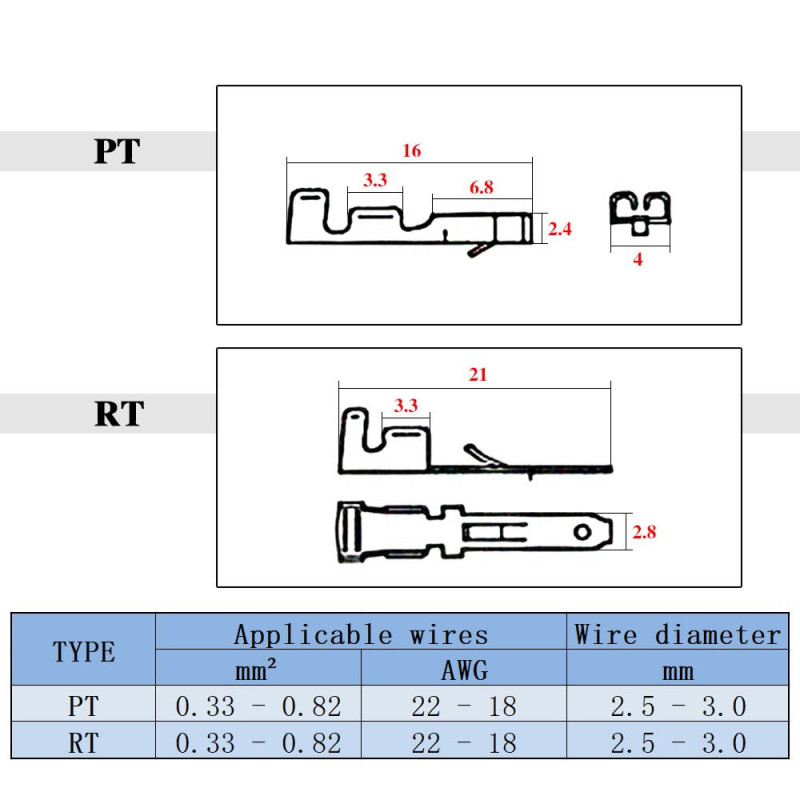

• Male terminal length:  20mm
• Female terminal length: 15mm

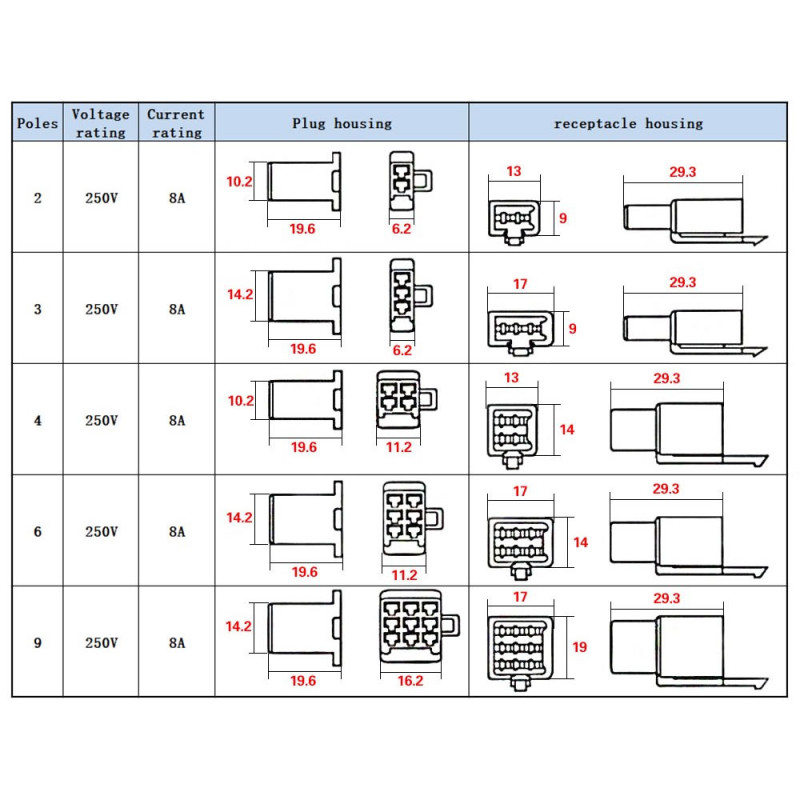

• Male socket length: 18mm / 19mm
• Female socket length:  37mm
• High conductivity
• Ergonomic design that prevents reverse connection
• Sturdy structure and long life
• Moisture and dust protection
• Operating temperature: -40C / 105C
• Box size: 14cm x 20cm x 3.5cm
• Weight: 380gr

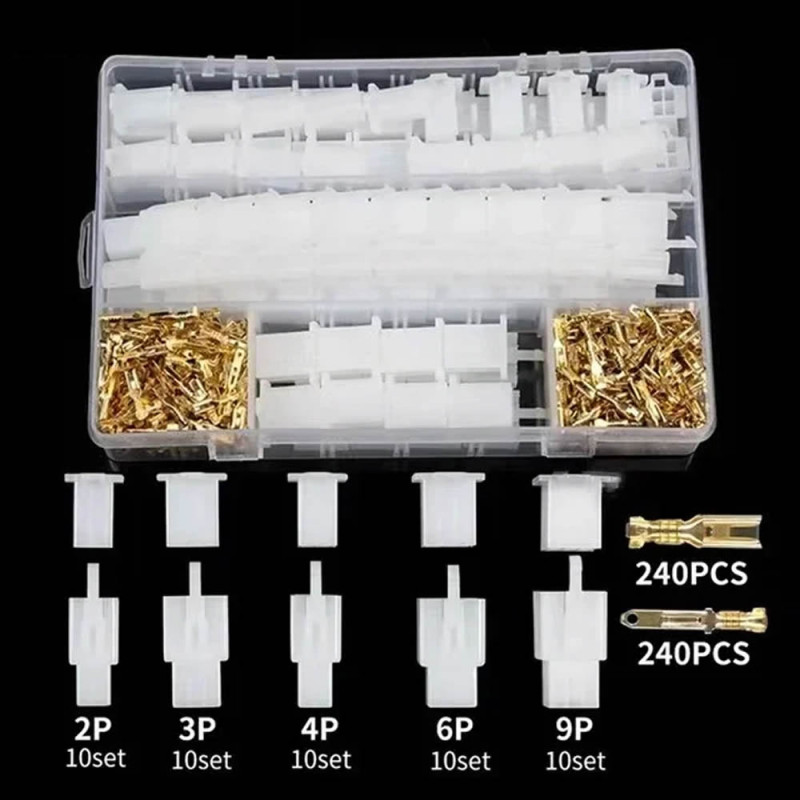

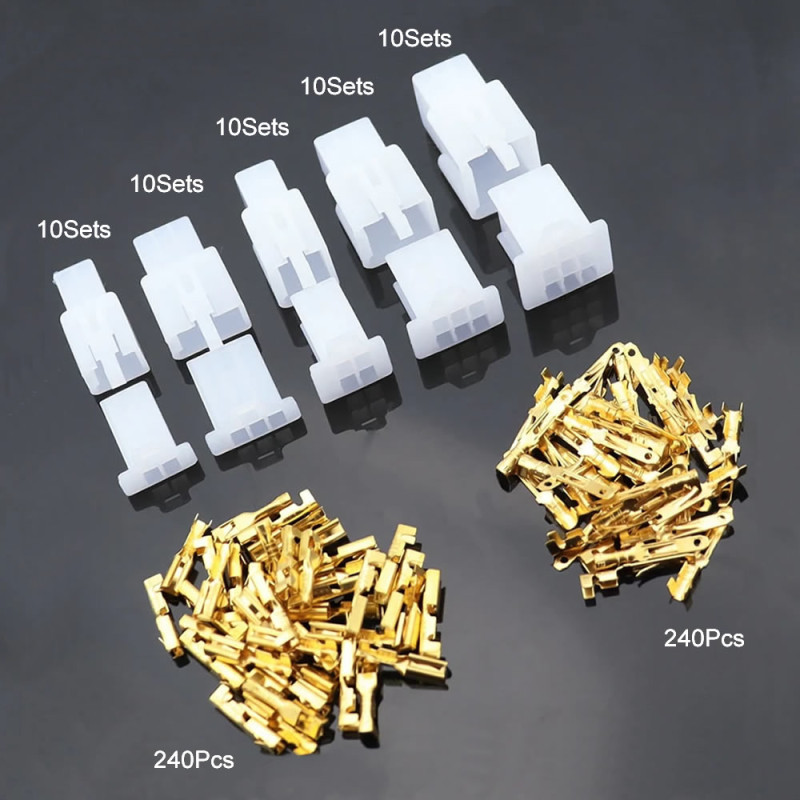

• 240 pieces male terminal
• 240 pieces female terminal
• 10 pieces 2 pin male socket
• 10 pieces 2 pin female socket
• 10 pieces 3 pin male socket
• 10 pieces 3 pin female socket
• 10 pieces 4 pin male socket
• 10 pieces 4 pin female socket
• 10 pieces 6 pin male socket
• 10 pieces 6 pin female socket
• 10 pieces 9 pin male socket
• 10 pieces 9 pin female socket


Package contents:

•    580 Piece 2.8mm 2/3/4/6/9 Pin Socket Set
