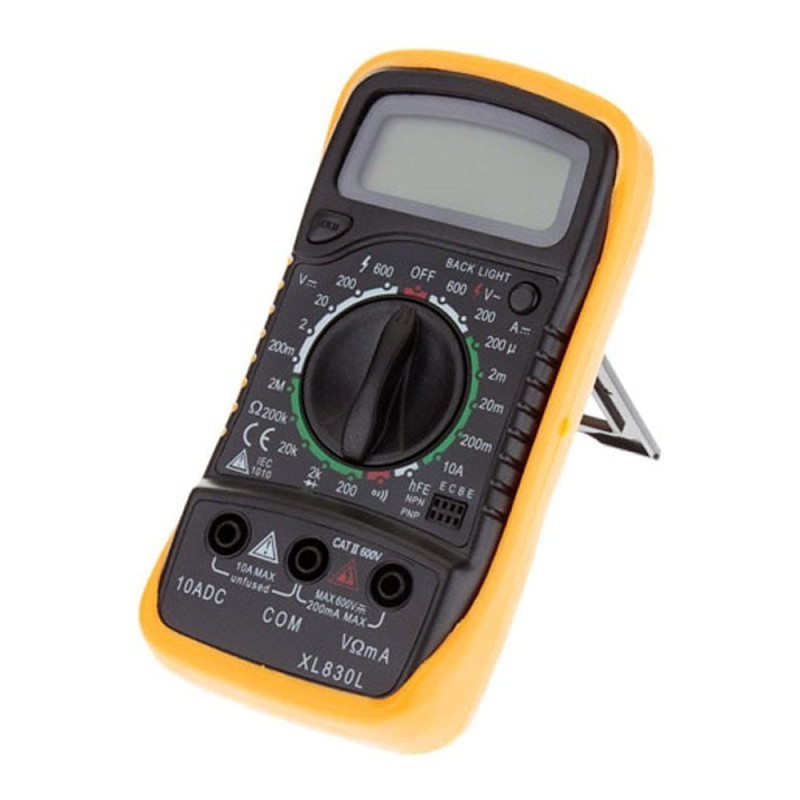

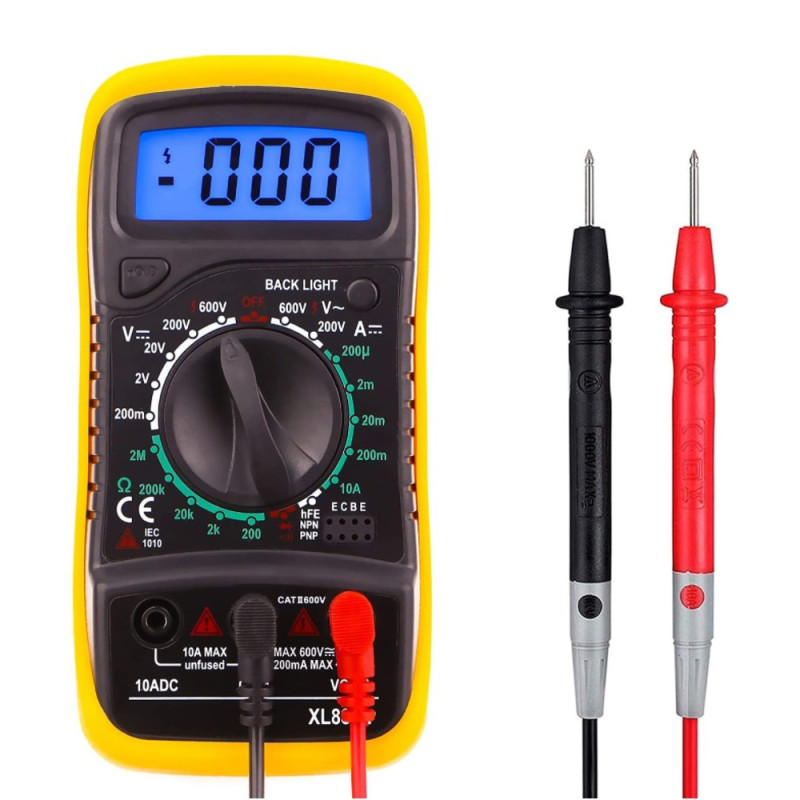

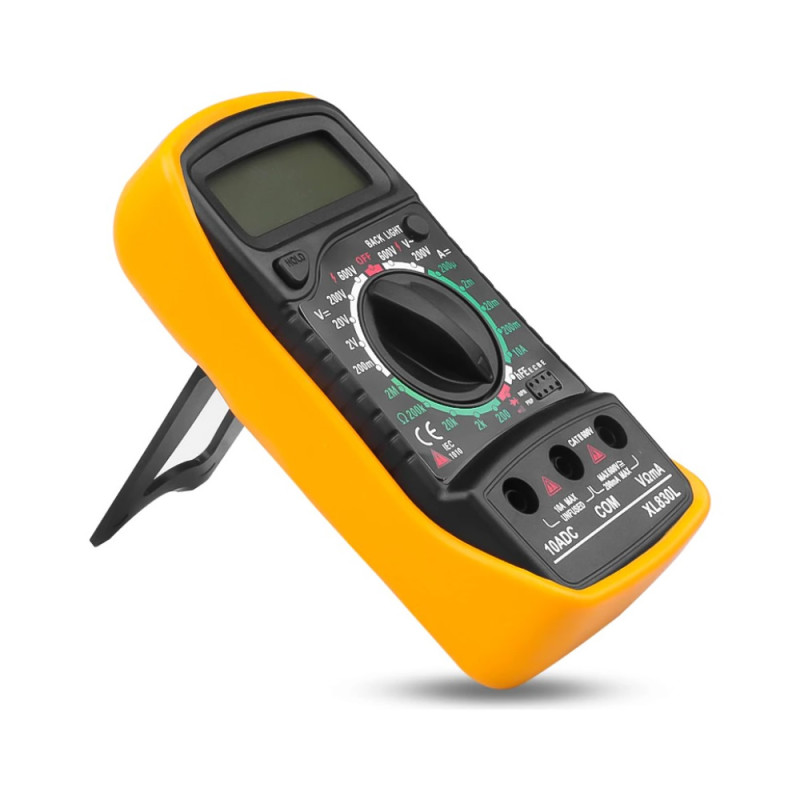

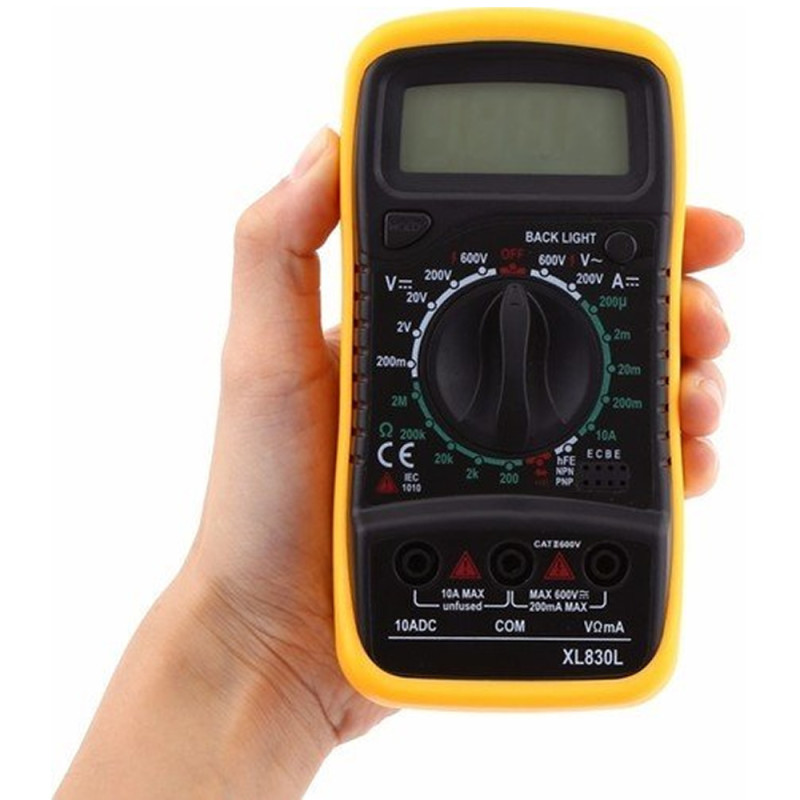

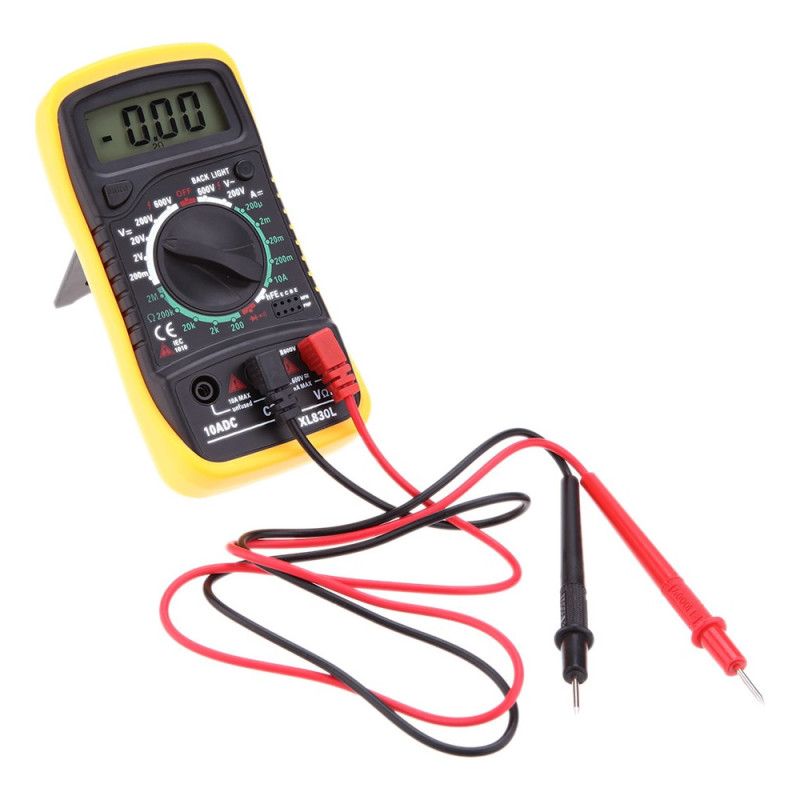

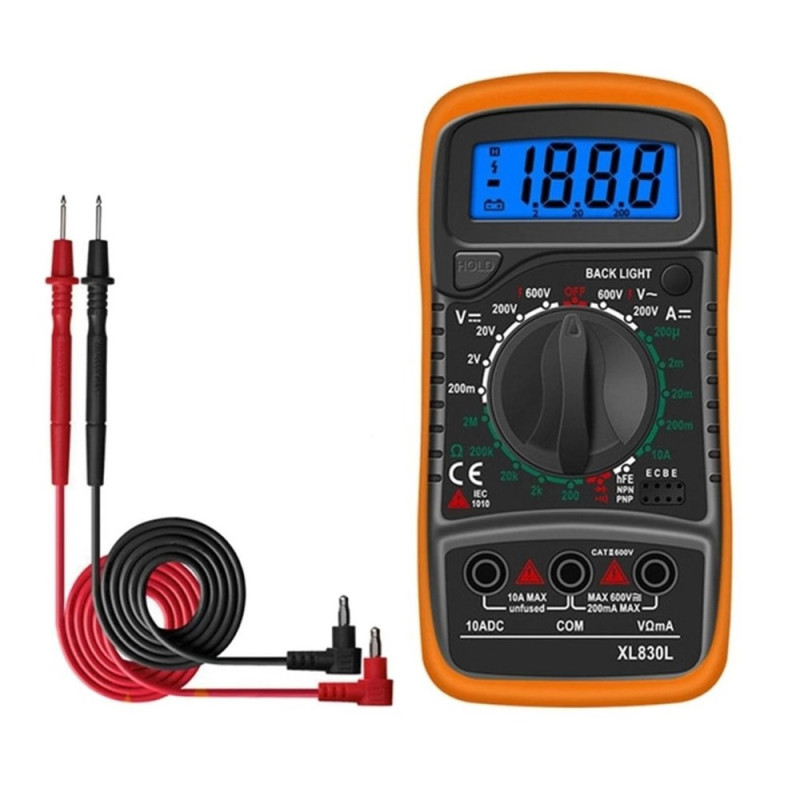

XL830L Digital Multimeter

XL830L Digital Multimeter

Measuring Instrument Avometer Voltmeter Ammeter Voltage Current Resistance Transistor Diode Test Pocket Type Mini

     Pocket type economical multimeter. It is carried easily with its small structure. It is easy to use. It has a screen where the indicator texts can be read comfortably. You can use it in all your basic measurement operations. It is an ideal starter product for electronics people, technicians, laboratories, workshops, students and home users.

Features:

• XL830L Digital Multimeter
• Pocket type small voltmeter
• 3 1/2 Digital 7 segment screen
• Blue backlight
• Maximum reading: 1999
• Automatic polarization indicator.
• Measurement time: 2-3 times per second
• DC current measurement range:  200ua / 2ma / 20ma / 200ma / 10A  +-1.8%
• AC voltage measurement range:   200V / 600V  +-2.0 %
• DC voltage measurement range: 200mV / 2V / 2V0 / 200V / 600V  +-0.5 %
• Resistance measurement range:   200ohm / 2kohm / 20kohm / 200kohm / 2Mohm  +-1.0%
• Short circuit measurement
• Transistor hFE test  NPN & PNP 0~1000 1b=10mA Vce=3V
• Diode test
• Buzzer alert
• Low battery indicator
• Power supply: 9V Battery
• Color:    Black / Yellow

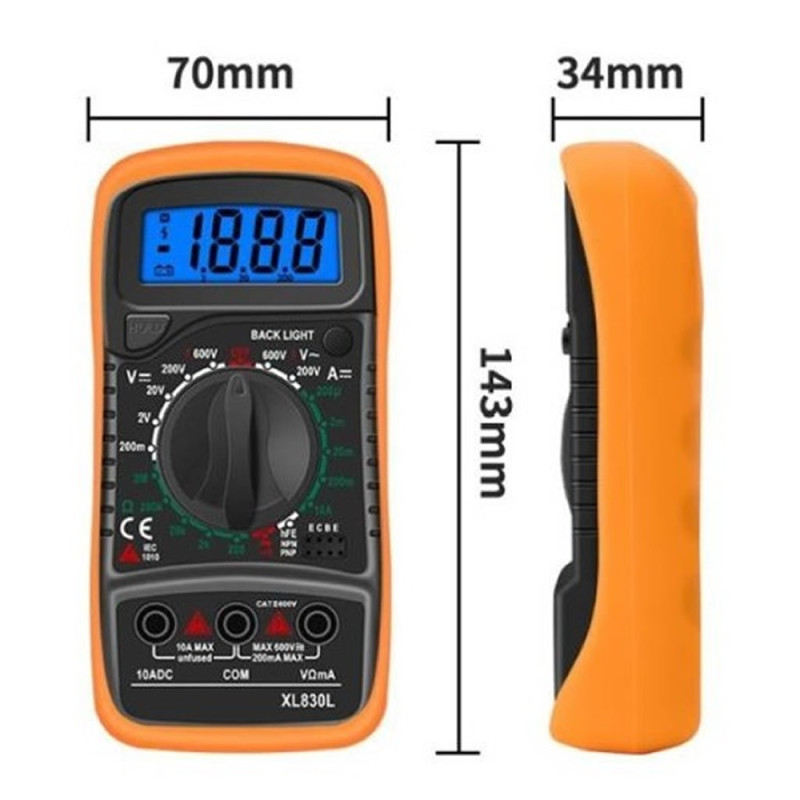

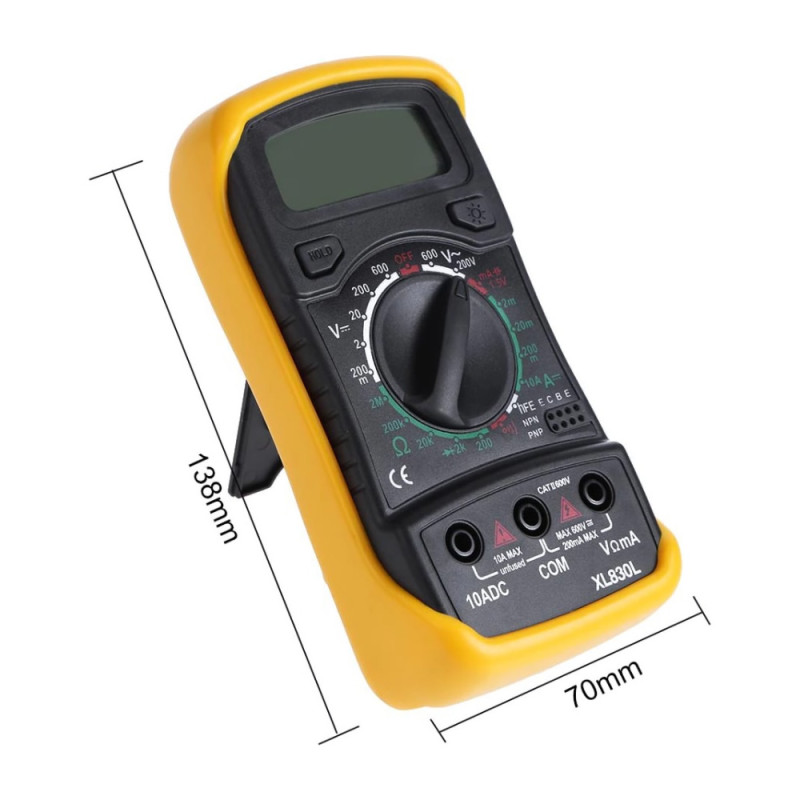

• Dimensions:   68mm x 140mm x 34mm
• Weight:  180gr  (220gr)

Package contents:

•      1 Piece XL830L Digital Multimeter
•      2 Pieces Probe
•      1 Piece User Manual
