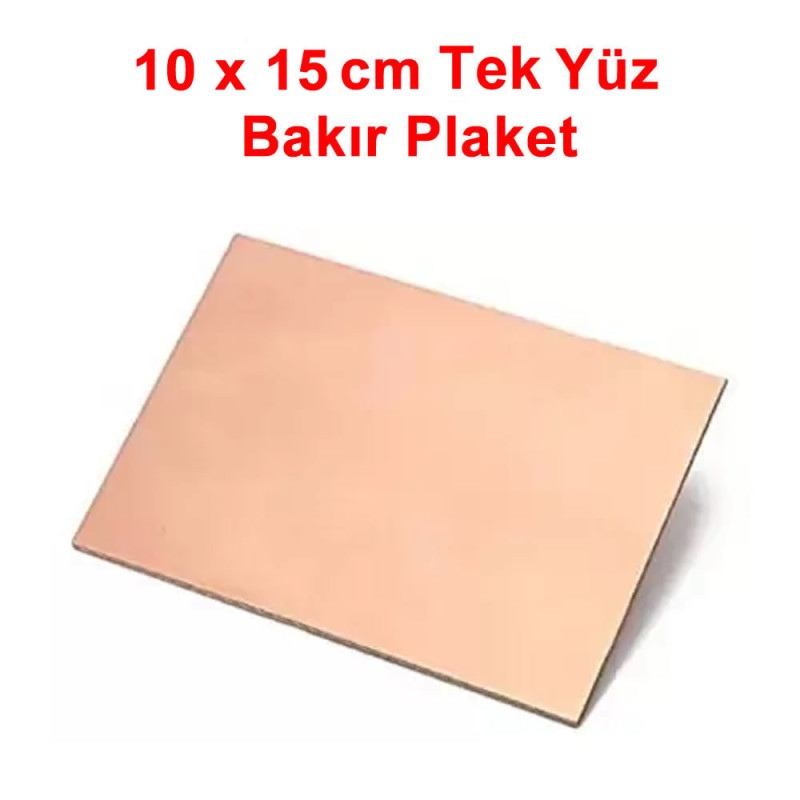

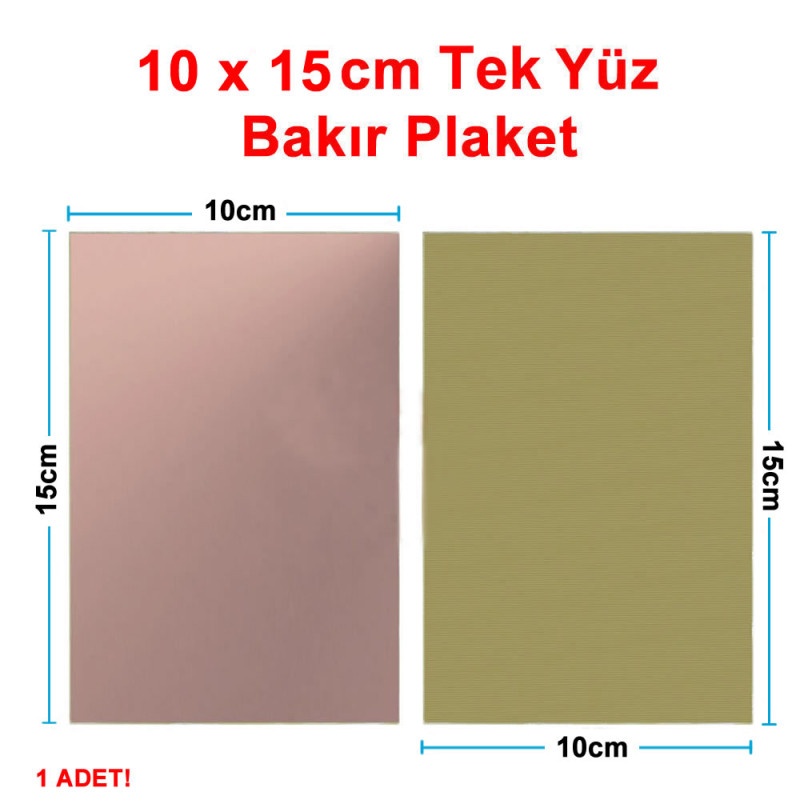

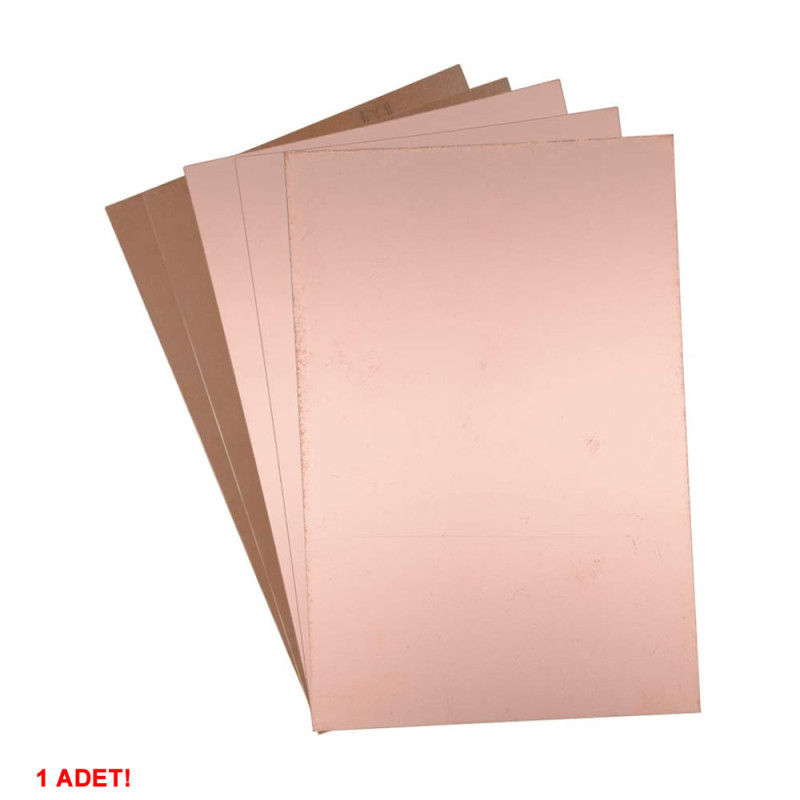

10x15cm Single Sided Copper Pcb

10x15cm Single Sided Copper Plate Pcb

Electronic Printed Circuit Prototype Test Experiment Trial Board FR4 Quality Pcb Sheet

     There may be production-related marks and fingerprints on the products. Before use, wipe and wash them with a non-scratching cleaning agent. You can use them after drying.

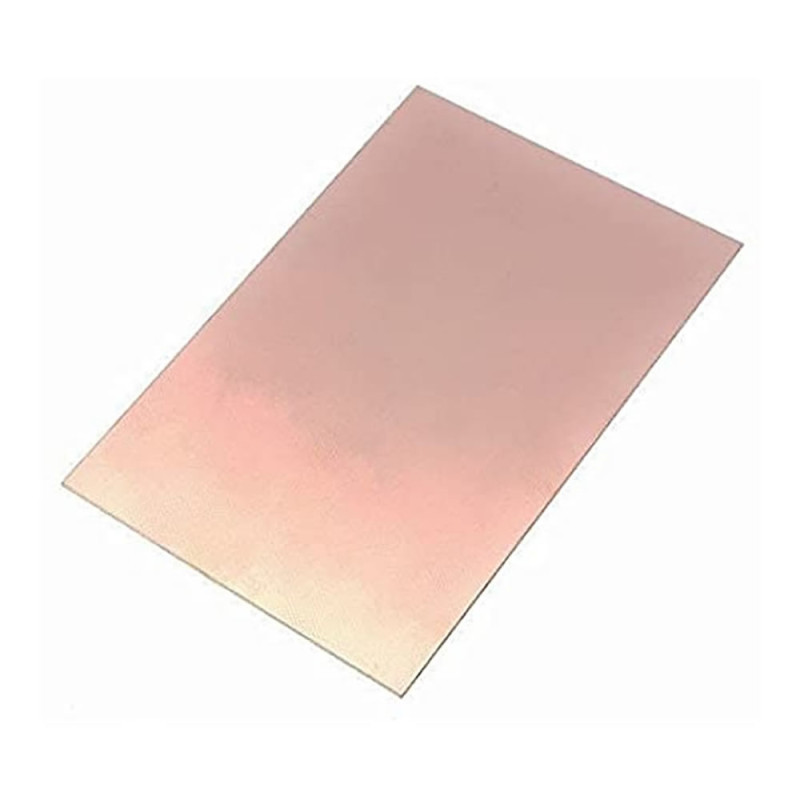

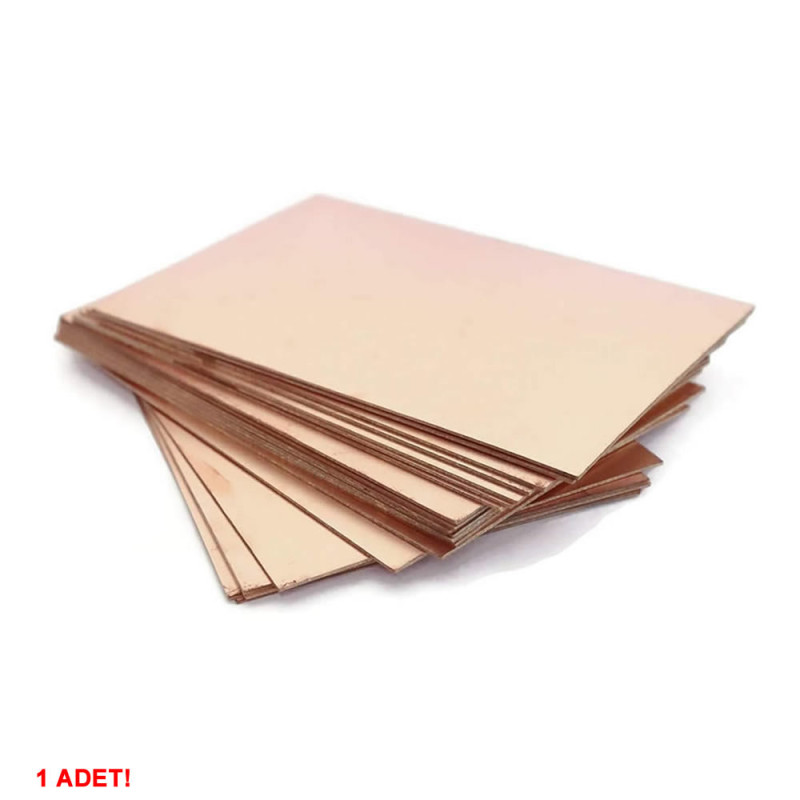

     It is a single sided blank copper pcb used for creating electronic test / prototype circuits. With its single sided copper clad structure, this material allows you to place components on only one surface.

     Printed circuit making: Your circuit traces are transferred onto the blank pcb by various methods. Such as drawing with a pen or ironing a printout taken from a laser printer onto the pcb... In this state, when the copper plate with the circuit traces drawn on it is placed in an acid bath, the areas without traces dissolve. The component pads and circuit traces remain behind. The inks are cleaned, the required holes are drilled. Afterwards you can create your circuit by soldering the components.

Features:

• 10x15cm single sided copper pcb
• It is a quality prototyping pcb.

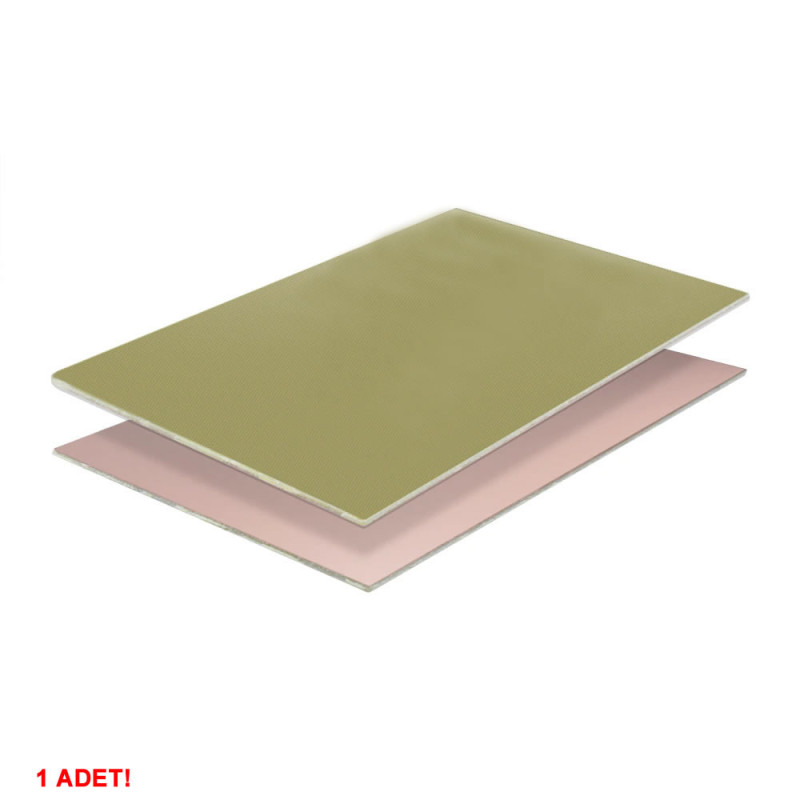

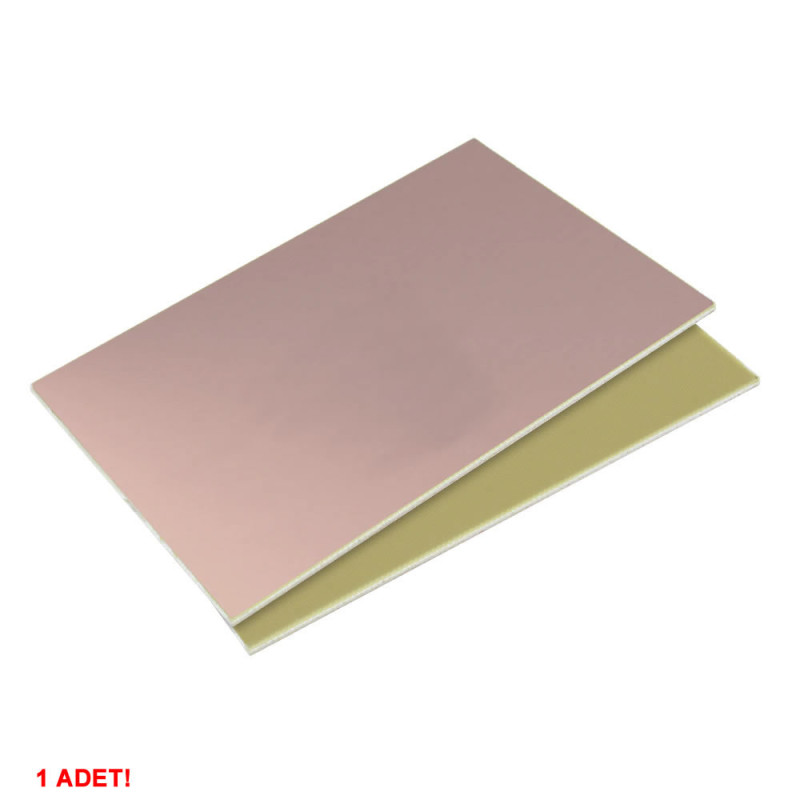

• Copper clad on 1 surface
• Ability to place components on 1 surface
• First class quality 1 sided Fr4 Pcb
• Can be used for a long time.
• Color: Copper
• Pcb Thickness: 1.6mm
• Copper thickness: 35um

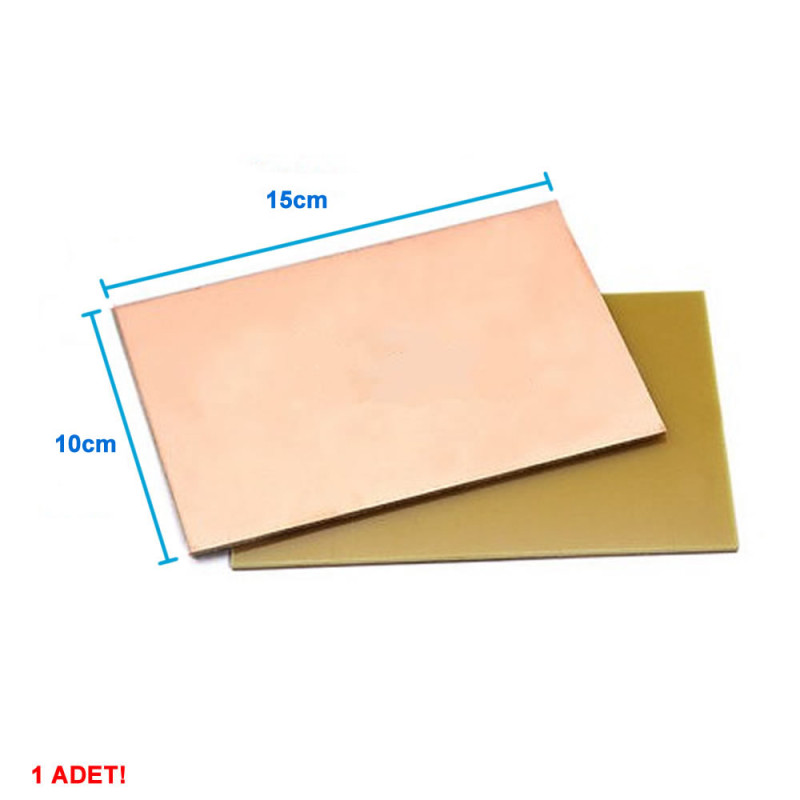

• Dimensions: 10cm x 15cm
• Weight: 48gr

Package Contents:

• 1 Piece 10x15cm Single Sided Copper Pcb

.
