- Stok Durumu: Stok Var
- Marka: OEM
- SKU: RBZ.100.386

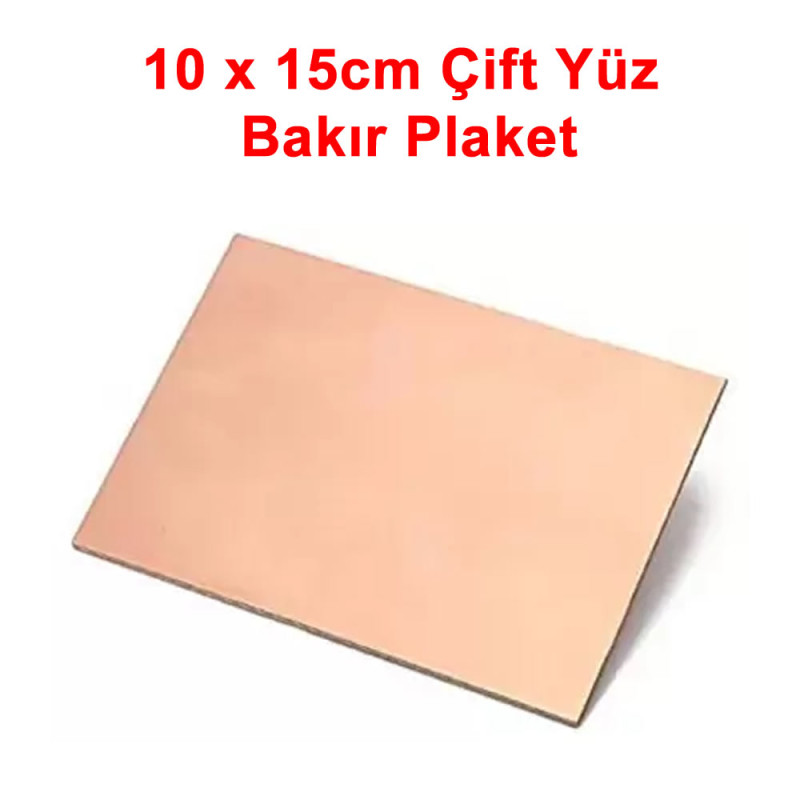

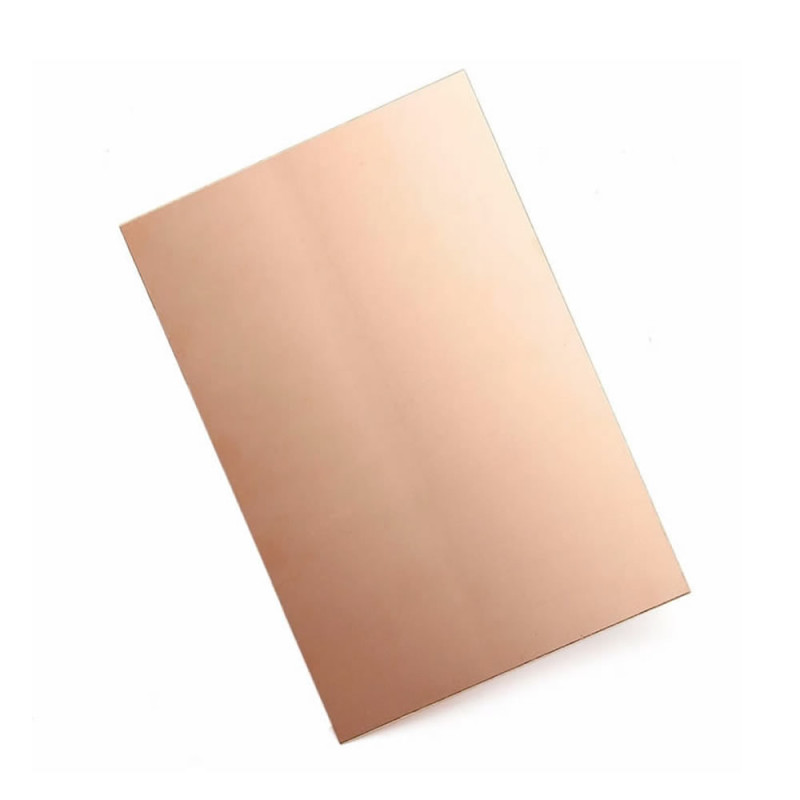

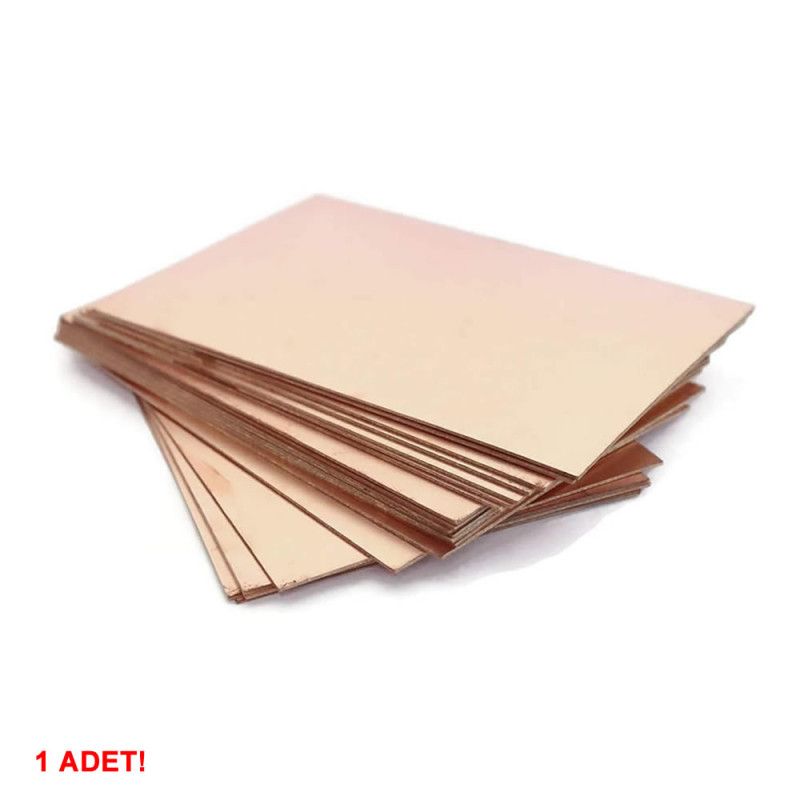

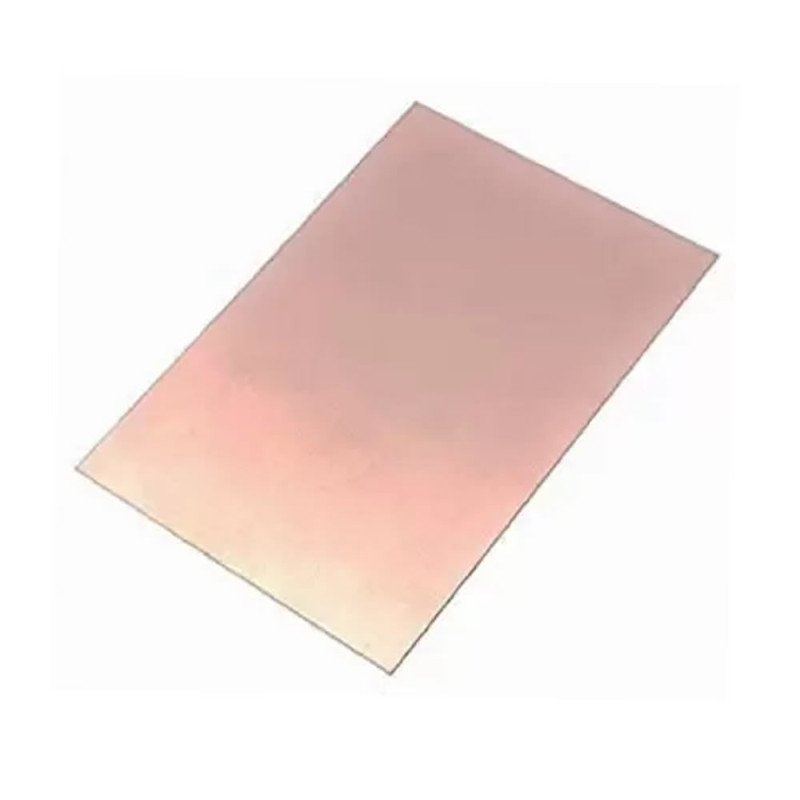

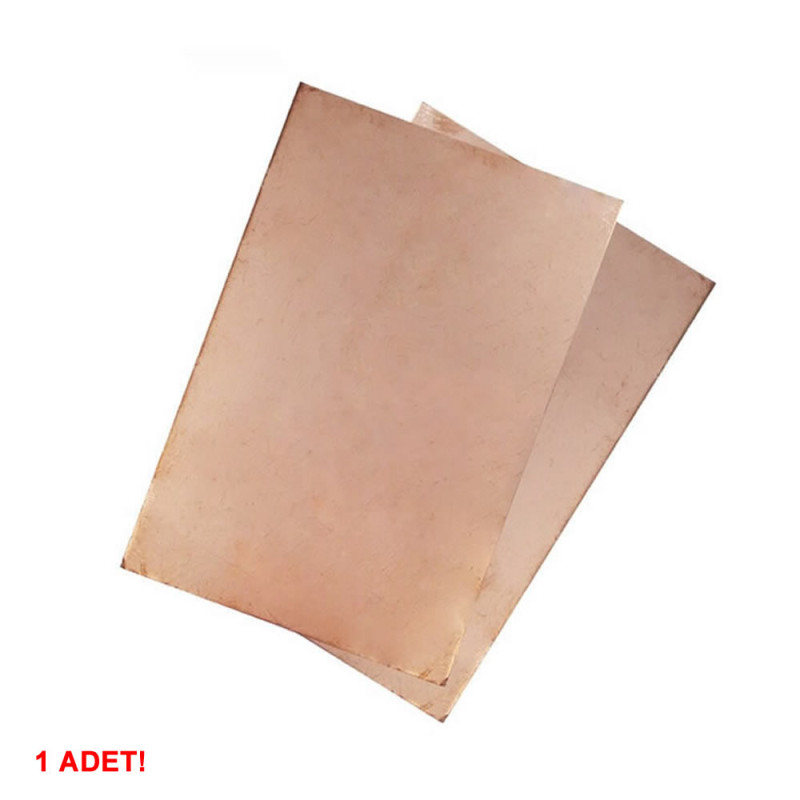

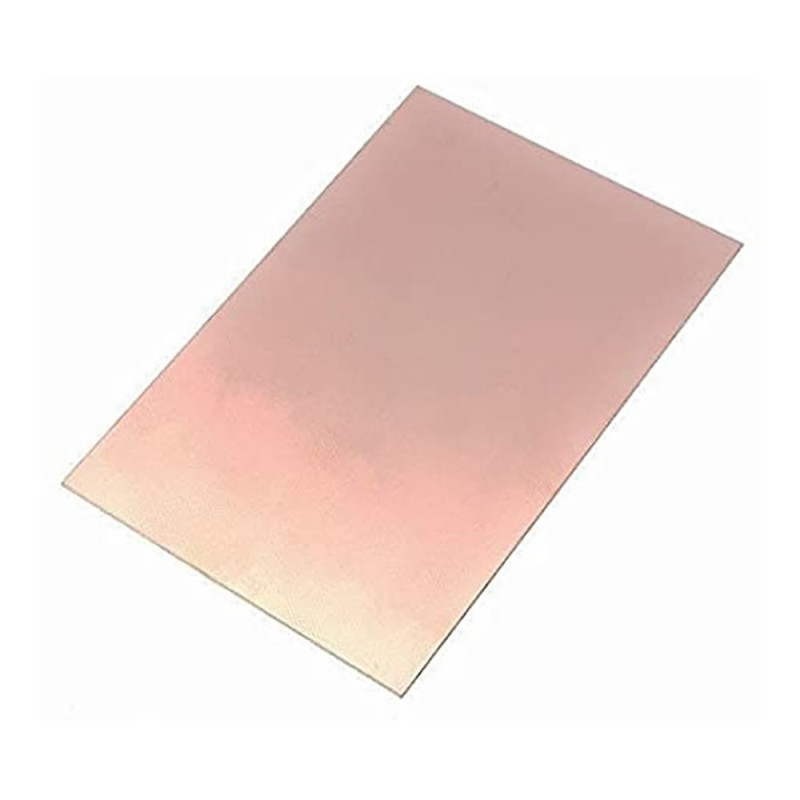

10x15cm Double Sided Copper Plate Pcb
Electronic Printed Circuit Prototype Test Experiment Trial Board FR4 Quality Pcb Sheet
It is a double sided blank copper pcb used for creating electronic test / prototype circuits. With its double sided copper clad structure, this material allows you to place components on both surfaces. This way you will have the opportunity to create smaller circuits.
Printed circuit making: Your circuit traces are transferred onto the blank pcb by various methods. Such as drawing with a pen or ironing a printout taken from a laser printer onto the pcb... In this state, when the copper plate drawn with circuit traces is placed in the acid bath, the areas without traces dissolve. The component pads and circuit traces remain behind. The inks are cleaned, the required holes are drilled. You can create your circuit by soldering the components.
There may be fingerprints on the products. Before use, wipe and wash with a cleaning agent that will not scratch. You can use it after drying.
Features:
- 10x15cm double sided copper pcb
- It is a quality prototyping pcb.
- Copper cladding on 2 surfaces
- Being able to place components on 2 surfaces
- 1st class quality double sided Fr4 Pcb
- It can be used for a long time.
- Color: Copper
- Pcb Thickness: 1.6mm
- Copper thickness: 35um

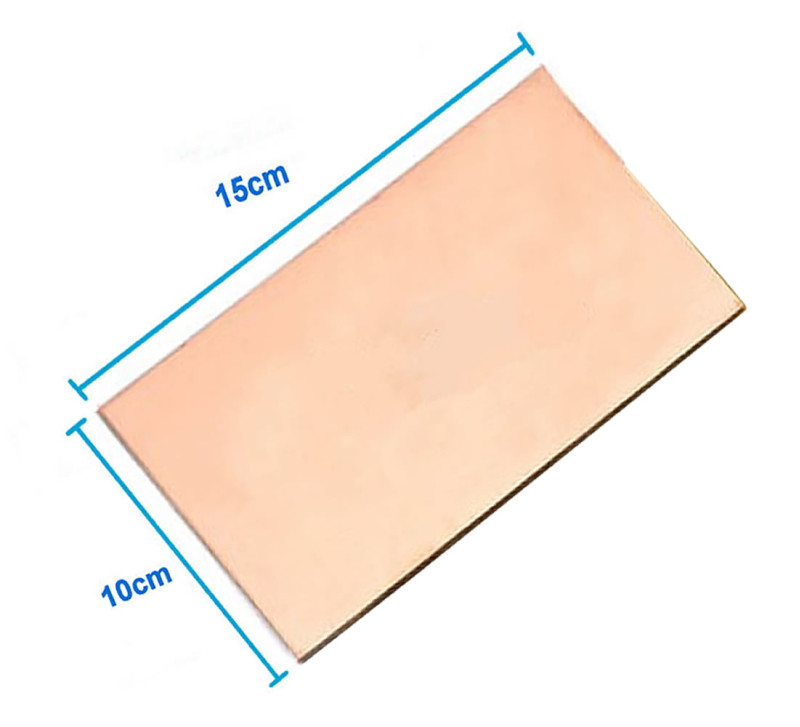

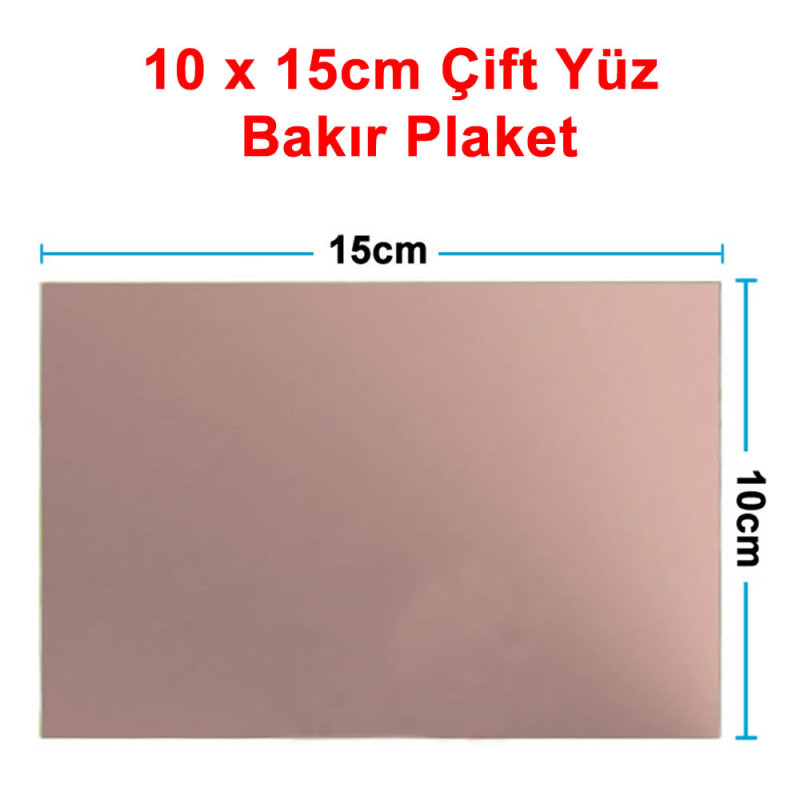

- Dimensions: 10cm x 15cm
- Weight: 48gr
Package Contents:
- 1 Piece 10x15cm Double Sided Copper Pcb
.
