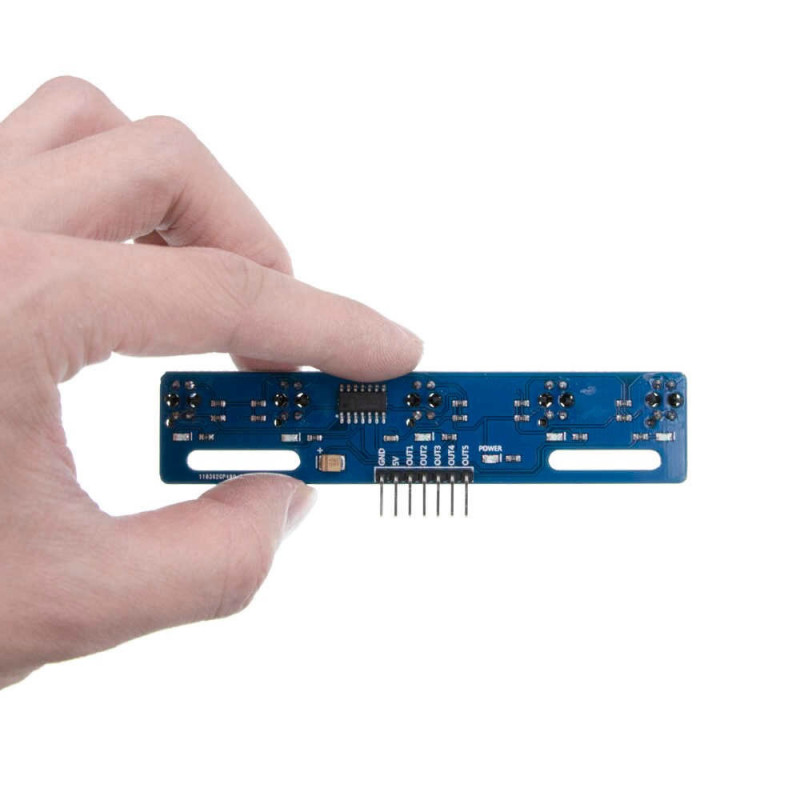

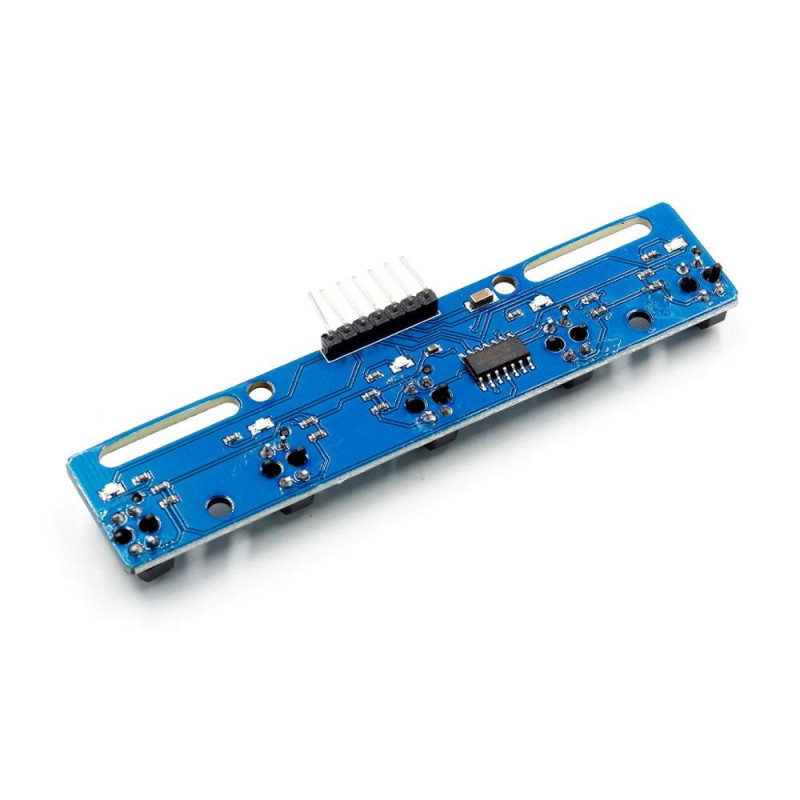

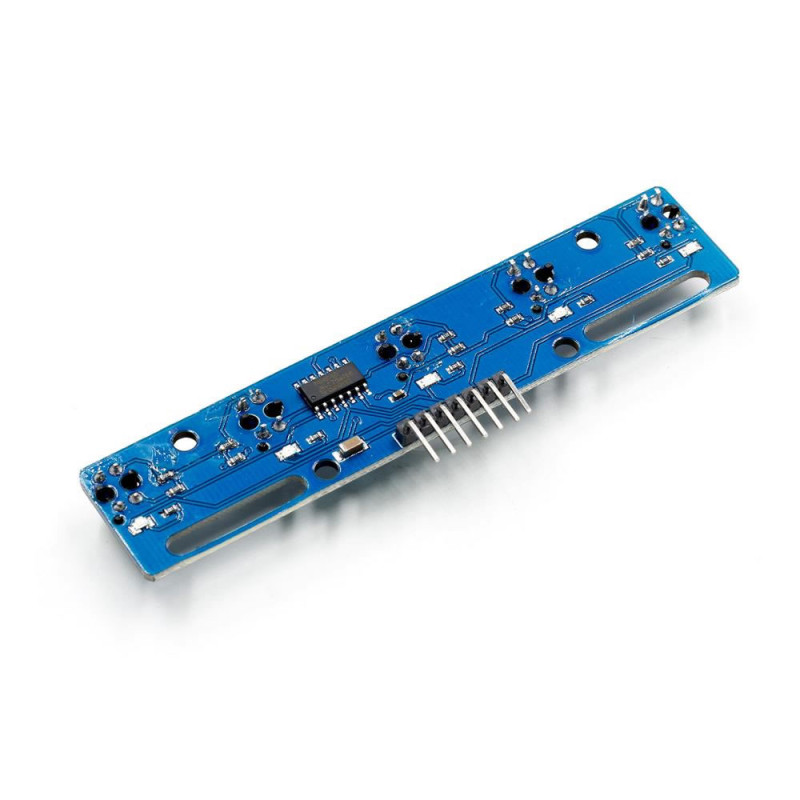

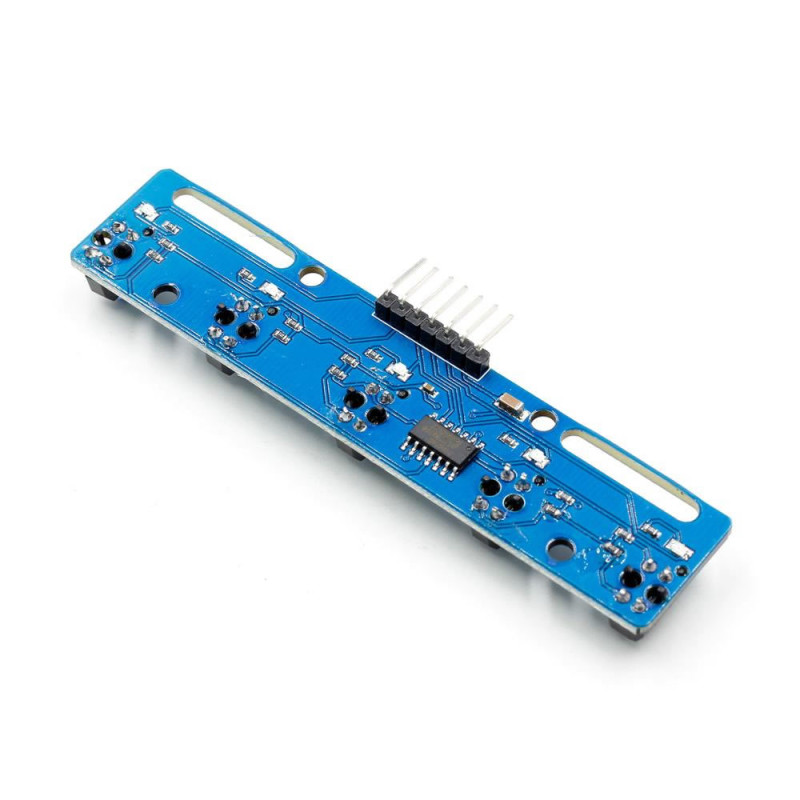

5 Channel Line Follower Sensor Module

5 Channel TCRT5000 Line Follower Sensor Module

Digital Output Infrared Reflective and Detector Smart Car Line Tracking Obstacle Sensor Board

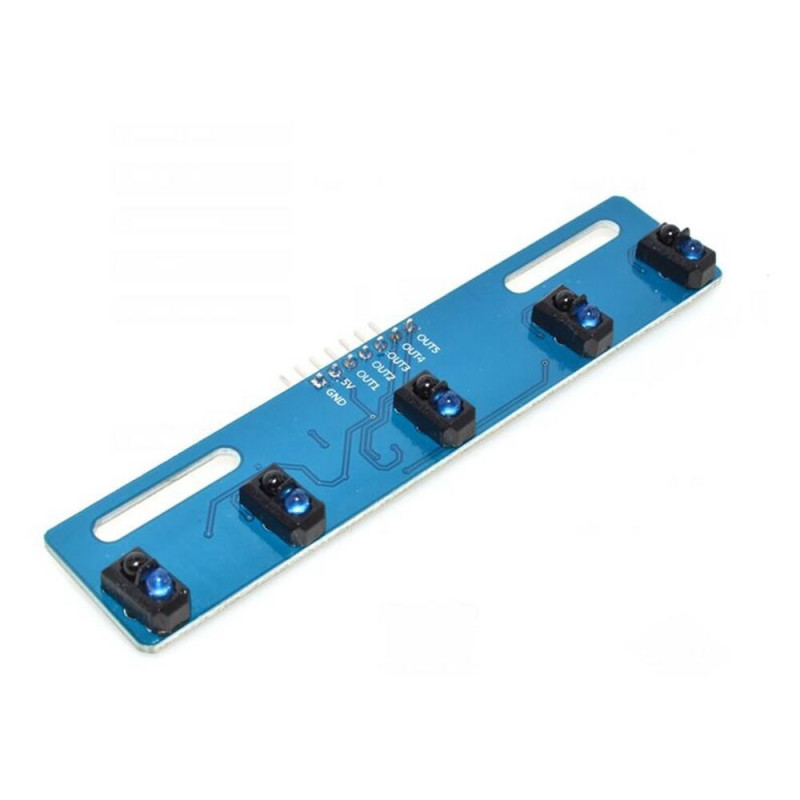

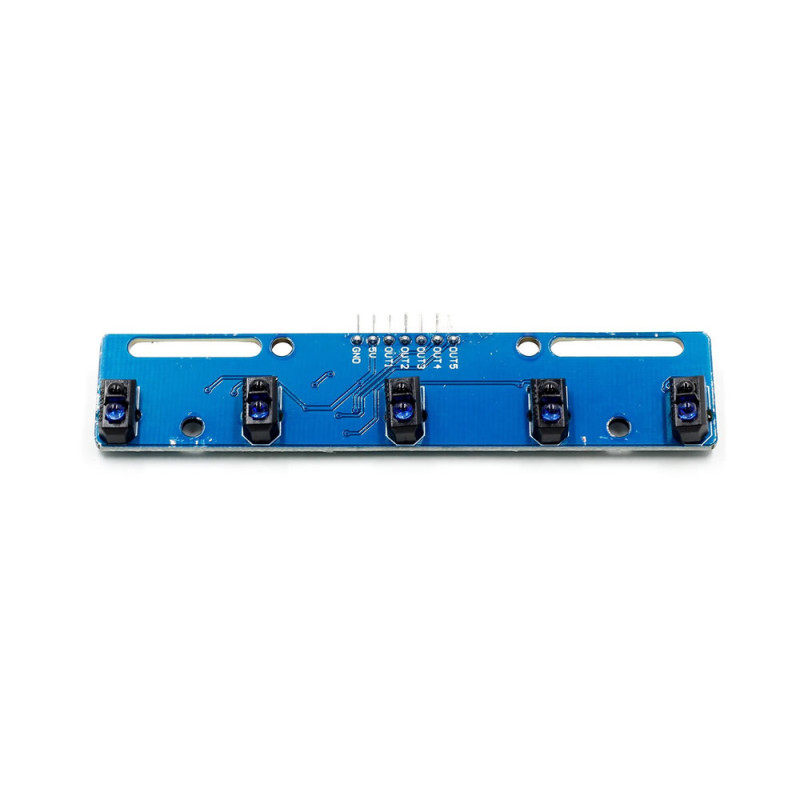

     It is a line tracking sensor board that you can easily use with Arduino and other microcontroller boards. There are 5 tcrt5000 infrared sensors on it. It is an ideal sensor board for your line following vehicle or line tracking robot projects.

       It can detect white lines on a black surface or black lines on a white surface. It detects distance and the colors of objects. Reflection from black surfaces is low. Color detection can be performed thanks to this low reflection. It gives low ( 0V ) voltage on black color and high ( 5V ) output on white colors.

Features:

•     Operating voltage: DC  3.3V-5V
•     Integrated circuit used: 74HC14D
•     High sensitivity with 5 TCRT5000 sensors
•     Digital signal output pins
•     White color: High ( 5V ) output
•     Black color: Low ( 0V ) output
•     Measuring distance: 1cm-1.5cm
•     Detection sensor: Tcrt5000

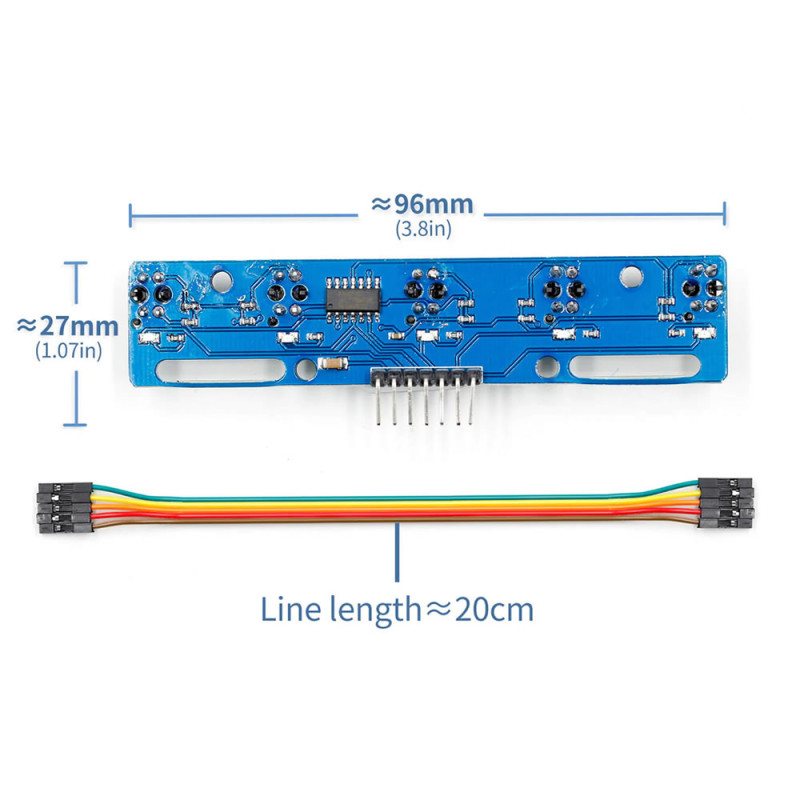

•     Size: 95mm x 20mm

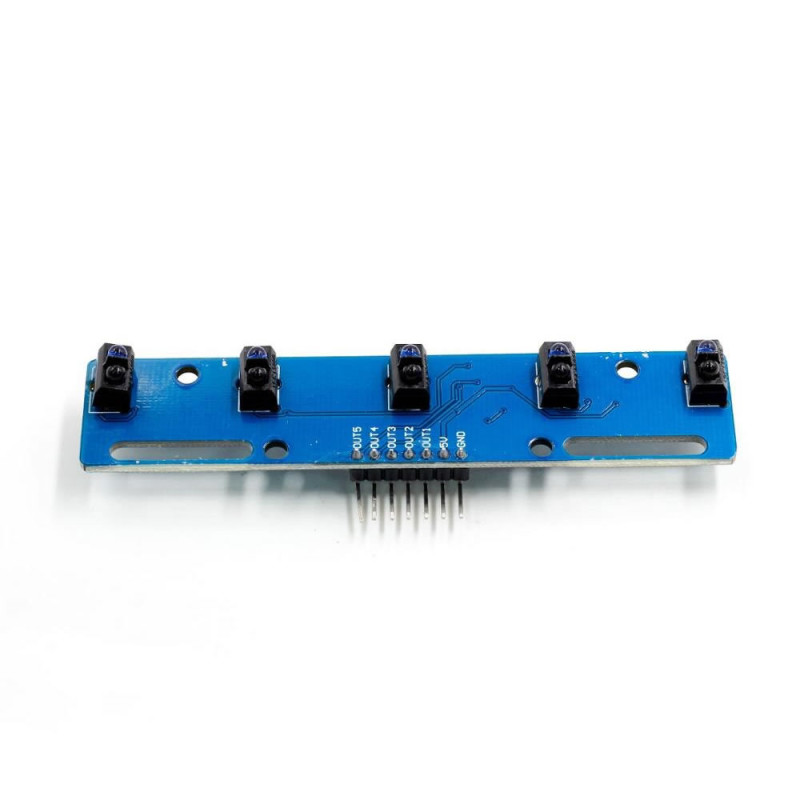

Connections:

• VCC: 3.3V ~ 5V Supply + connection
• GND: Ground Supply - connection
• OUT1 ~ 5: OUT: Signal output connections

Package Contents:

• 1 Piece 5 Channel Line Follower Sensor Module
• 1 Piece 20cm 7 pin female to female header cable
