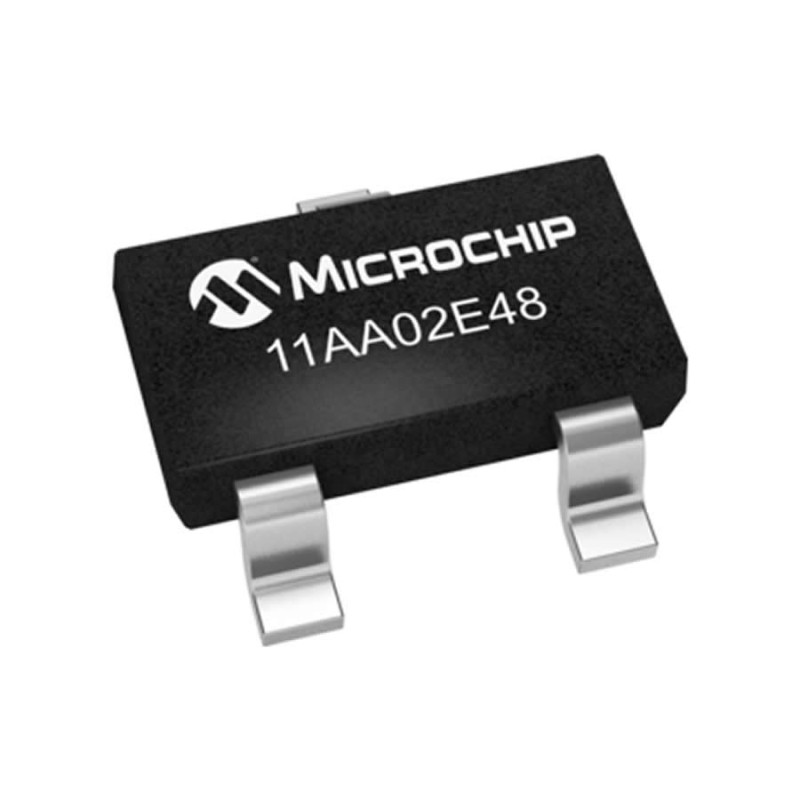

11AA02E48T-I/TT

11AA02E48T-ITT

     The Microchip Technology Inc. 11AA02E48 device is a 2 Kbit Serial Electrically Erasable PROM. The device is organized in blocks of x8-bit memory and support the patented* single I/O UNI/O® serial bus. By using Manchester encoding techniques, the clock and data are combined into a single, serial bit stream (SCIO), where the clock signal is extracted by the receiver to correctly decode the timing and value of each bit. Low-voltage design permits operation down to 1.8V, with standby and active currents of only 1 uA and 1 mA, respectively. The 11AA02E48 is available in standard 8-lead SOIC and 3-lead SOT-23 packages.

Features

• Pre-programmed Globally Unique, 48-bit Node Address
• Compatible with EUI-48™ and EUI-64™
• Single I/O, UNI/O® Serial Interface Bus
• Low-Power CMOS Technology:     -  1 mA active current, typical     -  1 µA standby current (max.)
• 256 x 8 Bit Organization
• Schmitt Trigger Inputs for Noise Suppression
• Output Slope Control to Eliminate Ground Bounce
• 100 kbps Max. Bit Rate – Equivalent to 100 kHz Clock Frequency
• Self-Timed Write Cycle (including Auto-Erase)
• Page-Write Buffer for up to 16 Bytes
• STATUS Register for Added Control:     -  Write enable latch bit     -  Write-In-Progress bit
• Block Write Protection:     -  Protect none, 1/4, 1/2 or all of array
• Built-in Write Protection:     -  Power-on/off data protection circuitry     -  Write enable latch
• High Reliability:     -  Endurance: 1,000,000 erase/write cycles     -  Data retention: > 200 years     -  ESD protection: > 4,000V
• 3-lead SOT-23 and 8-lead SOIC Packages
• Available Temperature Ranges:     -  Industrial (I): -40C to +85C

• Format - Memory    EEPROMs - Serial (with MAC Address)
• Memory Type    EEPROM
• Memory Size    2K (256 x 8)
• Speed    100kHz
• Interface    UNI/O™ (Single Wire)
• Voltage - Supply    1.8 V ~ 5.5 V
• Operating Temperature    -40°C ~ 85°C
• Package / Case    TO-236-3, SC-59, SOT-23-3
• Supplier Device Package    SOT-23-3
• Dynamic Catalog    UNI O™ Serial EEPROM
