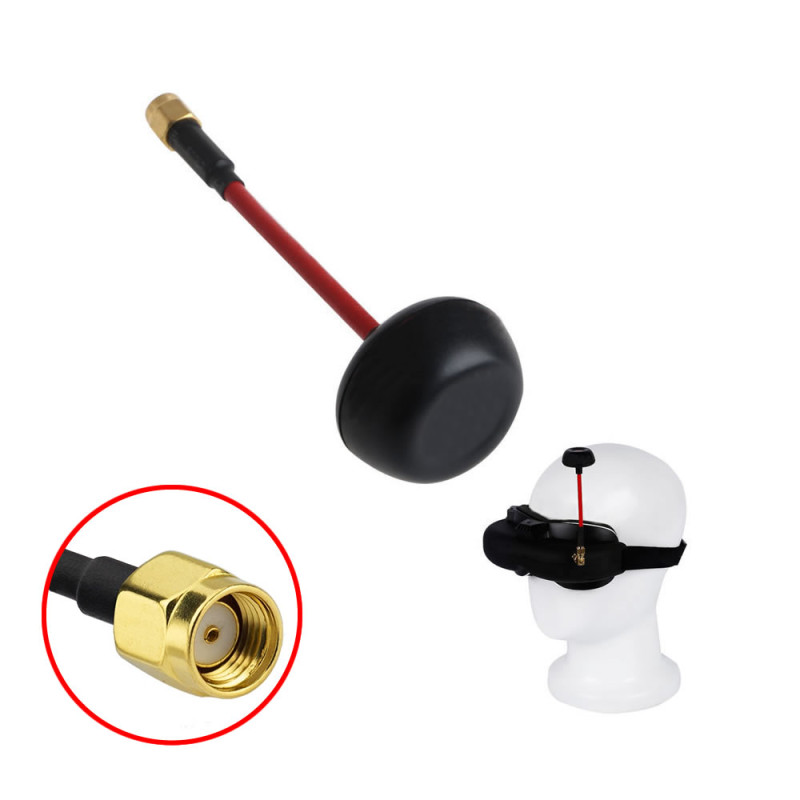

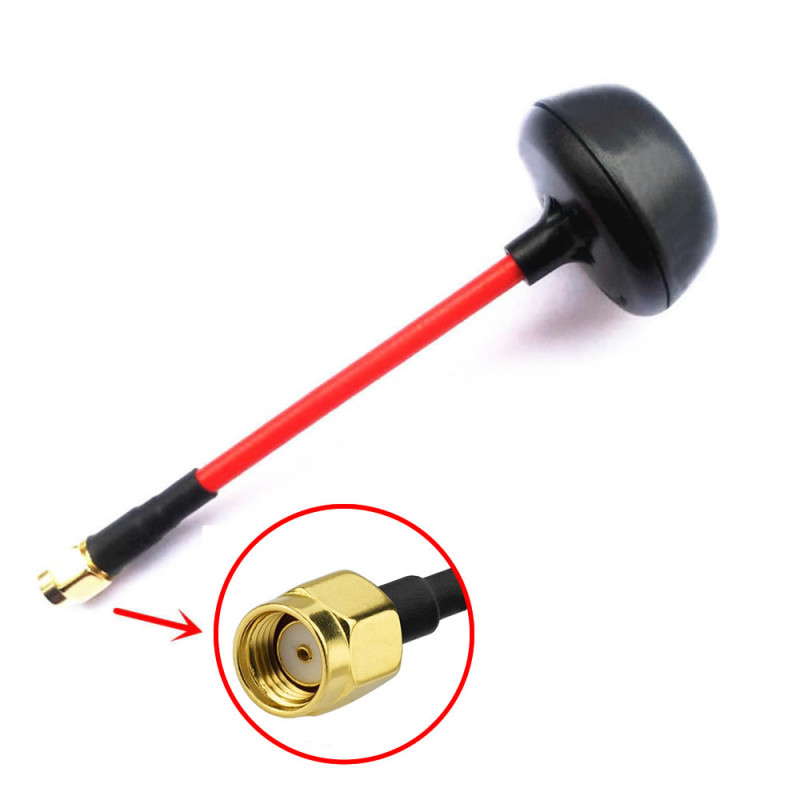

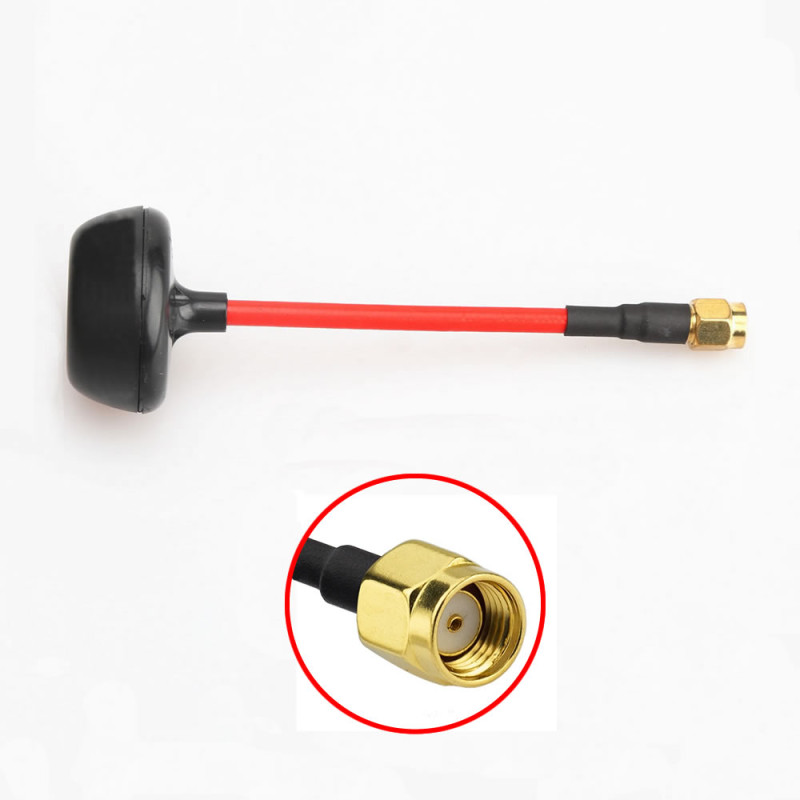

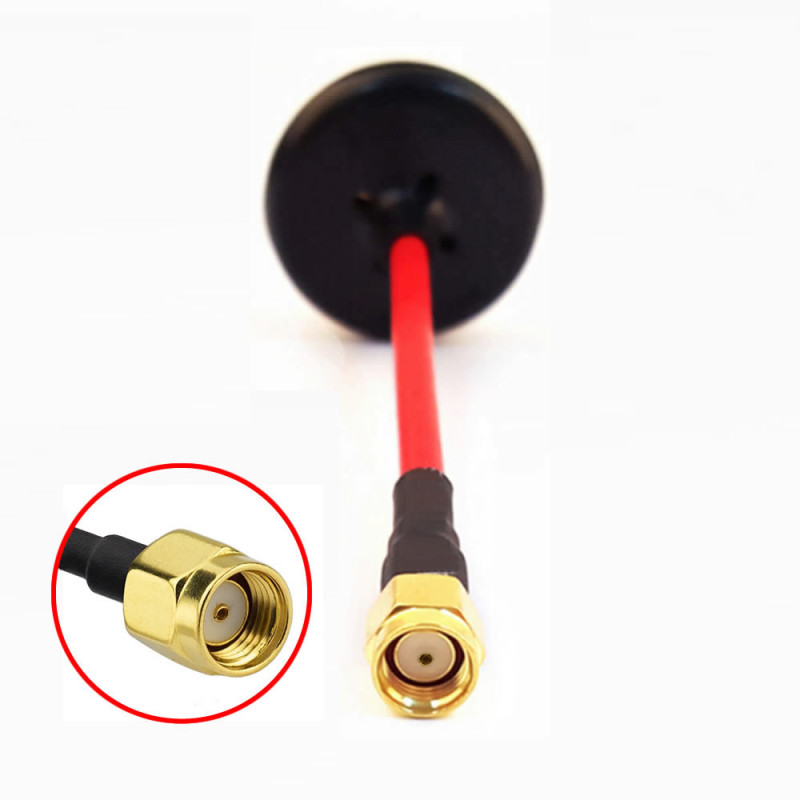

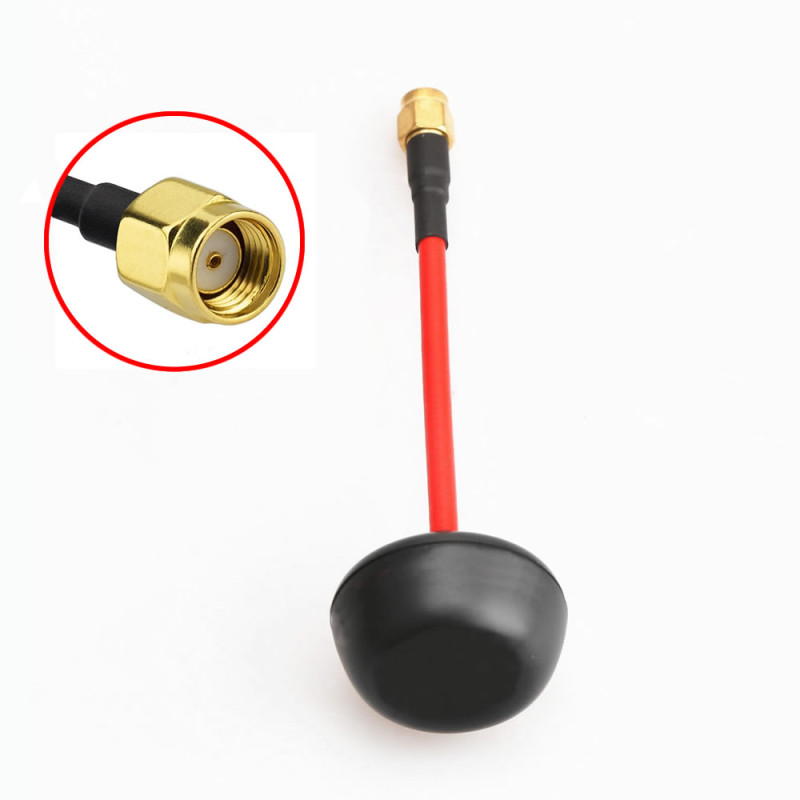

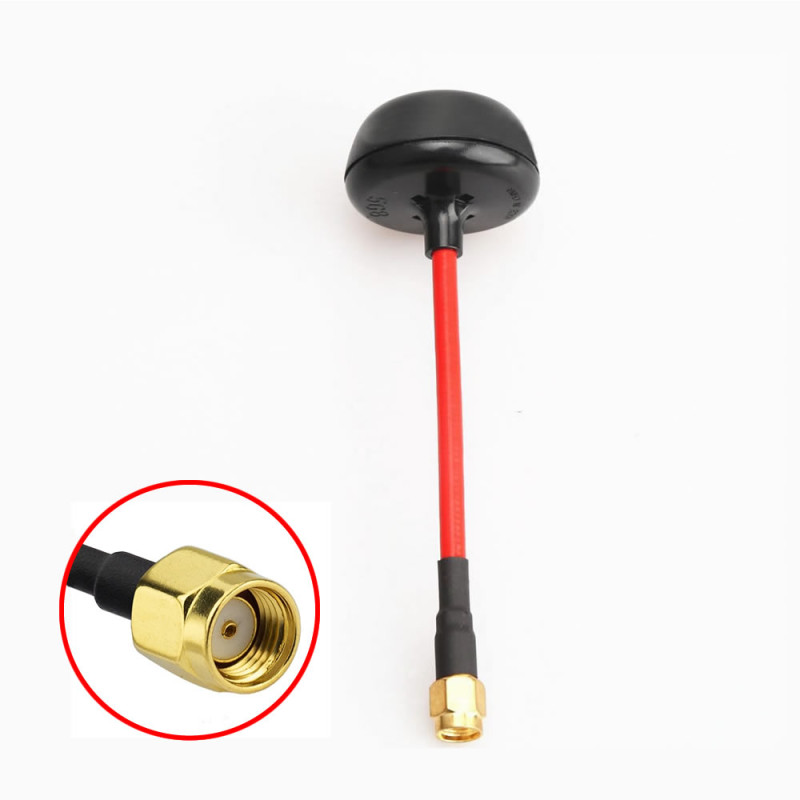

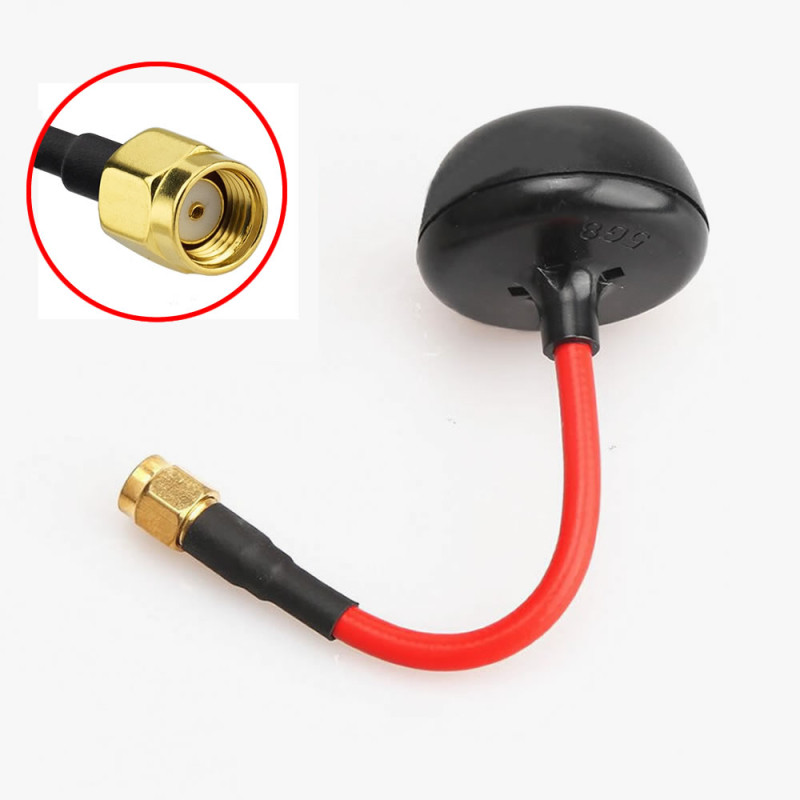

5.8Ghz Circular RP SMA Male Antenna

5.8Ghz RpSma Male Antenna

Flexible Circular Polarized Omni Mushroom Antenna RC FPV Drone Multicopter Quadcopter Camera Video Telemetry DJI Phantom

     5.8Ghz receiver transmitter antenna. It has an RpSma Male type socket structure. It is circular polarized and 10cm in size. It is newly designed and optimized. It has the possibility of communicating from a longer distance and communicating from any direction.

     It has a flexible and sturdy cable structure. It allows bending but is not damaged. It is suitable for use at 5.8Ghz frequency.

Features:

•  Center frequency: 5.8GHz ( 5.55Ghz / 6.05GHz)
•  Bandwidth: 500MHz
•  RpSma Male Socket
•  Gain 3db
•  Horizontal: 360C
•  Vertical: 120C
•  Maximum power: 50W
•  Transmission efficiency: 95%
•  Resistance: 50ohm
•  Antenna type: Receiver / Transmitter
•  Material: ABS / Metal
•  Thanks to the flexible cable structure, it can be directed to a certain direction.
•  Color: Red Black

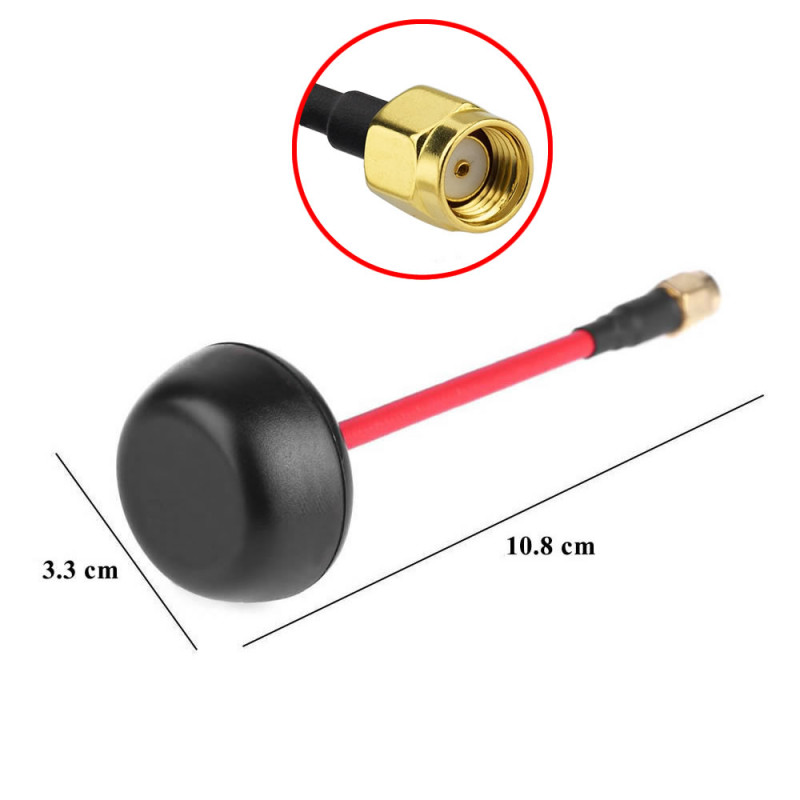

•  Antenna dimensions:  17mm x 33,5mm
•  Length: 110mm
•  Weight: 13.5gr

Package Contents :

•     1 Piece 5.8Ghz RpSma Male Omnidirectional Antenna

.
